List of Hyperlinks Formatting Incorrectly

[Logan]

     Hello! I'm running into an interesting issue.

     I have a list inside of a table. This list is getting populated using the technique outlined here:

     https://www.telerik.com/forums/table-item-that-contains-unique-list

     The list is attached to, let's say, dataSource2 and the table is attached to dataSource1. The list is returning a textbox with a URL inside of it and a different ID at the end. So if there are 3 ID's coming from dataSource2, it generates 3 links. I have set the behavior to make the text blue and underlined, like a traditional hyperlink.

     However, in Preview, only the first link is underlined. Now, there is a lot more happening inside this report, so perhaps there are some formatting things I have not discovered. But I've tried everything I can think of. Is there something I'm missing?

     Thank you in advance for any information that you can provide! I'll try to add a picture of what I'm seeing on my end tomorrow.

[Logan]

So the attached pictures are examples of what I *want* to happen. But what is actually happening in my report is the link next to "Link Above:" is underlined, but the list underneath is just blue with no underlining. If you disable underlining on the link next to "Link Above:", the first link in the list is underlined, but not the second link in the list.

[Logan]

Sorry, didn't attach the second pic of my layout and fields in my example.

[Todor]

Hi Logan,

If I understood correctly, part of TextBoxes in the List that is nested in a Table are not formatted correctly (i.e. like hyperlinks).

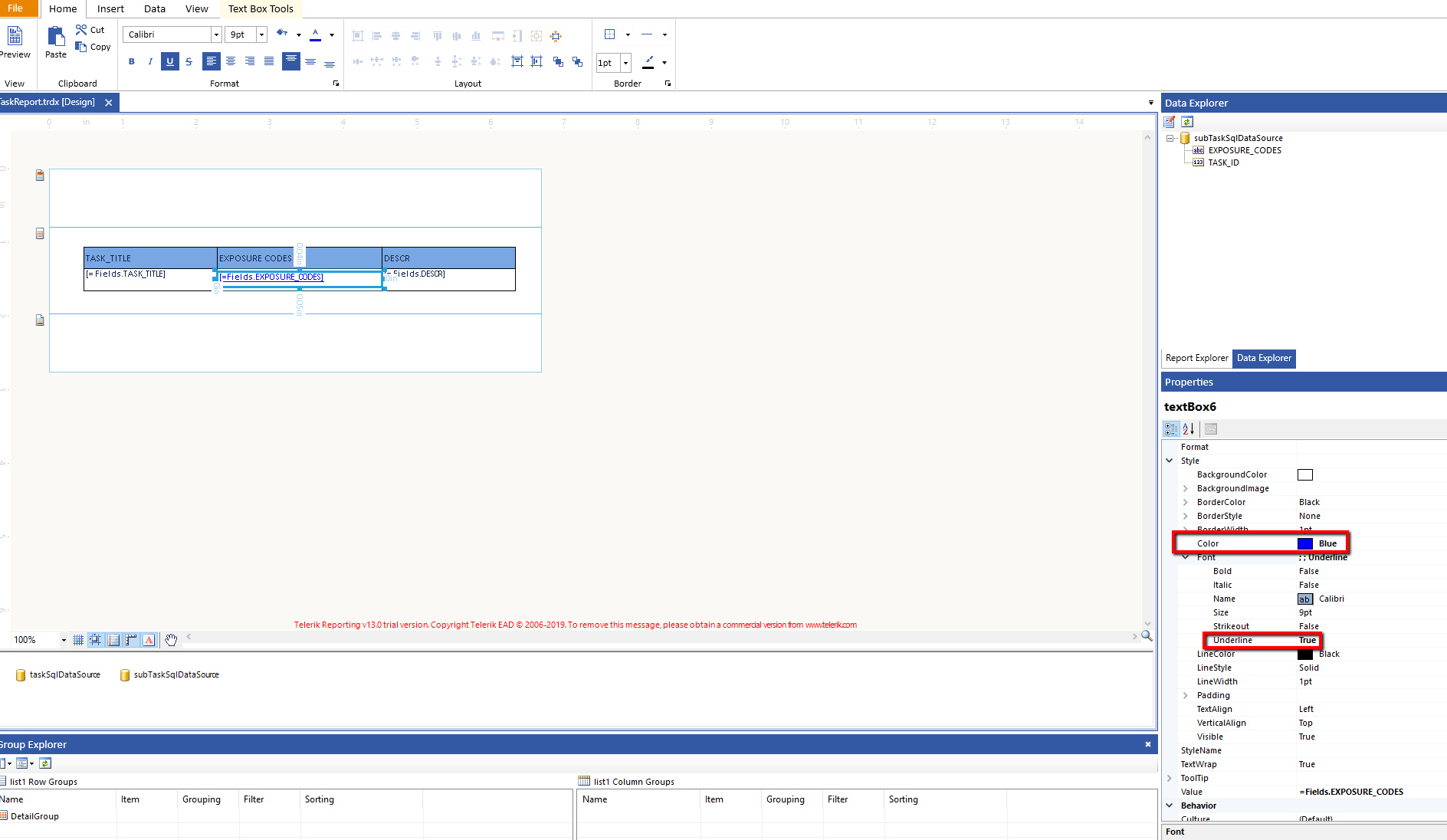

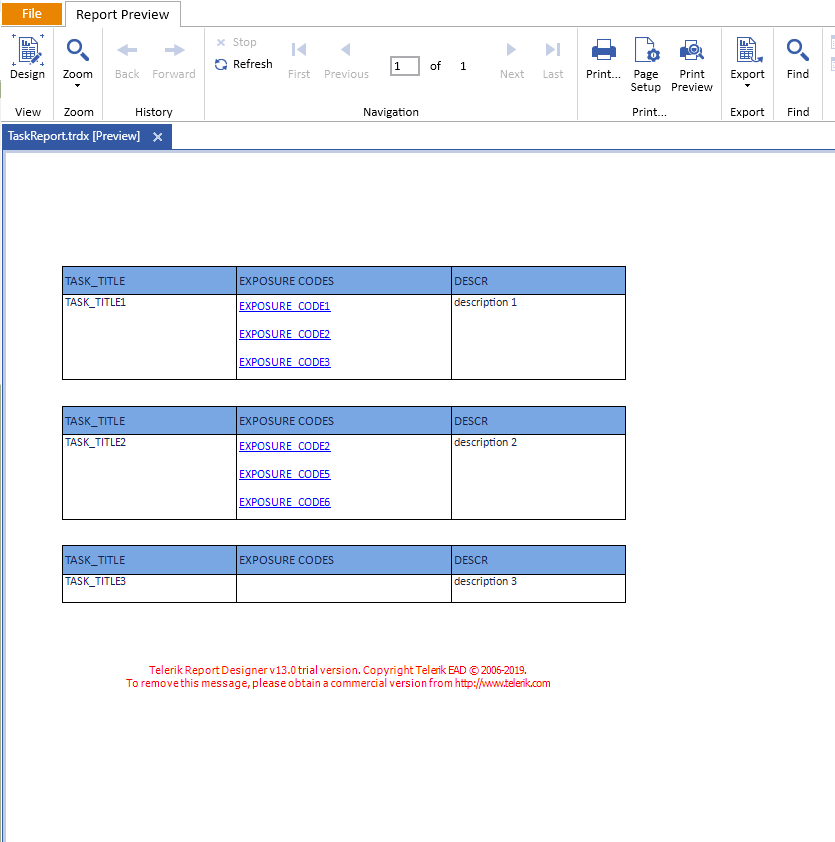

I tested with the example from the Table Item That Contains Unique List forum post and couldn't reproduce the described behavior. I have attached the modified example, a screenshot of the TextBox set-up, and of the report preview. Take a look at the example and try to adjust the report accordingly.
If the issue persists you may open a support ticket and send us a sample report that demonstrates the problem for local investigation.

Regards,
Todor
Progress Telerik

[Logan]

This may be a limitation of the specific version of Telerik we're using. We're on 12.1.18.620 and it doesn't seem to open trdx files. For the time being, this is the version my team and I are limited to.

[Logan]

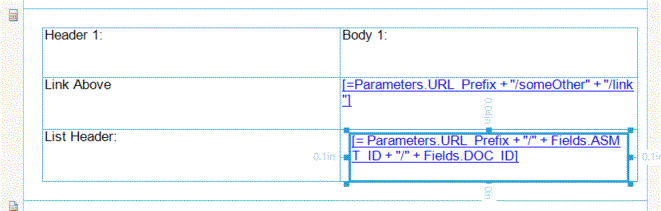

Here are the links that I'm trying to generate and the output.URL_Links_4 is the actual control which clearly displays as being underlined. URL_Links_5 is the output. Oddly, if you set Underline=False for the Font Style setting for the top control, the bottom control displays an underline. They are in separate cells in the same table. The top link is in a textbox, and the bottom link(s) are in a list control.

[Logan]

Simple fix was to rebuild report from scratch. Working properly now.
