LineSerie doesn't draw the lines

2 Answers 113 Views

General Discussions

This is a migrated thread and some comments may be shown as answers.

Foton asked on 04 May 2019, 06:05 PM

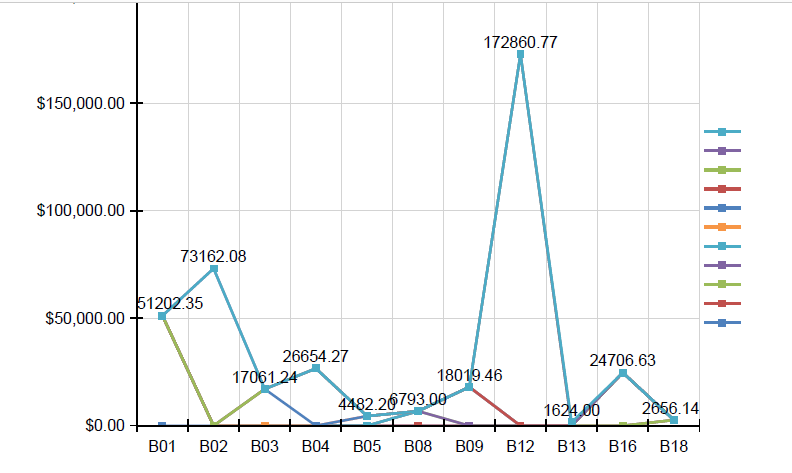

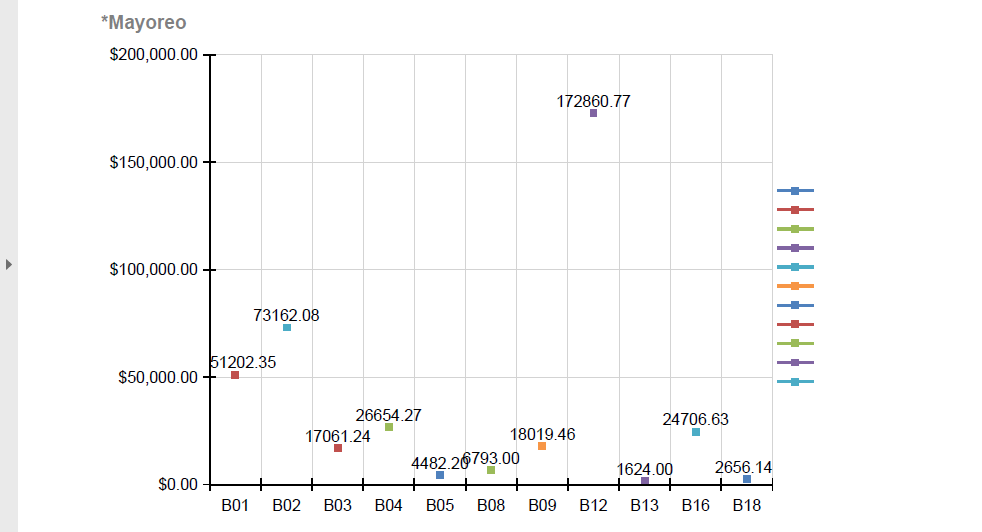

Hello, I have a question, I am using version 2019 and when I generate a report with a line series it doesn't connect the points, the line is not drawn using Arrangemode = Clustered, when I change to Stacked it draws them twice, help I need only one line, I'm forgetting some configuration?.

2 Answers, 1 is accepted

Accepted

answered on 08 May 2019, 01:26 PM


Hi Foton,

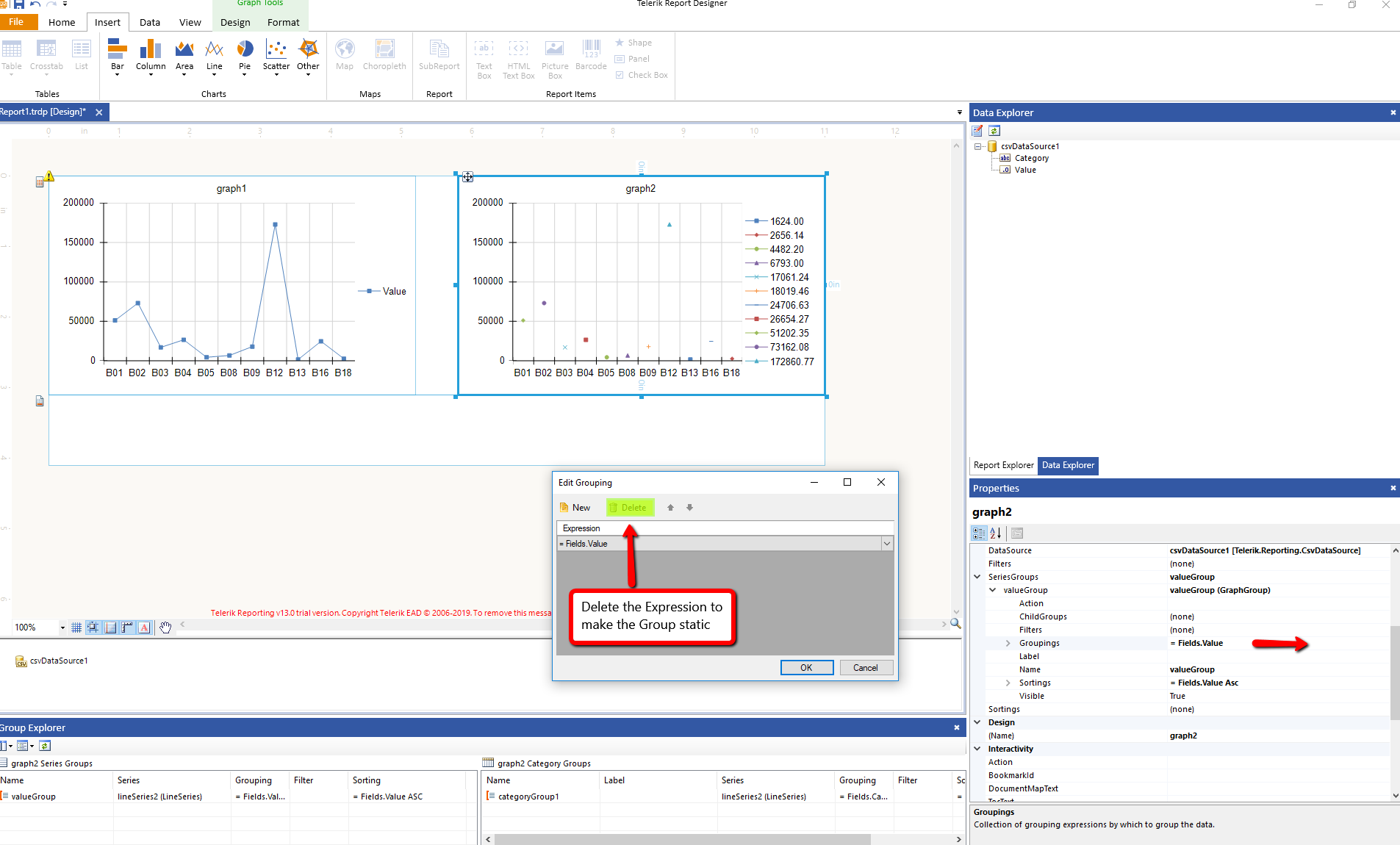

I suspect that you would like to show the data in a single LineSeries with markets, and you have added Series grouping by the values as I see 11 legend items on the screenshots. If so, either re-create the Graph with the wizard and do not provide Series, or remove the grouping in the SeriesGroup to make it static - check the attached screenshot. Let the ArrangeMode be Clustered. Now it doesn't display lines, as there is only one point in each Series.

Regards,
Todor
