Line Chart memory heavy

4 Answers 11 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Fabio
Top achievements
Rank 1
Fabio asked on 22 Jun 2020, 10:39 AM

I'm trying to display a line chart in my report.

I have it kinda working but there is a big problem...

The report should house data regarding a thermal treatment of material that lasts several hours.

Ergo there is a lot of data to display...

During my last attempt at displaying the chart in the PDF file during processing memory usage went slowly up to my limit of 2GB and stayed there like if resources were not freed up after the fact.

Is there maybe a better solution?

Just to give an idea there are upwards of 5000 values to display... I know it's a giant number but the last library I used was able to do it with minimal effort... I'm probably doing something wrong myself...

4 Answers, 1 is accepted

Sort by
0
Fabio
Top achievements
Rank 1
answered on 22 Jun 2020, 12:51 PM
public Tuple<ChartSeriesCollection, ChartSeriesCollection> getLogValues(string startTime, string stopTime)
{
    List<SqlParameter> parameters = new List<SqlParameter>();

    parameters.Add(prepDatetime2Par("@Val1", startTime));
    parameters.Add(prepDatetime2Par("@Val2", stopTime));

    using (DataTable dtResult = execQueryWithResult(subframe.getConnSqlLocal(), SELECT_LOGVALUES, parameters))
    {
        ChartSeriesCollection airTCs = new ChartSeriesCollection();
        ChartSeriesCollection materialTCs = new ChartSeriesCollection();

        foreach (DataColumn column in dtResult.Columns)
        {
            if (column.ColumnName.Contains("AIR"))
            {
                ChartSeries airTCValues = new ChartSeries();

                airTCValues.Appearance.LabelAppearance.Visible = false;
                airTCValues.Name = column.ColumnName;
                airTCValues.Type = ChartSeriesType.Line;
                airTCValues.Appearance.LineSeriesAppearance.Color = System.Drawing.Color.BlueViolet;

                foreach (DataRow row in dtResult.Rows)
                {
                    airTCValues.AddItem(Double.Parse(row[column.ColumnName].ToString()));
                }

                airTCs.Add(airTCValues);
            }

            if (column.ColumnName.Contains("MAT"))
            {
                ChartSeries matTCValues = new ChartSeries();

                matTCValues.Appearance.LabelAppearance.Visible = false;
                matTCValues.Name = column.ColumnName;
                matTCValues.Type = ChartSeriesType.Line;
                matTCValues.Appearance.LineSeriesAppearance.Color = System.Drawing.Color.BlueViolet;

                foreach (DataRow row in dtResult.Rows)
                {
                    matTCValues.AddItem(Double.Parse(row[column.ColumnName].ToString()));
                }

                materialTCs.Add(matTCValues);
            }
        }

        return Tuple.Create(airTCs, materialTCs);
    }
}
0
Fabio
Top achievements
Rank 1
answered on 22 Jun 2020, 12:52 PM
Essentially what I observe during operation is that my datatable get disposed propperly but the cartseriescollection just hang around and they are not disposable objects so I don't know how to treat them...
0
Fabio
Top achievements
Rank 1
answered on 22 Jun 2020, 01:36 PM
public void AddGraph(Tuple<ChartSeriesCollection, ChartSeriesCollection> data)
{
    Chart treatGraph = new Chart();
    treatGraph.Name = "treatGraph";
    treatGraph.ChartTitle.Visible = false;
    treatGraph.Legend.Visible = false;
    treatGraph.BitmapResolution = 96F;
    treatGraph.ImageFormat = System.Drawing.Imaging.ImageFormat.Emf;
    treatGraph.Size = new SizeU(Unit.Cm(20.000d), Unit.Cm(7.000d));
    treatGraph.Location = new PointU(Unit.Cm(0.000d), Unit.Cm(0.100d));

    treatGraph.PlotArea.Appearance.FillStyle.FillType = Telerik.Reporting.Charting.Styles.FillType.Gradient;
    treatGraph.PlotArea.Appearance.FillStyle.MainColor = System.Drawing.Color.FromArgb(65, 201, 254);
    treatGraph.PlotArea.Appearance.FillStyle.SecondColor = System.Drawing.Color.FromArgb(0, 107, 186);
    treatGraph.PlotArea.Appearance.Dimensions.AutoSize = true;

    // Set text and line for X axis
    treatGraph.PlotArea.XAxis.AxisLabel.TextBlock.Text = "Date and Time";
    treatGraph.PlotArea.XAxis.AxisLabel.TextBlock.Appearance.TextProperties.Color = System.Drawing.Color.Red;
    treatGraph.PlotArea.XAxis.Appearance.Width = 3;
    treatGraph.PlotArea.XAxis.Appearance.Color = System.Drawing.Color.Red;
    treatGraph.PlotArea.XAxis.AutoScale = true;
    treatGraph.PlotArea.XAxis.Visible = Telerik.Reporting.Charting.Styles.ChartAxisVisibility.False;
    treatGraph.PlotArea.XAxis.MaxItemsCount = 20;

    // Set text and line for Y axis
    treatGraph.PlotArea.YAxis.AxisLabel.TextBlock.Text = "°C";
    treatGraph.PlotArea.YAxis.AxisLabel.TextBlock.Appearance.TextProperties.Color = System.Drawing.Color.Red;
    treatGraph.PlotArea.YAxis.Appearance.Width = 3;
    treatGraph.PlotArea.YAxis.Appearance.Color = System.Drawing.Color.Red;
    treatGraph.PlotArea.YAxis.AutoScale = true;
    treatGraph.PlotArea.YAxis.MinValue = 25;
    treatGraph.PlotArea.YAxis.MaxValue = 125;
    treatGraph.PlotArea.YAxis.MaxItemsCount = 10;

    // Add the series to the chart, chart to page.
    treatGraph.Series.AddRange(data.Item1.ToArray());
    treatGraph.Series.AddRange(data.Item2.ToArray());

    detailSection.Items.Add(treatGraph);
}



This is the method that is actually generating the chart in the report...

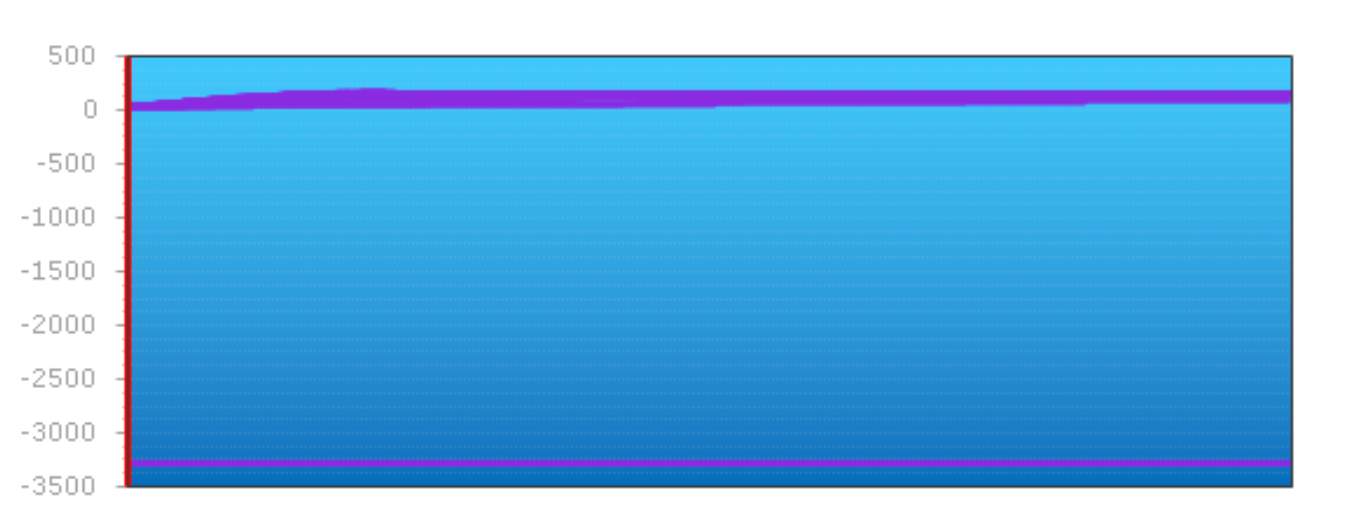

The graph seems to ignore all my instructions as you can see in the attached PNG of the graph resulting from this method...

I know that the graph type exists now but it's very confusing and this seems much easier to use...

0
Katia
Telerik team
answered on 25 Jun 2020, 08:37 AM

Hello Fabio,

Based on the provided code, I see that you use a Chart item that was made obsolete in Q1 2013. I recommend switching to a Graph item and connect it to the data at design-time. Creating reports with charts programmatically is rather difficult task and it is always safer to use built-in chart wizards that allow connecting to the data at design-time and setting the necessary groupings for categories, series etc.

You can either supply the data you have through ObjectDataSource or set Graph.DataSource property at run-time and use a mock-up data (could be in CSV format) at design-time - Working With Data at Design Time.



Regards,
Katia
Progress Telerik
