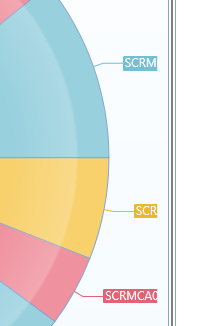

I have a problem with the bar chart - when label is wider then the bar, then part of the label is clipped. Please see screenshot attached. Also in a pie chart labels are almost always clipped on the right and left sides
4 Answers, 1 is accepted
0
Hi,
Thank you for the provided screenshots. There are a couple of properties that you can play with, to see if you can configure the chart to display the labels per your requirement. For example:
Greetings,
Sia
the Telerik team
Thank you for the provided screenshots. There are a couple of properties that you can play with, to see if you can configure the chart to display the labels per your requirement. For example:
- Reduce the LabelOffset of the series definition
- Reduce the RadiusFactor of the series definition
- Use Horizontal Bar Series definition instead of vertical one. Since the space is limited - horizontal bars might be a better solution to start with.
Greetings,
Sia
the Telerik team
Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
0
A
Top achievements
Rank 1
answered on 10 Apr 2012, 12:41 PM
Thank you for the answer and advise. I already have tooltips but labels are required as well.
Unfortunately I can not use HorizontalBarChart. But I've found 'partial solution' - when attaching snoop to my application and set margins of PART_DragZoomLayer and Part_LabelsPanel to (10, 0, 10, 0) and for PART_AxisX (5,0,5,0) I get expected behavior. Now I need to hook this settings to the Style to get acceptable result.
As for pie chart, it looks like there is bug with label placement - pie chart leaves some space around, and when changing charts width I can see that labels position is changed. I can make it wide enough to fit all labels, but when width reaches some min width labels starts to being clipped but their position is not changed.
Unfortunately I can not use HorizontalBarChart. But I've found 'partial solution' - when attaching snoop to my application and set margins of PART_DragZoomLayer and Part_LabelsPanel to (10, 0, 10, 0) and for PART_AxisX (5,0,5,0) I get expected behavior. Now I need to hook this settings to the Style to get acceptable result.
As for pie chart, it looks like there is bug with label placement - pie chart leaves some space around, and when changing charts width I can see that labels position is changed. I can make it wide enough to fit all labels, but when width reaches some min width labels starts to being clipped but their position is not changed.
0
A
Top achievements
Rank 1
answered on 10 Apr 2012, 02:10 PM
Ok, for the bar chart i've ended with copying templates for ChartArea and AxisX2D and adding Margin where appropriate.
I still dont know what to do with the pie chart. What is the easiest way to 'tweak' layout logic for the labels?
I still dont know what to do with the pie chart. What is the easiest way to 'tweak' layout logic for the labels?
0
Hello,
Please send us a small runnable application reproducing your problem and we will modify it if possible to work as you need. Thank you in advance.
Regards,
Sia
the Telerik team
Please send us a small runnable application reproducing your problem and we will modify it if possible to work as you need. Thank you in advance.
Regards,
Sia
the Telerik team
