Hi, I'm trying to insert a grid in the background of a diagram and have found some suggestions on how to do it, but the problem with these solutions is that when I try to remove a specific element, the other element disappears.
Suggested solution: image in Kendo UI for jQuery | Telerik Forums or Untitled | Kendo UI Dojo (telerik.com)
The problem is this insert
diagram.mainLayer.drawingElement.insertAt(grid, 0)As far as I understand, this breaks the sequence and removes the previous element.
Does anyone know how to avoid this behavior or another solution to insert grid?
PS: The grid is only needed for positioning.
1 answer
136 views
How to change color of selected date on kendo calendar
Nikolay
Telerik team
updated answer
on
20 Oct 2022
2 answers
321 views
We have a Telerik Map object on a view, and the map displays several markers which is working perfectly. Each marker has a tooltip configured to "LoadContentFromAjax", so when the user hovers over the marker (for the first time), the API is queried and the correct data is returned.
The problem is that the Markers Tooltip data is only loaded the first time the user hovers over the icon after the page loads. once that first hover has occurred, the existing data is displayed until the page is reloaded.
I have attempted to refresh the data using the marker tooltips "Show" event, but so far i have had no luck.
This is my onShow event that is called anytime the Marker is hovered over
function tooltip_OnShow(e) {
console.log(e);
e.sender.marker.dataItem.refresh();
}the "e.sender.marker.dataItem.refresh()" just throws an exception. I have tried several different iterations, with no luck so far.
1 answer
190 views
Hi, What about kml/kmz support for Kendo Maps?
Thank's marc.
Patrick | Technical Support Engineer, Senior
Telerik team
answered
on
19 Oct 2022
2 answers
210 views
I had implemented this example: https://dojo.telerik.com/omIxeDUx
When I'm using kendo scheduler with view "Agenda", I need to separate events on same date by group, so I'm using the resources + group option.
With that said, I'm having problem when I need to get the selected event on change event trigger. But for some reason, depending on which event's row you select, the e.events[0] attribute is returning another event, which is not the selected one.
I'm trying to find what I'm doing wrong, the example alerts to window the meetingID of e.events[0] when change event triggers. If you see by the description of event, the ID is different.
Can anyone help me with this problem?
EDIT:
If you are experiencing the same problem, here is a workaround. I'd notice that I can get the selected item by the UID of the selected row, and just ignore the e.events. Here is the following implementation: https://dojo.telerik.com/omIxeDUx/7 (notice that depending on the version you using, the "class" of selected item may be "k-state-selected" instead of "k-selected")
change: function (e) {
var selected = document.querySelector(".k-scheduler-content tr.k-selected");
if (selected) {
var data = $(selected).find("[data-uid]").data();
var selectedItem = this.dataSource.getByUid(data.uid);
alert("Kendo event: " + e.events[0].meetingID + "\nSelected event: " + selectedItem.meetingID);
}
}
Best regards,
Neli
Telerik team
answered
on
19 Oct 2022
0 answers
316 views
I'm specifically working with the scheduler, however I believe this applies to any MVVM items.
When double click an event in the scheduler, my editor template is rendered and Kendo binds this to the event being edited. This happens for "free" as I do not do this. Consider this element:
<div data-container-for="title">
<input type="text" data-role="textbox" name="title" required="required" data-bind="value:title" />
</div>The binding to title works perfectly fine and I see my value.
Next, my event has a CategoryId which tags the event and what it is. This is a property I have added. Let me point out that if I replace title above with CategoryId, the integer value of the category displays. So this value is known and part of the bound object. However, I am using a very custom templated dropdown for this.
<div data-container-for="CategoryId">
<input id="CategoryId" data-bind="value: CategoryId, source: categoriesDataSource" data-role="dropdownlist" data-auto-width="true"
data-header-template="categorySearchHeaderTemplate" data-template="categorySearchTemplate" data-text-field="Description"
data-value-field="Id" data-auto-bind="false" />
</div>Hopefully this makes sense. My categories have an Id and a Description. There is a list of them. The event has a CategoryId which holds the value of what category is selected. However this element has its own datasource! Note the data-bind.
// This datasource is created and then kendo.bind() is called to bind to my dropdown
var categoriesViewModel = kendo.observable({
categoriesDataSource: new kendo.data.DataSource({
data: jsonSerializedCategories
})

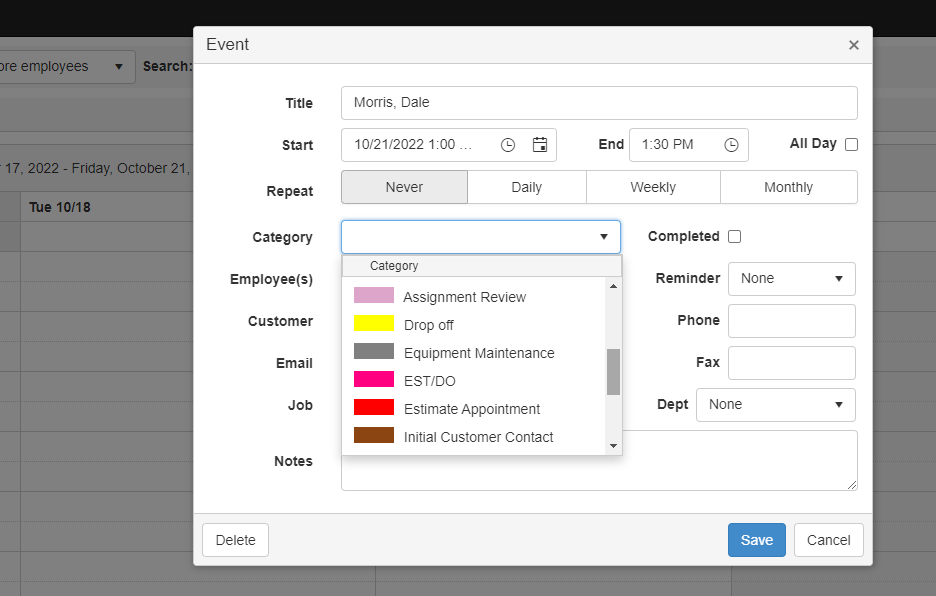

});This drop down works perfectly fine for templates and for the elements in it. See screenshot below. But the value binding does not work. This is obviously because I had to set my own datasource on it. The value is not found in that datasource; it's in the one Kendo generated and applied to the popup. What is the proper way to set this up? The value is in one datasource and the elements here are in the other one I created.
0 answers
132 views
Hy This code is part of my grid.
grid._parameterMap = function (data, type) {
if (type !== "read" && data.models)
return { models: kendo.stringify(data.models) };
var warehouseCodeList = [];
var selectedWarehouse_OnPhysicalCountDefinition = '';
$.each(KendoData('mltWarehouse_OnPhysicalCountDefinition').dataItems(), function (index, value) {
selectedWarehouse_OnPhysicalCountDefinition += value.WarehouseCode + ',';
});
selectedWarehouse_OnPhysicalCountDefinition = selectedWarehouse_OnPhysicalCountDefinition.slice(0, -1);
debugger;
var parameters = {
warehouseCodeList: selectedWarehouse_OnPhysicalCountDefinition,
periodDateString: $('#dpcPeriodDate_OnPhysicalCountDefinition').val(),
Page: data.page,
PageSize: data.pageSize
}
return kendo.data.transports["odata"].parameterMap(parameters, type);
};And parameters value is
You can see that my data and that large data not going my controller becouse of that large warehouseCodeList.
Request URL: https://zzzz/Inv/yyy/xxxx/?%24inlinecount=allpages&%24format=json&warehouseCodeList=480176%2C480172%2C480003%2C480166%2C480109%2C480025%2C480090%2C480089%2C480002%2C480088%2C480061%2C480101%2C480016%2C480009%2C480095%2C480008%2C480094%2C480093%2C480006%2C480092%2C480005%2C480091%2C480004%2C480117%2C480033%2C480114%2C480060%2C480113%2C480163%2C480030%2C480059%2C2011%2C480157%2C480028%2C480045%2C480048%2C480039%2C480029%2C480120%2C480046%2C480156%2C480049%2C480072%2C480063%2C480062%2C48006100%2C480071%2C480070%2C480069%2C480068%2C480067%2C480066%2C480065%2C480064%2C480077%2C480076%2C480085%2C480084%2C480082%2C480078%2C480073%2C480075%2C480079%2C480074%2C480083%2C480127%2C480128%2C480057%2C480129%2C480058%2C480081%2C480080%2C480141%2C480132%2C480131%2C480130%2C480140%2C480138%2C480137%2C480136%2C480135%2C480134%2C480133%2C480146%2C480145%2C480154%2C480153%2C480151%2C480147%2C480142%2C480144%2C480148%2C480143%2C480152%2C480139%2C480150%2C480149%2C480106%2C480126%2C480055%2C480165%2C480167%2C480100%2C480123%2C480053%2C480096%2C480168%2C480162%2C480159%2C480158%2C480038%2C480102%2C480017%2C480013%2C480122%2C480047%2C480116%2C480032%2C480034%2C480107%2C480040%2C480118%2C480098%2C480051%2C480110%2C480026%2C480111%2C480027%2C480108%2C480103%2C480115%2C480031%2C480035%2C480087%2C480086%2C480036%2C480119%2C480112%2C480010%2C480097%2C480155%2C480124%2C480054%2C480019%2C480099%2C480104%2C480171%2C480164%2C480041%2C480042%2C480121%2C480043%2C480044%2C480014%2C480052%2C480170%2C480037%2C480050%2C480012%2C480105%2C480169%2C480161%2C480174%2C480173&periodDateString=17%2F10%2F2022&Page=1&PageSize=50 Request Method: GET Status Code: 200 OK Remote Address: 10.6.243.40:443 Referrer Policy: strict-origin-when-cross-origin Cache-Control: private Content-Length: 406 Content-Type: application/json; charset=utf-8 Date: Mon, 17 Oct 2022 11:51:47 GMT Server: Microsoft-IIS/10.0 Set-Cookie: LanguageValue=tr-TR; path=/ Set-Cookie: LanguageIndex=1; path=/ Vary: Accept-Encoding X-AspNet-Version: 4.0.30319 X-AspNetMvc-Version: 5.2 X-Powered-By: ASP.NET Accept: application/json, text/javascript, */*; q=0.01 Accept-Encoding: gzip, deflate, br Accept-Language: tr-TR,tr;q=0.9,en-US;q=0.8,en;q=0.7 Connection: keep-alive Cookie: BIGipServerASG-CP20-CORE-TEST2-443-GM.app~ASG-CP20-CORE-TEST2-443-GM_pool=1542653450.47873.0000; _hjSessionUser_744605=eyJpZCI6IjE2NjBiZDJhLWViMGUtNWY5OC04OTkxLTc4ZDM3YTEzOWJkNyIsImNyZWF0ZWQiOjE2NjQ4ODYyMDIzMDIsImV4aXN0aW5nIjp0cnVlfQ==; ASP.NET_SessionId=m3qxmvgkq4ur4tv1dcy5dg24; client_code=9931c35f-d1c6-46fd-a9ef-cced60ff1bd5; access_token=eyJhbGciOiJodHRwOi8vd3d3LnczLm9yZy8yMDAxLzA0L3htbGRzaWctbW9yZSNobWFjLXNoYTI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiQVRBTEFZIiwiVXNlcklkIjoiNzQ3MSIsIk9yZ2FuaXphdGlvbkNvZGUiOiJBQyIsIkZhY2lsaXR5Q29kZSI6IjQ4IiwiT3JnYW5pemF0aW9uSWQiOiIxIiwiRmFjaWxpdHlJZCI6IjEiLCJUb2tlbkNvZGUiOiJmNWI4MDkzMC0zYjZlLTRhNmItOTIwNC1lMzg2M2M0Njg3OTAiLCJqdGkiOiJlZTQxMzkxYy04OGU1LTQ3OGUtOGIwNi03NjdmYTAxZjVmZjMiLCJhdWQiOlsiNjdEREM3M0MtQjQ4Ni00MTdBLTk1NjMtRDIzRUYxOEMzNkM3IiwiOUE3NzVEODctRkFBMS00QTNCLTlFNDAtMDRCOTcwODUxQzNFIiwiMDg0OEIwQUEtNERFNC00RjU5LTk4OTgtNTZEM0E0QTZCMTVCIiwiOTkyQTY5NzgtQ0U4OS00NkJGLTk4MkEtQzc4MzJGNDk4QkYwIiwiMDc4MEIwQzUtNzBDQi00MzcwLTk2QjktQTk1NzhDOEQ4MDI3IiwiRDFGNkUzOEItQjdGMy00RTk1LTlEMkEtNjA0QjMyRTY3MUMwIiwiMDg0OEIwQUEtNERFNC00RjU5LTk4OTgtNTZEM0E0QTZCMTVBIl0sIm5iZiI6MTY2NjAwNzAxOSwiZXhwIjoxNjY2MDUwMjE5LCJpc3MiOiI2N0REQzczQy1CNDg2LTQxN0EtOTU2My1EMjNFRjE4QzM2QzcifQ.y93UK_lZDXV5nFK71xOvmrcJSHX9oVR3TFJQDcO6x-c; NameSurname=EROL%2BATALAY; themeCp=dark; langCp=tr; langIdCp=1; PersonnelCode=XX9331; FacilityName=Ac%C4%B1badem%20Ata%C5%9Fehir%20Hst.; FacilityId=1; OrganizationName=ACIBADEM; dateTimeFormatCode=tr-TR; LanguageValue=tr-TR; LanguageIndex=1
And Finaly I try the give dataSource remote but not work .But ı can gice that data ın Ajax call.Can you Help me ?
What can I do in this situation?
Merve
Top achievements
Rank 1
Veteran
Rank 1
Veteran
asked
on
17 Oct 2022
1 answer
175 views
I have a stacked kendo bar chart defined as follows:
$("#chart").kendoChart({
title: {
text: ""
},
legend: {
visible: false
},
seriesDefaults: {
type: "bar",
stack: true
},
series: [{
name: "Value1",
data: [-40, 32, 34, 36, 45, 33, -34, 83, 36, 37, 44, 37, 35, 36, 46],
color: "#f3ac32"
}, {
name: "Value2",
data: [19, 25, -21, 26, 28, 31, 35, 60, 31, 34, 32, 24, 40, 38, 29],
color: "#b8b8b8"
}, {
name: "Value3",
data: [17, 17, 16, -28, 34, 30, 25, 30, -27, -37, 25, 33, 26, 36, 29],
color: "#bb6e36",
labels: {
template: "#= stackValue #",
visible: true
},
}],
valueAxis: {
max: 180,
line: {
visible: false
},
minorGridLines: {
visible: true
}
},
categoryAxis: {
categories: [1952, 1956, 1960, 1964, 1968, 1972, 1976, 1984, 1988, 1992, 1996, 2000, 2004, 2008, 2012],
majorGridLines: {
visible: false
}
},
tooltip: {
visible: true,
template: "#= series.name #: #= value #"
}
});
But the sum displayed at the end of the bar is not correct in the cases where data is negative.

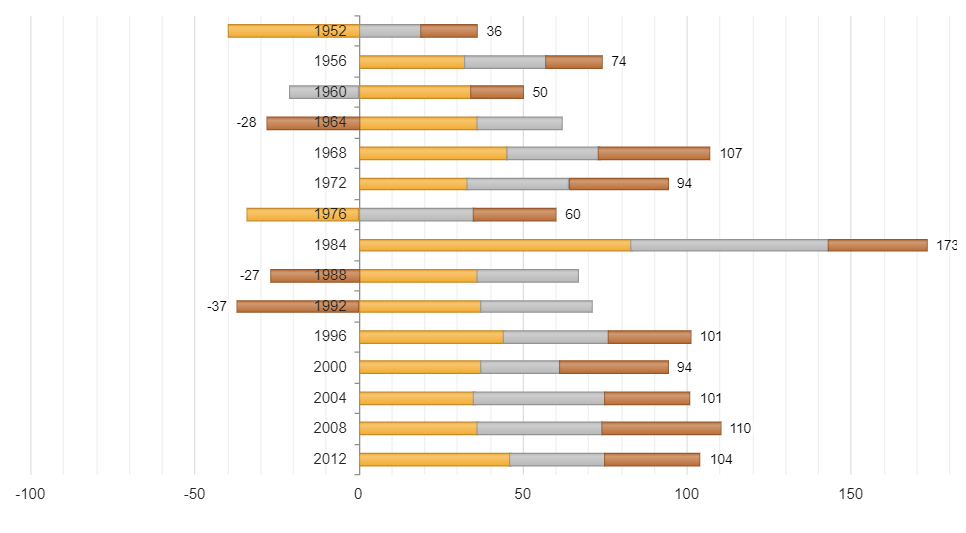

See the output below :
How do I get it to display the correct sum?
Nikolay
Telerik team
answered
on
17 Oct 2022
9 answers
306 views
I want to add lunar calendar date after all scheduler dates
like in month view will add lunar calendar date after scheduer date
1 answer
180 views

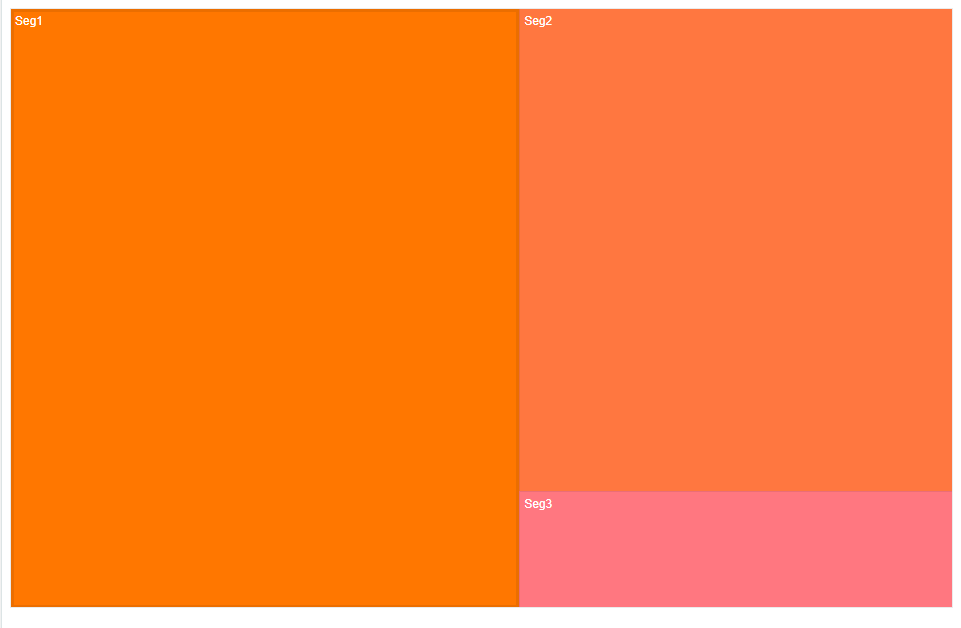

I want to be able to display the treemap value on the TreeMap chart.
My TreeMap Definition :
$("#treeMap").kendoTreeMap({
dataSource: {
data: [{
items: [{
name: "Seg1",
value: 54
},
{
name: "Seg2",
value: 37
},
{
name: "Seg3",
value: 9
}]
}]
},
valueField: "value",
textField: "name",
colors: [["#FF7700","#FF77FF"]]
});
I want to be able to see the values also in the chart like Seg1 : 54 , Seg2 : 37 , Seg3 : 9 . How do I do that?
