TreeList does not show just inserted row if custom template for edit is enabled

I am using TreeList to edit hierarchical data. I have to use Custom Edit template to create/edit rows. But new row disappears after clicking on Update button in Popup window. I have to refresh page to see new rows. What am I doing wrong?

@(Html.Kendo().TreeList<Models.FlowItemModel>()
    .Name("treelist")
    .Toolbar(toolbar => toolbar.Create())
    .Columns(columns =>
    {
        columns.Add().Field(e => e.FieldType).Width(200).Title("Type");
        columns.Add().Field(e => e.FieldLabel);
        columns.Add().Field(f => f.LineNumber).Width(100).Title("#");
        columns.Add().Field(e => e.DropdownValues).Width(150).Title("DropDown");
        columns.Add().Width(350).Command(c =>
        {
            c.CreateChild().Text("Add child");
            c.Edit();
            c.Destroy();
        });
    })
    .Editable(editable => editable.Move(move => move.Reorderable(true)))
    .Editable(e => e.Mode("popup").TemplateName("CustomTreeListPopup"))
    .Filterable()
    .Sortable()
    .DataSource(dataSource => dataSource
        .Create(create => create.Action("CreateFlowItem", "Configurator").Data("getConfiguration"))
        .Read(read => read.Action("GetFlowItems", "Configurator").Data("getSelectedFlowItem"))
        .Update(update => update.Action("UpdateFlowItem", "Configurator").Data("getConfiguration"))
        .Destroy(delete => delete.Action("DeleteFlowItem", "Configurator"))
        .Model(m =>
        {
            m.Id(f => f.Id);
            m.ParentId(f => f.ParentId).Nullable(true);
            m.Field(f => f.LineNumber);
            m.Field(f => f.FieldLabel);
            m.Field(f => f.FieldType);
        })
    )
    .Events(events =>
     {
         events.DragEnd("onDragEnd");
     })
)

CustomTreeListPopup:

@addTagHelper *, Microsoft.AspNetCore.Mvc.TagHelpers
@addTagHelper *, Kendo.Mvc
@using Kendo.Mvc.UI
@model Web.Models.FlowItemModel

<div class="k-edit-form-container">
    <h5>Flow Item</h5>
    <br />
    @Html.HiddenFor(model => model.Id, new { @id = "edit_Id", @Name = "edit_Id" })
    @Html.HiddenFor(model => model.ParentId, new { @id = "edit_ParentId", @Name = "edit_ParentId" })
    <div class="editor-label">
        @Html.LabelFor(model => model.FieldLabel)
    </div>
    <div class="k-edit-field">
        @Html.EditorFor(model => model.FieldLabel)
        @Html.ValidationMessageFor(model => model.FieldLabel)
    </div>
    <div class="editor-label">
        @Html.LabelFor(model => model.FieldType)
    </div>
    <div class="k-edit-field">
        @(Html.Kendo().DropDownListFor(model => model.FieldType)
            .HtmlAttributes(new { style = "width:100%" })
            .AutoBind(false)
            .DataSource(source =>
            {
                source.Read(read =>
                {
                    read.Action("GetFieldTypes", "Configurator");
                });
            })
            )
    </div>
    <div class="editor-label">
        @Html.LabelFor(model => model.DropdownValues)
    </div>
    <div class="k-edit-field">
        @Html.EditorFor(model => model.DropdownValues)
        @Html.ValidationMessageFor(model => model.DropdownValues)
    </div>
</div>

TreeList

answered on 23 Nov 2022

0 answers

116 views

Legend Icon shapes in Chart

Dear team,

We upgraded kendo version from Kendo UI v2015.1.429 to Kendo UI v2022.2.510. In the upgraded version we are having small ui presentation issuein chart legends. find the below screens ,and we want as square shape legends. Please suggest any way to resolve this issue.

Regards, Appreciate your support.

Charts

updated question on 22 Nov 2022

0 answers

109 views

Grid Pagination default value 0

Dear team,

We upgraded kendo version from Kendo UI v2015.1.429 to Kendo UI v2022.2.510.In the upgraded version we are facing small ui presentation issue in Grid. On default in pageination, page numbers are not able to load in grid . It is showing empty. For Old version, defaultly it will display 0 in pagination. Below are teh Screen shots for more reference.

Grid

updated question on 22 Nov 2022

0 answers

120 views

want to create expandable grid using telerik kendo controls. arrow is not coming for grid. can anyone please help me. using vb.net mvc.

I have written detail expand function on index page and my kendo grid is on another page. my other functions are accessible but can't access detail expand and other functions related to kendo grid. need vb.net mvc code.
can anyone please help.

function detailExpand(e) {
            if (expandedRow != null && expandedRow[0] != e.masterRow[0]) {
                var grid = $('#drgdgrid').data('kendoGrid');
                $(".k-master-row").each(function (index) { grid.expandRow(this); });
                grid.collapseRow(expandedRow);
                expandedRow.next().remove();
            }
            expandedRow = e.masterRow;
            //id = expandedRow[0].cells[0].innerText;
            var masterDataItem = $('#drgdgrid').data('kendoGrid').dataItem(expandedRow);
            expandedDataItem = masterDataItem;
            if (masterDataItem.code != null && masterDataItem.code != '') {
                $(".hideAddButton").hide();
           }
            else {
               $(".hideAddButton").show();
            }



        }

Data Source

Grid

asked on 21 Nov 2022

0 answers

112 views

Skip/Hide Categoryaxis series

Is it possible or work around to skip for example, if I have a chart with the past seven days in the categoryAxis, but to skip the weekends?

Charts

asked on 18 Nov 2022

1 answer

416 views

Grid Detail Template How to add tooltip and column header

We are using the kendo grid and detail template.

Is there a way to do the following with the expand/collapse column?

1: Add a tooltip to the expand/collapse icon?

2: Add column header to the expand/collapse column?

Grid

answered on 18 Nov 2022

0 answers

113 views

Kendo Grid foreign column custom Editor

Hi,

I want to add custom field to combobox Editor in Kendo grid but it's not working can anyone help me? Many thanks!

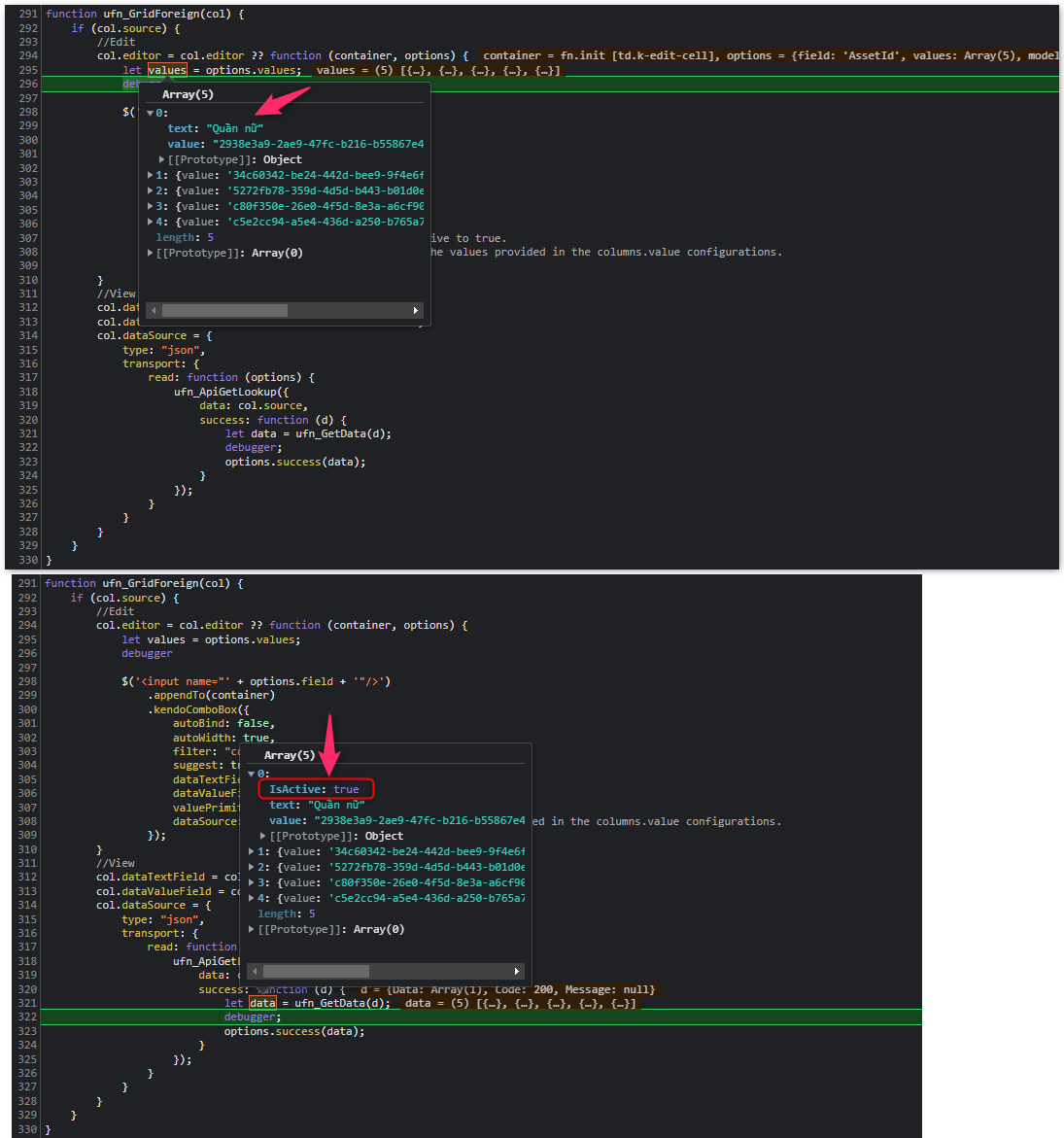

In the image below I have an IsActive : true column when loading data, but when I edit I don't see it.

ComboBox

Data Source

Grid

asked on 18 Nov 2022

0 answers

2.9K+ views

Where is the Kendo.all.js file?

Download 2022.1.301 commercial. The file is 10 MB or so. Same for versions 2022.1.412, 2022.2.510, 2022.2.621, 2022.2.802, and 2022.3.913.

When we get to the 2022.3.1109 commercial download it is no longer included. A 1kb file is there with build statements like importing other files. I need the real file.

General Discussions

asked on 17 Nov 2022

0 answers

134 views

Kendo Grid Payload Difference

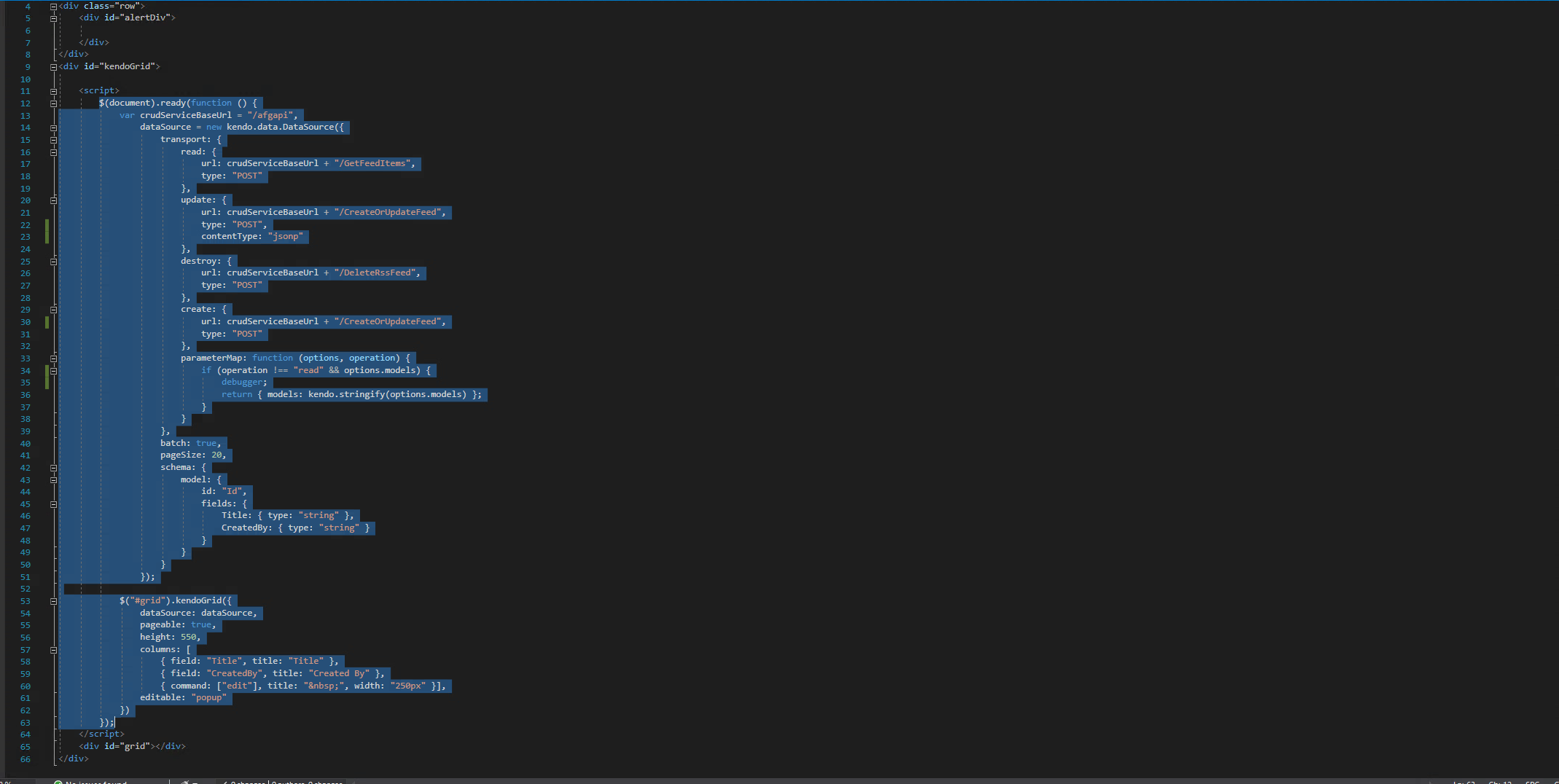

I have the exact same HTML as the example of a kendo grid but the payloads are completely different mine is:

HTML:

while the payload from the example is:

Example HTML

Grid

updated question on 16 Nov 2022

2 answers

5.9K+ views

Getting error when setting grid datasource: kendo.all.js:311085 Uncaught TypeError: Cannot read properties of undefined (reading 'id')

I have a grid I've created in MVC that is throwing the following error when I set the datasource

kendo.all.js:311085 Uncaught TypeError: Cannot read properties of undefined (reading 'id')

Using version 2022.2.802.545

Here is my grid

@(Html.Kendo().Grid<MyModelName>()
            .Name("event-violations-grid")
            .Columns(columns =>
            {
                //columns.Select().Width(50);
                columns.Bound(s => s.SupplierNumber).Hidden(true);
                columns.Bound(s => s.SupplierName).Width(275);
                columns.Bound(s => s.OldOrderDate).Format("{0:MM/dd/yyyy}").Hidden(true);
                columns.Bound(s => s.OldDeliveryDate).Format("{0:MM/dd/yyyy}").Hidden(true);
                columns.Bound(s => s.NewOrderDate).Format("{0:MM/dd/yyyy}").Hidden(true);
                columns.Bound(s => s.NewDeliveryDate).Format("{0:MM/dd/yyyy}").Hidden(true);
                columns.Bound(s => s.ArrivalDate).Format("{0:MM/dd/yyyy}").Hidden(true);
                columns.Bound(s => s.TransmitTime).Hidden(true);
                columns.Bound(s => s.ExpectedDeliveryTime).Hidden(true);
                columns.Bound(s => s.Action).Width(180);
                columns.Bound(s => s.ActionComments);
            })
            .Sortable()
            .Scrollable(s => s.Height("215px"))
            .HtmlAttributes(new { style = "height:250px;" })
            .Resizable(r => r.Columns(true))
        )

(I know there is a lot of hidden columns there.. I may or may not need them yet)

Then I have some javascript which populates a dataSource and sets to this grid

function getViolations() {
    var vdata = {};
    vdata["stageId"] = _stageId;
    vdata["stores"] = "" + _stores.join(',');
    vdata["supplierNumber"] = _eventRevertData.SupplierNumber;
    vdata["origDeliveryDate"] = kendoDateOnly(_eventRevertData.Start);
    vdata["newDeliveryDate"] = null;

    var dataSource = new kendo.data.DataSource({
        schema: {
            model: {
                fields: {
                    SupplierNumber: { type: "number" },
                    SupplierName: { type: "string" },
                    OldOrderDate: { type: "date" },
                    OldDeliveryDate: { type: "date" },
                    NewOrderDate: { type: "date" },
                    NewDeliveryDate: { type: "date" },
                    ArrivalDate: { type: "date" },
                    TransmitTime: { type: "string" },
                    ExpectedDeliveryTime: { type: "string" },
                    OrderGroup1: { type: "boolean" },
                    OrderGroup2: { type: "boolean" },
                    OrderGroup3: { type: "boolean" },
                    OrderGroup4: { type: "boolean" },
                    OrderGroup5: { type: "boolean" },
                    OrderGroup6: { type: "boolean" },
                    OrderGroup7: { type: "boolean" },
                    OrderGroup8: { type: "boolean" },
                    Action: { type: "string" },
                    ActionComments: { type: "string" }
                }
            }
        },
        transport: {
            read: {
                url: "/MyController/GetViolationsGrid1",
                data: vdata,
                dataType: "json"
            }
        }
    });
    dataSource.fetch(function () {
        let data = this.data();
        console.log(data);
        var grid = $("#event-violations-grid").data("kendoGrid");
        grid.setDataSource(data);
    });
}

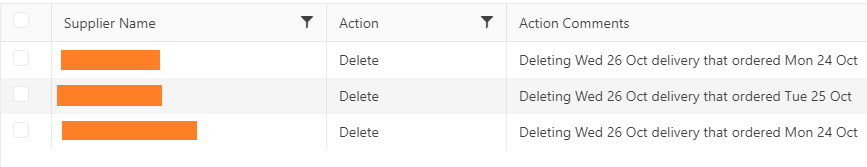

This works - my grid displays exactly as I expect, and updates when I call my function (the vdata changes depending on other things)

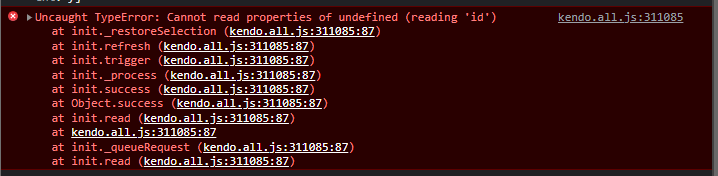

However, I'm getting this error:

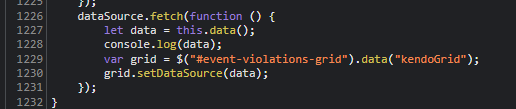

If I open that, I can see that the part of "my" code is here:

Which brings me to here

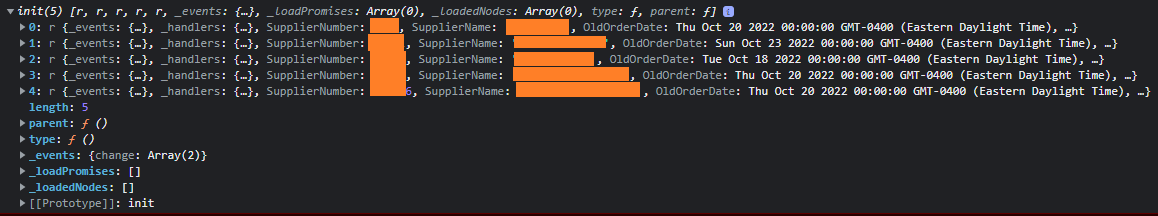

I have confirmed that I can get as far as line 1228 without issue.. my console.log works and I can see my data.. it seems like it is happening when I'm setting the data source

Any help would be greatly appreciated!

Thanks

Grid

updated answer on 16 Nov 2022
