Pat Huesers
asked on 26 Jun 2024, 05:59 PM

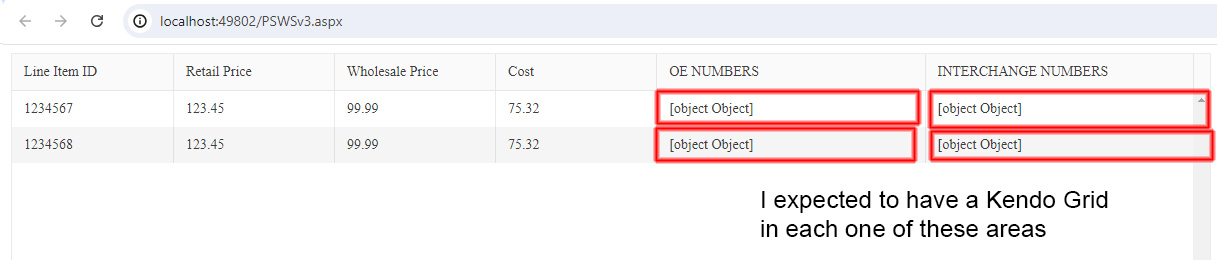

I would like to know if it's possible to declare a Kendo grid column to display a Kendo grid within it. If so, how can I do this?
This is my code with my attempt (I couldn't find any demo online describing how to do this) that obviously didn't work as expected:
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="PSWSv3.aspx.cs" Inherits="PAMsKendo.PSWSv3" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>Getting Started with Kendo UI for jQuery</title>
<link href="styles/default-main.css" rel="stylesheet" />
<script src="scripts/jquery-3.7.1.min.js"></script>
<script src="js/kendo.all.min.js"></script>
<script src="scripts/kendo-ui-license.js"></script>
</head>
<body>
<div id="ordersGrid">
<div id="fooGrid"></div>
</div>
<script>
$(function () {
var myData = [
{
"bulkProjectLineItemID": 1234567,
"retailPrice": 123.45,
"wholesalePrice": 99.99,
"cost": 75.32,
"oENumbers": [
{
"oeNumber": "123456789",
"bulkProjectOEMNumberID": 123456
},
{
"oeNumber": "23456789",
"bulkProjectOEMNumberID": 123457
}
],
"interchangeNumbers": [
{
"interchangeNumber": "120-12345R",
"bulkProjectInterchangeNumberID": 123456
},
{
"interchangeNumber": "120-12345L",
"bulkProjectInterchangeNumberID": 123457
}
]
},
{
"bulkProjectLineItemID": 1234568,
"retailPrice": 123.45,
"wholesalePrice": 99.99,
"cost": 75.32,
"oENumbers": [
{
"oeNumber": "123456789",
"bulkProjectOEMNumberID": 123456
},
{
"oeNumber": "23456789",
"bulkProjectOEMNumberID": 123457
}
],
"interchangeNumbers": [
{
"interchangeNumber": "120-12345R",
"bulkProjectInterchangeNumberID": 123456
},
{
"interchangeNumber": "120-12345L",
"bulkProjectInterchangeNumberID": 123457
}
]
}
];
var gridDataSource = new kendo.data.DataSource({
data: myData,
schema: {
model: {
fields: {
bulkProjectItems: {
fields: {
bulkProjectLineItemID: { type: "number" },
retailPrice: { type: "number" },
wholesalePrice: { type: "number" },
cost: { type: "number" },
oENumbers: {
fields: {
oeNumber: { type: "string" },
bulkProjectOEMNumberID: { type: "number" }
}
},
interchangeNumbers: {
fields: {
interchangeNumber: { type: "string" },
bulkProjectInterchangeNumberID: { type: "number" }
}
}
}
}
}
}
},
pageSize: 10
});
$("#ordersGrid").kendoGrid({
dataSource: gridDataSource,
height: 400,
width: 1200,
pageable: true,
columns:
[
{
field: "bulkProjectLineItemID",
title: "Line Item ID",
width: 120
},
{
field: "retailPrice",
title: "Retail Price",
width: 120
},
{
field: "wholesalePrice",
title: "Wholesale Price",
width: 120
},
{
field: "cost",
title: "Cost",
width: 120
},
{
title: "OE NUMBERS",
width: 200,
field: "oENumbers",
template: $().kendoGrid({
columns:
[
{
field: "oeNumber",
width: 150
},
{
field: "bulkProjectOEMNumberID",
width: 150
}
]
})
},
{
title: "INTERCHANGE NUMBERS",
width: 200,
field: "interchangeNumbers",
template: $().kendoGrid({
columns:
[
{
field: "interchangeNumber",
width: 150
},
{
field: "bulkProjectInterchangeNumberID",
width: 150
}
]
})
}
]
});
});
</script>
</body>
</html>
Thanks,
Pat
1 Answer, 1 is accepted
0
Hello Pat,
To render a Grid inside another Grid column you need to render a div element in the template of the column and later in the dataBound event handler of the Grid initialize the nested Grids. For example:
columns: [{
field: "CustomerRating",
title: "Rating",
template: "<div id='rating_#=ProductID#' class='rating'/>",
editable: returnFalse,
width: 200
}],
dataBound: function() {
var grid = this;
grid.table.find("tr").each(function () {
var dataItem = grid.dataItem(this);
$(this).find(".rating").kendoGrid({
columns:
[
{
field: "oeNumber",
width: 50
},
{
field: "bulkProjectOEMNumberID",
width: 40
}
],
dataSource: {
data: [{ oeNumber: 12, bulkProjectOEMNumberID: 11}]
}
});
kendo.bind($(this), dataItem);
});
}
Dojo demo: https://dojo.telerik.com/INuLoDoH
Regards,
Nikolay
