Kendo Chart Date Format

[viraj]

Can we achieve the same functionalites of date in the kendo chart.

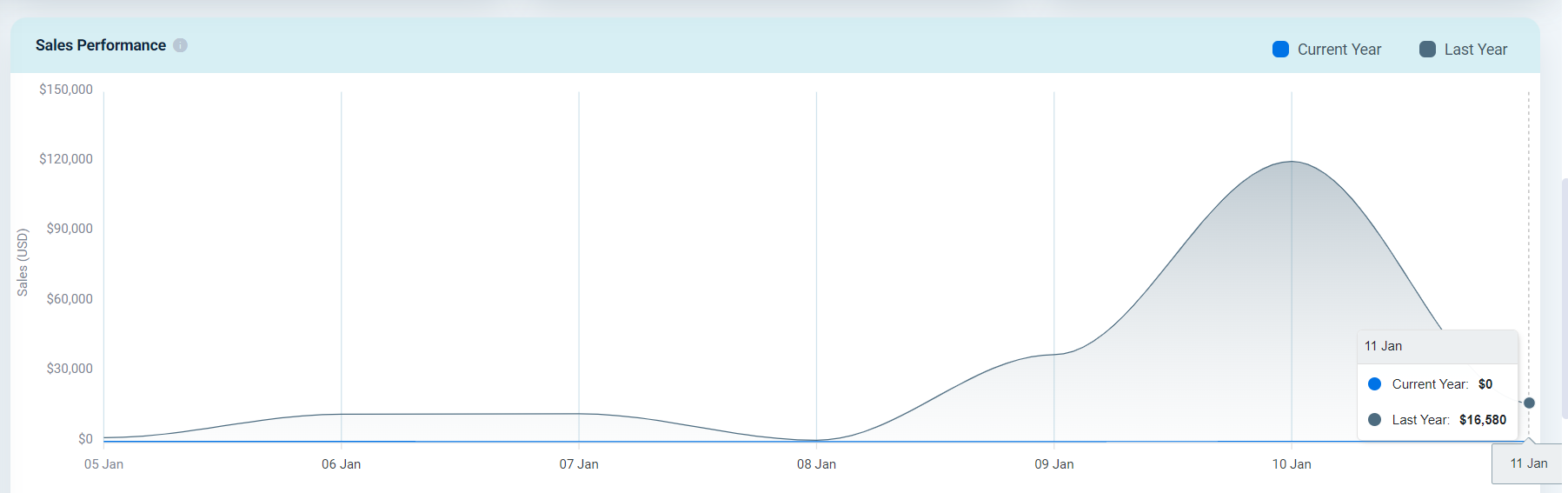

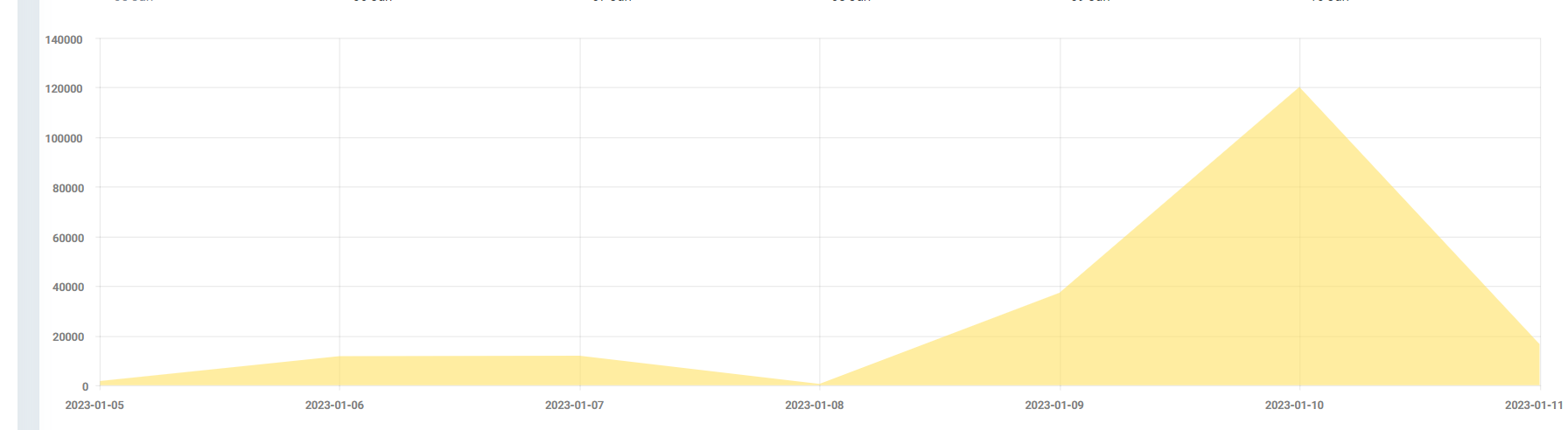

The first pic(Apex chart(pic 1).) is from apex chart in which we can get the data arranged in a proper format,and when the dates increase the apex chart gives all the dates arranging it in proper manner.for example when it has 30 dates for that it gives the dates arranged in 12 colums.

and when click on year it gives 12 months with all the data arranged in proper format of 12 colums(months).

how can I achieve this in kendo chart



[Slavena]

Hi Viraj,

Thank you for the provided details and screenshots.

In order to alter the format of the Chart labels I would suggest setting the labels property of the CategoryAxisItemComponent and providing the desired format. For more detailed information on formatting and parsing dates and numbers I would suggest referring to the following page from our documentation. The desired look of the component could be achieved by utilizing the 'dd MMM' and 'MMM' formats.

Here is an example that demonstrates both formats in action:

https://stackblitz.com/edit/angular-nsuajq-qeqhyb?file=app%2Fapp.component.ts

I hope this helps. Let me know if any further questions come up on this case.

Regards,
Slavena
Progress Telerik
