Hello,



I have a kendo grid with many columns and virtualcolumns set to true. I would like to know how to have the horizzontal scroll working while selecting cells with drag enable in order to select cells that are outside of the portion of grid visible in the screen. I've noticed that if I set drag to false the scroll works but then I'm not able to select multiple cells with the mouse. Thanks

GIUSEPPE
Top achievements
Rank 1
 asked on 14 Mar 2024
1 answer
531 views

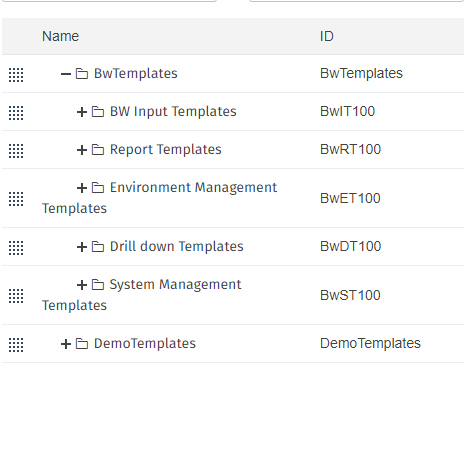

Is it possible to do nested grouping in a grid? And I don't mean a column grouping. Like handling a case where the grid can do a

file1
file2
folder1
  file3
  folder2
    folder3
      folder4
        file4
        file5

And do we have some sample code if this is possible?



Thanks!



J

Zornitsa
Telerik team
 answered on 14 Mar 2024
0 answers
141 views

I have a custom control type in a toolbar container (a simple input text box); inside the input box the arrow keys do not work.
Upon investigation I discovered that the problem is related to toolbar navigation (it adds a listener to the keydown event and overrides the arrow keys), so is there a method to avoid this? I though there was a property like navigable to enable or disable this feature.

I found a workaround, but it's almost a hack because it accesses private variables:
inside aferviewInit of toolbar's the parent i call 😱

toolbar["toolbarKeydownListener"]()

to remove the  listener, it works until you change the listener name.
i did an example
https://stackblitz.com/edit/angular-ubjvvg?file=src%2Fapp%2Fcustom-tool.component.ts,src%2Fapp%2Fapp.component.ts

Greetings



n/a
Top achievements
Rank 1
Iron
 asked on 14 Mar 2024
0 answers
134 views

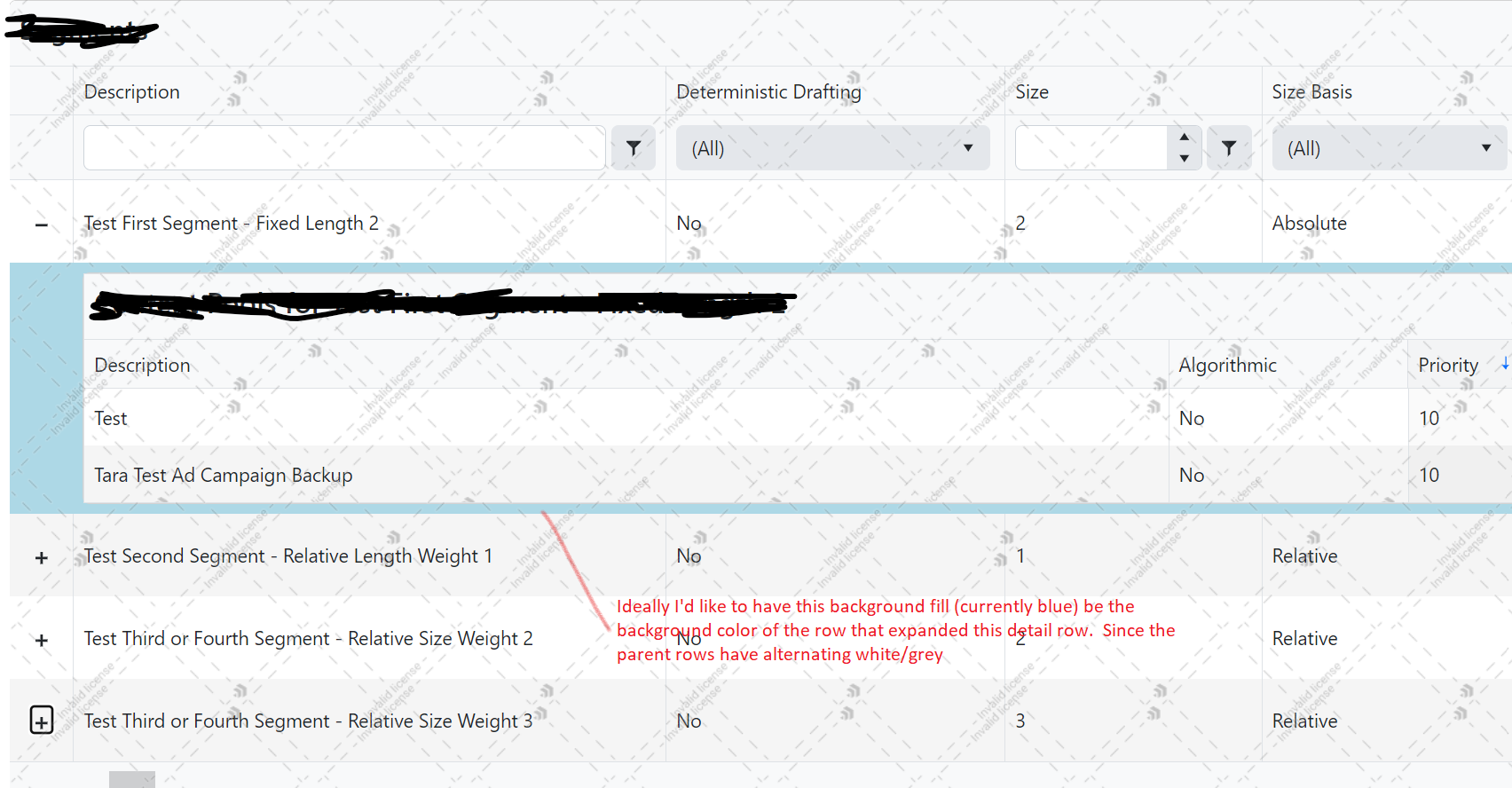

I have an angular project that has a kendo grid that needs to be exported into PDF.  Kendo grid has an expanded details per specific items when conditions met.

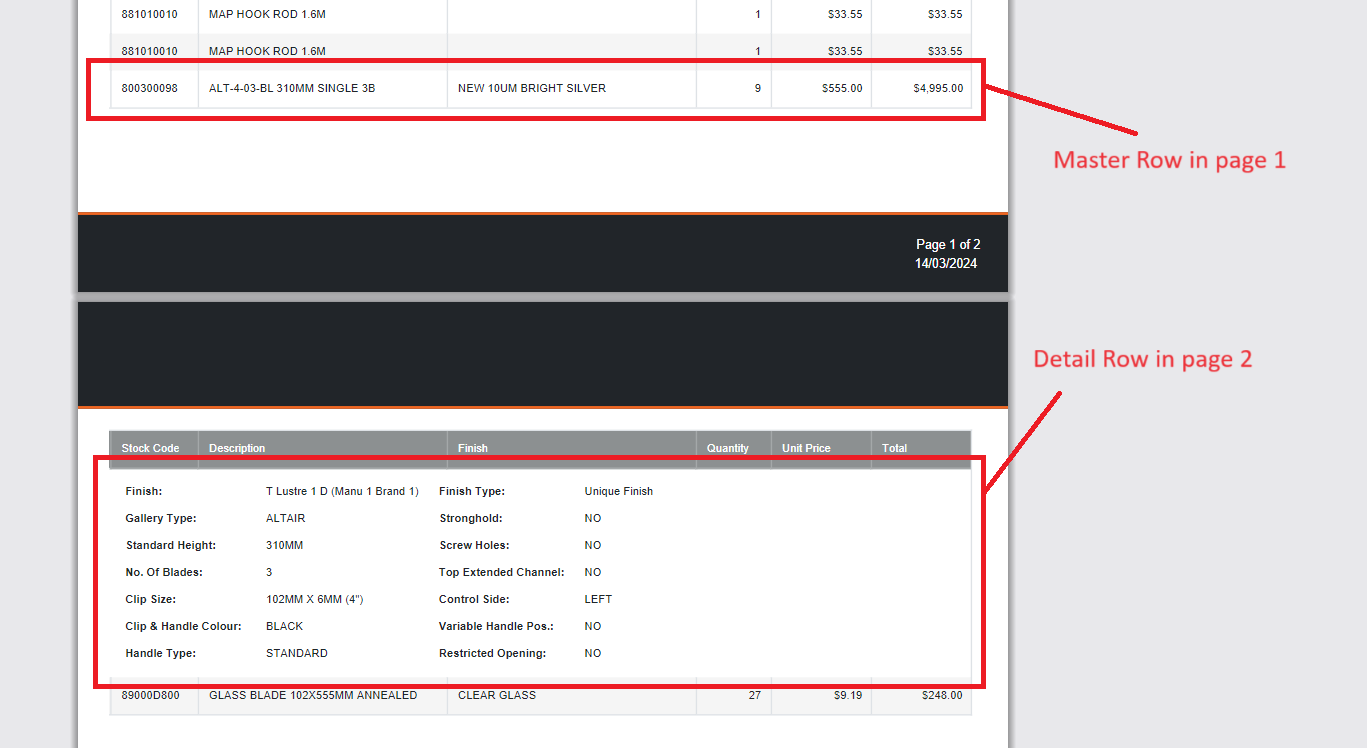

As can see below, I need to make the parent row to be together with its expanded detail when the page breaks. How can I achieve it?



Appreciate the response about my inquiry.



Thank you!

Yadabase
Top achievements
Rank 1
 asked on 13 Mar 2024
2 answers
1.3K+ views

I am having an issue with compiling angular (webpack) after adding @progress/kendo-angular-pdfviewer@14.3.0.  It is referencing pdfjs-dist in the error.  I do not see anywhere in the Getting Started > Dependencies about pdfjs-dist being needed.  The StackBlitz demo does not contain that library either.  When I try adding the pdfjs-dist module (either latest 4.0 or earlier 3.11), more errors occur related to pdfjs-dist.  My tsconfig.json compilerOptions has module=es2020 and target=es2022.  I do not have issues with any other @progress/kendo-angular-xxxxxx modules, and the @progress/kendo-license is included.  Here is the error without pdfjs-dist module installed:

ERROR in ./node_modules/@progress/kendo-angular-pdfviewer/fesm2020/progress-kendo-angular-pdfviewer.mjs 17:0-43
Module not found: Error: Can't resolve 'pdfjs-dist/build/pdf.worker.entry' in '[path to project]\node_modules\@progress\kendo-angular-pdfviewer\fesm2020'
Did you mean 'pdf.worker.entry.js'?
BREAKING CHANGE: The request 'pdfjs-dist/build/pdf.worker.entry' failed to resolve only because it was resolved as fully specified
(probably because the origin is strict EcmaScript Module, e. g. a module with javascript mimetype, a '*.mjs' file, or a '*.js' file where the package.json contains '"type": "module"').
The extension in the request is mandatory for it to be fully specified.
Add the extension to the request.
resolve 'pdfjs-dist/build/pdf.worker.entry' in '[path to project]\node_modules\@progress\kendo-angular-pdfviewer\fesm2020'
  Parsed request is a module
  using description file: [path to project]\node_modules\@progress\kendo-angular-pdfviewer\package.json (relative path: ./fesm2020)
    Field 'browser' doesn't contain a valid alias configuration
    resolve as module

Adrian
Top achievements
Rank 1
Iron
 answered on 13 Mar 2024
0 answers
172 views

Hello!

I have a grid filter is specified as "menu"  ([filterable]="'menu'")

Some the grid columns are created dynamically like this:

<kendo-grid-column *ngFor="let c of myColumnsObjects"
        field="{{ c.name }}"
        title="{{ c.title }}"
    >
    <ng-template
          kendoGridFilterMenuTemplate
          let-column="column"
          let-filter="filter"
          let-filterService="filterService"
        >
          <app-mycolumn-filter
            [field]="column.field"
            [filterService]="filterService"
            [currentFilter]="filter"
            [distinctData1]="getDistinctData1(column.field)"
            [distinctData2]="getDistinctData2(column.field)"
            [distinctData3]="getDistinctData3(column.field)"
          ></app-mycolumn-filter>
        </ng-template>
    <ng-template
      kendoGridCellTemplate
      let-dataItem >
        <ng-container *ngIf="getObjectByColumnName(c.name, dataItem) as myItem">
          <div class="{{getClassByObject(myItem)}}">
            <div>{{myItem.dataOfField1}}</div>
            <div>{{myItem.dataOfField2}}</div>
            <div>{{myItem.dataOfField3}}</div>
          </div>
        </ng-container>
    </ng-template>
    </kendo-grid-column>

Where

myColumnsObjects is

interface IMyDynamicallyColumn {
  name: string;
  title: string;
}

dataItems is array of

interface IMyData {
  id: number;
  name: string;
  somecomlexobject: any;
  ....
  myItems: IMyItem[];
  otheItems: IOtherItem[];
}

myItem is:

interface IMyItem {
  id: number;
  dataOfField1: string;
  dataOfField2: number;
  dataOfField3: EMyItemState;
}

const enum EMyItemState {
  State1 = 'state1',
  State2 = 'state2',
  ...
  State<N> = 'state<n>'
}


Input data   distinctData1, distinctData2 and distinctData3 used in angular's component of app-mycontrol-filter.

In this case, the standard filter does not work.

How can I organize a filter on an objects (type is IMyItem) associated with a column using all the properties of the object?



Vsevolod
Top achievements
Rank 1
Iron
Iron
 asked on 13 Mar 2024
1 answer
163 views
All settings that affect the appearance("backgroundColor", "color" or "strokeWidth") of the signature must be applied before you start drawing the signature. If you apply the parameters for changing the appearance of the signature after the signature is drawn, the value does not change and the "valueChange" event is not triggered. However, the changes are applied to the signature canvas. How can I fix this?
Hetali
Telerik team
 answered on 12 Mar 2024
1 answer
204 views

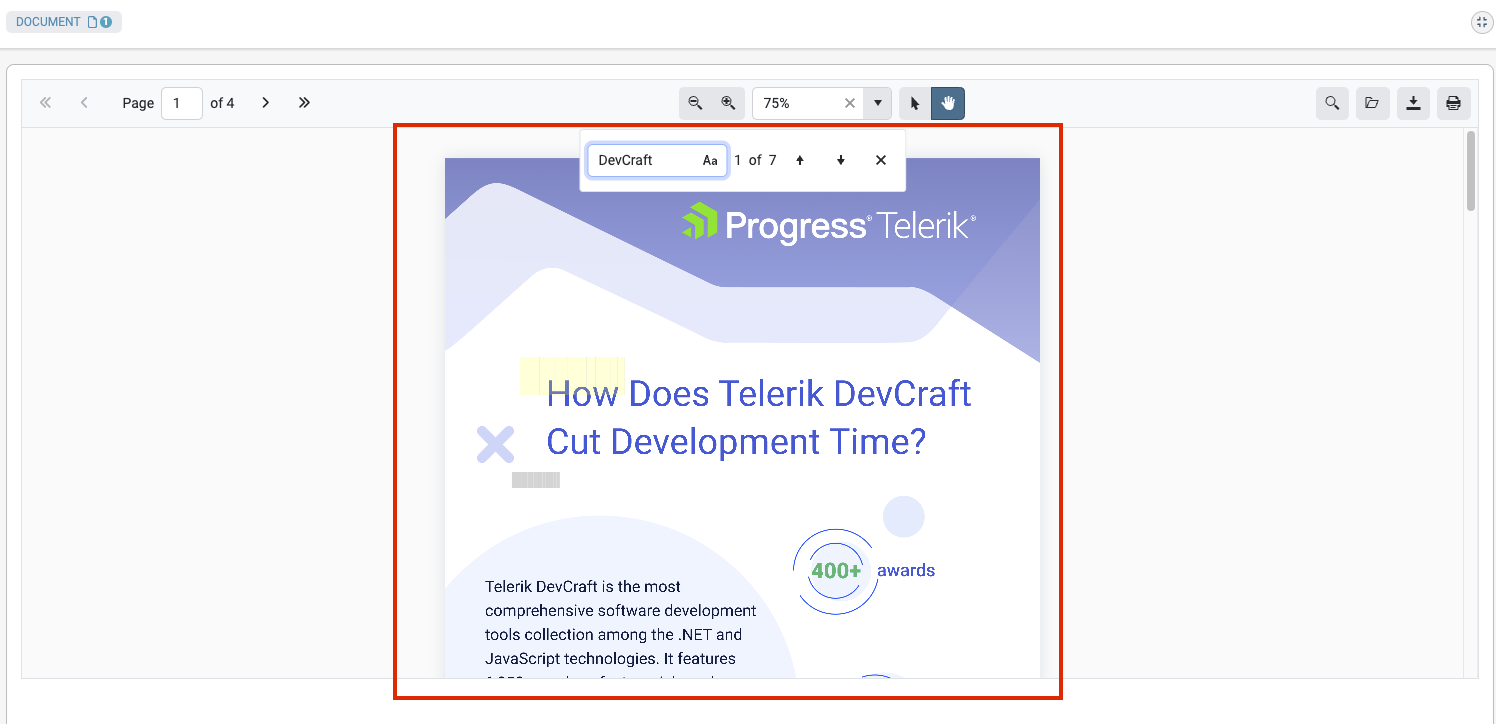

Kendo UI is  it possible to draw  directly on the kendo-pdfviewer from the angular component library.
Things II have tried:
-embedding it in a drawing component to draw over - the problem here being  that the kendo-pdfviewer is removed from  the  page completely to make way  for the  canvas
-I tried to super impose the canvas over the kendo-pdfviewer with a relative off set of -y in CSS - The problem here was that although it worked for the most part the canvas then blocked the  PDF controls such as scrolling (especially if set to the same size).
-I tried to hook the canvas in the PDF to draw - here I just did not see any success. It seemed like  either I was drawn over or it simply was not used. Not the canvas is height="2376" x width="1836"
Here is some rough code for the last option I tired:
public pdfLoad(pdfViewerLoadEvent: PDFViewerLoadEvent)
  {
    this.pdfViewerContext = pdfViewerLoadEvent.context;
    this.pdfViewerContext.pdfDoc.getPage(1).then(async (page)=>{
      var scale = this.pdfViewerContext.zoom;
      var viewport = page.getViewport({scale});
      var canvas: HTMLCanvasElement  = document.getElementById('the-canvas') as HTMLCanvasElement;
      var context = canvas.getContext('2d')!;

      canvas.width = Math.floor(viewport.width * scale);
      canvas.height = Math.floor(viewport.height * scale);
      canvas.style.width = Math.floor(viewport.width) + "px";
      canvas.style.height =  Math.floor(viewport.height) + "px";

      context.beginPath();
      context.arc(300, 300, 100, 0, 2);
      context.stroke();

      var transform: number[] | undefined = scale !== 1
         ? [scale, 0, 0, scale, 0, 0]
         : undefined;
      var transform: number[] | undefined = [2,0,0]

      await page.render({
          canvasContext: context!,
          transform: transform,
          viewport: viewport
      });

      context.beginPath();
      context.arc(300, 300, 100, 0, 2);
      context.stroke();
    });
  }

Martin Bechev
Telerik team
 updated answer on 11 Mar 2024
0 answers
287 views

Hi, we want to split our applications via Module Federation. Works so far except for the applications that use Kendo UI (simple split button is enough). We always get the following error message.



"

ERROR Error: Uncaught (in promise): Error: It looks like your application or one of its dependencies is using i18n.
Angular 9 introduced a global `$localize()` function that needs to be loaded.
Please run `ng add @angular/localize` from the Angular CLI.
(For non-CLI projects, add `import '@angular/localize/init';` to your `polyfills.ts` file.
For server-side rendering applications add the import to your `main.server.ts` file.)
Error: It looks like your application or one of its dependencies is using i18n.
Angular 9 introduced a global `$localize()` function that needs to be loaded.
Please run `ng add @angular/localize` from the Angular CLI.
(For non-CLI projects, add `import '@angular/localize/init';` to your `polyfills.ts` file.
For server-side rendering applications add the import to your `main.server.ts` file.)
    at _global.$localize (core.mjs:31692:15)
    at consts (progress-kendo-angular-buttons.mjs:2559:31)
    at createTView (core.mjs:12070:60)
    at getOrCreateComponentTView (core.mjs:12045:28)
    at addComponentLogic (core.mjs:12780:19)
    at instantiateAllDirectives (core.mjs:12583:9)
    at createDirectivesInstances (core.mjs:12008:5)
    at ɵɵelementStart (core.mjs:16299:9)
    at MyComponent_Template (my-component.component.html:2:6)
    at executeTemplate (core.mjs:11966:13)
    at resolvePromise (zone.js:1193:31)
    at resolvePromise (zone.js:1147:17)
    at zone.js:1260:17
    at _ZoneDelegate.invokeTask (zone.js:402:31)
    at core.mjs:10715:55
    at AsyncStackTaggingZoneSpec.onInvokeTask (core.mjs:10715:36)
    at _ZoneDelegate.invokeTask (zone.js:401:60)
    at Object.onInvokeTask (core.mjs:11028:33)
    at _ZoneDelegate.invokeTask (zone.js:401:60)
    at Zone.runTask (zone.js:173:47)

"

Daniel
Top achievements
Rank 1
 asked on 11 Mar 2024
0 answers
386 views
We want to use the built in re-ordering rows feature in kendo grid. Currently Kendo-grid-rowreorder-column has its default icon. How do I change it to a different icon (i.e using font awesome). Plus, how do I use custom content for a dragging row (as shown in the attached file)
Thao
Top achievements
Rank 1
 asked on 08 Mar 2024
