Issues with row height /formatting

14 Answers 705 Views

GridView

This is a migrated thread and some comments may be shown as answers.

14 Answers, 1 is accepted

answered on 20 Jan 2011, 06:19 PM

Extract from the 2010 Q3 SP1 Release notes for RadgridView

FIXED: Applying BestFitColumns when AutoSizeColumnsMode is set to Fill should respect the MinWidth values of the columns.
FIXED: When AutoSizeRows is enabled and one selects an item from the combo box, this combo box does not close its drop down.
FIXED: Rows overlap each other row when combo box is opened and AutoSizeRows is enabled.
FIXED: Row height is not updated when entering edit mode and AutoSizeRows is enabled.

the full release notes can be found here

look forward to hearing back from you
Richard

answered on 21 Jan 2011, 10:56 AM

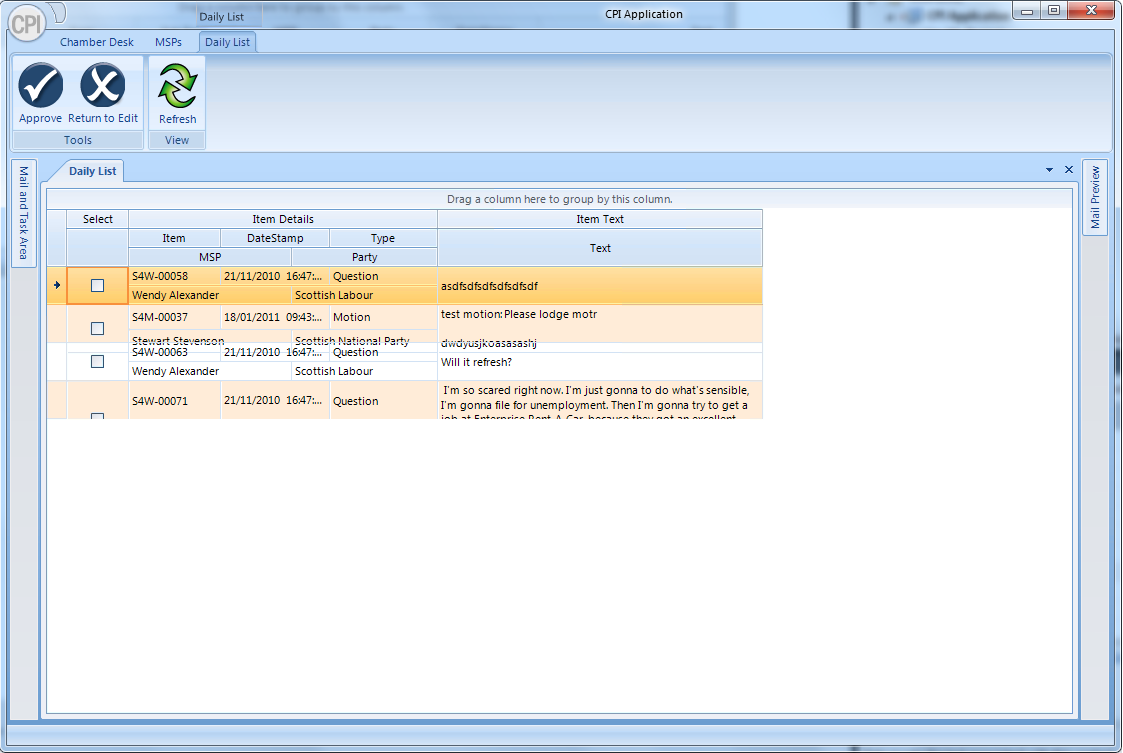

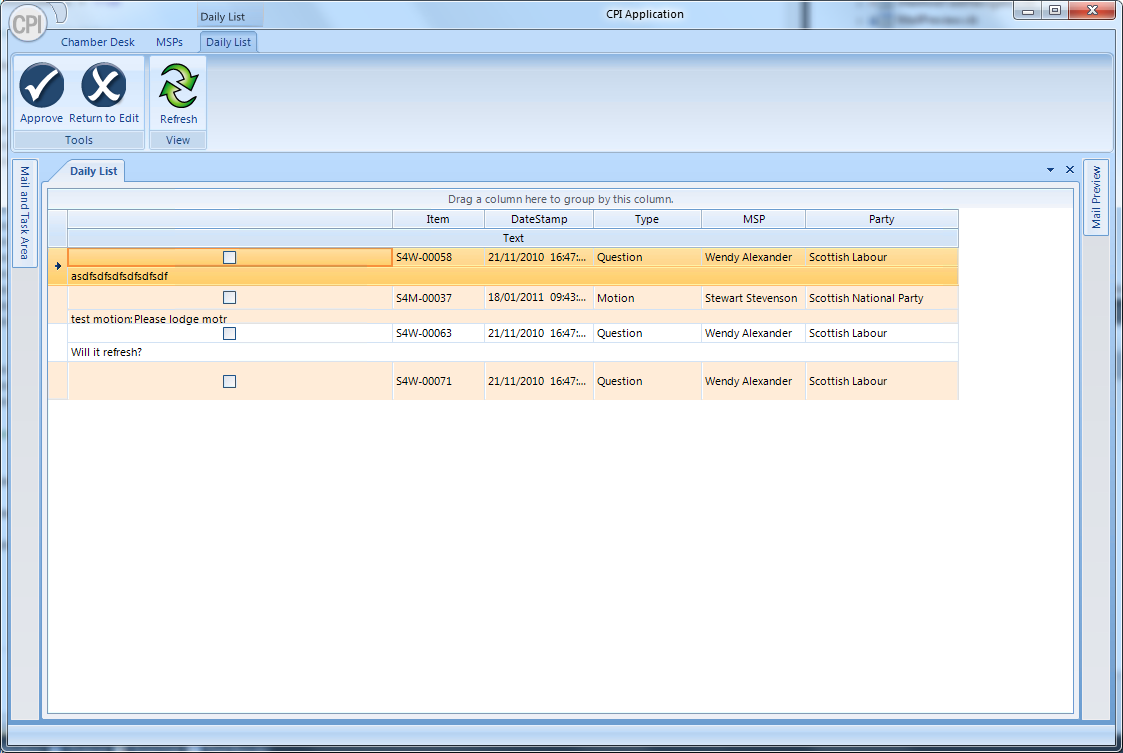

I've got a very similar issue. I've attached 2 versions of the same table being rendered in 2 different ways with the same problem.

Using Q3 SP1 (the one with 1215 as the last version number)

answered on 21 Jan 2011, 01:13 PM

Hi Guys,

The nearest I could get to replicating your issue is is I leave out the BeginUpdate() /EndUpdate() out of the following (full exmaple below)

Form1.vb

Imports Telerik.WinControls

Imports Telerik.WinControls.UI

Imports System.ComponentModel

Imports Telerik.WinControls.Data

Public Class Form1

Private m_Description As String = "<html>Lorem ipsum dolor sit amet, consectetur adipisicing elit,<br>" & _

"sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.<br> " & _

"enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.<br>" & _

"Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.<br> " & _

"Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum"

Private Sub Form1_Load(ByVal sender As System.Object,

ByVal e As System.EventArgs) Handles MyBase.Load

Me.RadGridView1.AutoGenerateColumns = True

Me.RadGridView1.AutoSizeRows = True

Me.RadGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill

Dim t As New DataTable()

t.Columns.Add("A Column Name")

t.Rows.Add(m_Description)

Me.RadGridView1.BeginUpdate()

Me.RadGridView1.DataSource = t

Me.RadGridView1.Columns(0).DisableHTMLRendering = False

Me.RadGridView1.EndUpdate()

End Sub

End Class

Form1.Designer

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _

Partial Class Form1

Inherits System.Windows.Forms.Form

'Form overrides dispose to clean up the component list.

<System.Diagnostics.DebuggerNonUserCode()> _

Protected Overrides Sub Dispose(ByVal disposing As Boolean)

Try

If disposing AndAlso components IsNot Nothing Then

components.Dispose()

End If

Finally

MyBase.Dispose(disposing)

End Try

End Sub

'Required by the Windows Form Designer

Private components As System.ComponentModel.IContainer

'NOTE: The following procedure is required by the Windows Form Designer

'It can be modified using the Windows Form Designer.

'Do not modify it using the code editor.

<System.Diagnostics.DebuggerStepThrough()> _

Private Sub InitializeComponent()

Me.components = New System.ComponentModel.Container()

Me.RadGridView1 = New Telerik.WinControls.UI.RadGridView()

Me.BindingSource1 = New System.Windows.Forms.BindingSource(Me.components)

CType(Me.RadGridView1, System.ComponentModel.ISupportInitialize).BeginInit()

CType(Me.BindingSource1, System.ComponentModel.ISupportInitialize).BeginInit()

Me.SuspendLayout()

'

'RadGridView1

'

Me.RadGridView1.Dock = System.Windows.Forms.DockStyle.Fill

Me.RadGridView1.EnableHotTracking = False

Me.RadGridView1.Location = New System.Drawing.Point(0, 0)

'

'RadGridView1

'

Me.RadGridView1.MasterTemplate.EnableFiltering = True

Me.RadGridView1.MasterTemplate.EnableSorting = False

Me.RadGridView1.Name = "RadGridView1"

Me.RadGridView1.ShowGroupPanel = False

Me.RadGridView1.Size = New System.Drawing.Size(418, 372)

Me.RadGridView1.TabIndex = 0

Me.RadGridView1.Text = "RadGridView1"

Me.RadGridView1.UseCompatibleTextRendering = False

'

'Form1

'

Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)

Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font

Me.ClientSize = New System.Drawing.Size(418, 372)

Me.Controls.Add(Me.RadGridView1)

Me.Name = "Form1"

Me.Text = "Form1"

CType(Me.RadGridView1, System.ComponentModel.ISupportInitialize).EndInit()

CType(Me.BindingSource1, System.ComponentModel.ISupportInitialize).EndInit()

Me.ResumeLayout(False)

End Sub

Friend WithEvents RadGridView1 As Telerik.WinControls.UI.RadGridView

Friend WithEvents BindingSource1 As System.Windows.Forms.BindingSource

End Class

I'd suggest ensuring your updates to the grids are wrapped with

Me.RadGridView1.BeginUpdate()

'//

Me.RadGridView1.EndUpdate()

Let me know if you have further issues
Richard

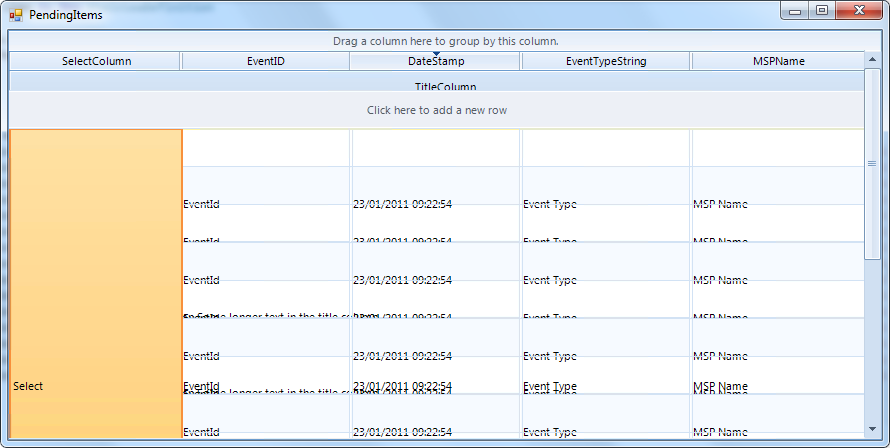

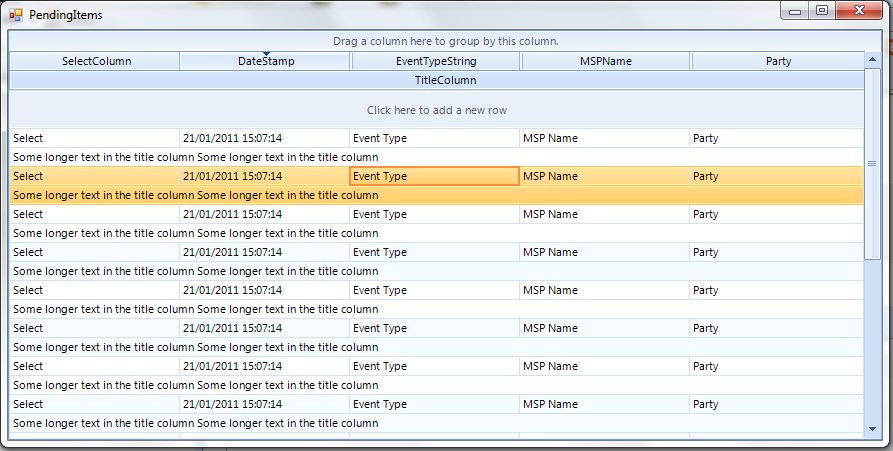

answered on 21 Jan 2011, 02:54 PM

Okay just realised I'm not supposed to attach solutions to this anyway, so here's the code:

Form.vb

Imports ScottishParliament.CPI.Facade

Imports Telerik.WinControls.UI

Imports System.Text

Public Class GenericItemListForm

Public Property FormViewType As FormViewType

Public EventList As BaseItems

Public Sub New(ByVal Style As FormViewType)

' This call is required by the designer.

InitializeComponent()

FormViewType = Style

EventList = Nothing

rgvPendingItems.AutoSizeRows = True

CType(rgvPendingItems.TableElement, GridTableElement).AlternatingRowColor = Color.PapayaWhip

Dim view As New HtmlViewDefinition

view.RowTemplate.ReadXml("ViewDefinition.xml")

rgvPendingItems.ViewDefinition = view

RefreshView()

End Sub

Public Sub RefreshView()

'Temp for test data

Dim fileContents As String

fileContents = My.Computer.FileSystem.ReadAllText("objectdata.txt")

EventList = DeserializeObject(fileContents, New BaseItems)

'End

rgvPendingItems.BeginUpdate()

If EventList IsNot Nothing Then

BaseItemsBindingSource.DataSource = EventList

End If

rgvPendingItems.EndUpdate()

End Sub

End Class

Form.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _

Partial Class GenericItemListForm

Inherits System.Windows.Forms.Form

'Form overrides dispose to clean up the component list.

<System.Diagnostics.DebuggerNonUserCode()> _

Protected Overrides Sub Dispose(ByVal disposing As Boolean)

Try

If disposing AndAlso components IsNot Nothing Then

components.Dispose()

End If

Finally

MyBase.Dispose(disposing)

End Try

End Sub

'Required by the Windows Form Designer

Private components As System.ComponentModel.IContainer

'NOTE: The following procedure is required by the Windows Form Designer

'It can be modified using the Windows Form Designer.

'Do not modify it using the code editor.

<System.Diagnostics.DebuggerStepThrough()> _

Private Sub InitializeComponent()

Me.components = New System.ComponentModel.Container()

Dim GridViewCheckBoxColumn1 As Telerik.WinControls.UI.GridViewCheckBoxColumn = New Telerik.WinControls.UI.GridViewCheckBoxColumn()

Dim GridViewTextBoxColumn1 As Telerik.WinControls.UI.GridViewTextBoxColumn = New Telerik.WinControls.UI.GridViewTextBoxColumn()

Dim GridViewTextBoxColumn2 As Telerik.WinControls.UI.GridViewTextBoxColumn = New Telerik.WinControls.UI.GridViewTextBoxColumn()

Dim GridViewDateTimeColumn1 As Telerik.WinControls.UI.GridViewDateTimeColumn = New Telerik.WinControls.UI.GridViewDateTimeColumn()

Dim GridViewTextBoxColumn3 As Telerik.WinControls.UI.GridViewTextBoxColumn = New Telerik.WinControls.UI.GridViewTextBoxColumn()

Dim GridViewTextBoxColumn4 As Telerik.WinControls.UI.GridViewTextBoxColumn = New Telerik.WinControls.UI.GridViewTextBoxColumn()

Dim GridViewTextBoxColumn5 As Telerik.WinControls.UI.GridViewTextBoxColumn = New Telerik.WinControls.UI.GridViewTextBoxColumn()

Dim GridViewTextBoxColumn6 As Telerik.WinControls.UI.GridViewTextBoxColumn = New Telerik.WinControls.UI.GridViewTextBoxColumn()

Dim SortDescriptor1 As Telerik.WinControls.Data.SortDescriptor = New Telerik.WinControls.Data.SortDescriptor()

Me.rgvPendingItems = New Telerik.WinControls.UI.RadGridView()

Me.BaseItemsBindingSource = New System.Windows.Forms.BindingSource(Me.components)

CType(Me.rgvPendingItems, System.ComponentModel.ISupportInitialize).BeginInit()

CType(Me.BaseItemsBindingSource, System.ComponentModel.ISupportInitialize).BeginInit()

Me.SuspendLayout()

'

'rgvPendingItems

'

Me.rgvPendingItems.AutoSize = True

Me.rgvPendingItems.BackColor = System.Drawing.SystemColors.Control

Me.rgvPendingItems.Cursor = System.Windows.Forms.Cursors.Default

Me.rgvPendingItems.Dock = System.Windows.Forms.DockStyle.Fill

Me.rgvPendingItems.Font = New System.Drawing.Font("Segoe UI", 8.25!)

Me.rgvPendingItems.ForeColor = System.Drawing.SystemColors.ControlText

Me.rgvPendingItems.ImeMode = System.Windows.Forms.ImeMode.NoControl

Me.rgvPendingItems.Location = New System.Drawing.Point(0, 0)

'

'rgvPendingItems

'

Me.rgvPendingItems.MasterTemplate.AllowAddNewRow = False

Me.rgvPendingItems.MasterTemplate.AllowColumnChooser = False

GridViewCheckBoxColumn1.AllowGroup = False

GridViewCheckBoxColumn1.AllowResize = False

GridViewCheckBoxColumn1.AllowSort = False

GridViewCheckBoxColumn1.HeaderText = "Select"

GridViewCheckBoxColumn1.MinWidth = 20

GridViewCheckBoxColumn1.Name = "SelectColumn"

GridViewCheckBoxColumn1.VisibleInColumnChooser = False

GridViewTextBoxColumn1.FieldName = "UniqueID"

GridViewTextBoxColumn1.HeaderText = "UniqueID"

GridViewTextBoxColumn1.IsAutoGenerated = True

GridViewTextBoxColumn1.IsVisible = False

GridViewTextBoxColumn1.Name = "UniqueID"

GridViewTextBoxColumn1.Width = 120

GridViewTextBoxColumn2.FieldName = "EventID"

GridViewTextBoxColumn2.HeaderText = "Item Number"

GridViewTextBoxColumn2.IsAutoGenerated = True

GridViewTextBoxColumn2.Name = "EventID"

GridViewTextBoxColumn2.ReadOnly = True

GridViewTextBoxColumn2.Width = 123

GridViewDateTimeColumn1.CustomFormat = "dd/MM/yyyy HH:mm"

GridViewDateTimeColumn1.FieldName = "DateStamp"

GridViewDateTimeColumn1.Format = System.Windows.Forms.DateTimePickerFormat.Custom

GridViewDateTimeColumn1.FormatInfo = New System.Globalization.CultureInfo("en-GB")

GridViewDateTimeColumn1.HeaderText = "Date and Time"

GridViewDateTimeColumn1.Name = "DateStamp"

GridViewDateTimeColumn1.ReadOnly = True

GridViewDateTimeColumn1.Width = 114

GridViewTextBoxColumn3.FieldName = "EventSubTypeString"

GridViewTextBoxColumn3.HeaderText = "Type"

GridViewTextBoxColumn3.Name = "EventTypeString"

GridViewTextBoxColumn3.ReadOnly = True

GridViewTextBoxColumn3.Width = 146

GridViewTextBoxColumn4.DisableHTMLRendering = False

GridViewTextBoxColumn4.FieldName = "DisplayText"

GridViewTextBoxColumn4.HeaderText = "Text"

GridViewTextBoxColumn4.Multiline = True

GridViewTextBoxColumn4.Name = "TitleColumn"

GridViewTextBoxColumn4.ReadOnly = True

GridViewTextBoxColumn4.RowSpan = 40

GridViewTextBoxColumn4.Width = 162

GridViewTextBoxColumn4.WrapText = True

GridViewTextBoxColumn5.FieldName = "MSPName"

GridViewTextBoxColumn5.HeaderText = "MSP"

GridViewTextBoxColumn5.Name = "MSPName"

GridViewTextBoxColumn5.ReadOnly = True

GridViewTextBoxColumn5.Width = 119

GridViewTextBoxColumn6.FieldName = "MSPParty"

GridViewTextBoxColumn6.HeaderText = "Party"

GridViewTextBoxColumn6.Name = "Party"

GridViewTextBoxColumn6.ReadOnly = True

GridViewTextBoxColumn6.Width = 166

Me.rgvPendingItems.MasterTemplate.Columns.AddRange(New

Telerik.WinControls.UI.GridViewDataColumn() {GridViewCheckBoxColumn1, GridViewTextBoxColumn1, GridViewTextBoxColumn2, GridViewDateTimeColumn1, GridViewTextBoxColumn3, GridViewTextBoxColumn4, GridViewTextBoxColumn5, GridViewTextBoxColumn6})

Me.rgvPendingItems.MasterTemplate.DataSource = Me.BaseItemsBindingSource

Me.rgvPendingItems.MasterTemplate.EnableAlternatingRowColor = True

Me.rgvPendingItems.MasterTemplate.ShowRowHeaderColumn = False

SortDescriptor1.Direction = System.ComponentModel.ListSortDirection.Descending

SortDescriptor1.PropertyName = "DateStamp"

Me.rgvPendingItems.MasterTemplate.SortDescriptors.AddRange(New Telerik.WinControls.Data.SortDescriptor() {SortDescriptor1})

Me.rgvPendingItems.Name = "rgvPendingItems"

Me.rgvPendingItems.Padding = New System.Windows.Forms.Padding(0, 0, 0, 1)

Me.rgvPendingItems.RightToLeft = System.Windows.Forms.RightToLeft.No

'

Me.rgvPendingItems.RootElement.Padding = New System.Windows.Forms.Padding(0, 0, 0, 1)

Me.rgvPendingItems.RootElement.StretchHorizontally = False

Me.rgvPendingItems.RootElement.StretchVertically = False

Me.rgvPendingItems.Size = New System.Drawing.Size(876, 52)

Me.rgvPendingItems.TabIndex = 0

Me.rgvPendingItems.Text = "RadGridView1"

'

'BaseItemsBindingSource

'

Me.BaseItemsBindingSource.DataSource = GetType(ScottishParliament.CPI.Facade.BaseItems)

'

'GenericItemListForm

'

Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)

Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font

Me.ClientSize = New System.Drawing.Size(874, 271)

Me.Controls.Add(Me.rgvPendingItems)

Me.Name = "GenericItemListForm"

Me.Text = "PendingItems"

CType(Me.rgvPendingItems, System.ComponentModel.ISupportInitialize).EndInit()

CType(Me.BaseItemsBindingSource, System.ComponentModel.ISupportInitialize).EndInit()

Me.ResumeLayout(False)

Me.PerformLayout()

End Sub

Friend WithEvents rgvPendingItems As Telerik.WinControls.UI.RadGridView

Friend WithEvents BaseItemsBindingSource As System.Windows.Forms.BindingSource

End Class

Viewdefinition.xml

<table>

<tr>

<td >SelectColumn</td>

<td>ItemNumber</td>

<td>DateStamp</td>

<td>EventTypeString</td>

<td>MSPName</td>

<td>Party</td>

</tr>

<tr>

<td colspan="6">TitleColumn</td>

</tr>

</table>

Obviously there's data objects etc. too, but ultimately the "TitleColumn" is being populated by straigh up text. Cheers!

answered on 21 Jan 2011, 04:12 PM


Hello,

I'm afraid I still haven't been able to replicate your issue. I have taken your sample and got that working with some data from a list of custom objects. The exmaple is below. Please can you run this and let me know if it looks ok to you.

Designer (modified)

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _

Partial Class GenericItemListForm

Inherits System.Windows.Forms.Form

'Form overrides dispose to clean up the component list.

<System.Diagnostics.DebuggerNonUserCode()> _

Protected Overrides Sub Dispose(ByVal disposing As Boolean)

Try

If disposing AndAlso components IsNot Nothing Then

components.Dispose()

End If

Finally

MyBase.Dispose(disposing)

End Try

End Sub

'Required by the Windows Form Designer

Private components As System.ComponentModel.IContainer

'NOTE: The following procedure is required by the Windows Form Designer

'It can be modified using the Windows Form Designer.

'Do not modify it using the code editor.

<System.Diagnostics.DebuggerStepThrough()> _

Private Sub InitializeComponent()

Dim SortDescriptor1 As Telerik.WinControls.Data.SortDescriptor = New Telerik.WinControls.Data.SortDescriptor()

Me.rgvPendingItems = New Telerik.WinControls.UI.RadGridView()

CType(Me.rgvPendingItems, System.ComponentModel.ISupportInitialize).BeginInit()

Me.SuspendLayout()

'

'rgvPendingItems

'

Me.rgvPendingItems.BackColor = System.Drawing.SystemColors.Control

Me.rgvPendingItems.Cursor = System.Windows.Forms.Cursors.Default

Me.rgvPendingItems.Dock = System.Windows.Forms.DockStyle.Fill

Me.rgvPendingItems.Font = New System.Drawing.Font("Segoe UI", 8.25!)

Me.rgvPendingItems.ForeColor = System.Drawing.SystemColors.ControlText

Me.rgvPendingItems.ImeMode = System.Windows.Forms.ImeMode.NoControl

Me.rgvPendingItems.Location = New System.Drawing.Point(0, 0)

'

'rgvPendingItems

'

Me.rgvPendingItems.MasterTemplate.EnableAlternatingRowColor = True

Me.rgvPendingItems.MasterTemplate.ShowRowHeaderColumn = False

SortDescriptor1.Direction = System.ComponentModel.ListSortDirection.Descending

SortDescriptor1.PropertyName = "DateStamp"

Me.rgvPendingItems.MasterTemplate.SortDescriptors.AddRange(New Telerik.WinControls.Data.SortDescriptor() {SortDescriptor1})

Me.rgvPendingItems.Name = "rgvPendingItems"

Me.rgvPendingItems.Padding = New System.Windows.Forms.Padding(0, 0, 0, 1)

Me.rgvPendingItems.RightToLeft = System.Windows.Forms.RightToLeft.No

'

Me.rgvPendingItems.RootElement.Padding = New System.Windows.Forms.Padding(0, 0, 0, 1)

Me.rgvPendingItems.Size = New System.Drawing.Size(874, 410)

Me.rgvPendingItems.TabIndex = 0

Me.rgvPendingItems.Text = "RadGridView1"

'

'GenericItemListForm

'

Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)

Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font

Me.ClientSize = New System.Drawing.Size(874, 410)

Me.Controls.Add(Me.rgvPendingItems)

Me.Name = "GenericItemListForm"

Me.Text = "PendingItems"

CType(Me.rgvPendingItems, System.ComponentModel.ISupportInitialize).EndInit()

Me.ResumeLayout(False)

End Sub

Friend WithEvents rgvPendingItems As Telerik.WinControls.UI.RadGridView

'Friend WithEvents BaseItemsBindingSource As System.Windows.Forms.BindingSource

End Class

Form1.vb

Imports Telerik.WinControls.UI

Imports System.Text

Public Class GenericItemListForm

Public Sub New()

InitializeComponent()

rgvPendingItems.AutoSizeRows = True

rgvPendingItems.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill

rgvPendingItems.AutoGenerateColumns = True

CType(rgvPendingItems.TableElement, GridTableElement).AlternatingRowColor = Color.PapayaWhip

Dim view As New HtmlViewDefinition

view.RowTemplate.ReadXml("ViewDefinition.xml")

rgvPendingItems.ViewDefinition = view

Dim myList As New List(Of MyObject)

myList.Add(New MyObject("Select", "Unique", "EventId", Now, "Event Type", "Some longer text in the title column Some longer text in the title column", "MSP Name", "Party"))

Me.rgvPendingItems.DataSource = myList

End Sub

End Class

Public Class MyObject

Public Sub New(ByVal SelectColumn As String, ByVal UniqueId As String, ByVal EventId As String, ByVal DateStamp As Date, ByVal EventType As String, ByVal TitleColumn As String, ByVal MSPName As String, ByVal Party As String)

Me.SelectColumn = SelectColumn

Me.UniqueID = UniqueId

Me.EventID = EventId

Me.DateStamp = DateStamp

Me.EventTypeString = EventType

Me.TitleColumn = TitleColumn

Me.MSPName = MSPName

Me.Party = Party

End Sub

Public Property SelectColumn As String

Public Property UniqueID As String

Public Property EventID As String

Public Property DateStamp As Date

Public Property EventTypeString As String

Public Property TitleColumn As String

Public Property MSPName As String

Public Property Party As String

End Class

Attached is a screenshot of how it looks on mine

Regards,
Richard

answered on 23 Jan 2011, 10:23 AM


Richard, firstly many many thanks for having a look at this. Very impressed with Telerik and it's users. Saved us a lot of time in writing this app, as well as allowing us to produce something that's visually very impressive (with the admitted help of a good icon designer and UI person).

Back to the problem: That seems to work okay but if I make the data really long in the problem column then it's not wrapping or going multi-line. So I added a line of code in at the end to make it wrap the text:

rgvPendingItems.Columns("TitleColumn").WrapText = True

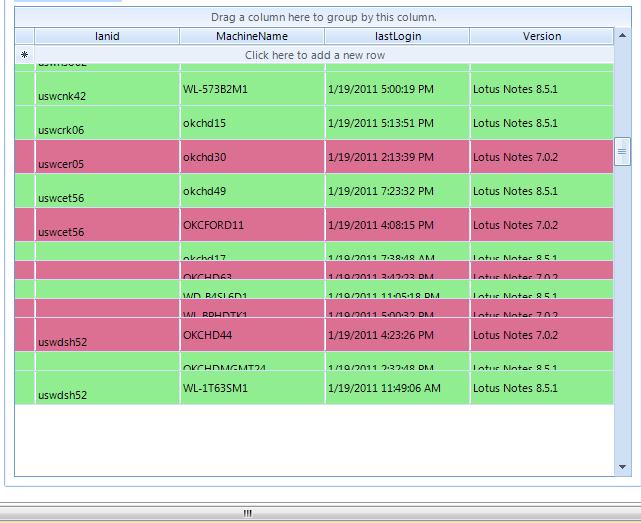

That then results in what I've attached.

Infuriating as we're so close!

Accepted

answered on 08 Dec 2011, 06:34 PM

I'm having a very similar issue where I can only see the first line of text in my cell with Autosizerows=false. If I set the Autosizerows=true then the grid rows are overlapping.

With Autosizerows=false the user can resize the row on their own to see the full contents of the cell, but I would rather have it done automatically for them.

As a temporary workaround I have just sent an initial height on the cell that will show most of the contents and if they need to see more they can do a manually resize.

Form1.designer.cs

namespace TelerikPlaygroundWindows

{

partial class Form1

{

/// <summary>

/// Required designer variable.

/// </summary>

private System.ComponentModel.IContainer components;

/// <summary>

/// Clean up any resources being used.

/// </summary>

/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>

protected override void Dispose(bool disposing)

{

if (disposing && (components != null))

{

components.Dispose();

}

base.Dispose(disposing);

}

#region Windows Form Designer generated code

/// <summary>

/// Required method for Designer support - do not modify

/// the contents of this method with the code editor.

/// </summary>

private void InitializeComponent()

{

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn1 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn2 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewDateTimeColumn gridViewDateTimeColumn1 = new Telerik.WinControls.UI.GridViewDateTimeColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn3 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewComboBoxColumn gridViewComboBoxColumn1 = new Telerik.WinControls.UI.GridViewComboBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn4 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewMaskBoxColumn gridViewMaskBoxColumn1 = new Telerik.WinControls.UI.GridViewMaskBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn5 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewMaskBoxColumn gridViewMaskBoxColumn2 = new Telerik.WinControls.UI.GridViewMaskBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn6 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn7 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn8 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn9 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn10 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

this.RadGridView1 = new Telerik.WinControls.UI.RadGridView();

((System.ComponentModel.ISupportInitialize)(this.RadGridView1)).BeginInit();

this.SuspendLayout();

//

// RadGridView1

//

this.RadGridView1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(233)))), ((int)(((byte)(240)))), ((int)(((byte)(249)))));

this.RadGridView1.Cursor = System.Windows.Forms.Cursors.Default;

this.RadGridView1.Dock = System.Windows.Forms.DockStyle.Fill;

this.RadGridView1.Font = new System.Drawing.Font("Segoe UI", 8.25F);

this.RadGridView1.ForeColor = System.Drawing.Color.Black;

this.RadGridView1.ImeMode = System.Windows.Forms.ImeMode.NoControl;

this.RadGridView1.Location = new System.Drawing.Point(0, 0);

this.RadGridView1.Margin = new System.Windows.Forms.Padding(4);

//

// RadGridView1

//

this.RadGridView1.MasterTemplate.AllowAddNewRow = false;

this.RadGridView1.MasterTemplate.AllowCellContextMenu = false;

this.RadGridView1.MasterTemplate.AllowColumnChooser = false;

this.RadGridView1.MasterTemplate.AllowColumnHeaderContextMenu = false;

this.RadGridView1.MasterTemplate.AllowColumnReorder = false;

this.RadGridView1.MasterTemplate.AllowColumnResize = false;

this.RadGridView1.MasterTemplate.AllowDragToGroup = false;

this.RadGridView1.MasterTemplate.AllowEditRow = false;

this.RadGridView1.MasterTemplate.AutoGenerateColumns = false;

this.RadGridView1.MasterTemplate.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;

gridViewTextBoxColumn1.AutoEllipsis = false;

gridViewTextBoxColumn1.FieldName = "Medicalsummarydetailid";

gridViewTextBoxColumn1.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn1.HeaderText = "Medical Summary Detail Id";

gridViewTextBoxColumn1.IsVisible = false;

gridViewTextBoxColumn1.Name = "Medicalsummarydetailid";

gridViewTextBoxColumn1.ReadOnly = true;

gridViewTextBoxColumn1.VisibleInColumnChooser = false;

gridViewTextBoxColumn2.AllowFiltering = false;

gridViewTextBoxColumn2.AllowGroup = false;

gridViewTextBoxColumn2.AllowHide = false;

gridViewTextBoxColumn2.AllowResize = false;

gridViewTextBoxColumn2.AllowSort = false;

gridViewTextBoxColumn2.AutoEllipsis = false;

gridViewTextBoxColumn2.DisableHTMLRendering = false;

gridViewTextBoxColumn2.FieldName = "Datelabel";

gridViewTextBoxColumn2.FormatString = "";

gridViewTextBoxColumn2.HeaderText = "Datelabel";

gridViewTextBoxColumn2.Name = "Datelabel";

gridViewTextBoxColumn2.ReadOnly = true;

gridViewTextBoxColumn2.VisibleInColumnChooser = false;

gridViewDateTimeColumn1.FieldName = "Eventdate";

gridViewDateTimeColumn1.FormatString = "{0:MM/dd/yyyy}";

gridViewDateTimeColumn1.HeaderText = "Date";

gridViewDateTimeColumn1.Name = "Eventdate";

gridViewDateTimeColumn1.Width = 5;

gridViewTextBoxColumn3.AllowFiltering = false;

gridViewTextBoxColumn3.AllowGroup = false;

gridViewTextBoxColumn3.AllowHide = false;

gridViewTextBoxColumn3.AllowResize = false;

gridViewTextBoxColumn3.AllowSort = false;

gridViewTextBoxColumn3.AutoEllipsis = false;

gridViewTextBoxColumn3.DisableHTMLRendering = false;

gridViewTextBoxColumn3.FieldName = "Categorylabel";

gridViewTextBoxColumn3.FormatString = "";

gridViewTextBoxColumn3.HeaderText = "Categorylabel";

gridViewTextBoxColumn3.Name = "Categorylabel";

gridViewTextBoxColumn3.ReadOnly = true;

gridViewTextBoxColumn3.VisibleInColumnChooser = false;

gridViewComboBoxColumn1.AllowGroup = false;

gridViewComboBoxColumn1.AllowHide = false;

gridViewComboBoxColumn1.AutoEllipsis = false;

gridViewComboBoxColumn1.DisableHTMLRendering = false;

gridViewComboBoxColumn1.DisplayMember = "text";

gridViewComboBoxColumn1.FieldName = "Categoryname";

gridViewComboBoxColumn1.FormatInfo = new System.Globalization.CultureInfo("");

gridViewComboBoxColumn1.FormatString = "";

gridViewComboBoxColumn1.HeaderText = "Category";

gridViewComboBoxColumn1.Name = "Categoryname";

gridViewComboBoxColumn1.ValueMember = "value";

gridViewComboBoxColumn1.Width = 5;

gridViewTextBoxColumn4.AllowFiltering = false;

gridViewTextBoxColumn4.AllowGroup = false;

gridViewTextBoxColumn4.AllowHide = false;

gridViewTextBoxColumn4.AllowResize = false;

gridViewTextBoxColumn4.AllowSort = false;

gridViewTextBoxColumn4.AutoEllipsis = false;

gridViewTextBoxColumn4.DisableHTMLRendering = false;

gridViewTextBoxColumn4.FieldName = "Pagestartlabel";

gridViewTextBoxColumn4.FormatString = "";

gridViewTextBoxColumn4.HeaderText = "Pagestartlabel";

gridViewTextBoxColumn4.Name = "Pagestartlabel";

gridViewTextBoxColumn4.ReadOnly = true;

gridViewTextBoxColumn4.VisibleInColumnChooser = false;

gridViewMaskBoxColumn1.AllowGroup = false;

gridViewMaskBoxColumn1.AllowHide = false;

gridViewMaskBoxColumn1.AutoEllipsis = false;

gridViewMaskBoxColumn1.DisableHTMLRendering = false;

gridViewMaskBoxColumn1.FieldName = "Pagenumberstart";

gridViewMaskBoxColumn1.FormatInfo = new System.Globalization.CultureInfo("");

gridViewMaskBoxColumn1.FormatString = "";

gridViewMaskBoxColumn1.HeaderText = "Start";

gridViewMaskBoxColumn1.MaskType = Telerik.WinControls.UI.MaskType.Numeric;

gridViewMaskBoxColumn1.Name = "Pagenumberstart";

gridViewMaskBoxColumn1.Width = 5;

gridViewTextBoxColumn5.FieldName = "Pageendlabel";

gridViewTextBoxColumn5.FormatString = "";

gridViewTextBoxColumn5.HeaderText = "Pageendlabel";

gridViewTextBoxColumn5.Name = "Pageendlabel";

gridViewTextBoxColumn5.Width = 5;

gridViewMaskBoxColumn2.FieldName = "Pagenumberend";

gridViewMaskBoxColumn2.FormatString = "";

gridViewMaskBoxColumn2.HeaderText = "End";

gridViewMaskBoxColumn2.Name = "Pagenumberend";

gridViewMaskBoxColumn2.Width = 5;

gridViewTextBoxColumn6.AllowFiltering = false;

gridViewTextBoxColumn6.AllowGroup = false;

gridViewTextBoxColumn6.AllowHide = false;

gridViewTextBoxColumn6.AllowResize = false;

gridViewTextBoxColumn6.AllowSort = false;

gridViewTextBoxColumn6.AutoEllipsis = false;

gridViewTextBoxColumn6.DisableHTMLRendering = false;

gridViewTextBoxColumn6.FieldName = "Notelabel";

gridViewTextBoxColumn6.FormatString = "";

gridViewTextBoxColumn6.HeaderText = "Notelabel";

gridViewTextBoxColumn6.Name = "Notelabel";

gridViewTextBoxColumn6.ReadOnly = true;

gridViewTextBoxColumn6.VisibleInColumnChooser = false;

gridViewTextBoxColumn7.AllowGroup = false;

gridViewTextBoxColumn7.AllowHide = false;

gridViewTextBoxColumn7.DisableHTMLRendering = false;

gridViewTextBoxColumn7.FieldName = "Notes";

gridViewTextBoxColumn7.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn7.FormatString = "";

gridViewTextBoxColumn7.HeaderText = "Note";

gridViewTextBoxColumn7.MaxLength = 4000;

gridViewTextBoxColumn7.Multiline = true;

gridViewTextBoxColumn7.Name = "Notes";

gridViewTextBoxColumn7.Width = 5;

gridViewTextBoxColumn7.WrapText = true;

gridViewTextBoxColumn8.AllowFiltering = false;

gridViewTextBoxColumn8.AllowGroup = false;

gridViewTextBoxColumn8.AllowHide = false;

gridViewTextBoxColumn8.AllowResize = false;

gridViewTextBoxColumn8.AllowSort = false;

gridViewTextBoxColumn8.AutoEllipsis = false;

gridViewTextBoxColumn8.DisableHTMLRendering = false;

gridViewTextBoxColumn8.FieldName = "Appraisallabel";

gridViewTextBoxColumn8.FormatString = "";

gridViewTextBoxColumn8.HeaderText = "Appraisallabel";

gridViewTextBoxColumn8.Name = "Appraisallabel";

gridViewTextBoxColumn8.ReadOnly = true;

gridViewTextBoxColumn8.VisibleInColumnChooser = false;

gridViewTextBoxColumn9.FieldName = "Appraisalyn";

gridViewTextBoxColumn9.FormatString = "";

gridViewTextBoxColumn9.HeaderText = "Appraisal";

gridViewTextBoxColumn9.Name = "Appraisalyn";

gridViewTextBoxColumn9.Width = 5;

gridViewTextBoxColumn10.FieldName = "Categoryid";

gridViewTextBoxColumn10.HeaderText = "Categoryid";

gridViewTextBoxColumn10.IsVisible = false;

gridViewTextBoxColumn10.Name = "Categoryid";

this.RadGridView1.MasterTemplate.Columns.AddRange(new Telerik.WinControls.UI.GridViewDataColumn[] {

gridViewTextBoxColumn1,

gridViewTextBoxColumn2,

gridViewDateTimeColumn1,

gridViewTextBoxColumn3,

gridViewComboBoxColumn1,

gridViewTextBoxColumn4,

gridViewMaskBoxColumn1,

gridViewTextBoxColumn5,

gridViewMaskBoxColumn2,

gridViewTextBoxColumn6,

gridViewTextBoxColumn7,

gridViewTextBoxColumn8,

gridViewTextBoxColumn9,

gridViewTextBoxColumn10});

this.RadGridView1.MasterTemplate.EnableAlternatingRowColor = true;

this.RadGridView1.MasterTemplate.EnableFiltering = true;

this.RadGridView1.MasterTemplate.EnableGrouping = false;

this.RadGridView1.MasterTemplate.ShowColumnHeaders = false;

this.RadGridView1.MasterTemplate.ShowFilteringRow = false;

this.RadGridView1.Name = "RadGridView1";

this.RadGridView1.Padding = new System.Windows.Forms.Padding(0, 0, 0, 1);

this.RadGridView1.RightToLeft = System.Windows.Forms.RightToLeft.No;

//

this.RadGridView1.RootElement.Padding = new System.Windows.Forms.Padding(0, 0, 0, 1);

this.RadGridView1.ShowGroupPanel = false;

this.RadGridView1.Size = new System.Drawing.Size(1153, 687);

this.RadGridView1.TabIndex = 4;

this.RadGridView1.Text = "rgvNotes";

//

// Form1

//

this.AutoScaleDimensions = new System.Drawing.SizeF(8F, 16F);

this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;

this.ClientSize = new System.Drawing.Size(1153, 687);

this.Controls.Add(this.RadGridView1);

this.Name = "Form1";

this.Text = "Form1";

((System.ComponentModel.ISupportInitialize)(this.RadGridView1)).EndInit();

this.ResumeLayout(false);

}

#endregion

private Telerik.WinControls.UI.RadGridView RadGridView1;

}

Form1.cs

using System;

using System.Data;

using System.Linq;

using System.Windows.Forms;

using Telerik.WinControls.UI;

namespace TelerikPlaygroundWindows

{

public partial class Form1 : Form

{

public Form1()

{

InitializeComponent();

InitializeGrid();

populateGrid();

}

private void InitializeGrid()

{

HtmlViewDefinition htmlView = new HtmlViewDefinition();

htmlView.RowTemplate.Rows.Add(new RowDefinition());

htmlView.RowTemplate.Rows[0].Cells.Add(new CellDefinition("Datelabel"));

htmlView.RowTemplate.Rows[0].Cells.Add(new CellDefinition("Eventdate"));

htmlView.RowTemplate.Rows[0].Cells[1].Width = 200;

htmlView.RowTemplate.Rows[0].Cells.Add(new CellDefinition("Appraisallabel"));

htmlView.RowTemplate.Rows[0].Cells.Add(new CellDefinition("Appraisalyn"));

htmlView.RowTemplate.Rows[0].Cells[3].ColSpan = 3;

htmlView.RowTemplate.Rows.Add(new RowDefinition());

htmlView.RowTemplate.Rows[1].Cells.Add(new CellDefinition("Categorylabel"));

htmlView.RowTemplate.Rows[1].Cells.Add(new CellDefinition("Categoryname"));

htmlView.RowTemplate.Rows[1].Cells[1].Width = 200;

htmlView.RowTemplate.Rows[1].Cells.Add(new CellDefinition("Pagestartlabel"));

htmlView.RowTemplate.Rows[1].Cells.Add(new CellDefinition("Pagenumberstart"));

htmlView.RowTemplate.Rows[1].Cells.Add(new CellDefinition("Pageendlabel"));

htmlView.RowTemplate.Rows[1].Cells.Add(new CellDefinition("Pagenumberend"));

htmlView.RowTemplate.Rows.Add(new RowDefinition());

htmlView.RowTemplate.Rows[2].Cells.Add(new CellDefinition("Notelabel"));

htmlView.RowTemplate.Rows[2].Cells[0].ColSpan = 6;

htmlView.RowTemplate.Rows.Add(new RowDefinition());

htmlView.RowTemplate.Rows[3].Cells.Add(new CellDefinition("Notes"));

htmlView.RowTemplate.Rows[3].Cells[0].ColSpan = 6;

//htmlView.RowTemplate.Rows[3].Height = 100;

RadGridView1.ViewDefinition = htmlView;

}

private void populateGrid()

{

DataTable table = new DataTable();

table.Columns.Add("Medicalsummarydetailid", typeof(int));

table.Columns.Add("Eventdate", typeof(DateTime));

table.Columns.Add("Appraisalyn", typeof(string));

table.Columns.Add("Categoryid", typeof(string));

table.Columns.Add("Categoryname", typeof(string));

table.Columns.Add("Notes", typeof(string));

table.Columns.Add("Pagenumberstart", typeof(string));

table.Columns.Add("Pagenumberend", typeof(string));

table.Columns.Add("Datelabel", typeof(string));

table.Columns.Add("Appraisallabel", typeof(string));

table.Columns.Add("Categorylabel", typeof(string));

table.Columns.Add("Pagestartlabel", typeof(string));

table.Columns.Add("Pageendlabel", typeof(string));

table.Columns.Add("Notelabel", typeof(string));

for (int i = 0; i < 10; i++)

{

DataRow row = table.NewRow();

row["Medicalsummarydetailid"] = i;

row["Eventdate"] = DateTime.Now;

row["Appraisalyn"] = "Y";

row["Categoryid"] = i;

row["Categoryname"] = "Test Category";

row["Notes"] = String.Format(

"This is the first line{0}This is the second line{0}This is the third line{0}This is the fourth line{0}This is the fifth line{0}This is the sixth line{0}"

, Environment.NewLine);

row["Pagenumberstart"] = 1;

row["Pagenumberend"] = 2;

row["Datelabel"] = "Date: ";

row["Appraisallabel"] = "Appraisal: ";

row["Categorylabel"] = "Category: ";

row["Pagestartlabel"] = "Start: ";

row["Pageendlabel"] = "End: ";

row["Notelabel"] = "Note: ";

table.Rows.Add(row);

}

RadGridView1.DataSource = table;

}

answered on 01 Jul 2016, 10:51 AM

I am also facing same issue. Telerik grid row is overlapping when GridViewDataColumn is having multiline text. If we resize column or apply any filter, row overlapping disappears. Do we have any solution for this?

<telerik:GridViewDataColumn
DataMemberBinding="{Binding ConnectedCardInfo, Mode=OneWay}"
IsReadOnly="True" IsVisible="{Binding IsTSeries}"
UniqueName="ConnectedCardInfo">

<telerik:GridViewDataColumn.Header>
<TextBlock Text="Connected Card Info" TextWrapping="WrapWithOverflow" ToolTip="Connected Card Info"/>
</telerik:GridViewDataColumn.Header>
</telerik:GridViewDataColumn>
