Issue with Passing Authorization Token in Telerik Web Report Designer

[Krunal]

We have embedded Telerik report designer in our angular web application. Reports which we have designed has web api datasources in it which requires authorization token. All the reports have a parameter named token defined in it in which we need to pass on the value of latest token when designer opens up. But not able to figure out the way to pass/update the parameter value when I'm opening the report designer. Following is the code we have to open report designer.

    this.designer = $('#webReportDesigner')
      .telerik_WebReportDesigner({
        serviceUrl: `${environment.apiUrl}/reportdesigner/`,
        report: reportName != null ? `${reportName}` : false,
        parameterAreaPosition: 'left',
        parametersAreaVisible: true,
        interactive: true,
        tools: [
          { name: 'openReport' },
          { name: 'save' },
          { name: 'undo' },
          { name: 'redo' },
          { name: 'preview' },
        ],
        documentMapAreaPosition: 'left',
      })
      .data('telerik_WebReportDesigner');

With this code in place, I don't seem to find any way to update the report parameter value when I'm opening up the report in report designer. Can anyone pls help with this?

[Petar]

Hello Krunal,

Thank you for providing the code snippet of your report designer.

You can set the report parameters for the designer on the client side through the reportViewerOptions option, which can take a reportSourceParameters object. You can find more information about this in the following article from our documentation:

• Web Report Designer Initialization - Options

Alternatively, you can manage them on the server side by implementing a CustomReportSourceResolver. For instance, when you preview the report in the web report designer, a request is made to the REST service to resolve and render the report using a report source resolver. By implementing a CustomReportSourceResolver, you can access and modify its report parameters during this process through its Resolve method.

Below is a sample implementation that modifies the currentParameterValues dictionary passed to the Resolve method:

    class CustomReportSourceResolver : IReportSourceResolver
    {
        public Telerik.Reporting.ReportSource Resolve(string reportId, OperationOrigin operationOrigin, IDictionary<string, object> currentParameterValues)
        {
            var uriReportSource = new Telerik.Reporting.UriReportSource()
            {
                Uri = Path.Combine(System.IO.Directory.GetCurrentDirectory(), "Reports", "SampleReport.trdp")
            };

            currentParameterValues["Id"] = "1";

            return uriReportSource;
        }
    }

You can read more information on how to attach this report resolver to your REST service, as well as further details on this topic, in the following documentation article:

• Steps for Implementing a Custom ReportSource Resolver

Also, please note that if you choose to modify the report parameters using a CustomReportSourceResolver on the server, the parameters you pass from the client to render the report viewer will be overridden by those passed on the server.

I hope you find this helpful. Please let me know if you need any further assistance on this matter.

Regards,
Petar
Progress Telerik

[Krunal]

As per your suggestion, I have added following code

 BindReportDesigner(reportName: string | null) {
    var token = localStorage.getItem('access_token');

    this.designer = $('#webReportDesigner')
      .telerik_WebReportDesigner({
        serviceUrl: `${environment.apiUrl}/reportdesigner/`,
        report: reportName != null ? `${reportName}` : false,
        parameterAreaPosition: 'left',
        parametersAreaVisible: true,
        interactive: true,
        tools: [
          { name: 'openReport' },
          { name: 'save' },
          { name: 'undo' },
          { name: 'redo' },
          { name: 'preview' },
        ],
        documentMapAreaPosition: 'left',
        reportViewerOptions : {
          reportSourceParameters : {
            '_rptname' : 'temp123'
          }
        }
      })
      .data('telerik_WebReportDesigner');
  }

In the code, I have added reportSourceParameters value object and in that I'm trying to pass the value of parameter with the name "_rptname" as "temp123" but it is not picking up this value when I open the report designer.

Can you point out is this correct approach or if I'm missing something?

[Petar]

Hello Krunal,

Initially, I believed you expected the values to be provided when using the "Preview" functionality of the web report designer:

Previewing processes the report and populates it with actual values. In this case, setting the reportSourceParameters options should work if you are using Telerik Reporting version 18.0.24.130 or higher:

• Expose changing the parameters editor widgets of the Web Report Designer's internal viewer

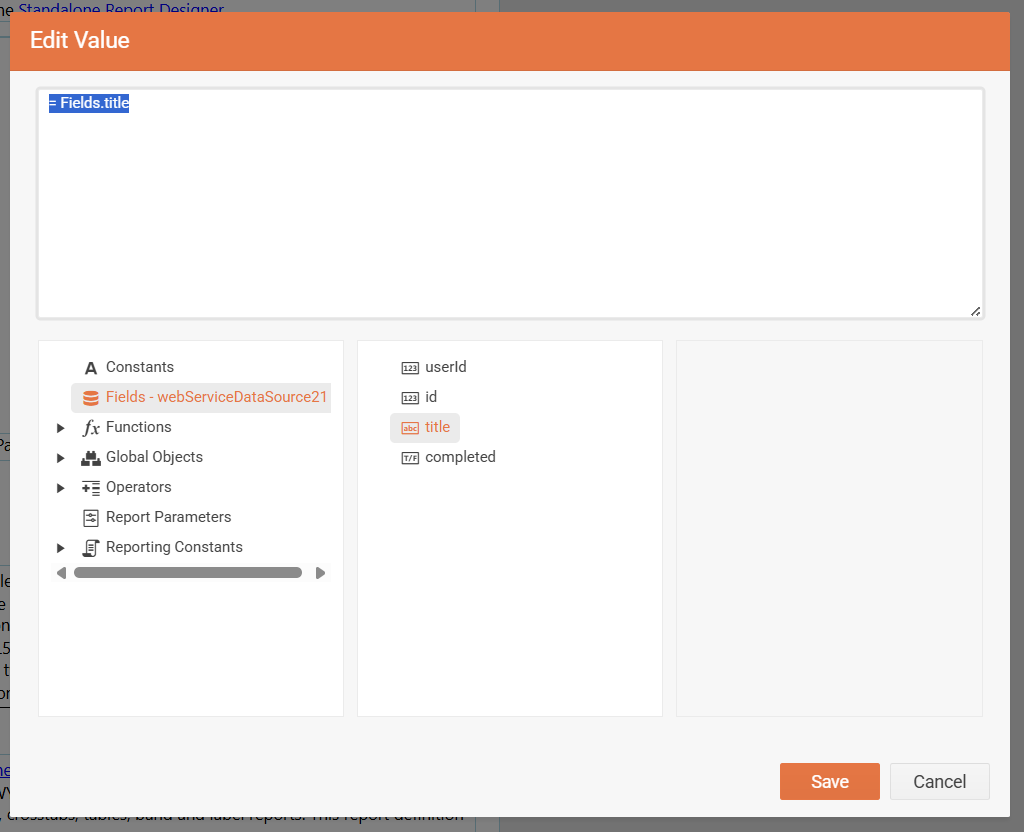

However, it seems that you expect the value to be available once the report is loaded in the web report designer, even before it is previewed. Could you please confirm if this is correct? If this is the case, you would be able to work with the fields provided by the web report designer in situations where the authorization token has changed, without needing to perform any additional setups:

The values utilized in the report and accessible during the design time are actually embedded within the report definition. Currently, the only intended way to modify these values is directly through the web report designer. That being said, the ability to change these values by passing them during the initialization of the web report designer seems like a valuable feature to me. Therefore, I encourage you to submit this suggestion in our public feedback portal:

• Progress® Telerik® Reporting Feedback Portal

If there is enough interest from the community, we will definitely consider implementing it in a future release.

If you believe that I misunderstood your use case or if you have any additional concerns regarding this matter, please feel free to reach out, and I'd be happy to provide further insights.

Regards,

Petar
