Issue with custom layout for RadVirtualKeyboard

[Dmi3]

I would like use a RadVirtualKeyboard to enter pin code in my application. And when I use it with DefaultKeyboardLayout.Numpad it work as expected - shows small pop-up windows with numpad keyboard. But when I try to load my custom layout it shows the same small window but width of keyboard's buttons is super wide.

I seems that loading custom layout reset width of UI element to full size keyboard and all my customs buttons are stretched.

Could you help me?

var kb = new RadVirtualKeyboard()
{
    VirtualKeyboardTemplateSelector = (VirtualKeyboardTemplateSelector)(MyView.FindResource("KeyTemplateSelector")),
    DefaultKeyboardLayout = DefaultKeyboardLayout.Numpad
};
keyboardWindow = new RadVirtualKeyboardWindow(kb)
{
    Header = "Enter you number",
    ResizeMode = ResizeMode.NoResize,
    CanClose = false,
    Width = 260
};
//load custom layout
byte[] byteArray = Encoding.UTF8.GetBytes(keyLayout);
Stream stream = new MemoryStream(byteArray);
kb.LoadLayout(stream);

keyboardWindow.Show();

Here is my layout:

<RadVirtualKeyboard xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="*" />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*" />
        </Grid.ColumnDefinitions>
        <KeysLayout KeySpacing="0.1" Grid.Row="0" Grid.Column="0">
            <Rows>
                <Row>
                    <Keys>
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="103" />
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="104" />
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="105" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="109" />
                    </Keys>
                </Row>
                <Row>
                    <Keys>
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="100" />
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="101" />
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="102" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="107" />
                    </Keys>
                </Row>
                <Row>
                    <Keys>
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="97" />
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="98" />
                        <Key KeyType="Numpad" Width="1" Height="1" VirtualKey="99" />
                        <Key DisplayText="Enter" KeyType="Special" Width="1" Height="1" VirtualKey="13" />
                    </Keys>
                </Row>
            </Rows>
        </KeysLayout>
    </Grid>
</RadVirtualKeyboard>

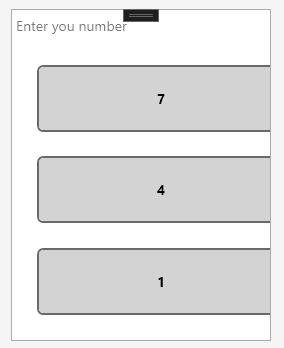

And how it is showed



[Dimitar]

Hello Dmitry,

It seems that the virtual keyboard has a default size. You need to set in your code to something suitable for your case:

var kb = new RadVirtualKeyboard();

var keyboardWindow = new RadVirtualKeyboardWindow(kb)
{
    Header = "Enter you number",
    ResizeMode = ResizeMode.CanResize,
    CanClose = false,
    Width = 270
};

//load custom layout

kb.Width = 250;
kb.LoadLayout(@"..\..\..\TextFile1.txt");

keyboardWindow.Show();

I hope this helps. Should you have any other questions do not hesitate to ask.

Regards,
Dimitar
Progress Telerik
