Incorrect yaxis values

1 Answer 52 Views
ChartView
This is a migrated thread and some comments may be shown as answers.
William
Top achievements
Rank 1
William asked on 15 Feb 2017, 02:57 PM

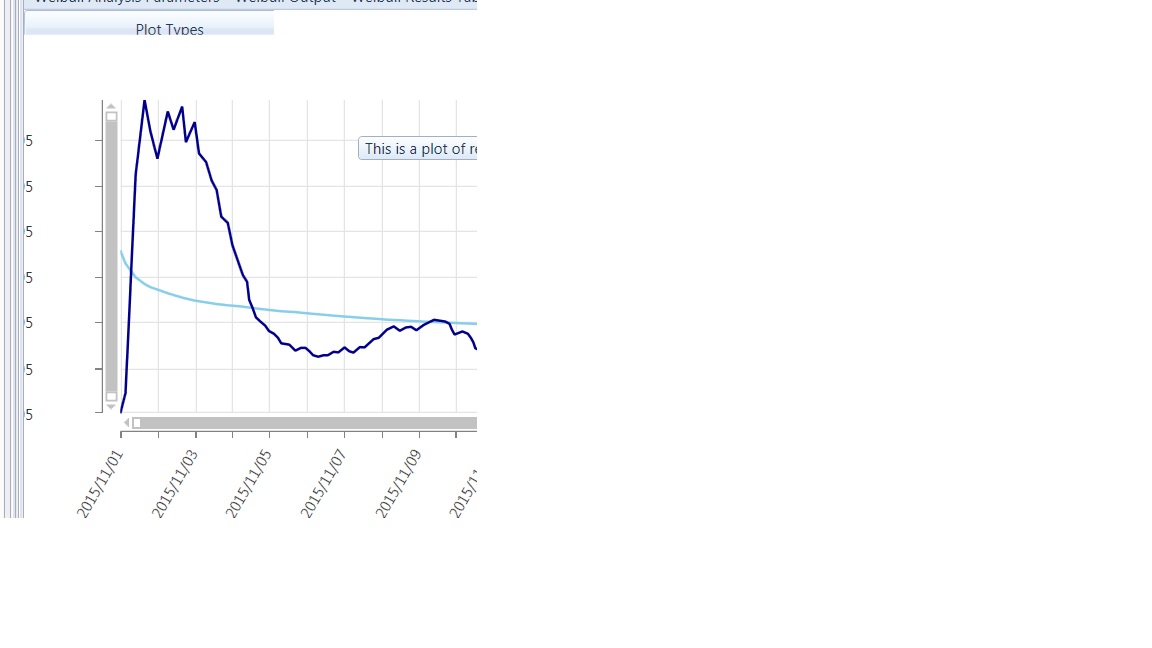

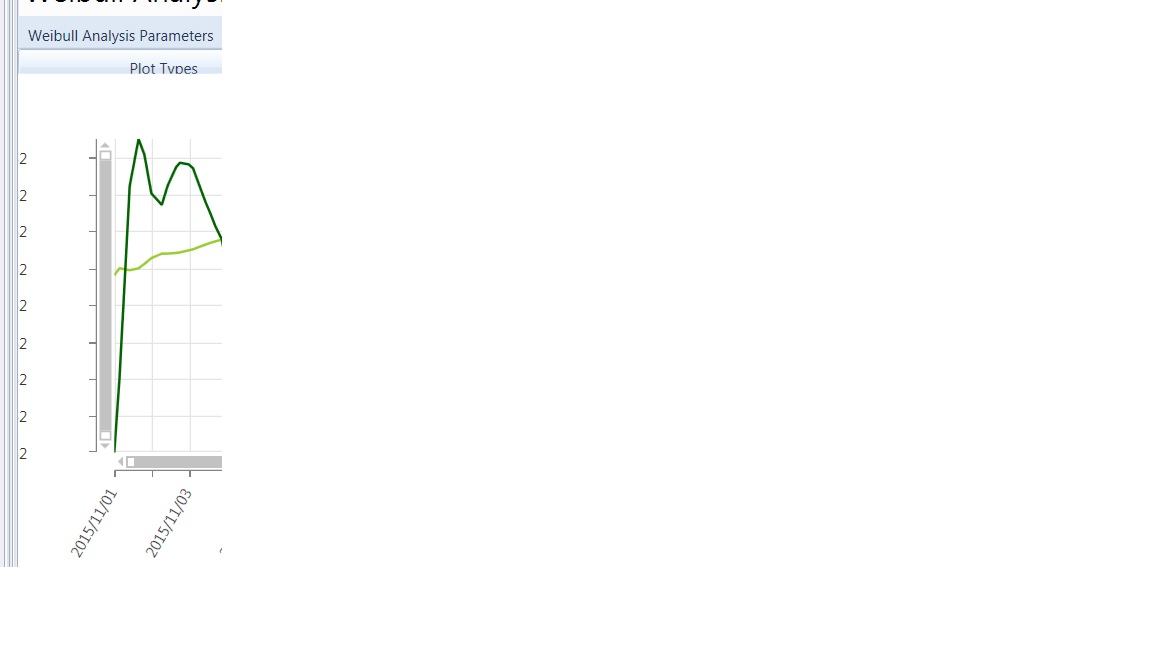

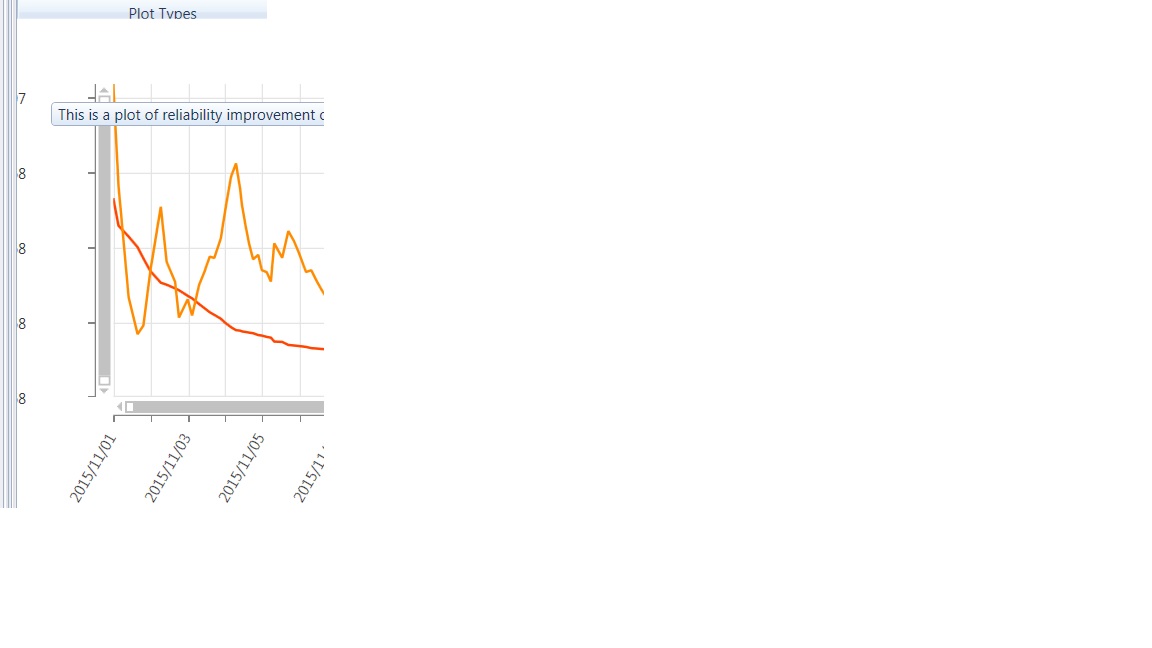

I have a simple RadCartesianChart set up with binding. What I'm seeing is what appears to be yaxis labels, but these labels aren't related to the data itself. I have no idea where these extraneous numbers are coming from.

This is the xaml:

                    <telerik:RadCartesianChart x:Name="WeibullChart3" HorizontalAlignment="Left" VerticalAlignment="Top">
                        <telerik:RadCartesianChart.HorizontalAxis>
                            <telerik:DateTimeContinuousAxis LabelFitMode="Rotate" LabelFormat="yyyy/MM/dd" LabelInterval="2"/>
                        </telerik:RadCartesianChart.HorizontalAxis>
                        <telerik:RadCartesianChart.VerticalAxis>
                            <telerik:LinearAxis ToolTip="Duane Curve" LabelFitMode="Rotate" VerticalContentAlignment="Top" HorizontalContentAlignment="Left" />
                        </telerik:RadCartesianChart.VerticalAxis>
                        <!--<telerik:RadCartesianChart.Grid>
                            <telerik:CartesianChartGrid StripLinesVisibility="None" MajorLinesVisibility="XY" BorderThickness="1,0,1,1">
                                <telerik:CartesianChartGrid.YStripeBrushes>
                                    <SolidColorBrush Color="Black" />
                                    <SolidColorBrush Color="Black" />
                                </telerik:CartesianChartGrid.YStripeBrushes>
                                <telerik:CartesianChartGrid.XStripeBrushes>
                                    <SolidColorBrush Color="Black" />
                                    <SolidColorBrush Color="Black" />
                                </telerik:CartesianChartGrid.XStripeBrushes>
                            </telerik:CartesianChartGrid>
                        </telerik:RadCartesianChart.Grid>-->
                        <telerik:RadCartesianChart.Grid>
                            <telerik:CartesianChartGrid MajorLinesVisibility="XY"/>
                        </telerik:RadCartesianChart.Grid>
                        <telerik:LineSeries x:Name="Duane1" CategoryBinding="XVal" ValueBinding="YVal" ItemsSource="{Binding Document.WeibullDuanePlot}">
                        <telerik:LineSeries.PointTemplate>
                                <DataTemplate>
                                    <Ellipse Width="2" Height="2" Fill="Black" Opacity="0" />
                                </DataTemplate>
                        </telerik:LineSeries.PointTemplate>
                        </telerik:LineSeries>
                        <telerik:LineSeries x:Name="Duane2" CategoryBinding="XVal" ValueBinding="YVal" ItemsSource="{Binding Document.WeibullAggregatePlot}">
                           <telerik:LineSeries.PointTemplate>
                                <DataTemplate>
                                    <Ellipse Width="2" Height="2" Fill="Black" Opacity="0" />
                                </DataTemplate>
                           </telerik:LineSeries.PointTemplate>
                        </telerik:LineSeries>
                        <telerik:RadCartesianChart.Behaviors>
                            <telerik:ChartPanAndZoomBehavior ZoomMode="Both" PanMode="Both"/>
                            <chartView:ChartTooltipBehavior />
                        </telerik:RadCartesianChart.Behaviors>
                    </telerik:RadCartesianChart>
                    <telerik:RadLegend Items="{Binding LegendItems, ElementName=WeibullChart3}" Height="30">
                        <telerik:RadLegend.ItemsPanel>
                            <ItemsPanelTemplate>
                                <telerik:RadWrapPanel Orientation="Horizontal" ItemWidth="120" HorizontalAlignment="Center"/>
                            </ItemsPanelTemplate>
                        </telerik:RadLegend.ItemsPanel>
                    </telerik:RadLegend>
                </StackPanel>
            </telerik:RadTabItem>



This is the C# code:

            (WeibullChart3.HorizontalAxis as DateTimeContinuousAxis).Maximum = maxX;
            (WeibullChart3.HorizontalAxis as DateTimeContinuousAxis).Minimum = minX;
            (WeibullChart3.HorizontalAxis as DateTimeContinuousAxis).Title = "Date";

            (WeibullChart3.VerticalAxis as LinearAxis).Maximum = maxY;
            (WeibullChart3.VerticalAxis as LinearAxis).Minimum = minY;
            //(WeibullChart3.VerticalAxis as LinearAxis).Title = type.ToString();

            Plot_Title3.Text = type.ToString() + " Duane curve";

1 Answer, 1 is accepted

Sort by
0
Martin Ivanov
Telerik team
answered on 16 Feb 2017, 09:55 AM
Hello William,

Without a runnable code I can't tell what happens. However, it seems that there is a LabelTemplate defined for the LinearAxis. Check if the template is set somewhere in code and see its text formatting.

Regards,
Martin
