Inconsistent error notification behavior between "Full Row" and "Cell" selection units

4 Answers 11 Views
GridView
This is a migrated thread and some comments may be shown as answers.
Ireney
Top achievements
Rank 1
Ireney asked on 29 Dec 2015, 09:16 PM

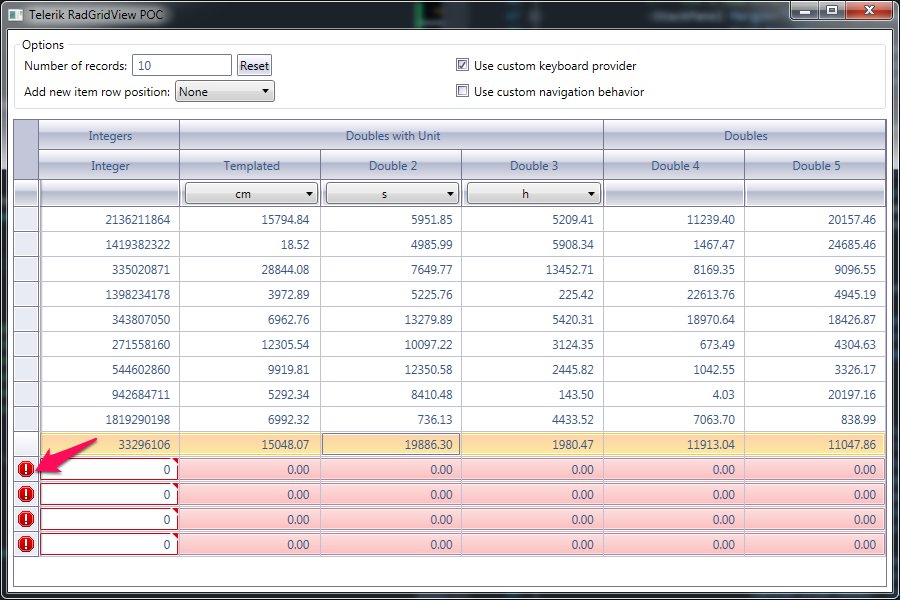

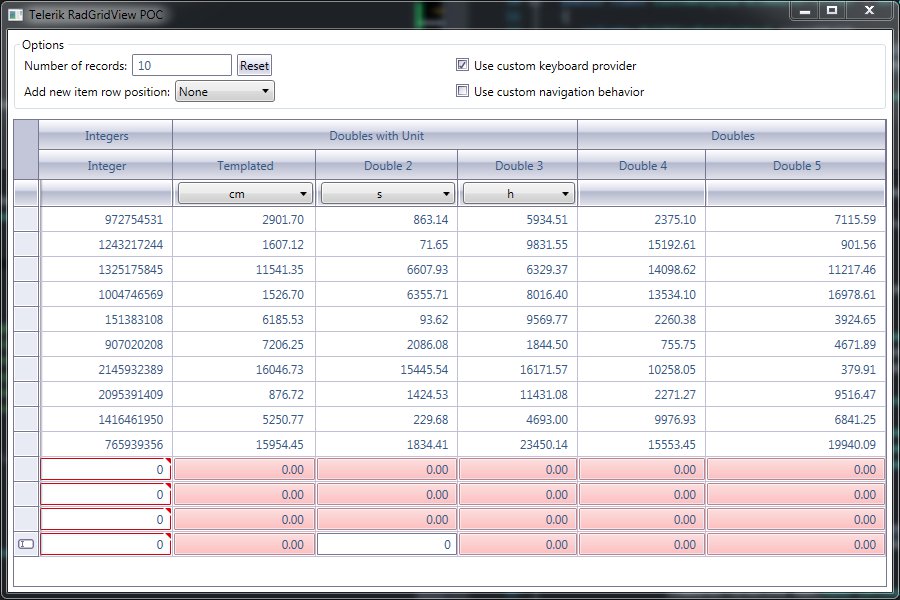

If "Full Row" selection unit is used, and particular field has an error, the row header displays an error icon summarizing the errors when hovered over (see attached "error - full row selection unit.jpg"). This is not the case when "Cell" is the selection unit (see "error - cell selection unit.jpg").

Do I need to set something to enable the same behavior, or is this a bug?

I am using trial version (2015.3.1104.45)

4 Answers, 1 is accepted

Sort by
0
Martin Ivanov
Telerik team
answered on 31 Dec 2015, 03:20 PM
Hi Ireney,

Thank you for the attached images and the description. We will contact you in few days with more information on the matter.

Regards,
Martin
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Dilyan Traykov
Telerik team
answered on 04 Jan 2016, 12:56 PM
Hello ,

I'm afraid there is no straightforward way to set this.

This behaviour is expected as when the selection unit is "Cell", each cell is responsible for displaying its own validation errors.
With however, each row displays all the errors it has aggregated and thus, the indicator is present.

You can use Implicit Styles and set the visibility of the ErrorIndicator to Visible in order to make the Indicator visible when the SelectionUnit is Cell.

Regards,
Dilyan Traykov
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Ireney
Top achievements
Rank 1
answered on 04 Jan 2016, 11:50 PM

Hi Dilyan,

If this is intended behavior, I think this is not an appropriate solution for a number of reasons:

  • One major reason is that it introduces inconsistent behavior that may be confusing to the users.
  • Second major problem is usability: if my grid features many columns, or requires users to scroll, the user will not know what the issue is. The user will be forced to scroll to the offending cell to determine the error, rather then having access to those errors readily available at the header.

Regarding ErrorIndicator, I am using implicit styles in my proof of concept apps, however I am still unfamiliar with the structure of your templates, and it is unlikely that I will have much time to fully familiarize myself with it as part of my evaluation.  I quickly look and tinkered with GridViewCellCoreValidationTemplate in Telerik.Windows.Controls.GridView.xaml, but none of the changes I introduce to it, whether alternate border thickness or border brush for instance, seem to have an effect.  Could you point me in the right direction?

0
Dilyan Traykov
Telerik team
answered on 05 Jan 2016, 04:16 PM
Hello ,

I took a detailed view of our source code and I can confidently state that this behaviour is by design and we're not planning a change in it.

However, I've attached a sample project showing you how you can achieve the desired effect with a custom column. You can further modify it to your liking.

Please let me know if this helps.

Regards,
Dilyan Traykov
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
