Images in a Grid on Report

[Oscar]

Hello,

Im retrieving some images from the database and im trying to show them like in a grid view like the mobile gallery. I've been trying with List and a picture box but each image shows in its on row.

What im trying to do

Column1          Column2
   Image1            Image2
   Image3           Image4

What im getting

Column1          Column2

Any help appreciated

[Krasimir]

Hello Oscar,

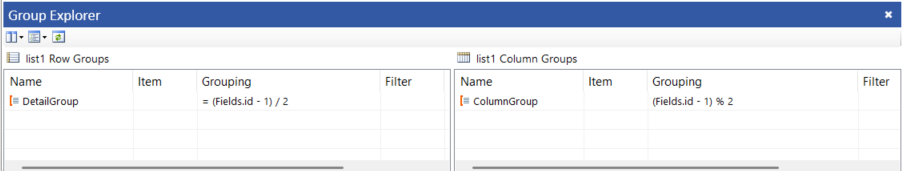

It looks like you are trying to get a list with multiple columns. To do this, you could use the Grouping properties of the list as depicted:

I've attached a sample report using CSV source for reference. Key things to pay attention to:

• "2" indicates the number of columns for the multicolumn list. You could change it if you need more columns
• You need to have an indicator for the element number. In my case, I'm using "id"
• You need to change the value you are showing to the relevant image from the data source you are using

Let me know if this resolves the problem.

Regards,
Krasimir Baylov
