Icon in Header Row

[Chet Musialowski]

Hello,

I'd like to put an image in the header row cell above the "current row indicator" column (see attached image).

I was able to do this while running the RadControls for WindForms demo application and using the RadControl Spy tool but need help in accessing the correct element in my code.

Thanks,
Chet

[Stefan]

Hello Chet,

Thank you for writing.

You can change the desired cell image by using the ViewCellFormatting event of RadGridView. The type of the cell that you want to customize is GridTableHeaderCellElement. Here is a code snippet:

void radGridView1_ViewCellFormatting(object sender, Telerik.WinControls.UI.CellFormattingEventArgs e)
{
    GridTableHeaderCellElement headerCell = e.CellElement as GridTableHeaderCellElement;
    if (headerCell != null)
    {
        headerCell.Image = Resources.img;
    }
    else
    {
        e.CellElement.ResetValue(LightVisualElement.ImageProperty, Telerik.WinControls.ValueResetFlags.Local);
    }
}

I hope that you find this information helpful.

All the best,
Stefan
the Telerik team

Q3’11 of RadControls for WinForms is available for download (see what's new). Get it today.

[Chet Musialowski]

Stefan,

That worked great !!!

Thanks,
Chet

[Stefan]

Hello Chet,

I am glad that I could help. Should you have any other questions, do not hesitate to contact us.

Kind regards,
Stefan
the Telerik teamQ3’11 of RadControls for WinForms is available for download (see what's new). Get it today.

[Swaroop]

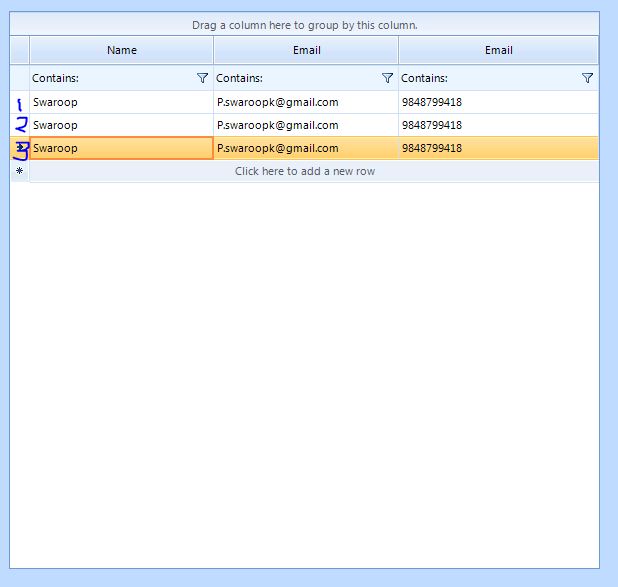

hi i want to display the row numbers on the left hand side as shown in the attachment how can i achieve this.
Thanking You

[Stefan]

Hi Swaroop,

Thank you for writing.

Please refer to the following forum thread where you can find the answer to your question: http://www.telerik.com/community/forums/winforms/gridview/row-number-in-row-header-column.aspx.

In general, please try post questions in forum threads that are related to the initial subject of the thread. This way it will be easier for you, the users, to find the answers to your questions. If you cannot find a suitable thread to post your question, you can always start one.

Greetings,
Stefan
the Telerik team
