How to show Horizontal List of Image

[Dario Concilio]

Hi,

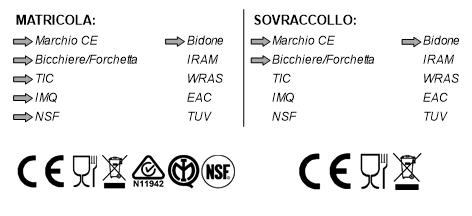

I would print a list of image, these images are certified mark and I have to show theme in horizontal orientation.

But these pictures could be seen all, or only some. But those that remain visible must all be near and no spaces.
I tried to use the crosstable, but it seems that is not working.
How can I do?

[Stef]

Hello Potito,

Please test adding a List item. Then select the item and its 'Rotate Layout' option from the Context menu - this will cause the item to grow horizontally.

You can place a PictureBox item in the cell of the List item, and then bind the List.DataSource property to a list of paths to images. The PictureBox.Value property can be set via expression to the field representing the image path.

Regards,
Stef
Telerik by Progress

[Dario Concilio]

I already tried this approach, but surpassing the amount of 4 images in sequence, were not even printed.
I found a way code solution through the collection of images, I create a bitmap and compose through the Graphics object, by managing the proportion of individual bitmap.



01.Public ReadOnly Property SequenceImages As Image
02.    Get
03.
04.        Dim _Items = MySharedMethods.GetImages
05.
06.        'Create a dictionary with the index of each image and the correct size of each setting constant as the height, maintaining the proportion
07.        Dim _ItemsDictionary = New Dictionary(Of Integer, Size)
08.
09.        Dim _CompleteWith As Integer = 0
10.        Dim _CompleteHeight As Integer = m_DimensioneMarchi
11.
12.        Dim _Height = m_DimensioneMarchi
13.
14.        For _Index = 0 To _Items.Count - 1
15.
16.            Dim _Image = _Items(_Index).Marchio
17.
18.            Dim _Width = CInt((_Image.Width * m_DimensioneMarchi) / _Image.Height)
19.
20.            _ItemsDictionary.Add(_Index, New Size(_Width, _Height))
21.
22.            'Trace the length of the final bitmap
23.            _CompleteWith += (_Width + m_MargineMarchi)
24.
25.        Next
26.
27.        'I compose the final bitmap based on the information of the previously constructed Dictionary
28.        Dim _Bitmap As New Bitmap(_CompleteWith, _CompleteHeight)
29.
30.        Dim _Graphics = Graphics.FromImage(_Bitmap)
31.
32.        With _Graphics
33.
34.            .CompositingMode = Drawing2D.CompositingMode.SourceCopy
35.            .CompositingQuality = Drawing2D.CompositingQuality.HighQuality
36.
37.            .Clear(Color.White)
38.
39.            Dim _X As Integer = 0
40.
41.            For Each _Item In _ItemsDictionary
42.
43.                Dim _Size = _Item.Value
44.
45.                .DrawImage(_Items(_Item.Key).Marchio, _X, 0, _Size.Width, _Size.Height)
46.
47.                'It moves the horizontal position for the next mark
48.                _X += (_Size.Width + m_MargineMarchi)
49.
50.            Next
51.
52.            .Dispose()
53.
54.        End With
55.
56.        Return _Bitmap
57.
58.    End Get
59.
60.End Property

[Dario Concilio]

Excuse me, I left a few variables in Italian, below the translations:

m_DimensioneMarchi = Height constant of all images

m_MargineMarchi = Margin width that needs between images

_Items(_Index).Marchio = MySharedMethods.GetImages returns a List(Of MyObject), this one has 2 property: Index as Integer and , Marchio as Image

[Dario Concilio]

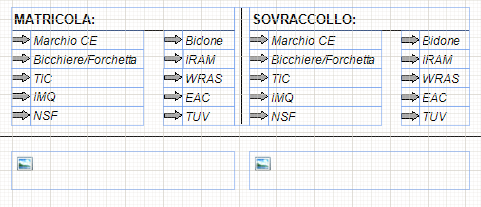

My example in action, there are simply 2 PictureBox of report.

[Stef]

Hi Potito,

We are glad to hear you found a solution.

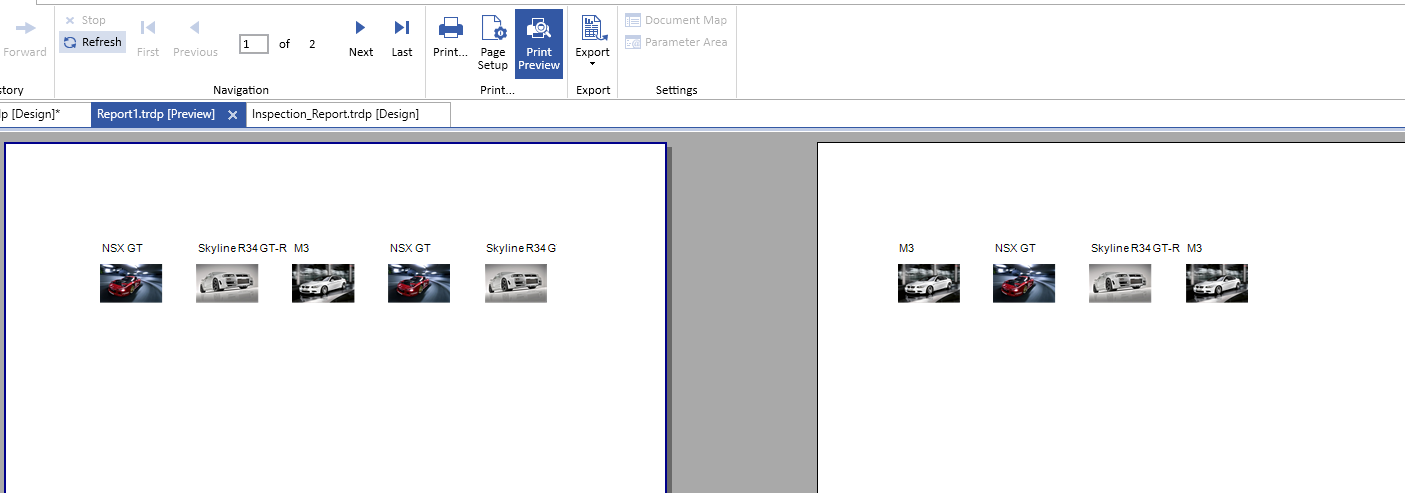

In case you still want to test the suggested approach, please check the attached TRDP file in the Standalone Report Designer of Telerik Reporting R2 2016 or later. There is also a video - SWF file, that can be previewed in IE browser.

Regards,
Stef
Telerik by Progress

[Vas]

Hi Stef,

If there are more images in the list, instead of displaying them on another page, is there an option to display 4 images horizontally and 4 images below and 2 images below.

Could you please help us with this?



Thanks

Vasanth



[Silviya]

Hello Vasanth,

Please check this article for more information and a demo:

https://www.telerik.com/support/kb/reporting/details/how-to-create-multi-column-report---across-the-page-and-then-down
