How to set the Document map name is dynamically or how to set Document map tooltip?

2 Answers 113 Views
.NET Core Conditional Formatting DataSource SQL Grouping Sorting
Mahalakshmi
Top achievements
Rank 1
Iron
Mahalakshmi asked on 07 Oct 2022, 11:49 AM

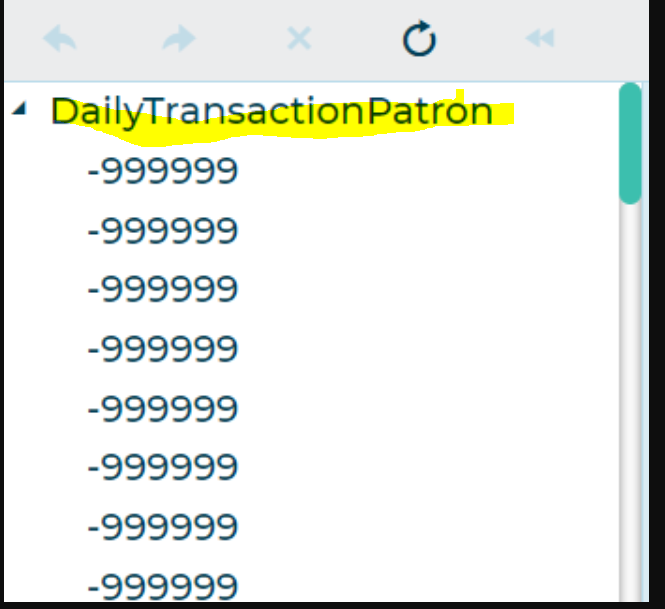

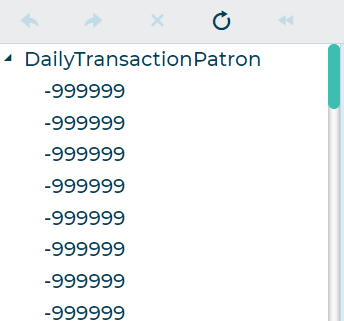

Now .trdp file name is the document map default name. As given the screen shot. how to set dynamic name for it?

2 Answers, 1 is accepted

Sort by
0
Dimitar
Telerik team
answered on 12 Oct 2022, 08:42 AM

Hello Mahalakshmi,

Thank you for the attached screenshots!

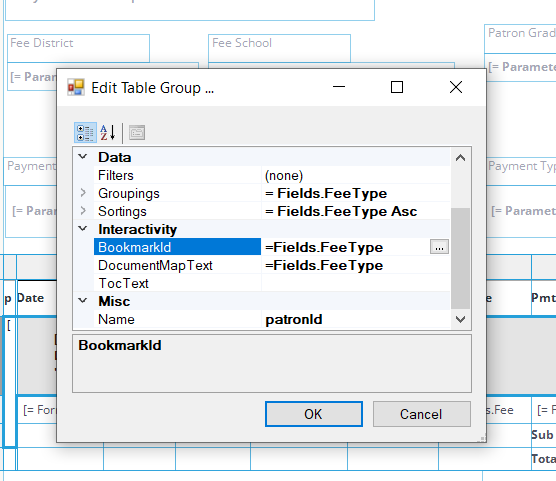

To set the document map text, you may use the DocumentMapText property of a given item. Based on the screenshots, it appears that you have already done that, however, it seems like the text is set onto the table group and not the table itself.

Either the FeeType field is the same for each instance of that table grouping or that instance is spanning across multiple pages and that could be causing the repeating value in the document map.

If you wish to set the document map text for the table, instead of setting it on the table group, set it on the table item itself. Then there should be only 1 instance in the document map when previewing the report.

For more information, please see the Document Map | Telerik Reporting article.

Regards,
Dimitar
Progress Telerik

Brand new Telerik Reporting course in Virtual Classroom - the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products. Check it out at https://learn.telerik.com/.
0
Mahalakshmi
Top achievements
Rank 1
Iron
answered on 12 Oct 2022, 09:19 AM

Thanks Dimitar

       The document map name and file name are same "DailyTransactionpatron" how to alter it.

example if I want to create document map name "DailyTransaction" without change the file name

how to do it? can we set tooltip "DailyTransaction" or "DailyTransactionpatron"?


Dimitar
Telerik team
commented on 14 Oct 2022, 11:51 AM

The document map name is the name of the report. In order to change that name, you may edit the Report.Name property from the Properties tab located on the right in the Report Designers.

Regarding tooltips, we also support tooltips through the Tooltip property, please refer to the Tooltips | Telerik Reporting article for full details on how tooltips work in Telerik Reporting.
