How to make detail with the footers close together in telerik reporting

3 Answers 184 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Cholticha
Top achievements
Rank 1
Cholticha asked on 27 Dec 2018, 08:20 AM

Hello....

I  Want the lines of the table to connect together

I am trying to create an Invoice with columns for quantity, price and amount. It should also have a summary at the bottom of the page. The columns should have a border and stretch all the way down to the summary (see attached picture). Is there any way to say that a section should fill out the remaining space of a page?

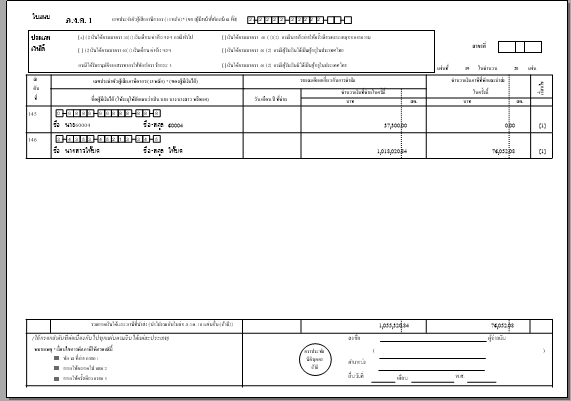

 - The problem is that the table dot have to be connected when there is little information  pic1.png

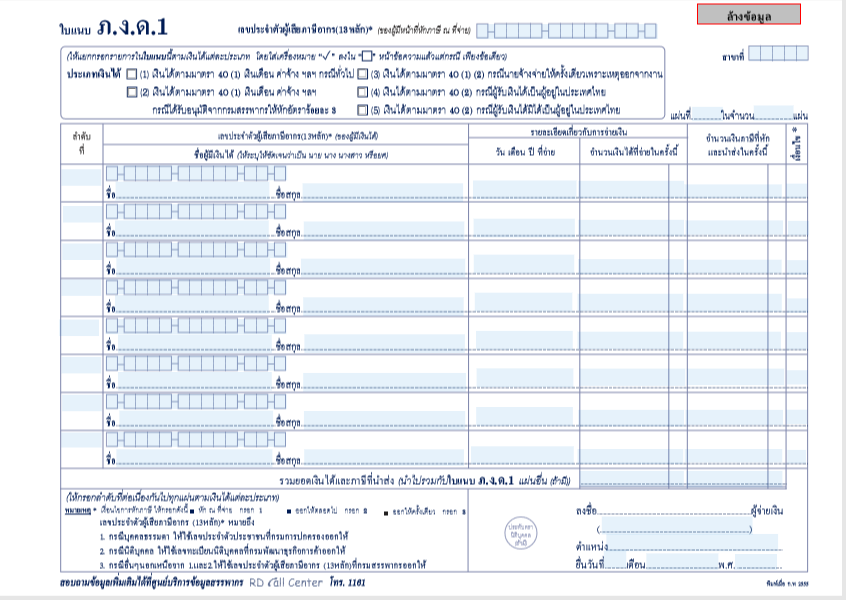

 - I want pic2.png





3 Answers, 1 is accepted

Sort by
0
Cholticha
Top achievements
Rank 1
answered on 27 Dec 2018, 09:59 AM
More images
0
Todor
Telerik team
answered on 02 Jan 2019, 03:45 PM
Hello Cholticha,

A similar request is already approved for implementing - Better support for form type reports post from our feedback portal. Feel free to vote for it as it can raise the priority of this feature.
Currently, there is no direct way to extend border lines to the bottom of the page.

I will suggest some possible workaround to achieve the desired layout :

 1. Create an image that imitates vertical lines extending to the bottom of the page and set it as a Report -> Style.BackgroundImage.

 2. The blank form itself (as seen from pic2.png) can be used as a Picture Watermark, and you may adjust the content of the Table to fit in the corresponding cells of the Watermark image.

 3. If you know the exact number of rows coming from the DataSource you may add empty rows to it to bring the vertical lines till the end of the page.

Regards,
Todor
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Cholticha
Top achievements
Rank 1
answered on 27 Feb 2019, 04:49 AM

hi Todor

thank you for your Answer.  it help me

But I think it should be done

thank

Cholticha
