Hello,
I am working with Reporting using HTML5 Report Viewer. I have designed Custom Report Resolver for showing up the reports. My reports have WebServiceDatasource that use OData to load data from database. Sometimes OData can through an exception. For example, When OData request select a property which doesn't exist in requested table, then there is error in OData saying like: "Could not find a property named 'NewProperty' on type 'EntityType'".
Custom Report Resolver also through exception, because there is error in OData. But, custom report resolver showing error message with this text: "Response status code does not indicate success: 500 (Internal Server Error)".
I need real error message. Can someone know how to get internal error message as the OData error message?
12 Answers, 1 is accepted
Hi Tursunhuja,
We will need the following materials in order to provide any ideas:
- screenshot when the error is thrown in OData;
- screenshot when "Response status code does not indicate success: 500 (Internal Server Error)" is thrown;
- the code of the CustomReportResolver;
Regards,
Neli
Progress Telerik

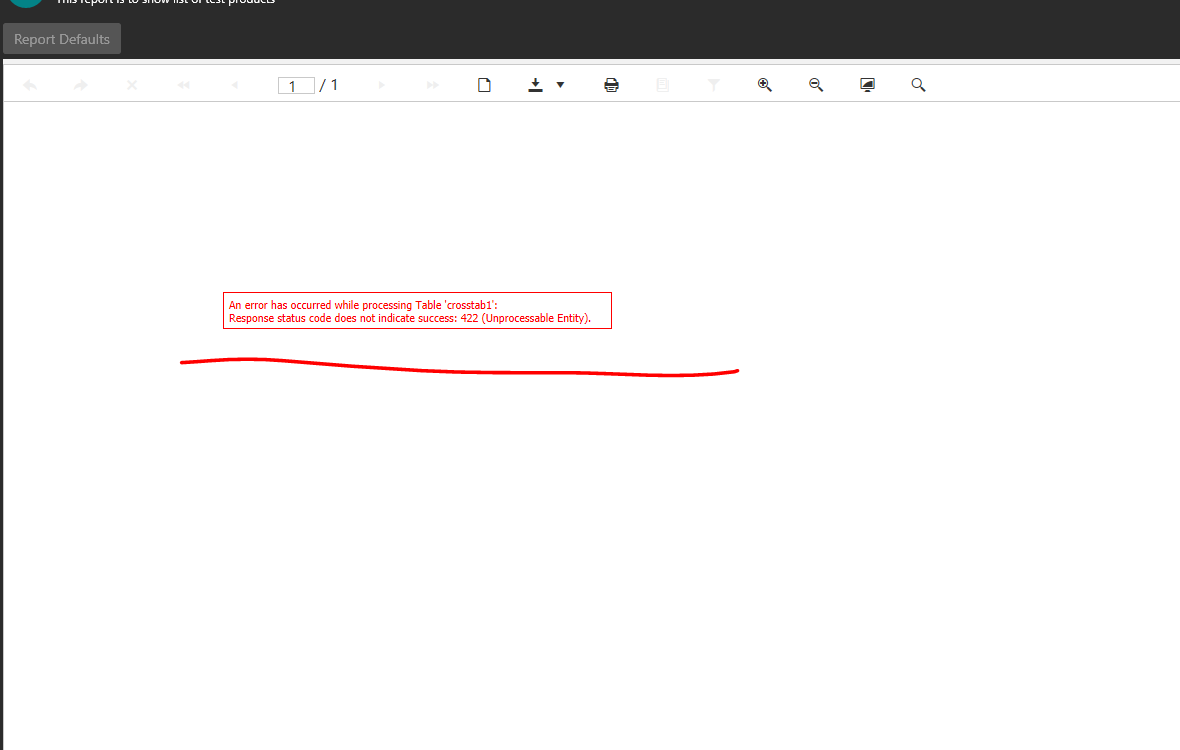

I've created the test report with WebServiceDataSource. In the WebServiceDataSource, I'm using OData query. The OData selecting a property which doesn't exist in requested entity, in database. When previewing the report Telerik reporting engine providing its own error that you can see it from the attached picture (TestReportWithError.png). But, that error is not clear (understandable).

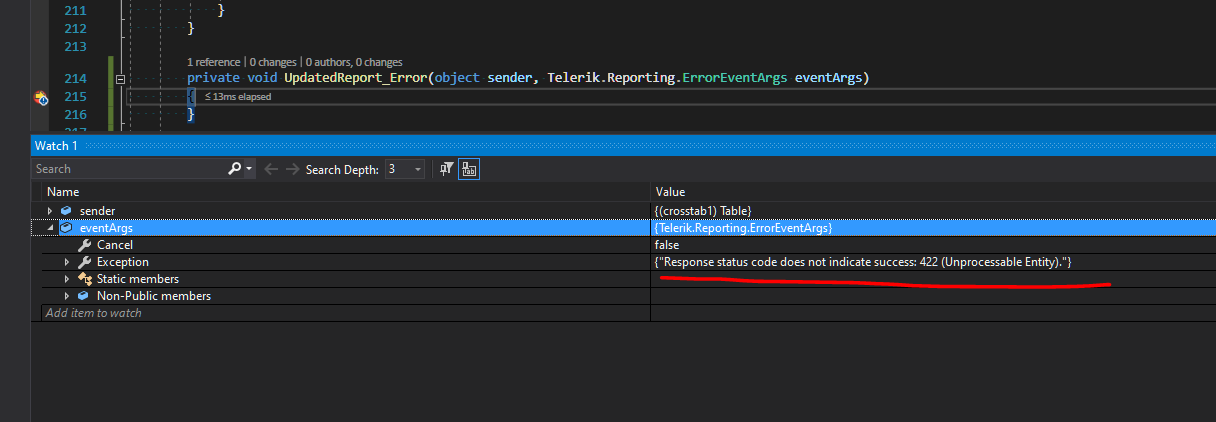

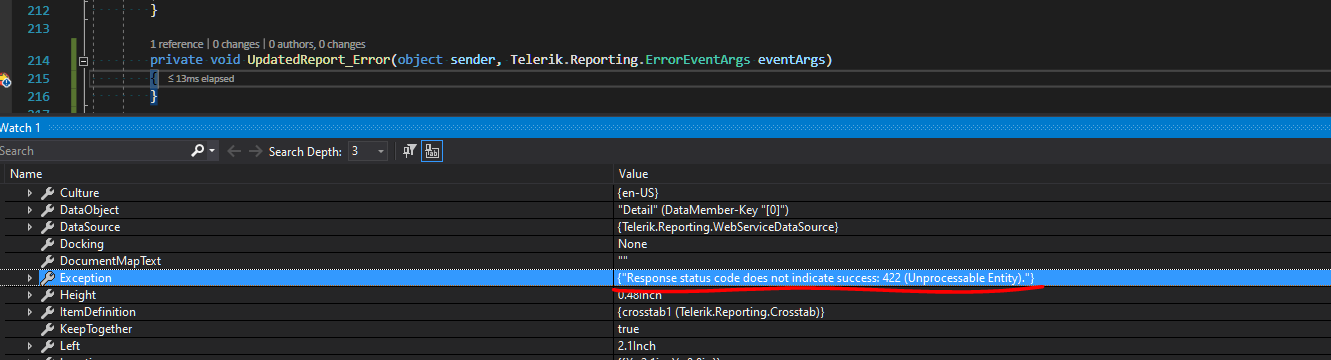

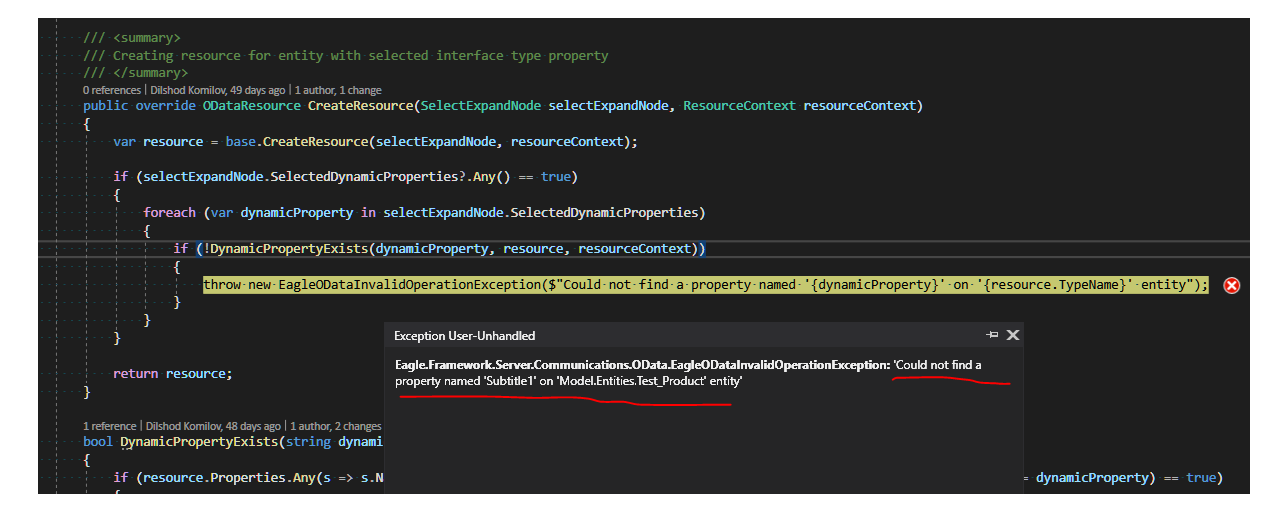

When I run my project in debug mode, OData side throwing this exception: "Could not find a property named 'Subtitle1' on 'Model.Entities.Test_Product' entity" (see the attached picture 2 - ErrorThrownInOData.PNG). I want to show only this message of the odata exception on the report content instead of showing that unknown reporting error(picture 1). I tried to use Error event of Telerik.Reporting.Report object (see the attached picture 3,4 - TelerikReport_ErrorEvent1, TelerikReport_ErrorEvent2). But, the exception says about error 422. Is the any solutions to achieve our goal?
(Our custom report resolver does read a requested report from DB and also override some report parameters values.)
Hi Tursunhuja,
Basically, in the report itself, you cannot modify the error because eventArgs.Exception has only a getter and no setter. If you wish, you can lof an FR in our Feedback portal.
You may test using the code below to override the message in the viewer:
private void ListBoundReport_Error(object sender, ErrorEventArgs eventArgs)
{​​​​​​​
var errorText = eventArgs.Exception.InnerException is null ? "No Internal" : eventArgs.Exception.InnerException.Message;
var newMessage = eventArgs.Exception.Message + " inner: " + errorText;
System.Exception newError = new System.Exception(newMessage);
throw (newError);
}​​​​​​​
Let us know if you have any questions.
Regards,
Neli
Progress Telerik
Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.


Hi Tursunhuja,
Basically, the Error event of the report has an inner exception which you can use. For example:
eventArgs.Exception.InnerException.Message
Note that we display the error message that we receive from the data provider.
I hope this information helps you. Please, let me know if I can help you further.
Regards,
Neli
Progress Telerik
Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.


Hi Doniyor,
You may test using the approach from the error(e, args) article. For example:
Regards,
Neli
Progress Telerik
Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

Hi Neli,

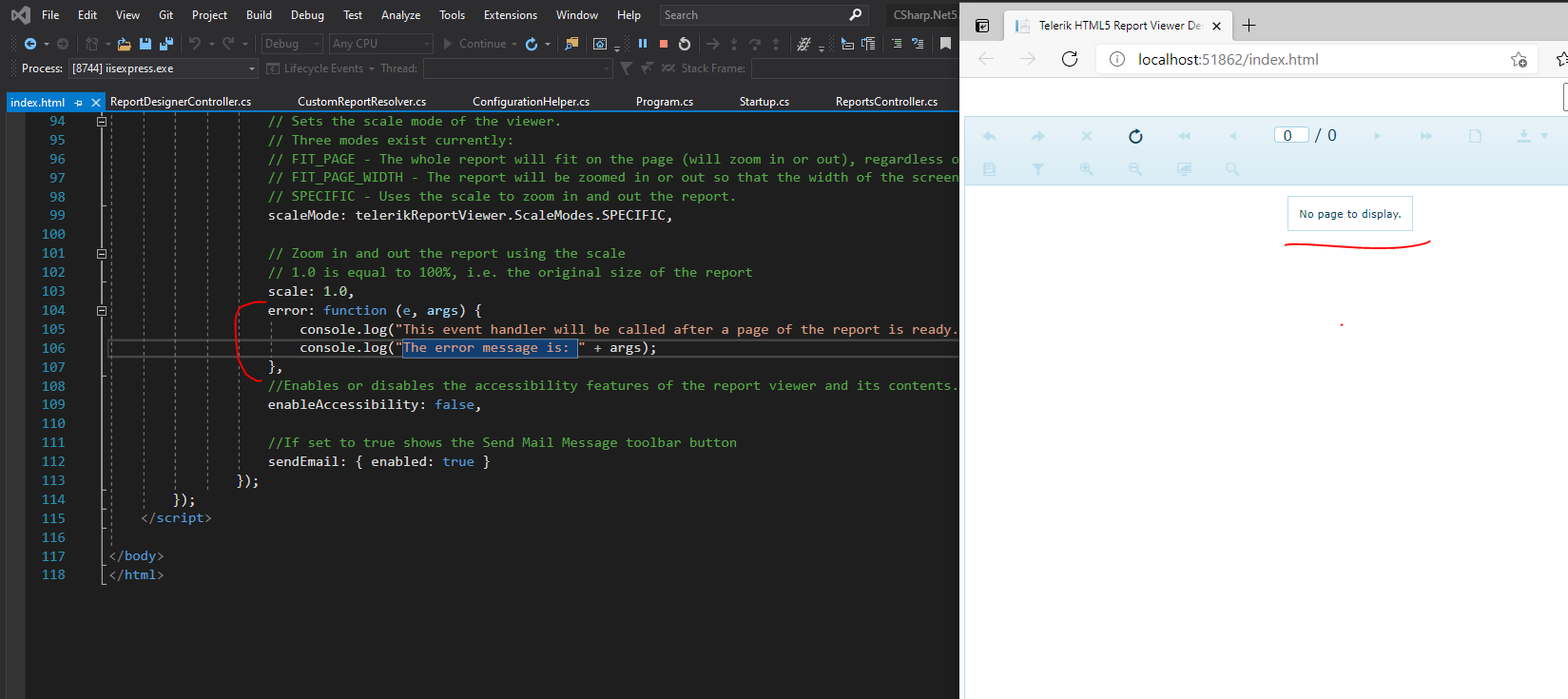

I followed the
link error(e, args) which you sent. That
function (error: function) just use an error which sent by Telerik Reporting
server side. So, this is not solving our problem.
To reproduce
this problem we used "CSharp.Net5.Html5IntegrationDemo" project. We created
test report (TestReportWithWebServiceDataSource.trdp), added Web Service
DataSource and set this OData query for its Service Url:
https://services.odata.org/V3/Northwind/Northwind.svc/Products(1)?$select=ProductName1

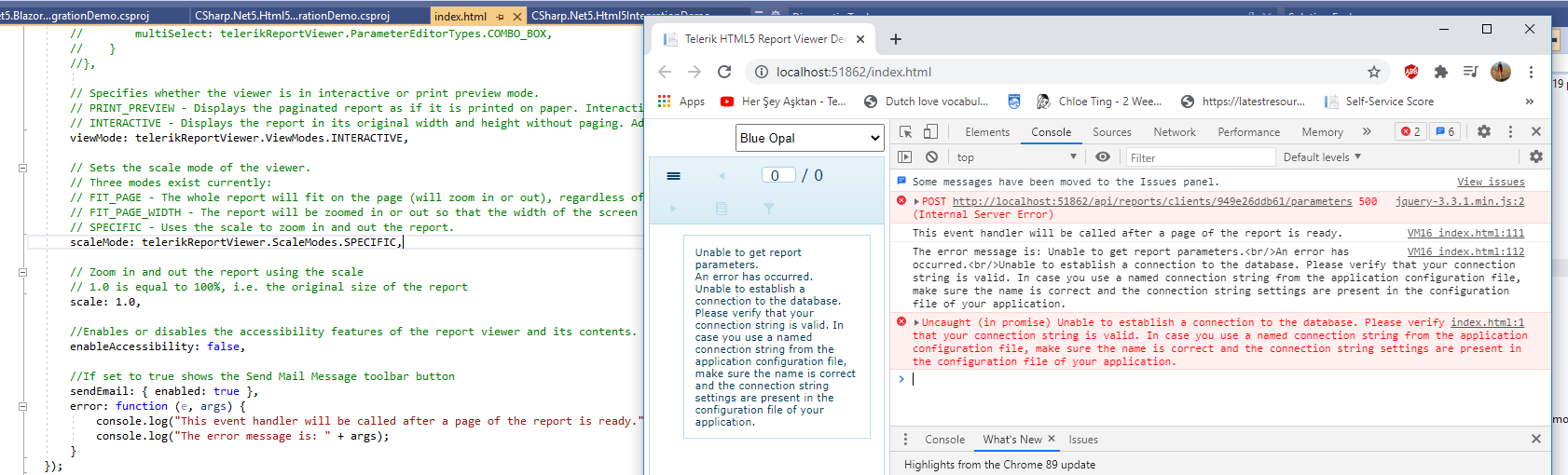

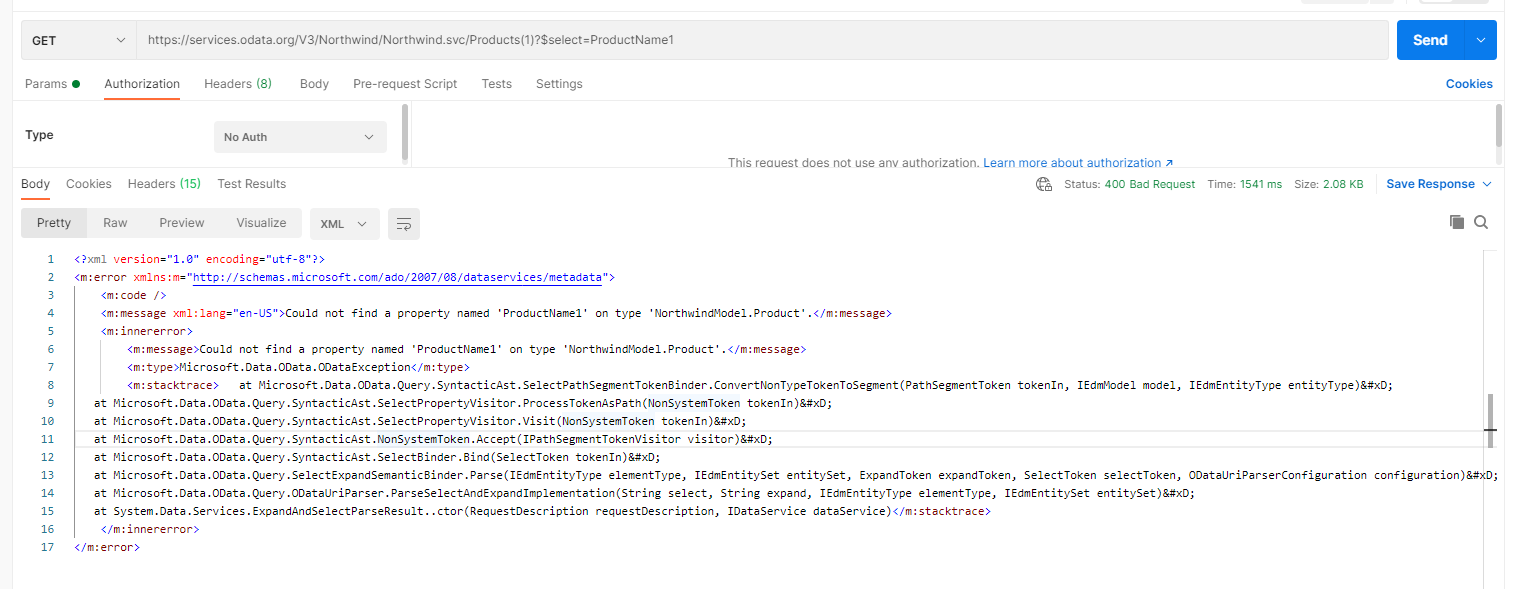

If you see the query, it is selecting "ProductName1" property of "Product #1". But "ProductName1" property does not exist (correct property name is "ProductName"). When we use Postman for the OData query above, it shows an error which you can see from attached picture (ErrorWhenWeUsePostman.PNG, "Could not find a property named 'ProductName1' on type 'NorthwindModel.Product'"). From the second picture (TelerikReportingGeneralError.PNG) you can see the result of my test report (in html5 report viewer) that has the same OData query.
The question is
when we preview our report (in html5 report viewer) how can we show the error
message that OData sent instead of showing Telerik reporting general error?
Instead of this
message:
Unable
to get report parameters.
Report 'TestReportWithWebServiceDataSource.trdp' cannot be
resolved.
This OData
error message should be handled and shown on browser (html5 report viewer) when
previewing report:
Could not find a property named 'ProductName1' on type 'NorthwindModel.Product'
FYI: We are using Telerik Reporting version 15.0.21.224.
Thank you,
Hello Tursunhuja,
The R1 2020 Service Pack of Telerik Reporting introduced a couple of changes in the rendering engine. The rendering engine is now forced to skip all pages that do not contain significant content. I suspect that the real error is hidden behind the "No Page To Display" message. For that reason, I would suggest setting the SkipBlankPages property of the report to False.
For more information, you can visit our blog post - Telerik Reporting & Report Server R1 2021 SP: Improved Rendering, Web Report Designer & More
I have tested the following scenario: in a project that hosts the WebServiceDataSource, I made a small change which makes the service not working. When I ran the application, I got the following error:
{​​​​​​​​"Message":"An error has occurred.","ExceptionMessage":"Could not find file 'D:\\SPECIAL ticket projects\\MyWebService\\MyWebServiceDataSource\\Data\\jsonData1.txt'.","ExceptionType":"System.IO.FileNotFoundException","StackTrace":" at System.IO.__Error.WinIOError(Int32 errorCode, String maybeFullPath)\r\n at System.IO.FileStream.Init(String path, FileMode mode, FileAccess access, Int32 rights, Boolean useRights, FileShare share, Int32 bufferSize, FileOptions options, SECURITY_ATTRIBUTES secAttrs, String msgPath, Boolean bFromProxy, Boolean useLongPath, Boolean checkHost)\r\n at System.IO.FileStream..ctor(String path, FileMode mode, FileAccess access, FileShare share, Int32 bufferSize, FileOptions options, String msgPath, Boolean bFromProxy, Boolean useLongPath, Boolean checkHost)\r\n at System.IO.StreamReader..ctor(String path, Encoding encoding, Boolean detectEncodingFromByteOrderMarks, Int32 bufferSize, Boolean checkHost)\r\n at System.IO.StreamReader..ctor(String path)\r\n at MyWebServiceDataSource.Controllers.DataController.Get() in D:\\SPECIAL ticket projects\\MyWebService\\MyWebServiceDataSource\\Controllers\\DataController.cs:line 18\r\n at lambda_method(Closure , Object , Object[] )\r\n at System.Web.Http.Controllers.ReflectedHttpActionDescriptor.ActionExecutor.<>c__DisplayClass10.b__9(Object instance, Object[] methodParameters)\r\n at System.Web.Http.Controllers.ReflectedHttpActionDescriptor.ActionExecutor.Execute(Object instance, Object[] arguments)\r\n at System.Web.Http.Controllers.ReflectedHttpActionDescriptor.ExecuteAsync(HttpControllerContext controllerContext, IDictionary`2 arguments, CancellationToken cancellationToken)\r\n--- End of stack trace from previous location where exception was thrown ---\r\n at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)\r\n at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)\r\n at System.Web.Http.Controllers.ApiControllerActionInvoker.d__0.MoveNext()\r\n--- End of stack trace from previous location where exception was thrown ---\r\n at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)\r\n at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)\r\n at System.Web.Http.Controllers.ActionFilterResult.d__2.MoveNext()\r\n--- End of stack trace from previous location where exception was thrown ---\r\n at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)\r\n at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)\r\n at System.Web.Http.Dispatcher.HttpControllerDispatcher.d__1.MoveNext()"}​​​​​​​​
Then, in the Standalone designer, I got:
System.Net.Http.HttpRequestException: Response status code does not indicate success: 500 (Internal Server Error).
at Telerik.Reporting.Processing.WebServiceDataSource.WebServiceClient.SendCore(IWebServiceRequestSettings settings, AuthenticationHeaderValue authHeader, HttpClient httpClient, HttpClientHandler httpClientHandler)
at Telerik.Reporting.Processing.WebServiceDataSource.WebServiceClient.Request(WebServiceDataSource processedDS)
at Telerik.Reporting.Processing.WebServiceDataSource.WebServiceDataProvider.GetRemoteRawData(WebServiceDataSource processedDS)
at Telerik.Reporting.Processing.WebServiceDataSource.WebServiceDataProvider.get_RawData()
at Telerik.Reporting.Processing.WebServiceDataSource.WebServiceSchemaAdapter.AddDataMeasures(SimpleDataModel model)
at Telerik.Reporting.Processing.Data.SimpleSchemaAdapterBase.Fill(SimpleDataModel model)
at Telerik.Reporting.Processing.Data.SimpleDataProvider`1.GetSchemaCore()
at Telerik.Reporting.Processing.Data.DataProvider`1.Telerik.Reporting.Processing.Data.IDataProvider.GetSchema()
at Telerik.Reporting.Data.Design.DataSourceService.GetLocalSchema(IDataSource datasource, IDataProviderContext dataProviderContext)
at Telerik.Reporting.Data.Design.DataSourceDesignerBase.Telerik.Reporting.Design.Interfaces.IDataSchemaProvider.GetSchema()
at Telerik.Reporting.Data.Design.DataSourceService.GetSchemaFromContext(Object context)
at Telerik.Reporting.Data.Design.DataSourceService.Telerik.Reporting.Design.Interfaces.IDataSourceService.GetCurrentDataItemSchema(Boolean getFromParentRecursively)
at Telerik.Reporting.Design.DataExplorerControl.<>c__DisplayClass2.<RefreshDataSource>b__0()
I am afraid that currently, it is not possible to get the error from the service and for that reason, I would recommend logging a Feature Request on our Feedback portal.
Regards,
Neli
Progress Telerik
Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.

Hello Neli,
According to your suggestion I created this feature request: How to get report internal error message
