How to format the axis values with commas in a telerik reporting chart

[srilal]

Hello,

I am developing dashboard reports using Telerik Q2 2011 tools. My question here is how to format numbers with commas (,) for easy reading in the axis appearance properties.

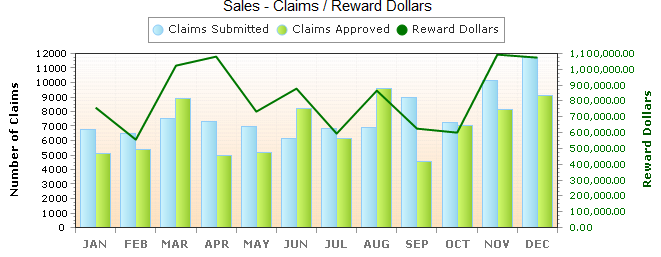

When I use 'Number' value format it shows the decimal places and that is ok for the actual decimal values (see Y-axis2 below image) but I also need to format with commas without decimal positions. E.G. 1,000.

Please see the Y-axis below and I need to use commas to format it. Please help. Thanks in advance.


Srilal

[Steve]

Hello Srilal,

To be able to set custom format for the axis label you should use the ValueFormat property as it  automatically formats values as Currency, Scientific, General, Number, Percent, ShortDate, ShortTime, LongDate, LongTime or None. Then you can set Custom Format Strings (http://msdn.microsoft.com/en-us/library/0c899ak8.aspx) to the property CustomFormat.
Here is how to format YAxis labels:

Thread.CurrentThread.CurrentCulture = CultureInfo.InvariantCulture;
chart1.PlotArea.YAxis.Appearance.ValueFormat = Telerik.Reporting.Charting.Styles.ChartValueFormat.Number;
chart1.PlotArea.YAxis.Appearance.CustomFormat = "#,#";

All the best,
Steve
the Telerik team

[srilal]

Hello Steve,

Thanks for the reply and the help.

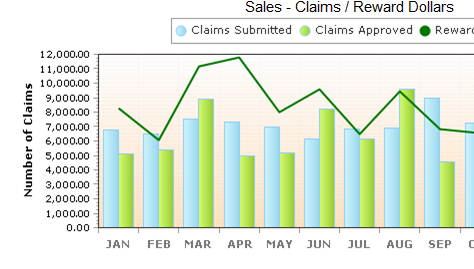

I used 'Value format: Number' and 'Custom format: "#,#", CultureInfo.InvariantCulture'. It looks good however, I still need to get rid of the decimal places of the values. This axis shows the 'number of claims' and displaying the number with decimal places would not be right. Please see the chart below.

Is there anything else I can do to drop the decimal places. Thanks.

Srilal



[IvanDT]

Hello Srilal,

You have to set the ValueFormat property to None or not set it at all.

Kind regards,
IvanDT
the Telerik team
