How to display warning icon in overlapping appointments?

8 posts, 1 answers
  1. Divya
    Divya avatar
    11 posts
    Member since:
    Mar 2014

    Posted 09 Apr Link to this post

    Hi,



    I am using RadScheduleView for WPF. I have a requirement where I have to set a warning icon for overlapping appointments only. I tried with AppointmentItemContentTemplate="{StaticResource AppointmentTemplate}". However the icon gets displayed in all appointments. Is there any way to set style in such a way that only slots with multiple appointments have warning icon. Please help.

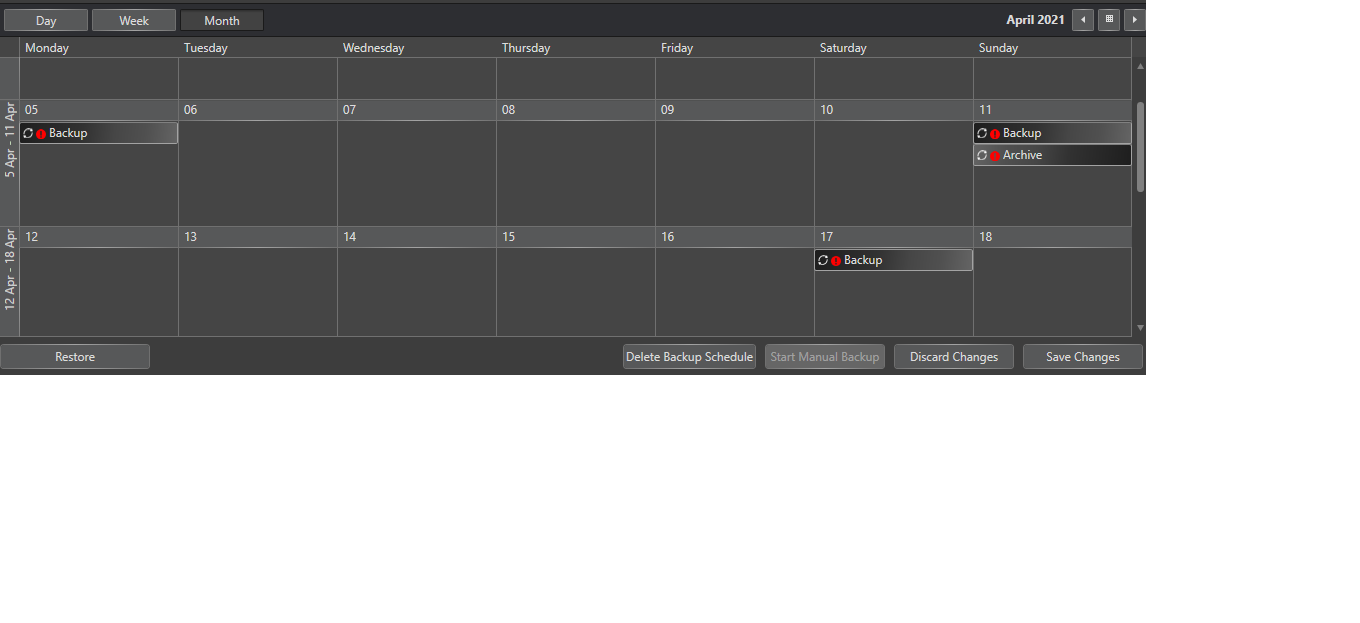

    Attaching the image.

  2. Vladimir Stoyanov
    Admin
    Vladimir Stoyanov avatar
    675 posts

    Posted 13 Apr Link to this post

    Hello Divya,

    Thank you for the shared picture.

    You can use an AppointmentItemContentTemplateSelector to achieve the desired behavior. It allows you to show a different template depending on some custom logic. You can check whether there are multiple appointments in the same day and return a DataTemplate containing the warning icon.

    I hope you find this helpful.

    Regards,
    Vladimir Stoyanov
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  3. Divya
    Divya avatar
    11 posts
    Member since:
    Mar 2014

    Posted 13 Apr in reply to Vladimir Stoyanov Link to this post

    Hello Vladimir Stoyanov,



    I doubt whether  AppointmentItemContentTemplateSelector will be useful. Because in my case , I have only 2 appointments. Both of them may be recurring. One will  be daily with 1 day gap and the other will be daily with 3 day gap. So at certain days they will definitely overlap. Such days has to be shown with warning icon. In short, we have to show warning for recurrence events inside an Appointment rather than for an Appointment.

    I had tried this with AppointmentItemContentTemplate earlier, but that led me to display icon in both the appointment object rather than the conflicting occurrences of that particular appointment. Please clarify.



    Thanks,

    Divya

  4. Divya
    Divya avatar
    11 posts
    Member since:
    Mar 2014

    Posted 15 Apr in reply to Vladimir Stoyanov Link to this post

    Hello Vladimir Stoyanov,

    Please ignore my previous reply. I was able to achieve the functionality by implementing  the AppointmentItemContentTemplateSelector="{StaticResource CustomAppointmentTemplateSelector}"

    This is the template style we have implemented.

    public class CustomAppointmentTemplateStyle : ScheduleViewDataTemplateSelector
        {

         public DataTemplate DayAppointmentTemplate { get; set; }

            public override DataTemplate SelectTemplate(object item, DependencyObject container, ViewDefinitionBase activeViewDefinition)
            {
                if (item is Occurrence && container is AppointmentItem)
                {
                    var itemOcc = item as Occurrence;
                    var rd = container.ParentOfType<RadScheduleView>();
                    if (rd != null)
                    {
                        ObservableCollection<Appointment> appointments;
                        if ((rd.DataContext as BackupSettingsViewModel) != null)
                        {
                            var viewModel = rd.DataContext as BackupSettingsViewModel;
                            appointments = viewModel.Appointments;
                        }
                        else
                        {
                            var viewModel = rd.DataContext as ArchivingSettingsViewModel;
                            appointments = viewModel.Appointments;
                        }
                        var appointments = (rd.DataContext as BackupSettingsViewModel).Appointments;
                        if (appointments.Any(x => x.Subject.Equals(itemOcc.Appointment.Subject.Equals(Properties.Resources.Backup) ? Properties.Resources.Archive : Properties.Resources.Backup)))
                        {
                            DateTime start = itemOcc.Start;
                            DateTime end = itemOcc.End;
                            var archapp = appointments.First(x => x.Subject.Equals(itemOcc.Appointment.Subject.Equals(Properties.Resources.Backup) ? Properties.Resources.Archive : Properties.Resources.Backup));
                            var occ = archapp.GetOccurrencesWithoutExceptionsFromDateTimeRange(start, end);
                            if (occ.Count > 0)
                                return this.DayAppointmentTemplate;
                        }
                    }
                }

                return base.SelectTemplate(item, container, activeViewDefinition);
            }
        }

  5. Divya
    Divya avatar
    11 posts
    Member since:
    Mar 2014

    Posted 15 Apr in reply to Divya Link to this post

    However, in the above code, we are always getting  this value as null during the initial loading

    var rd = container.ParentOfType<RadScheduleView>();

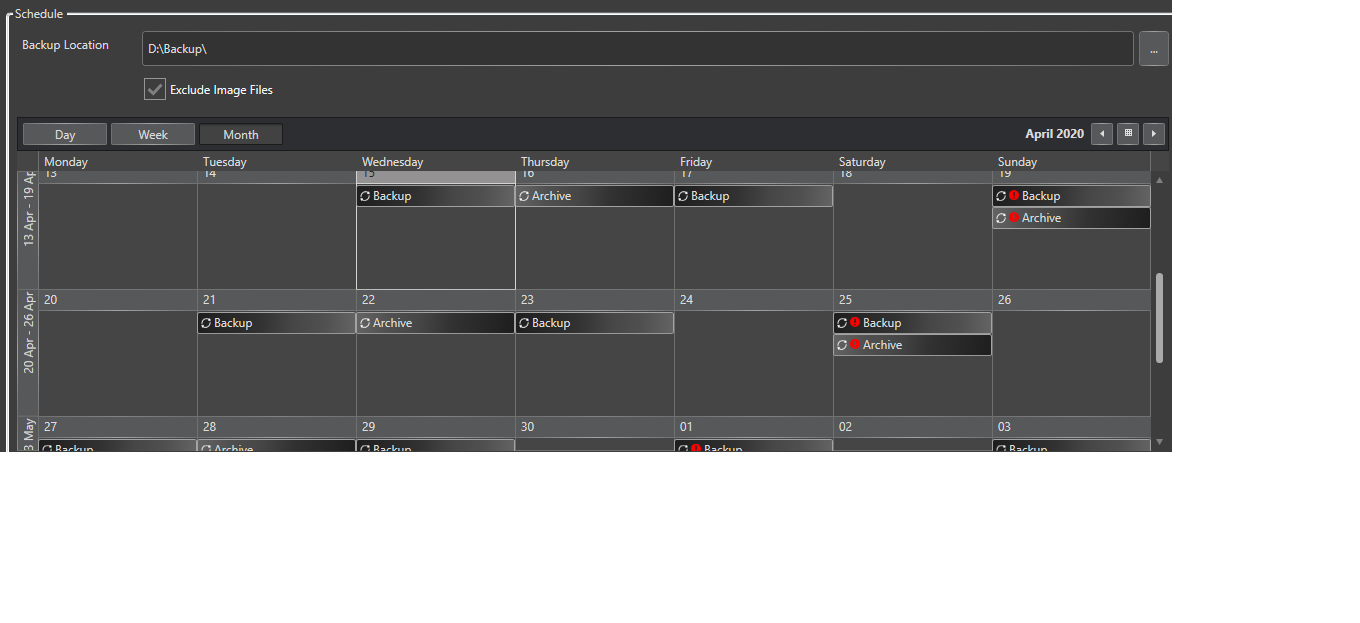

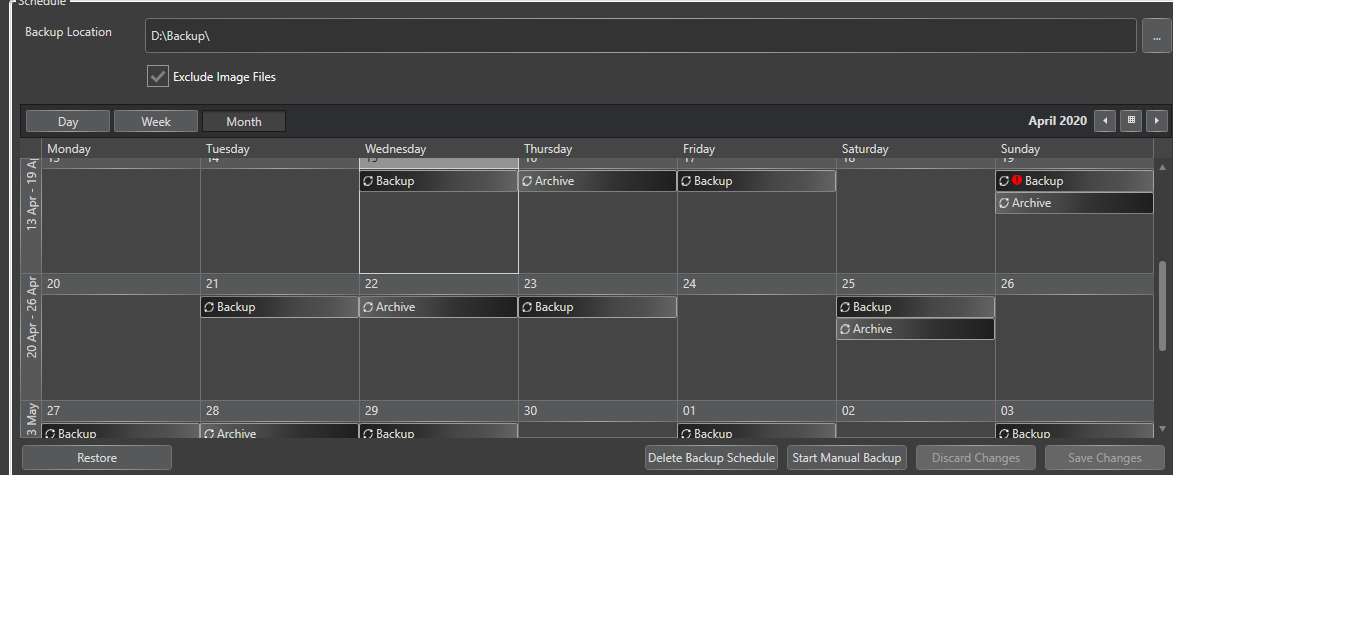

    Say for ex: I have 2 appointments with recurrence pattern. During the first time loading of month view, the icon is displayed only in one recurrence event as seen in the image BeforeScroll.png, but after we scroll down to the bottom and again scroll to top, the warnings are displayed correctly as seen in AfterScroll.png. And the reason for this is the null value we get from  container.ParentOfType<RadScheduleView>();.



    Please suggest what to do.

    FYI: Sorry for posting this as another reply as my previous post got submitted and I am not able to edit / delete it.



    Thanks,

    Divya


  6. Divya
    Divya avatar
    11 posts
    Member since:
    Mar 2014

    Posted 15 Apr in reply to Vladimir Stoyanov Link to this post

    Continuation to my earlier post..





    However, in the above code, we are always getting  this value as null during the initial loading
    var rd = container.ParentOfType<RadScheduleView>();
    Say for ex: I have 2 appointments with recurrence pattern. During the first time loading of month view, the icon is displayed only in one recurrence event as seen in the image BeforeScroll.png, but after we scroll down to the bottom and again scroll to top, the warnings are displayed correctly as seen in AfterScroll.png. And the reason for this is the null value we get from  container.ParentOfType<RadScheduleView>();.

    Please suggest what to do.
    FYI: Sorry for posting this as another reply as my previous post got submitted and I am not able to edit / delete it. ( Its really weird as we are not able to delete a post accidentally submitted. I think now there are multiple posts with same questions.)

    Thanks,
    Divya

  7. Answer
    Vladimir Stoyanov
    Admin
    Vladimir Stoyanov avatar
    675 posts

    Posted 16 Apr Link to this post

    Hello Divya,

    I am glad to hear that you were able to achieve the desired result.

    As for the accessing the RadScheduleView with the ParentOfType extension method, I am assuming that initially the control is not yet loaded in the visual tree. That said, it seems that you are accessing the RadScheduleView in order to get the viewmodel from its DataContext and check the appointments collection.

    What I can suggest as an alternative is to to create a property inside the CustomAppointmentTemplateStyle class, which will hold the appointments collection instead. Then you can create the CustomAppointmentTemplateStyle object in code in a place where you also have access to the viewmodel and pass it the appointments. This way you would not need to wait for the RadScheduleView to load.

    Regards,
    Vladimir Stoyanov
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  8. Divya
    Divya avatar
    11 posts
    Member since:
    Mar 2014

    Posted 16 Apr Link to this post

    Hi Vladimir Stoyanov.

    I went on with you suggestion and it works well.

    Thanks

    Divya.
