How to bind a ObservableCollection of Business Objects to RadGridView?

[Michael]

Hello!

I'm new to WPF, but as life goes, I have to bind to a ObservableCollection of Business Objects to a RadGridView in Code Behind, because the number of GridViewDataColumns is dynamic. Here I have an example (in my real application, my business class contains fields for sales data and the radgridview should be able to show a different number of sales periods).

Example:
=======

Business Object:
----------------------
public class Person : INotifyPropertyChanged
{
    private string _Firstname;
    private string _Lastname;

    public evebt PropertyChangedEventHandler PropertyChanged;

    public string Firstname
    {
        get { return _Firstname; }
        set
        {
            _Firstname = value;
            OnPropertyChanged("_Firstname");
        }
    }

    public string Lastname
     {
         get { return _Lastname; }
         set
         {
             _Lastname = value;
             OnPropertyChanged("_Lastname");
         }
     }

    protected void OnPropertyChanged(string strPropName)
     {
         PropertyChangedEventHandler handler = PropertyChanged;
         if (handler != null)
         {
             handler(this, new PropertyChangedEventArgs(strPropName));
         }
     }

}

ObservableCollection:
-----------------------------

public class Persons : ObservableCollection<Person>
{
    public Persons() : base()
    {
    }
}

ExamplePage:
-------------------
public partial class ExamplePage:Page
{

    Persons _p;

    public ExamplePage()
    {
        InitializeComponent();
        //Pseudo-Code: the ObservableCollection ist filled up in the DAL
        _p = DAL.GetPersons();

        //How or what is the way of binding the ObservableCollection to the radgridview1??
        //Possibility 1:
        radgridview1.DataContext = _p;
        //Possibility 2:
        radgridview1.ItemsSource= _p;
        //Possibility ...: anything else?

        GridViewDataColumn colFirstname = new GridViewDataColumn();
        colFirstname.Header = "Firstname";
        colFirstname.UniqueName = "cFirstname";

        //I think, that here is the right place for column-bindung, but how?

        radgridview1.Columns.Add(colFirstname);

        GridViewDataColumn colFirstname = new GridViewDataColumn();
        colLastname.Header = "Lastname";
        colLastname.UniqueName = "cLastname";

        //I think, that here is the right place for column-bindung, but how?

        radgridview1.Columns.Add(colLastname);

    }
}

Please help me!

Kind regards

Michael

[Dimitrina]

Hi Michael,

 You should use the Possibility2 when it comes to binding the source collection of the GridView. Please check this help article as well.

Once you create the column you can set its binding like so:

GridViewDataColumn column = new GridViewDataColumn();
column.DataMemberBinding = new System.Windows.Data.Binding("LastName");

I hope this is helpful.

Regards,
Didie
the Telerik team

[Michael]

Hello!

I just tested your suggestion (and I think I tried it before by myself), but I get the following error (see attached screenshot; sorry: german version of vs)???

Bye

Michael

[Dimitrina]

Hello Michael,

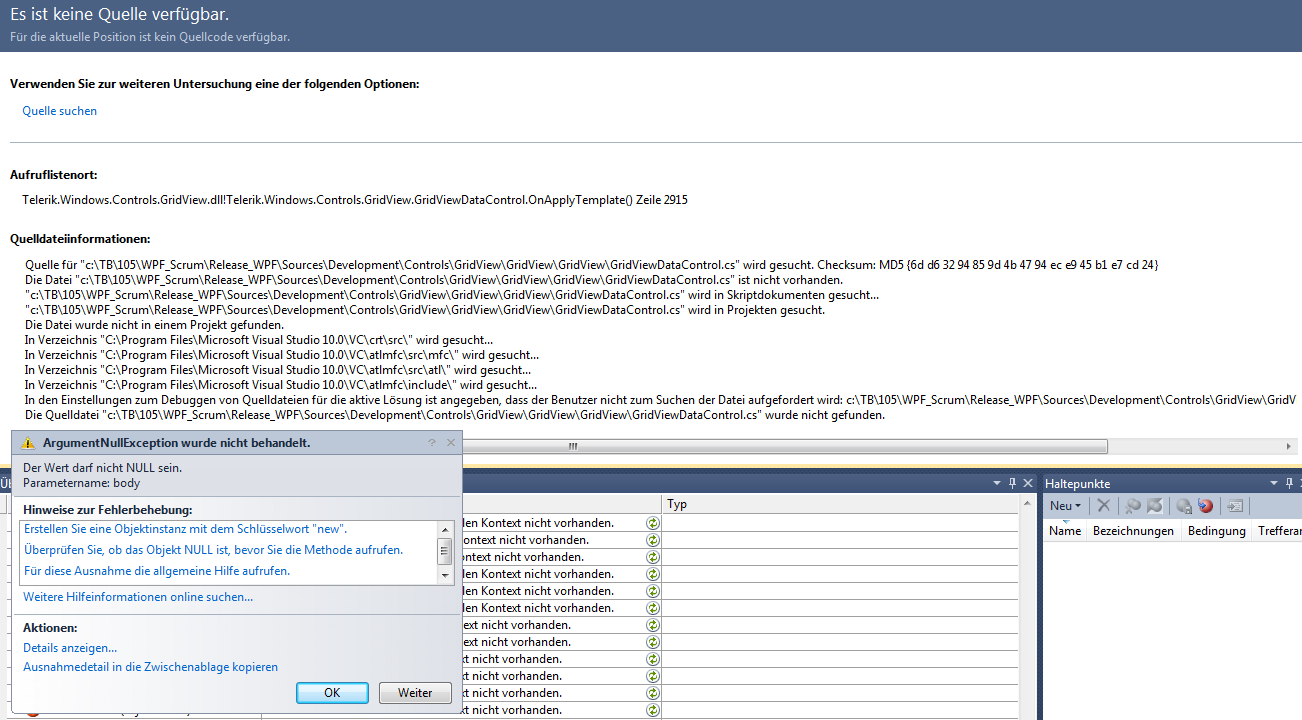

The exception says that something is null.

I have tested using the following code that is working fine:

<telerik:RadGridView Grid.Row="0"
 Name="clubsGrid"
 AutoGenerateColumns="False"
 Margin="5">
</telerik:RadGridView>

public MainWindow()
        {
            InitializeComponent();

            MyViewModel model = new MyViewModel();
            clubsGrid.ItemsSource = model.Clubs;
            GridViewDataColumn column = new GridViewDataColumn();
            column.DataMemberBinding = new                     System.Windows.Data.Binding("Name");
            clubsGrid.Columns.Add(column);
        }

Please check if your objects are all available and all the bindings are spelled the right way.

Kind regards,
Didie
the Telerik team

[Michael]

Hello!

I cannot see any spelling error. Also when I check the ObservableCollection-Object right before setting the radgridview.itemssource, I can see, that there is one object in that collection (my test data record).

Here is my business object "Absatz":

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ComponentModel;

namespace FutureView.BusinessObjects
{
    public class Absatz :INotifyPropertyChanged
    {
        private string _strArtint;
        private string _strArtin4;
        private string _strArtin4Text;
        private string _strArtin3;
        private string _strArtin3Text;
        private string _strArtin2;
        private string _strArtin2Text;
        private string _strArtext;
        private string _strArtbzl;
        private string _strMdevsx;

        private decimal _decVjIstKum; //wird errechnet
        private decimal _decLjIstKum; //wird errechnet

        private decimal _decVjIstMon1;
        private decimal _decLjIstMon1;
        private decimal _decPlanMon1;

        private decimal _decVjIstMon2;
        private decimal _decLjIstMon2;
        private decimal _decPlanMon2;

        private decimal _decVjIstMon3;
        private decimal _decLjIstMon3;
        private decimal _decPlanMon3;

        private decimal _decVjIstMon4;
        private decimal _decLjIstMon4;
        private decimal _decPlanMon4;

        private decimal _decVjIstMon5;
        private decimal _decLjIstMon5;
        private decimal _decPlanMon5;

        private decimal _decVjIstMon6;
        private decimal _decLjIstMon6;
        private decimal _decPlanMon6;

        private decimal _decVjIstMon7;
        private decimal _decLjIstMon7;
        private decimal _decPlanMon7;

        private decimal _decVjIstMon8;
        private decimal _decLjIstMon8;
        private decimal _decPlanMon8;

        private decimal _decVjIstMon9;
        private decimal _decLjIstMon9;
        private decimal _decPlanMon9;

        private decimal _decVjIstMon10;
        private decimal _decLjIstMon10;
        private decimal _decPlanMon10;

        private decimal _decVjIstMon11;
        private decimal _decLjIstMon11;
        private decimal _decPlanMon11;

        private decimal _decVjIstMon12;
        private decimal _decLjIstMon12;
        private decimal _decPlanMon12;

        private decimal _decVjIstMon13;
        private decimal _decLjIstMon13;
        private decimal _decPlanMon13;

        private decimal _decVjIstMon14;
        private decimal _decLjIstMon14;
        private decimal _decPlanMon14;

        private decimal _decVjIstMon15;
        private decimal _decLjIstMon15;
        private decimal _decPlanMon15;

        public event PropertyChangedEventHandler PropertyChanged;

        public string strArtint
        {
            get
            {
                return _strArtint;
            }
            set
            {
                _strArtint = value;
            }
        }

        public string strArtin4
        {
            get
            {
                return _strArtin4;
            }
            set
            {
                _strArtin4 = value;
            }
        }

        public string strArtin4Text
        {
            get
            {
                return _strArtin4Text;
            }
            set
            {
                _strArtin4Text = value;
            }
        }

        public string strArtin3
        {
            get
            {
                return _strArtin3;
            }
            set
            {
                _strArtin3 = value;
            }
        }

        public string strArtin3Text
        {
            get
            {
                return _strArtin3Text;
            }
            set
            {
                _strArtin3Text = value;
            }
        }

        public string strArtin2
        {
            get
            {
                return _strArtin2;
            }
            set
            {
                _strArtin2 = value;
            }
        }

        public string strArtin2Text
        {
            get
            {
                return _strArtin2Text;
            }
            set
            {
                _strArtin2Text = value;
            }
        }

        public string strArtext
        {
            get
            {
                return _strArtext;
            }
            set
            {
                _strArtext = value;
            }
        }

        public string strArtbzl
        {
            get
            {
                return _strArtbzl;
            }
            set
            {
                _strArtbzl = value;
            }
        }

        public string strMdevsx
        {
            get
            {
                return _strMdevsx;
            }
            set
            {
                _strMdevsx = value;
            }
        }

        public decimal decVjIstKum
        {
            get
            {
                return _decVjIstKum;
            }
            set
            {
                _decVjIstKum = value;
            }
        }

        public decimal decLjIstKum
        {
            get
            {
                return _decLjIstKum;
            }
            set
            {
                _decLjIstKum = value;
            }
        }

        public decimal decVjIstMon1
        {
            get
            {
                return _decVjIstMon1;
            }
            set
            {
                _decVjIstMon1 = value;
                OnPropertyChanged("_decVjIstMon1");
            }
        }

        public decimal decLjIstMon1
        {
            get
            {
                return _decLjIstMon1;
            }
            set
            {
                _decLjIstMon1 = value;
                OnPropertyChanged("_decLjIstMon1");
            }
        }

        public decimal decPlanMon1
        {
            get
            {
                return _decPlanMon1;
            }
            set
            {
                _decPlanMon1 = value;
                OnPropertyChanged("_decPlanMon1");
            }
        }

        public decimal decVjIstMon2
        {
            get
            {
                return _decVjIstMon2;
            }
            set
            {
                _decVjIstMon2 = value;
                OnPropertyChanged("_decVjIstMon2");
            }
        }

        public decimal decLjIstMon2
        {
            get
            {
                return _decLjIstMon2;
            }
            set
            {
                _decLjIstMon2 = value;
                OnPropertyChanged("_decLjIstMon2");
            }
        }

        public decimal decPlanMon2
        {
            get
            {
                return _decPlanMon2;
            }
            set
            {
                _decPlanMon2 = value;
                OnPropertyChanged("_decPlanMon2");
            }
        }

        public decimal decVjIstMon3
        {
            get
            {
                return _decVjIstMon3;
            }
            set
            {
                _decVjIstMon3 = value;
                OnPropertyChanged("_decVjIstMon3");
            }
        }

        public decimal decLjIstMon3
        {
            get
            {
                return _decLjIstMon3;
            }
            set
            {
                _decLjIstMon3 = value;
                OnPropertyChanged("_decLjIstMon3");
            }
        }

        public decimal decPlanMon3
        {
            get
            {
                return _decPlanMon3;
            }
            set
            {
                _decPlanMon3 = value;
                OnPropertyChanged("_decPlanMon3");
            }
        }

        public decimal decVjIstMon4
        {
            get
            {
                return _decVjIstMon4;
            }
            set
            {
                _decVjIstMon4 = value;
                OnPropertyChanged("_decVjIstMon4");
            }
        }

        public decimal decLjIstMon4
        {
            get
            {
                return _decLjIstMon4;
            }
            set
            {
                _decLjIstMon4 = value;
                OnPropertyChanged("_decLjIstMon4");
            }
        }

        public decimal decPlanMon4
        {
            get
            {
                return _decPlanMon4;
            }
            set
            {
                _decPlanMon4 = value;
                OnPropertyChanged("_decPlanMon4");
            }
        }

        public decimal decVjIstMon5
        {
            get
            {
                return _decVjIstMon5;
            }
            set
            {
                _decVjIstMon5 = value;
                OnPropertyChanged("_decVjIstMon5");
            }
        }

        public decimal decLjIstMon5
        {
            get
            {
                return _decLjIstMon5;
            }
            set
            {
                _decLjIstMon5 = value;
                OnPropertyChanged("_decLjIstMon5");
            }
        }

        public decimal decPlanMon5
        {
            get
            {
                return _decPlanMon5;
            }
            set
            {
                _decPlanMon5 = value;
                OnPropertyChanged("_decPlanMon5");
            }
        }

        public decimal decVjIstMon6
        {
            get
            {
                return _decVjIstMon6;
            }
            set
            {
                _decVjIstMon6 = value;
                OnPropertyChanged("_decVjIstMon6");
            }
        }

        public decimal decLjIstMon6
        {
            get
            {
                return _decLjIstMon6;
            }
            set
            {
                _decLjIstMon6 = value;
                OnPropertyChanged("_decLjIstMon6");
            }
        }

        public decimal decPlanMon6
        {
            get
            {
                return _decPlanMon6;
            }
            set
            {
                _decPlanMon6 = value;
                OnPropertyChanged("_decPlanMon6");
            }
        }

        public decimal decVjIstMon7
        {
            get
            {
                return _decVjIstMon7;
            }
            set
            {
                _decVjIstMon7 = value;
                OnPropertyChanged("_decVjIstMon7");
            }
        }

        public decimal decLjIstMon7
        {
            get
            {
                return _decLjIstMon7;
            }
            set
            {
                _decLjIstMon7 = value;
                OnPropertyChanged("_decLjIstMon7");
            }
        }

        public decimal decPlanMon7
        {
            get
            {
                return _decPlanMon7;
            }
            set
            {
                _decPlanMon7 = value;
                OnPropertyChanged("_decPlanMon7");
            }
        }

        public decimal decVjIstMon8
        {
            get
            {
                return _decVjIstMon8;
            }
            set
            {
                _decVjIstMon8 = value;
                OnPropertyChanged("_decVjIstMon8");
            }
        }

        public decimal decLjIstMon8
        {
            get
            {
                return _decLjIstMon8;
            }
            set
            {
                _decLjIstMon8 = value;
                OnPropertyChanged("_decLjIstMon8");
            }
        }

        public decimal decPlanMon8
        {
            get
            {
                return _decPlanMon8;
            }
            set
            {
                _decPlanMon8 = value;
                OnPropertyChanged("_decPlanMon8");
            }
        }

        public decimal decVjIstMon9
        {
            get
            {
                return _decVjIstMon9;
            }
            set
            {
                _decVjIstMon9 = value;
                OnPropertyChanged("_decVjIstMon9");
            }
        }

        public decimal decLjIstMon9
        {
            get
            {
                return _decLjIstMon9;
            }
            set
            {
                _decLjIstMon9 = value;
                OnPropertyChanged("_decLjIstMon9");
            }
        }

        public decimal decPlanMon9
        {
            get
            {
                return _decPlanMon9;
            }
            set
            {
                _decPlanMon9 = value;
                OnPropertyChanged("_decPlanMon9");
            }
        }

        public decimal decVjIstMon10
        {
            get
            {
                return _decVjIstMon10;
            }
            set
            {
                _decVjIstMon10 = value;
                OnPropertyChanged("_decVjIstMon10");
            }
        }

        public decimal decLjIstMon10
        {
            get
            {
                return _decLjIstMon10;
            }
            set
            {
                _decLjIstMon10 = value;
                OnPropertyChanged("_decLjIstMon10");
            }
        }

        public decimal decPlanMon10
        {
            get
            {
                return _decPlanMon10;
            }
            set
            {
                _decPlanMon10 = value;
                OnPropertyChanged("_decPlanMon10");
            }
        }

        public decimal decVjIstMon11
        {
            get
            {
                return _decVjIstMon11;
            }
            set
            {
                _decVjIstMon11 = value;
                OnPropertyChanged("_decVjIstMon11");
            }
        }

        public decimal decLjIstMon11
        {
            get
            {
                return _decLjIstMon11;
            }
            set
            {
                _decLjIstMon11 = value;
                OnPropertyChanged("_decLjIstMon11");
            }
        }

        public decimal decPlanMon11
        {
            get
            {
                return _decPlanMon11;
            }
            set
            {
                _decPlanMon11 = value;
                OnPropertyChanged("_decPlanMon11");
            }
        }

        public decimal decVjIstMon12
        {
            get
            {
                return _decVjIstMon12;
            }
            set
            {
                _decVjIstMon12 = value;
                OnPropertyChanged("_decVjIstMon12");
            }
        }

        public decimal decLjIstMon12
        {
            get
            {
                return _decLjIstMon12;
            }
            set
            {
                _decLjIstMon12 = value;
                OnPropertyChanged("_decLjIstMon12");
            }
        }

        public decimal decPlanMon12
        {
            get
            {
                return _decPlanMon12;
            }
            set
            {
                _decPlanMon12 = value;
                OnPropertyChanged("_decPlanMon12");
            }
        }

        public decimal decVjIstMon13
        {
            get
            {
                return _decVjIstMon13;
            }
            set
            {
                _decVjIstMon13 = value;
                OnPropertyChanged("_decVjIstMon13");
            }
        }

        public decimal decLjIstMon13
        {
            get
            {
                return _decLjIstMon13;
            }
            set
            {
                _decLjIstMon13 = value;
                OnPropertyChanged("_decLjIstMon13");
            }
        }

        public decimal decPlanMon13
        {
            get
            {
                return _decPlanMon13;
            }
            set
            {
                _decPlanMon13 = value;
                OnPropertyChanged("_decPlanMon13");
            }
        }

        public decimal decVjIstMon14
        {
            get
            {
                return _decVjIstMon14;
            }
            set
            {
                _decVjIstMon14 = value;
                OnPropertyChanged("_decVjIstMon14");
            }
        }

        public decimal decLjIstMon14
        {
            get
            {
                return _decLjIstMon14;
            }
            set
            {
                _decLjIstMon14 = value;
                OnPropertyChanged("_decLjIstMon14");
            }
        }

        public decimal decPlanMon14
        {
            get
            {
                return _decPlanMon14;
            }
            set
            {
                _decPlanMon14 = value;
                OnPropertyChanged("_decPlanMon14");
            }
        }

        public decimal decVjIstMon15
        {
            get
            {
                return _decVjIstMon15;
            }
            set
            {
                _decVjIstMon15 = value;
                OnPropertyChanged("_decVjIstMon15");
            }
        }

        public decimal decLjIstMon15
        {
            get
            {
                return _decLjIstMon15;
            }
            set
            {
                _decLjIstMon15 = value;
                OnPropertyChanged("_decLjIstMon15");
            }
        }

        public decimal decPlanMon15
        {
            get
            {
                return _decPlanMon15;
            }
            set
            {
                _decPlanMon15 = value;
                OnPropertyChanged("_decPlanMon15");
            }
        }

        protected void OnPropertyChanged(string strPropName)
        {
            PropertyChangedEventHandler handler = PropertyChanged;

            if (handler != null)
            {
                handler(this, new PropertyChangedEventArgs(strPropName));
            }
        }

    }
}

Here my Page-Code:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.Collections.ObjectModel;

using FutureView.BusinessObjects;
using FutureView.BLL;

using Telerik.Windows.Controls;

using System.Data;

namespace FutureView.Gui.Wpf
{
    /// <summary>
    /// Interaktionslogik für PageAbsatzpflege.xaml
    /// </summary>
    public partial class PageAbsatzpflege : Page
    {

        FV_Kunde _kunde;
        Zeitraum _zeitraum;
        ObservableCollection<Absatz> _absaetze = null;
        //just for testing
        DataTable _dtAbsaetze;

        public PageAbsatzpflege()
        {
            InitializeComponent();
        }

        public PageAbsatzpflege(Zeitraum zeitraum, FV_Kunde kunde)
        {
            InitializeComponent();

            _zeitraum = zeitraum;
            _kunde = kunde;

            lblKunde.Content = _kunde.hahi + " " + _kunde.hantext.Trim();

            //Daten binden
            AbsatzpflegeBLL objBLL = new AbsatzpflegeBLL();

            _absaetze = new ObservableCollection<Absatz>();
            _absaetze = objBLL.GetAbsaetze(_zeitraum, _kunde.hahi);
            //rgvAbsaetze.ItemsSource = _absaetze;

            //Just for testing
            _dtAbsaetze = new DataTable();
            _dtAbsaetze = objBLL.GetAbsaetzeAsDataTable(_zeitraum, _kunde.hahi);

            //standardmäßig wird die 12 Monatsansicht/Geschäftsjahresansicht aufgerufen
            Ansicht_aufbauen(_zeitraum, "EGJ");

        }

        private void btnPage_schliessen_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.GoBack();
        }

        private void Ansicht_aufbauen(Zeitraum zr, string typ)
        {
            ...

            GridViewColumnGroup colGrpArtikeldaten = new GridViewColumnGroup();
            colGrpArtikeldaten.Name = "colGrpArtikeldaten";
            colGrpArtikeldaten.Header = "Artikeldaten";
            rgvAbsaetze.ColumnGroups.Add(colGrpArtikeldaten);

            GridViewColumnGroup colGrpKum = new GridViewColumnGroup();
            colGrpKum.Name = "colGrpKum";
            colGrpKum.Header = "Kum.";
            rgvAbsaetze.ColumnGroups.Add(colGrpKum);

            GridViewColumnGroup colGrpSum = new GridViewColumnGroup();
            colGrpSum.Name = "colGrpSum";
            if (typ == "GJ")
            {
                colGrpSum.Header = zr.GJ_Von.Substring(4, 2) + "." + zr.GJ_Von.Substring(0, 4) + " - " + zr.GJ_Bis.Substring(4, 2) + "." + zr.GJ_Bis.Substring(0, 4);
            }
            else if (typ == "EGJ")
            {
                colGrpSum.Header = zr.GJ_Von.Substring(4, 2) + "." + zr.GJ_Von.Substring(0, 4) + " - " + zr.Erw_GJ_Bis.Substring(4, 2) + "." + zr.Erw_GJ_Bis.Substring(0, 4);
            }
            rgvAbsaetze.ColumnGroups.Add(colGrpSum);



            //*********************************************************************************************************************
            //HERE IS THE ERROR-PLACE

            rgvAbsaetze.ItemsSource = _absaetze;

            GridViewDataColumn gvdcArtext = new GridViewDataColumn();
            gvdcArtext.Header = "Artikel-Nr.";
            gvdcArtext.UniqueName = "Artext";
            gvdcArtext.DataMemberBinding = new Binding("strArtext");
            gvdcArtext.ColumnGroupName = "colGrpArtikeldaten";
            this.rgvAbsaetze.Columns.Add(gvdcArtext);






            ....

        }

    }
}

Please look at the block marked as "Error-Place".

Thank you

Michael

[Dimitrina]

Hello,

 I have created a simple project to test the "ERROR-PLACE". So far I was not able to get any error.

Please check the attached sample and let me know what I should change in order to get the exception.

Regards,
Didie
the Telerik team

[Dimitrina]

Hi,



Kind regards,
Didie
the Telerik team

[Michael]

Hello!

I wanted to check your sample code, but when I tried to download the zip-file, I got the exception, that it is not possible to find the file!?!?

Can you check/reup the sample?

Good Evening

Michael

[Michael]

Hello Didie!

I'm very sorry, that I wasted your time. I thought, that the error is at this place, that I marked in the code above. Last night, I took my laptop and coded my own example. And it worked!

So what is the problem with my real application and/or my corporate computer?

15 minutes ago, it dawns on me. The error was, that I also use GridViewExpressionColumns, but at this moment, I don't have defined the expressions!!!

So for this, the problem is solved.

Now I have a new problem. After the data is bind to the grid, it takes a long time that the "form" shows up?!? If there are any hints, then please post. But now I will also check the forum, if there are other threads for this fact. Perhaps I will have to create a new thread. We will see.

Many thanks.

Michael

[Vlad]

Hi,

Can you verify if you have any binding expression errors in the Visual Studio Output window?

Greetings,
Vlad
the Telerik team
