how to add tooltips for countries programly ?

[Congyuan]

According to this demo. http://demos.telerik.com/kendo-ui/map/geojson
Is there any method I can call to display the numbers in the tooltips for each countries area program?

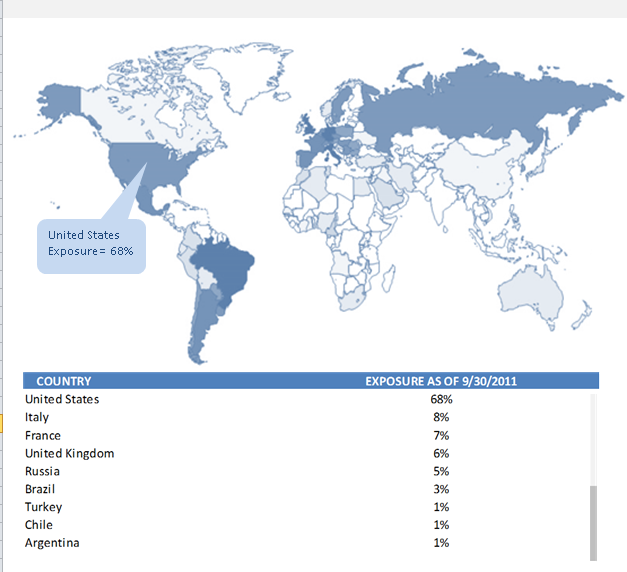

 The requirements of my project is like when end user selected row in the grid, it should highlight the country area and show the number in the tool tip on map.
See the attachment.

Thanks.

[Danail Vasilev]

Hi Congyuan,

I can suggest that you try the following steps:
    1) Bind the Grid and Map controls to the same GeoJSON data source.
    2) Add information to the GeoJSON data about the location of the tooltips.
    3) Attach to the shapeCreated event of Map and where you can create the marker with the desired location and text from the data source. Here you can also add a custom id to the element.
     4) Attach to the change event of the grid where you can find the map's marker by the custom shape id and display the tooltip
     5) Use CSS in order to hide the markers.

I have created such an integration for the first two countries from the GeoJSON data source in the attachment. Please give it a try and then tell me how it goes.

Regards,
Danail Vasilev
Telerik





[Danail Vasilev]

Hello Congyuan,

You may also find useful a cleaner solution here with a custom tooltip, that doesn't require data source manipulations.

Regards,
Danail Vasilev
Telerik





[Congyuan]

Cool thanks you soooooooooooo much. it's realy helpful
You are genius ;)
