How do we realize a "Multi-dimensional Swimlanes"?

3 Answers 109 Views
Diagram
This is a migrated thread and some comments may be shown as answers.
Hello,

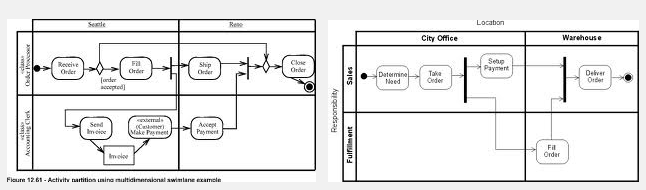

We'd like to make Multi-dimensional Swimlanes such as the attached image.
Let me know if you can realize the following.

- Both of horizontal lanes and vertical lanes contain nodes like the RadDiagramContainerShape.

I am looking forward to hearing from you.

3 Answers, 1 is accepted

Sort by
0
Zarko
Telerik team
answered on 09 Jun 2014, 04:39 PM
Hi HIROYUKI,
Could you please elaborate a little bit more on your scenario - should the lanes support drag and drop(reordering), resizing, collapsing and etc. or you just want a visual representation of multi-dimensional swimlanes ? Also could you please take a look at our swimlanes demo and tell us if it's similar to what you're looking for (what do you want differently) ?
We're looking forward to hearing from you.

Regards,
Zarko
Telerik

Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

0
answered on 12 Jun 2014, 12:56 AM
Hi Zarko,

Thank you for your reply.

´╝×should the lanes support drag and drop(reordering), resizing, collapsing and etc. or ...
´╝×Also could you please take a look at our swimlanes demo and tell us if it's similar to what you're looking for ...


   Yes, it needs reordering, resizing, collapsing, moving and etc..., like your swimlanes demo.


Kind Regards,


0
Zarko
Telerik team
answered on 16 Jun 2014, 12:33 PM
Hi HIROYUKI,
If you want to be able to drag and drop, resize and collapse both the vertical and the horizontal lanes it's going to be very difficult to synchronize them and you'll need a lot of custom code. Further more your shapes will have to be in two different containers at the same time and this is not possible at the moment.
What you could do is update our Swimlanes demo and add a horizontal headers collection. I've attached a sample project demonstrating one way to do this so that you could examine it and see if it works for you.

Regards,
Zarko
Telerik
