How can I set telerik RadDiagram layout same as per shown in the below picture?

[Parth]

Hello,

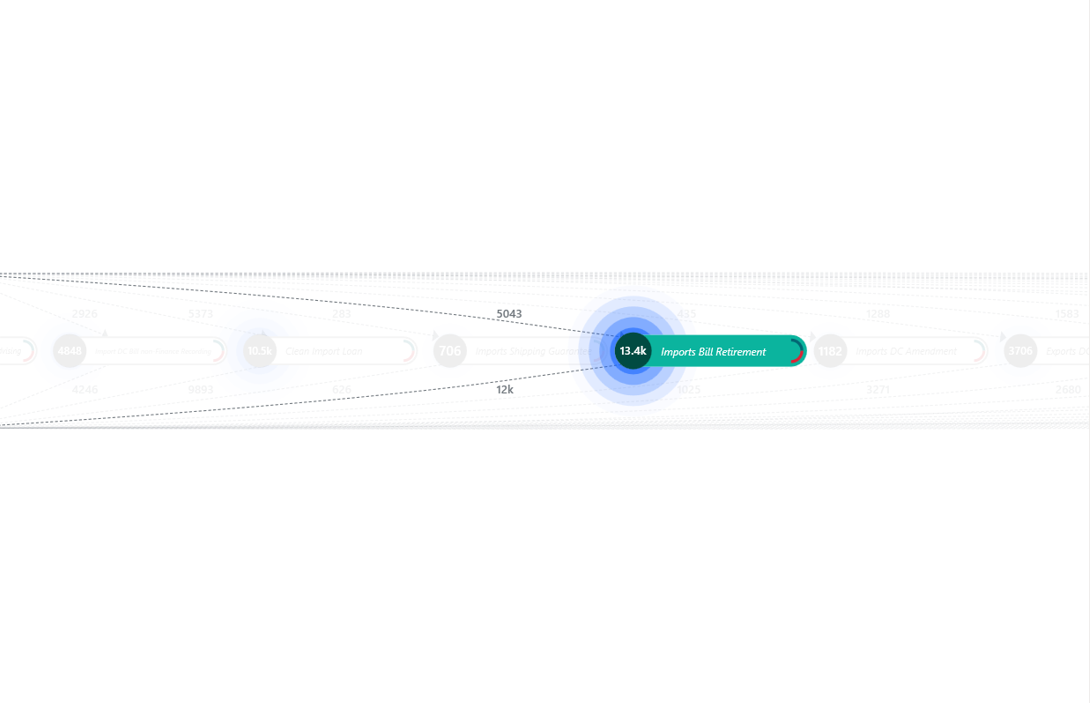

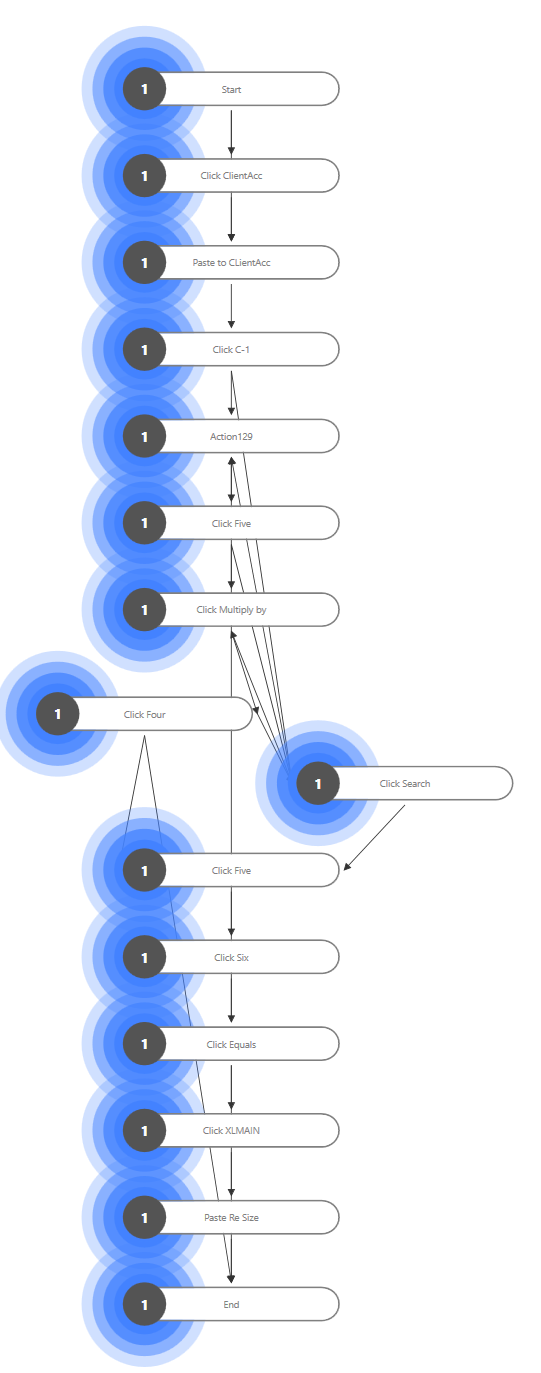

I wanted layout as per images shared with the questions/forums. You also provided with me solutions but I am not able to draw the layout as per wish.

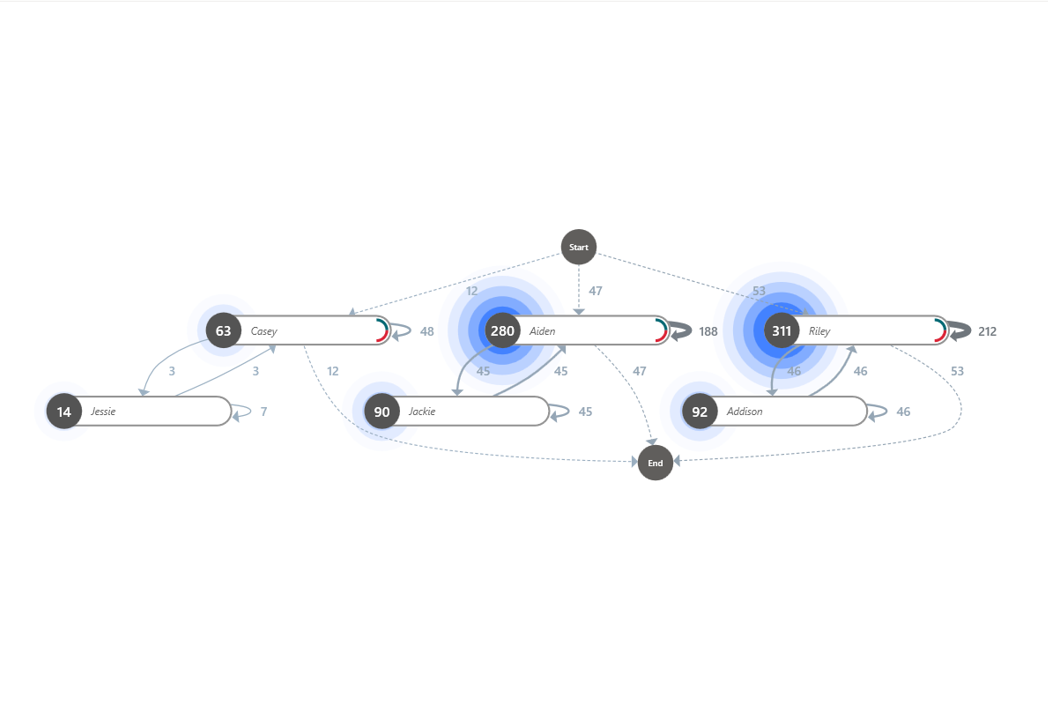

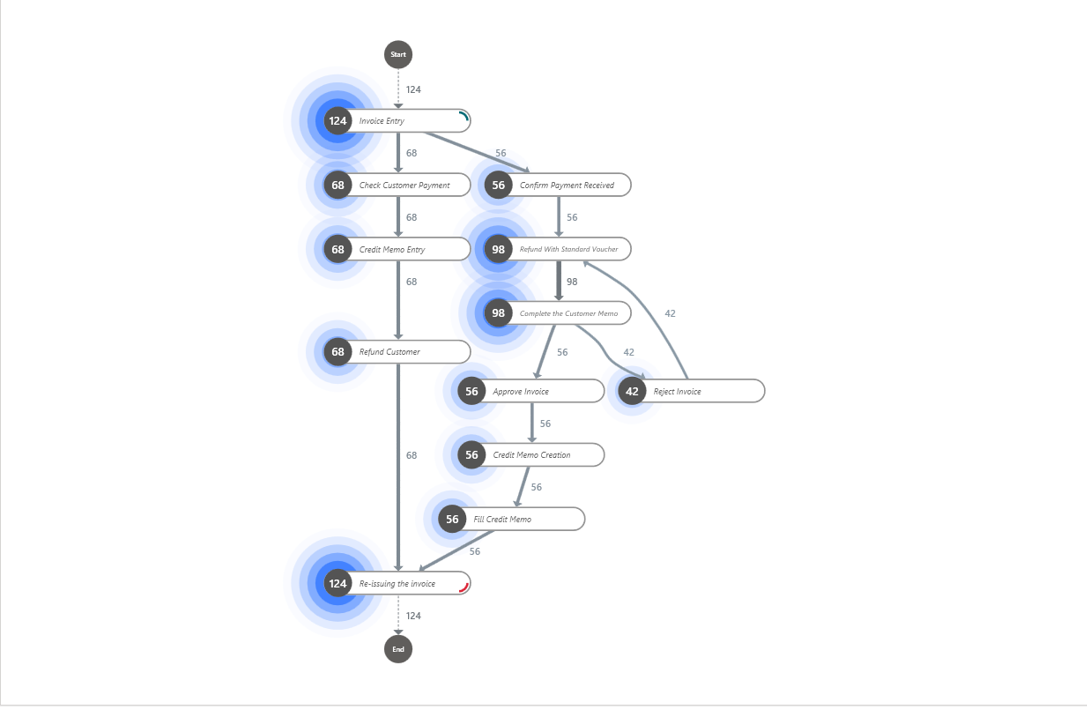

[ I am sharing here another picture of layout if possible can you please show me a workaround.

I am also attaching the sample project so if i am doing anything wrong can you please check?

[Stenly]

Hello Parth,

I have modified the sample project to achieve the result from the provided image, as well as to utilize the NodeViewModelBase, LinkViewModelBase, and GraphSourceBase classes. For the ordering of the shapes, the Position property exposed by the ItemViewModelBase is utilized, instead of using the tree layout.

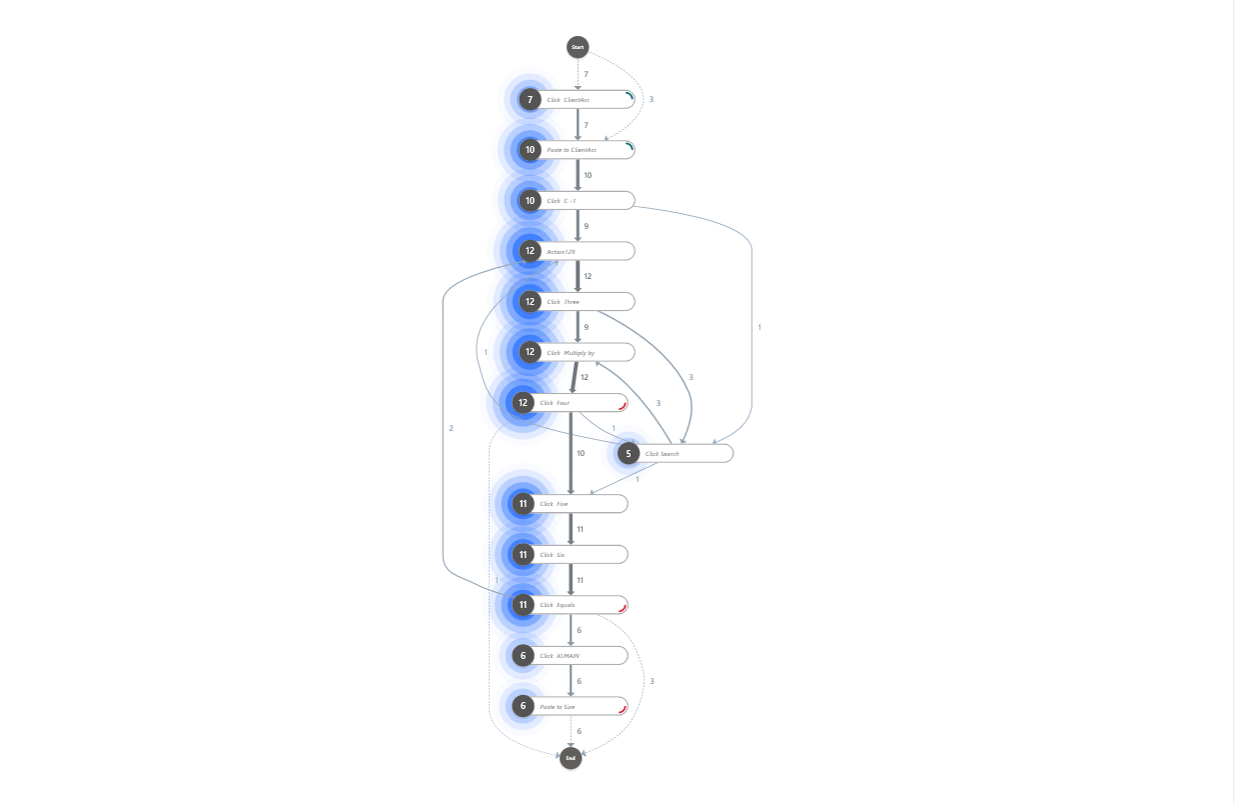

The produced result is as follows:

I hope the proposed approach will be of help to you.

Regards,
Stenly
Progress Telerik

[Parth]

......



[Parth]

I used dynamic data sources so i can't put the position of all the nodes, so any other way to solve the dynamically layout set in graph.

[get data using excel and create graph, i given you sample of excel]

[Parth]

We create a diagram using datasources but we cannot statically provide the position of all nodes.

So can you help us in making the algorithm for the layout of the diagram.

[Parth]

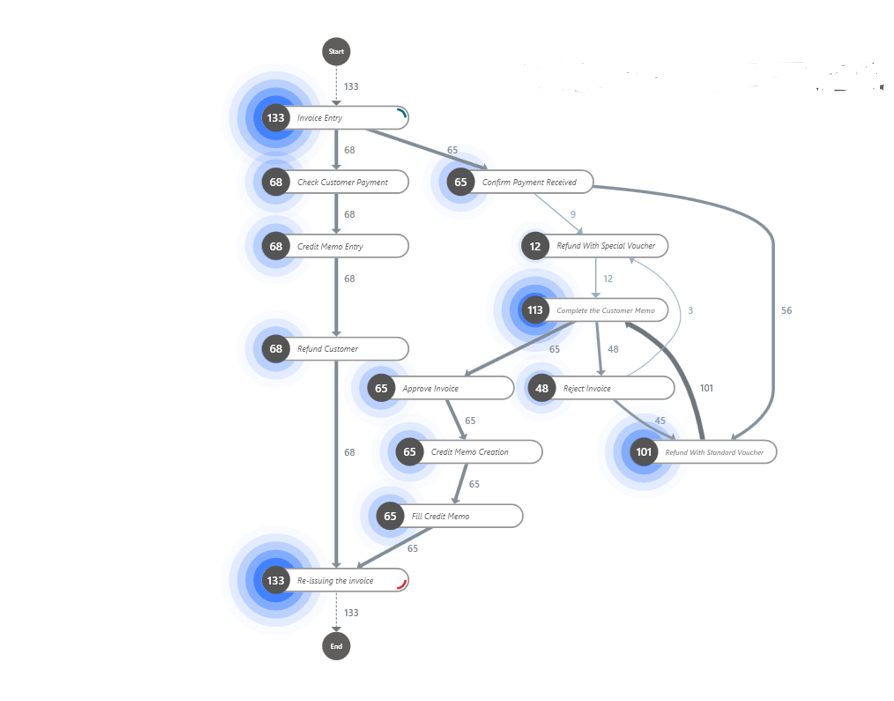

The layout we want is given in the pictures,

[Stenly]

Implementing such an algorithm from the ground is not an easy task and we do not have an example that I could share with you that looks like the end result from the images that you shared.

You could check different tree drawing algorithms and try to implement one of them in your application based on the information that comes from your data source.

[Parth]

Can you please give me a small example of tree drawing algorithm, which i can used in my project.
