Help with reporting design

4 posts, 0 answers
  1. David
    David avatar
    15 posts
    Member since:
    Nov 2016

    Posted 12 Oct 2017 Link to this post

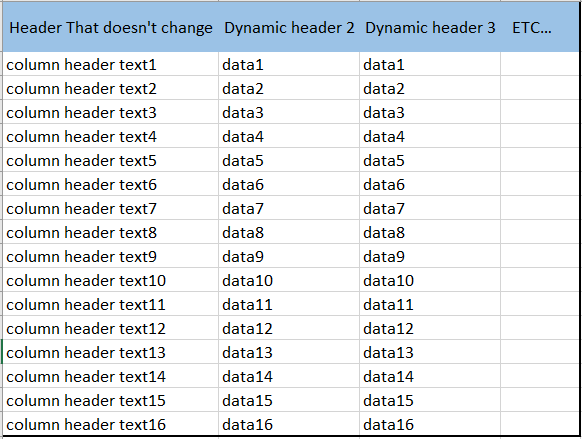

    Could someone please help:  I am completely new to Telerik reporting.  I have been asked to create a report that will display static headers on the first column and then dynamically add columns to the right for the data.  I have attached a sample of what I'm trying to do.

    Could someone please recommend a way to do this.  Would a table do this.



    Thanks



    Dave.

  2. Todor
    Admin
    Todor avatar
    175 posts

    Posted 13 Oct 2017 Link to this post

    Hello David,

    It seems that what you need is a rotated Table, i.e. a Table in which rows have become columns and vise-versa. You can rotate a table from the Table item's context menu in the report designer. More details about the Table reporting item could be found in the Table/Crosstab/List help article.

    Regards,
    Todor
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. David
    David avatar
    15 posts
    Member since:
    Nov 2016

    Posted 13 Oct 2017 in reply to Todor Link to this post

    Todo:

         Thanks for the response.  Question, now that I have a table that is rotated counter clockwise, where the headers are on the left and new rows will be added on the right, how do I set the row height in the table.  I found that I can right click on the bottom cell ( conceptually the farthest left column of a normal table) and select "Add Row", which inserts a new row at the bottom of the table (ie: farthest left side of a normal horizontal table)  But I want to make sure all rows are consistent in height.

    Dave.

  4. Todor
    Admin
    Todor avatar
    175 posts

    Posted 18 Oct 2017 Link to this post

    Hi David,

    Each row in the Table item has property RowHeight - equivalent to ColumnWidth of the table column. You can find it the Properties of the table row -> Layout ->RowHeight. By default the menu is in the bottom right corner of the Standalone Designer.

    Regards,
    Todor
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
Back to Top
