Group footer label?

4 posts, 0 answers
  1. MC
    MC avatar
    4 posts
    Member since:
    Dec 2013

    Posted 30 Nov 2016 Link to this post

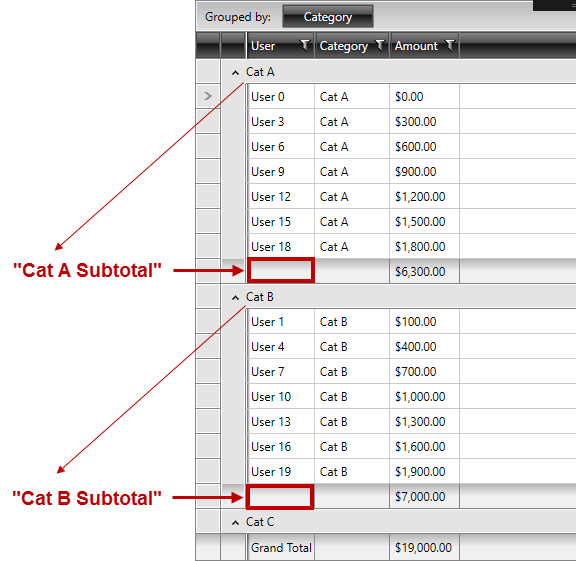

    How can I insert text in a group footer's cell?



    01.public MainWindow()
    02.{
    03.    InitializeComponent();
    04.
    05.    var style = new Style();
    06.    style.Setters.Add(new Setter(GroupHeaderRow.ShowGroupHeaderColumnAggregatesProperty, false));
    07.    style.Setters.Add(new Setter(GroupHeaderRow.ShowHeaderAggregatesProperty, false));
    08.    var radGrid = new RadGridView { GroupRenderMode = GroupRenderMode.Flat, GroupRowStyle = style};
    09.    Content = radGrid;
    10.
    11.    // Table schema
    12.    var data = new DataTable();
    13.    var user = data.Columns.Add("User");
    14.    var cat = data.Columns.Add("Category");
    15.    var amt = data.Columns.Add("Amount", typeof(decimal));
    16.
    17.    // Populate values
    18.    var catValues = new[] {"Cat A", "Cat B", "Cat C"};
    19.    for (var i = 0; i < 20; i++)
    20.    { data.Rows.Add("User " + i, catValues[i % catValues.Length], i * 100d); }
    21.
    22.    // Prepare RadGridView
    23.    radGrid.ItemsSource = data;
    24.    radGrid.AutoExpandGroups = true;
    25.    radGrid.ShowColumnFooters = true;
    26.    radGrid.AutoGenerateColumns = false;
    27.
    28.    // Build RadGrid columns
    29.    var gridColumns = new[] {user, cat, amt}
    30.        .Select(dataColumn => new GridViewDataColumn
    31.        {
    32.            UniqueName = dataColumn.ColumnName,
    33.            DataMemberBinding = new Binding(dataColumn.ColumnName),
    34.        })
    35.        .ToList();
    36.    radGrid.Columns.AddRange(gridColumns);
    37.
    38.    // Sum Amount
    39.    var amtCol = gridColumns.Last();
    40.    var amtFormat = "{0:C}";
    41.    amtCol.DataFormatString = amtFormat;
    42.    amtCol.AggregateFunctions.Add(new SumFunction()
    43.    {
    44.        SourceField = amt.ColumnName,
    45.        SourceFieldType = amt.DataType,
    46.        ResultFormatString = amtFormat
    47.    });
    48.    radGrid.ShowGroupFooters = true;
    49.
    50.    // Group by category
    51.    var catGroup = new GroupDescriptor { Member = cat.ColumnName, };
    52.    radGrid.GroupDescriptors.Add(catGroup);
    53.
    54.    // Show grand total label
    55.    radGrid.Columns[0].Footer = "Grand Total";
    56.
    57.    // todo: How to show group subtotal label?
    58.
    59.}
  2. MC
    MC avatar
    4 posts
    Member since:
    Dec 2013

    Posted 01 Dec 2016 in reply to MC Link to this post

    ok, I've made some progress by using AggregateFunction and a custom AggregationExpression.

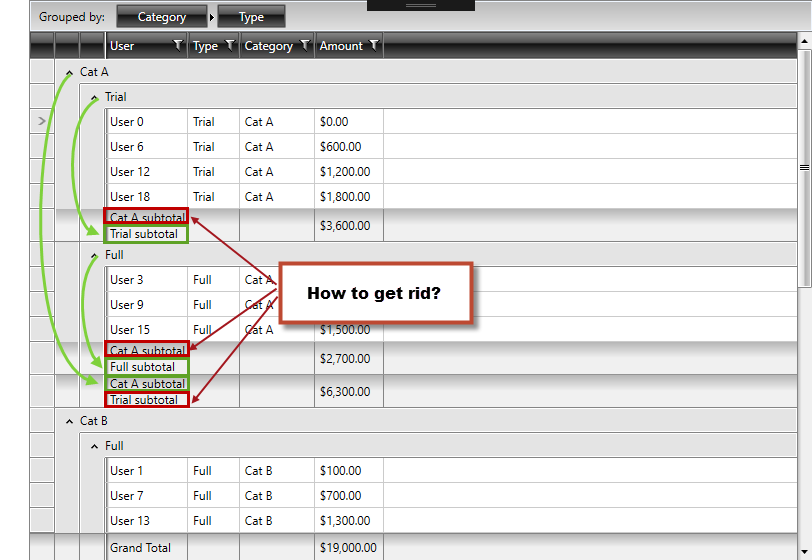

    But I'm now having problem when I have nested groupings.

    Please see the code and screenshots

    public MainWindow()
    {
        InitializeComponent();

        var style = new Style();
        style.Setters.Add(new Setter(GroupHeaderRow.ShowGroupHeaderColumnAggregatesProperty, false));
        style.Setters.Add(new Setter(GroupHeaderRow.ShowHeaderAggregatesProperty, false));
        var radGrid = new RadGridView {GroupRenderMode = GroupRenderMode.Flat, GroupRowStyle = style};
        Content = radGrid;

        // Table schema
        var data = new DataTable();
        var dbUser = data.Columns.Add("User");
        var dbType = data.Columns.Add("Type");
        var dbCategory = data.Columns.Add("Category");
        var dbAmt = data.Columns.Add("Amount", typeof(decimal));

        // Populate values
        var categories = new[] {"Cat A", "Cat B", "Cat C"};
        var types = new[] {"Trial", "Full"};
        for (var i = 0; i < 20; i++)
        {
            data.Rows.Add(
                "User " + i,
                types[i % types.Length],
                categories[i % categories.Length],
                i * 100d);
        }

        // Prepare RadGridView
        radGrid.ItemsSource = data;
        radGrid.AutoExpandGroups = true;
        radGrid.ShowColumnFooters = true;
        radGrid.AutoGenerateColumns = false;

        // Build RadGrid columns
        var gridColumns = new[] {dbUser, dbType, dbCategory, dbAmt}
            .Select(dataColumn => new GridViewDataColumn
            {
                UniqueName = dataColumn.ColumnName,
                DataMemberBinding = new Binding(dataColumn.ColumnName),
            })
            .ToList();
        radGrid.Columns.AddRange(gridColumns);

        // Sum Amount
        var amtCol = gridColumns.Last();
        var amtFormat = "{0:C}";
        amtCol.DataFormatString = amtFormat;
        amtCol.AggregateFunctions.Add(new SumFunction()
        {
            SourceField = dbAmt.ColumnName,
            SourceFieldType = dbAmt.DataType,
            ResultFormatString = amtFormat
        });
        radGrid.ShowGroupFooters = true;

        // Show grand total label
        radGrid.Columns[0].Footer = "Grand Total";

        // Nested grouping
        var groupColumns = new[] {
            dbCategory,
            dbType
        };
        foreach (var group in groupColumns)
        {
            var colGroup = new GroupDescriptor {Member = group.ColumnName,};
            radGrid.GroupDescriptors.Add(colGroup);

            // Add text to the first column
            // =============================================================
            // (todo) help: Ends up adding 1 function for each nesting level
            var firstColumn = gridColumns.First();
            firstColumn.AggregateFunctions.Add(new AggregateFunction<DataRow, string>
            {
                AggregationExpression = (rows) => $"{rows.First()[group.ColumnName]} subtotal"
            });
        }
    }
  3. Dilyan Traykov
    Admin
    Dilyan Traykov avatar
    1173 posts

    Posted 05 Dec 2016 Link to this post

    Hello,

    I'm attaching a sample project based on the code you provided where I've achieved the desired behavior by creating a DataTemplateSelector and defining it as the GroupFooterTemplateSelector for the first column. Inside the selector, I get ahold of the row's group like so:

    public class MyGroupFooterTemplateSelector : DataTemplateSelector
    {
        public override DataTemplate SelectTemplate(object item, DependencyObject container)
        {
            var template = new DataTemplate();
            var row = (container as GridViewGroupFooterCell).ParentRow as GridViewGroupFooterRow;
            var groupName = (row.Group as CollectionViewGroup).Name;
            var textBlock = new FrameworkElementFactory(typeof(TextBlock));
            textBlock.SetValue(TextBlock.TextProperty, groupName + " subtotal");
            template.VisualTree = textBlock;
            template.Seal();
            return template;
        }
    }

    Please let me know whether such an approach would be suitable for you.

    Regards,
    Dilyan Traykov
    Telerik by Progress
    Telerik UI for WPF is ready for Visual Studio 2017 RC! Learn more.
  4. MC
    MC avatar
    4 posts
    Member since:
    Dec 2013

    Posted 07 Dec 2016 in reply to Dilyan Traykov Link to this post

    Hi Dilyan,

    Thanks for the reply. Your solution did the trick.

    Thanks

    Josh
