GridViewHeaderCell style with AutoGenerated Columnscolumns

[Shaun]

I'm using the RadGridview with the Metro theme applied. I want to change, and only change the background color of the HeaderCell. I can do this easily if I'm defining each data column, like below:

XAML:
 <telerik:GridViewDataColumn Header="Type" Width="150" DataMemberBinding="{Binding TypeDisplay}" HeaderCellStyle ="{StaticResource raHeaderCellStyle}"/>

Style:
    <Style x:Key="raGridViewHeaderCellControlTemplate" TargetType="telerik:GridViewHeaderCell">
        <Setter Property="Background" >
            <Setter.Value>
                <SolidColorBrush Color="Blue" />
            </Setter.Value>
        </Setter>
    </Style>

However, if I AutoGenerate columns  I can't figure out how to set this cellheader style. Thanks.

[Vanya Pavlova]

Hello Nk,



You may subscribe to the AutoGeneratingColumn event of RadGridView to access auto-generated columns and set the corresponding HeaderCellStyle from there.

All the best,
Vanya Pavlova
the Telerik team

[Shaun]

Thanks for the quick reply!  Would you be so kind as to give me an example of the syntax for applying the style to all the headercells? Thanks.

[Vanya Pavlova]

Hello Nk,


If you want this style to be applied to all GridViewHeaderCells you may mark this style as an implicit one and it will be applied to all elements of this type:

<Style TargetType="telerik:GridViewHeaderCell">


      <Setter Property="Background" >

          <Setter.Value>

              <SolidColorBrush Color="Blue" />

          </Setter.Value>

      </Setter>

  </Style>

You do not have to subscribe to this event for all columns. You should need to subscribe when you want to apply different header cell style for each column.

Greetings,
Vanya Pavlova
the Telerik team

[Shaun]

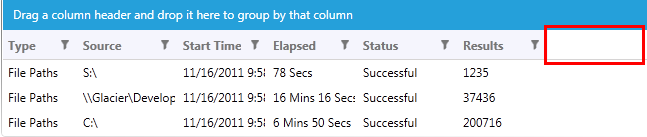

Thanks Vanya! That was so simple. However, I tried to do the same thing for the GridViewHeaderRow, so the header cell background and the entire header row background will match but it doesn't seem to change the color. I attached the style xaml and a screenshot.  Thanks again.

Style:
    <Style TargetType="telerik:GridViewHeaderRow">
        <Setter Property="Background"  >
            <Setter.Value>
                <SolidColorBrush Color="#FFF5F5FD" />
            </Setter.Value>
        </Setter>
    </Style>

[Vanya Pavlova]

Hello Nk,



Indeed there is a problem related to the implicit style targeted at GridViewHeaderRow in a theme different than the default one. For the time being I may suggest you to refer this style explicitly through HeaderRowStyle attribite of RadGridView:

<Window.Resources>
        <Style x:Key="style1" TargetType="telerik:GridViewHeaderRow">
...
        <Setter Property="Background" Value="Red"/>
        </Style>
    </Window.Resources>
    <Grid x:Name="LayoutRoot" DataContext="{Binding Source={StaticResource SampleDataSource}}">
        <telerik:RadGridView HeaderRowStyle="{StaticResource style1}"  telerik:StyleManager.Theme="Metro" Margin="72,32,48,58" ItemsSource="{Binding Collection}"/>
    </Grid>
</Window>

I have logged this issue in our PITS System and you may track its progress here.
Furthermore I have already updated your Telerik points accordingly.



All the best,
Vanya Pavlova
the Telerik team

[Shaun]

Cool, that works. Much thanks for the quick help.
