GridViewComboColumn binding to List<String>

3 posts, 0 answers
  1. Dharmavaram
    Dharmavaram avatar
    99 posts
    Member since:
    Jun 2013

    Posted 11 Jan Link to this post

    Hi ,

    I am binding one of the Property "Location" of  a class to Gridview column as combobox.Its ItemSource is another property in ViewModel of type List<string>.

    But here the problem is I am not able to see the value of Location when Grid is loaded.The following is Xaml related to GridviewComboColumn.

     <telerik:RadGridView.Columns>
                        <telerik:GridViewComboBoxColumn  DataMemberBinding="{Binding Location}"  ItemsSource="{Binding LocationList}" IsComboBoxEditable="False"  Width="*" />
                    </telerik:RadGridView.Columns>

    Here what should be the selectedValueMemberPath and DisplayMemberPath values will be ?? Location List is a simple List<string> not a class type.

    How to make Location value to be seen when grid loaded?/

    Regards,

    Nagasree.

  2. Lance | Tech Support Engineer, Sr.
    Admin
    Lance | Tech Support Engineer, Sr. avatar
    462 posts

    Posted 11 Jan Link to this post

    Hi Nagrasree,

    Binding to an ItemsSource property directly depends on where your LocationList is located. If it's in the same context as the GridView, then it will work as is.

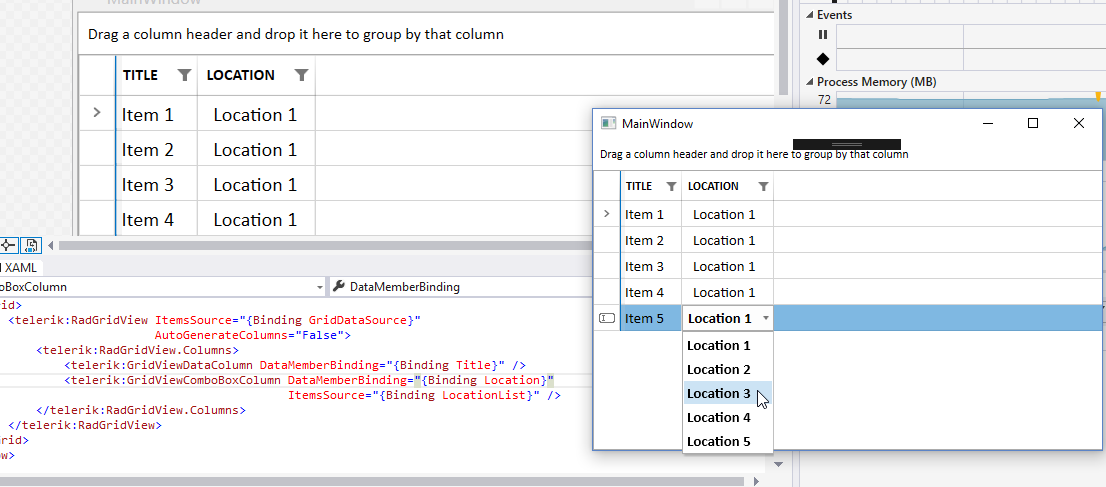

    I've attached a small demo that shows how to use it in the way you'd looking for, here's a screenshot of the demo at runtime:




    If your LocationList is in a different data context, you can change the binding so that it points at the correct context (or use a ValueConverter). Alternatively, you can set it directly in code, please take a look at this tutorial for full explanation of the latter approach.

    If you still can't get it to work, please update my attached demo so that it replicates the problem. Then open a support ticket and attach the reproducible so that the RadGridView support team can investigate it directly.

    Regards,
    Lance | Tech Support Engineer, Sr.
    Telerik by Progress
    Want to extend the target reach of your WPF applications, leveraging iOS, Android, and UWP? Try UI for Xamarin, a suite of polished and feature-rich components for the Xamarin framework, which allow you to write beautiful native mobile apps using a single shared C# codebase.
  3. Dharmavaram
    Dharmavaram avatar
    99 posts
    Member since:
    Jun 2013

    Posted 12 Jan Link to this post

    Hi,

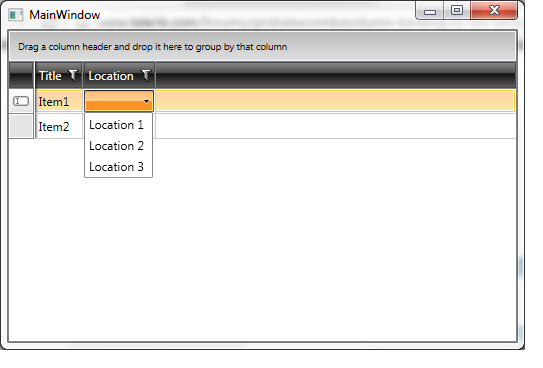

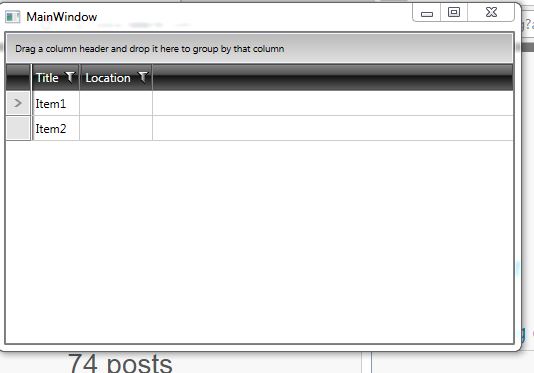

     Actually I am not able to run your Sample Application because some dll reference and other exceptions.I modified the application now it is not working in this sample application also.when we load LocationProperty is empty combobox is populating fine but Location value of respective grid not coming.

    Here there is no option to attach zip file.I am inserting code below please check once

    public class LocationItem
        {
            public LocationItem(string title,string Location)
            {
                this.Title = title;
                this.Location = Location;
            }

            private string  _title;

            public string  Title
            {
                get { return _title; }
                set { _title = value; }
            }

            private string _location;

            public string Location
            {
                get { return _location; }
                set { _location = value; }
            }

            public static ObservableCollection<LocationItem> GetItems()
            {
                ObservableCollection<LocationItem> items = new ObservableCollection<LocationItem>();
                items.Add(new LocationItem("Item1", "Location3"));
                items.Add(new LocationItem("Item2", "Location1"));
                return items;
            }


        }
    public class MainViewModel : ViewModelBase
       {
           private ObservableCollection<LocationItem> gridDataSource;
           private List<string> locationList;

           public MainViewModel()
           {
           }

           public ObservableCollection<LocationItem> GridDataSource
           {
               get
               {

                   return gridDataSource ?? (gridDataSource = LocationItem.GetItems()); }
               set { gridDataSource = value; OnPropertyChanged("GridDataSource");}
           }

           public List<string> LocationList
           {
               get
               {
                   List<string> locationvalue = new List<string>();
                   locationvalue.Add("Location 1");
                      locationvalue.Add("Location 2");
                      locationvalue.Add("Location 3");
                   return locationList ?? (locationList = locationvalue); }
               set { locationList = value; OnPropertyChanged("LocationList");}
           }
       }
