[Solved] GridView with RowDetails

[Richard Slade]

Hi,

I'm trying to replicate the RowDetails grid that is in the demo. It works in that a row details row is shown under each row correctly, but I'm having an issue
The column that I am using as the RowDetails column is still showing it's header and has a blank area
If I set the column to IsVisible=False, then the RowDetails don't show.

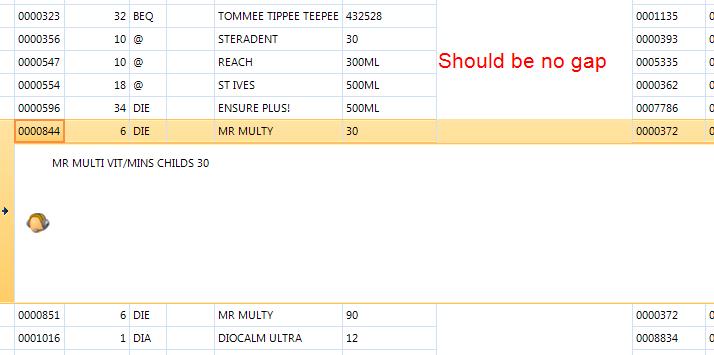

I've attached a pretty crude screenshot (it's just a test before I put this into our main project)
Thanks all
Richard

[Emanuel Varga]

Hello Richard,

I'm guessing you forgot this:

public GridViewDataColumn DetailsColumn

        {

            get

            {

                return this.detailsColumn;

            }

            set

            {

                if (detailsColumn != value)

                {
                           detailsColumn = value;

                    if (detailsColumn != null)

                    {
                                 detailsColumn.MinWidth = 0;

                        detailsColumn.Width = 1;

                        detailsColumn.ReadOnly = true;

                    }



                    this.TableElement.Update(GridUINotifyAction.Reset);

                }

            }

        }

You should just set the width, minWidth, maxWidth to 0 and it should solve your problem.

Hope this helpls,
Best Regards,
Emanuel Varga

[Richard Slade]

Thanks for the reply... No, I copied from the demo this..

Public Property DetailsColumn() As GridViewDataColumn
    Get
        Return Me.detailsColumn_Renamed
    End Get
    Set(ByVal value As GridViewDataColumn)
        If detailsColumn_Renamed IsNot value Then
            detailsColumn_Renamed = value
            If detailsColumn_Renamed IsNot Nothing Then
                detailsColumn_Renamed.MinWidth = 0
                detailsColumn_Renamed.Width = 50
                detailsColumn_Renamed.ReadOnly = True
            End If
            Me.TableElement.Update(GridUINotifyAction.Reset)
        End If
    End Set
End Property

[Emanuel Varga]

Hello again,

This is fun, they made a mistake on the vb side, just try what i sent you, put the width = 0 and maxWidth = 0 and let me know, ok?

Best Regards,
Emanuel Varga

[Richard Slade]

ah yes, well spotted. Thanks!

[Richard Slade]

hmm, thought that would have got it.. but hasn't. Will try again Monday.

Public Property DetailsColumn() As GridViewDataColumn
    Get
        Return Me.detailsColumn_Renamed
    End Get
    Set(ByVal value As GridViewDataColumn)
        If detailsColumn_Renamed IsNot value Then
            detailsColumn_Renamed = value
            If detailsColumn_Renamed IsNot Nothing Then
                detailsColumn_Renamed.MinWidth = 0
                detailsColumn_Renamed.Width = 0
                detailsColumn_Renamed.MaxWidth = 0
                detailsColumn_Renamed.ReadOnly = True
            End If
            Me.TableElement.Update(GridUINotifyAction.Reset)
        End If
    End Set
End Property

[Emanuel Varga]

Hello again,

Sorry, I've got that wrong the width and maxWidth should be 1 NOT 0.

This will work, I've just tested it and it's OK, it's just strange in one way but it's normal in another way because if it is 0 then visible should be false and then you will have no date.

Best Regards,
Emanuel Varga,

[Richard Slade]

That's got it. Thanks for your effort. Not obvious though eh!?
Richard

[Richard Slade]

Hi Emanuel

Any ideas how to get all the rows to pre-expand to show the details column please? I've only got a few rows and would like them to all be expanded by default.
Cheers
Richard

[Richard Slade]

not to worry, answered my own question

Public Overrides Sub UpdateInfo()
    Me.RowInfo.Height = (CType(Me.GridControl, RowDetailsGrid)).DetailsRowHeight
    'If (Not Me.RowInfo.IsCurrent) Then
    '    'Me.RowInfo.Height = TableElement.RowHeight
    'Else
    '    Me.RowInfo.Height = (CType(Me.GridControl, RowDetailsGrid)).DetailsRowHeight
    'End If
    MyBase.UpdateInfo()
End Sub

[Emanuel Varga]

Hello Richard,

Have you tried already with going trough all the rows and setting IsExpanded = true?

row.IsExpanded = true;

I am thinking it should be like for hierarchical grids, like this article explains...

Sorry but I cannot test it right now, i will try to take a look soon if this is not working, please let me now, ok?

Best Regards,
Emanuel Varga

[Richard Slade]

Thanks for the quick reply. It's fine though. The one I posted above works fine.
Richard
