gridview column with different type

8 posts, 0 answers
  1. Moe
    Moe avatar
    36 posts
    Member since:
    Jan 2018

    Posted 17 Sep Link to this post

    Hi Admin,

    I want to know how to change font for dropdownlist and I put valuemember and displaymember for dropdownlist but after I choose gridview column show valuemember but I don't want . I want dispalymember. One column will be datatime column or textbox column or dropdownlist.

    Below My coding .



    Imports System
    Imports System.Collections.Generic
    Imports System.Data
    Imports Telerik.WinControls.UI

    Public Class RadForm1
        Private Sub RadForm1_Load(sender As Object, e As System.EventArgs) Handles MyBase.Load
            With RadGridView1.Columns
                .Add(New GridViewTextBoxColumn("EntityFilingDetailsID") With {.HeaderText = "EntityFilingDetailsID", .IsVisible = False, .VisibleInColumnChooser = False})
                .Add(New GridViewTextBoxColumn("ReportHeading") With {.HeaderText = "Report Heading"})
                .Add(New GridViewTextBoxColumn("FilingDetail") With {.HeaderText = "Filing Detail"})
                .Add(New GridViewTextBoxColumn("EntityFilingValue") With {.HeaderText = "EntityFilingValue"})
                .Add(New GridViewTextBoxColumn("Editor") With {.HeaderText = "EntityFilingValue", .IsVisible = False})
                .Add(New GridViewTextBoxColumn("FieldDataType") With {.HeaderText = "FieldDataType", .IsVisible = False, .VisibleInColumnChooser = False})
                .Add(New GridViewTextBoxColumn("DropDownListData") With {.HeaderText = "DropDownListData", .IsVisible = False, .VisibleInColumnChooser = False})
                .Add(New GridViewTextBoxColumn("IsReadOnly") With {.HeaderText = "IsReadOnly", .IsVisible = False, .VisibleInColumnChooser = False})
            End With

            Dim listofEntityFilingDetails As New List(Of EntityFilingDetails)
            Dim entityFilingDetails As New EntityFilingDetails
            entityFilingDetails.EntityFilingDetailsID = 1
            entityFilingDetails.ReportHeading = "Directed and managed in BVI (Y/N)"
            entityFilingDetails.FilingDetail = "Is the activity directed and managed in the Virgin Islands?"
            entityFilingDetails.EntityFilingValue = "Y"
            entityFilingDetails.FieldDataType = "DropDownList"
            entityFilingDetails.DropdownListData = "Y | N"
            entityFilingDetails.IsReadonly = False
            listofEntityFilingDetails.Add(entityFilingDetails)
            entityFilingDetails = New EntityFilingDetails
            entityFilingDetails.EntityFilingDetailsID = 2
            entityFilingDetails.ReportHeading = "Num Board Meetings"
            entityFilingDetails.FilingDetail = "Number of board meetings the entity held during the financial period with relation to this activity."
            entityFilingDetails.EntityFilingValue = ""
            entityFilingDetails.FieldDataType = "TextBox"
            entityFilingDetails.DropdownListData = ""
            entityFilingDetails.IsReadonly = False
            listofEntityFilingDetails.Add(entityFilingDetails)
            entityFilingDetails = New EntityFilingDetails
            entityFilingDetails.EntityFilingDetailsID = 3
            entityFilingDetails.ReportHeading = "Financial Period Start Date (DD/MM/YYYY)"
            entityFilingDetails.FilingDetail = "Financial Period Start Date"
            entityFilingDetails.EntityFilingValue = ""
            entityFilingDetails.FieldDataType = "DateTimePicker"
            entityFilingDetails.DropdownListData = ""
            entityFilingDetails.IsReadonly = False
            listofEntityFilingDetails.Add(entityFilingDetails)

            entityFilingDetails = New EntityFilingDetails
            entityFilingDetails.EntityFilingDetailsID = 4
            entityFilingDetails.ReportHeading = "Num Board Meetings"
            entityFilingDetails.FilingDetail = "Number of board meetings the entity held during the financial period with relation to this activity."
            entityFilingDetails.EntityFilingValue = "1"
            entityFilingDetails.FieldDataType = "DropDownList"
            entityFilingDetails.DropdownListData = "Countries"
            entityFilingDetails.IsReadonly = True
            listofEntityFilingDetails.Add(entityFilingDetails)
            RadGridView1.DataSource = listofEntityFilingDetails
        End Sub

        Private Sub RadGridView1_EditorRequired(sender As Object, e As EditorRequiredEventArgs) Handles RadGridView1.EditorRequired
            Dim dataRow As GridViewDataRowInfo = TryCast(Me.RadGridView1.CurrentRow, GridViewDataRowInfo)

            If dataRow Is Nothing Then
                Return
            End If

            Dim editor As String = Convert.ToString(dataRow.Cells("FieldDataType").Value)
            Dim DropdownListData As String = Convert.ToString(dataRow.Cells("DropdownListData").Value)
            Dim editorType As Type = e.EditorType

            Select Case editor
                Case "TextBox"
                    editorType = GetType(RadTextBoxEditor)
                Case "DateTimePicker"
                    editorType = GetType(RadDateTimeEditor)
                Case "DropDownList"
                    editorType = GetType(RadDropDownListEditor)
            End Select

            e.EditorType = editorType
        End Sub

        Private Sub radGridView1_CellEditorInitialized(sender As Object, e As GridViewCellEventArgs) Handles RadGridView1.CellEditorInitialized
            If TypeOf e.ActiveEditor Is RadDropDownListEditor Then
                Dim editor As RadDropDownListEditor = TryCast(e.ActiveEditor, RadDropDownListEditor)
                Dim element As RadDropDownListEditorElement = TryCast(editor.EditorElement, RadDropDownListEditorElement)
                Dim DropdownListData As String = Convert.ToString(RadGridView1.CurrentRow.Cells("DropdownListData").Value)
                If DropdownListData = "Y | N" Then
                    Dim dt As DataTable = New DataTable()
                    dt.Columns.Add("Question")
                    dt.Rows.Add("Y")
                    dt.Rows.Add("N")
                    element.DataSource = dt
                    element.DisplayMember = "Question"
                    element.ValueMember = "Question"
                Else
                    Dim dt As DataTable = New DataTable()
                    dt.Columns.Add("CountryName")
                    dt.Columns.Add("CountryID")
                    dt.Rows.Add("Myanmar", "1")
                    dt.Rows.Add("Singapore", "2")
                    element.DisplayMember = "CountryID"
                    element.ValueMember = "CountryName"
                    element.DataSource = dt
                End If
            End If
        End Sub
        Private Sub radGridView1_CellFormatting(ByVal sender As Object, ByVal e As CellFormattingEventArgs) Handles RadGridView1.CellFormatting
            If TypeOf e.CellElement.RowInfo Is GridViewDataRowInfo AndAlso e.Column.Name = "EntityFilingValue" Then
                Dim dateformat As DateTime
                If e.CellElement.RowInfo.Cells("EntityFilingValue").Value IsNot Nothing Then
                    If DateTime.TryParse(e.CellElement.RowInfo.Cells("EntityFilingValue").Value.ToString(), dateformat) Then
                        e.CellElement.Text = dateformat.ToString("d MMMM yyyy")
                    End If

                    If CType(e.Row.Cells("IsReadonly").Value, Boolean) Then
                        e.CellElement.RowInfo.Cells("EntityFilingValue").ReadOnly = True
                    Else
                        e.CellElement.RowInfo.Cells("EntityFilingValue").ReadOnly = False
                    End If
                End If

                End If



        End Sub
    End Class

    Public Class EntityFilingDetails
        Property EntityFilingDetailsID As Integer
        Property ReportHeading As String
        Property FilingDetail As String
        Property EntityFilingValue As String
        Property FieldDataType As String
        Property DropdownListData As String
        Property IsReadonly As Boolean

    End Class










  2. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3988 posts

    Posted 18 Sep Link to this post

    Hello, Moe,

    The EditorRequired event is the appropriate place to change the default editor for a certain column. Thus, in case you are using a GridViewTextBoxColumn, you can replace the text box editor with another one. However, for the RadDropDownListEditor I would recommend you to set the ValueMember property to be the same as the DisplayMember. Thus, both properties will point to the same field from the applied DataSource for the RadDropDownListEditor.

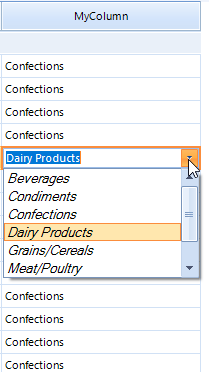

    As to the font, it is necessary to handle the VisualItemFormatting event once the editor is initialized:
        Private Sub RadForm1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
            'TODO: This line of code loads data into the 'NwindDataSet.Categories' table. You can move, or remove it, as needed.
            Me.CategoriesTableAdapter.Fill(Me.NwindDataSet.Categories)
            'TODO: This line of code loads data into the 'NwindDataSet.Products' table. You can move, or remove it, as needed.
            Me.ProductsTableAdapter.Fill(Me.NwindDataSet.Products)

            Me.RadGridView1.DataSource = Me.ProductsBindingSource

            Dim textColumn As New GridViewTextBoxColumn("MyColumn")
            textColumn.Width = 200
            Me.RadGridView1.Columns.Add(textColumn)

            For Each row As GridViewRowInfo In Me.RadGridView1.Rows
                row.Cells("MyColumn").Value = "Dairy Products"
            Next


            AddHandler Me.RadGridView1.EditorRequired, AddressOf RadGridView1_EditorRequired
            AddHandler Me.RadGridView1.CellEditorInitialized, AddressOf RadGridView1_CellEditorInitialized
        End Sub

        Private Sub RadGridView1_EditorRequired(sender As Object, e As EditorRequiredEventArgs)
            If Me.RadGridView1.CurrentColumn.Name = "MyColumn" Then
                Dim editor As New RadDropDownListEditor()
                Dim element As RadDropDownListEditorElement = TryCast(editor.EditorElement, RadDropDownListEditorElement)
                element.DataSource = Me.CategoriesBindingSource
                element.DisplayMember = "CategoryName"
                element.ValueMember = "CategoryName"
                e.Editor = editor
            End If

        End Sub

        Private Sub RadGridView1_CellEditorInitialized(sender As Object, e As GridViewCellEventArgs)
            Dim editor As RadDropDownListEditor = TryCast(e.ActiveEditor, RadDropDownListEditor)
            If editor IsNot Nothing Then
                Dim element As RadDropDownListEditorElement = TryCast(editor.EditorElement, RadDropDownListEditorElement)
                element.SelectedValue = Me.RadGridView1.CurrentCell.Value
                RemoveHandler element.VisualItemFormatting, AddressOf element_VisualItemFormatting
                AddHandler element.VisualItemFormatting, AddressOf element_VisualItemFormatting
            End If


        End Sub

        Dim f As New Font("Arual", 10.0F, FontStyle.Italic)
        Private Sub element_VisualItemFormatting(sender As Object, args As VisualItemFormattingEventArgs)
            args.VisualItem.Font = f
        End Sub

    I hope this information helps. If you need any further assistance please don't hesitate to contact me.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik

    Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

  3. Moe
    Moe avatar
    36 posts
    Member since:
    Jan 2018

    Posted 20 Sep in reply to Dess | Tech Support Engineer, Sr. Link to this post

    HI Dess,



    If I did same value for display member and value member but database side save value member (only ID save). So what should I do?



    Thanks

    Moe

  4. Moe
    Moe avatar
    36 posts
    Member since:
    Jan 2018

    Posted 20 Sep in reply to Moe Link to this post

    HI Dess,

    I want to save ID value only in database. Do you have how to solve these issue ? Please reply me apas.



    Thanks

    Moe

  5. Moe
    Moe avatar
    36 posts
    Member since:
    Jan 2018

    Posted 20 Sep in reply to Moe Link to this post

    Hi Dess,

    I have other issue . I already posted last week but nobody not reply to me.

    https://www.telerik.com/account/support-tickets/view-ticket/1477812.

    Thanks

    Moe

  6. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3988 posts

    Posted 21 Sep Link to this post

    Hello, Moe,

    I would like to note that the referred ticket (1477812) is actually a forum thread with 72 hours response time (weekends are excluded). That is why you haven't received a response yet. In addition, note that most of the forum threads are reviewed by Telerik representatives and sometimes we address the questions asked by our customers in the forums as well. However, a post in the forum doesn't guarantee you a response from the Telerik support team. Moreover, threads are handled according to license and time of posting, so if it is an urgent problem, we suggest you use a support ticket, which would be handled before a forum thread. Thank you for your understanding.

    As to the question at hand, if you have the ID values stored as cell values, indeed, the RadDropDownListEditorElement.ValueMember should be set to the ID. However, since you don't use a GridViewComboBoxColumn but a GridViewTextBoxColumn, it is expected that the IDs will be displayed in the cells when they are not in edit mode. In order to deal with it, you can handle the RadGridView.CellFormatting event and set the Text property for the cell element according to the ID value each cell from this column stores.

    Should you have further questions please let me know.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik

    Five days of Blazor, Angular, React, and Xamarin experts live-coding on twitch.tv/CodeItLive, special prizes, and more, for FREE?! Register now for DevReach 2.0(20).

  7. Moe
    Moe avatar
    36 posts
    Member since:
    Jan 2018

    Posted 22 Sep in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi Dess,

    Can you write for me for example ? I am not sure for that.



    Thanks

    moe

  8. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3988 posts

    Posted 25 Sep Link to this post

    Hello, Moe,

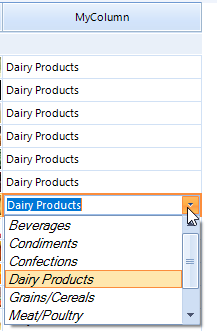

    I have prepared a sample project for your reference. Please give it a try and see how it works for your scenario.

    Note that this is just a sample approach and it may not cover all possible cases. Feel free to modify and extend it in a way which suits your custom requirements best.

    I hope this information helps. If you need any further assistance please don't hesitate to contact me.
