GridTimePickerEditor popup clock size

2 posts, 0 answers
  1. Szymon
    Szymon avatar
    6 posts
    Member since:
    Sep 2013

    Posted 17 Oct 2013 Link to this post

    Hi!

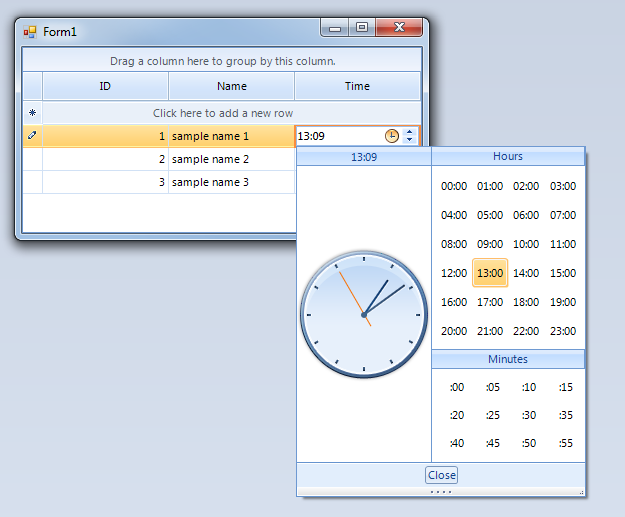

    I would like to resize my gridtimepicker clock. Main issue is that by default its size hides minutes to choose. I have to resize the clock manually every time to show these options which is irritating. Default view in attachment. How can I solve this problem?

    And in addition. How to change color of the hand of the clock? Eg. in Style Builder?

    Thanks in advance,
    Szymon.
  2. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3945 posts

    Posted 22 Oct 2013 Link to this post

    Hello Szymon,

    Thank you for contacting Telerik Support.

    Time picker popup default size is a known issue, which is already logged in our Public Issue Tracking System - PITS. You can track its progress, subscribe for status changes and add your vote/comment to it on the following link - PITS issue.

    Currently, the possible workaround I can propose is to adjust manually PopupForm.Height of the RadTimePickerElement:
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

            List<MyObject> list = new List<MyObject>()
            {
                new MyObject(1,"sample name 1", DateTime.Now.AddHours(2).TimeOfDay),
                new MyObject(2,"sample name 2", DateTime.Now.AddHours(4).TimeOfDay),
                new MyObject(3,"sample name 3", DateTime.Now.TimeOfDay)
            };
            this.radGridView1.DataSource = list;
            this.radGridView1.EditorRequired += radGridView1_EditorRequired;
            this.radGridView1.CellEditorInitialized += radGridView1_CellEditorInitialized;
        }

        private void radGridView1_CellEditorInitialized(object sender, GridViewCellEventArgs e)
        {
            TimeEditor timeEditor = e.ActiveEditor as TimeEditor;
            if (timeEditor != null)
            {
                RadTimePickerElement editor = (RadTimePickerElement)timeEditor.EditorElement;
                editor.PopupForm.Height = 350;
            }
        }

        private void radGridView1_EditorRequired(object sender, Telerik.WinControls.UI.EditorRequiredEventArgs e)
        {
            GridViewEditManager manager = sender as GridViewEditManager;
            if (manager != null && manager.GridViewElement.CurrentColumn.Name == "Time")
            {
                e.EditorType = typeof(TimeEditor);
            }
        }
    }

    public class MyObject
    {
        public int ID { get; set; }

        public string Name { get; set; }

        public TimeSpan Time { get; set; }

        public MyObject(int iD, string name, TimeSpan time)
        {
            this.ID = iD;
            this.Name = name;
            this.Time = time;
        }
    }

    public class TimeEditor : BaseGridEditor
    {
        public override object Value
        {
            get
            {
                RadTimePickerElement editor = (RadTimePickerElement)this.EditorElement;
                var dateValue = editor.Value as DateTime?;
                if (dateValue.HasValue)
                {
                    return new TimeSpan(dateValue.Value.Hour, dateValue.Value.Minute, dateValue.Value.Second);
                }

                return TimeSpan.MinValue;
            }
            set
            {
                RadTimePickerElement editor = (RadTimePickerElement)this.EditorElement;
                if (value != null && value != DBNull.Value && value is TimeSpan)
                {
                    var timeSpan = (TimeSpan)value;
                    editor.Value = new DateTime(DateTime.Now.Year, DateTime.Now.Month,
                        DateTime.Now.Day, timeSpan.Hours, timeSpan.Minutes, timeSpan.Seconds);
                }
            }
        }

        public override void BeginEdit()
        {
            ((RadTimePickerElement)this.EditorElement).Culture = new System.Globalization.CultureInfo("en-GB");
            base.BeginEdit();
            ((RadTimePickerElement)this.EditorElement).ValueChanged += TimeEditor_ValueChanged;
            this.EditorElement.Focus();
        }

        private void TimeEditor_ValueChanged(object sender, EventArgs e)
        {
            OnValueChanged();
        }

        public override bool EndEdit()
        {
            ((RadTimePickerElement)this.EditorElement).ValueChanged -= TimeEditor_ValueChanged;
            return base.EndEdit();
        }

        protected override RadElement CreateEditorElement()
        {
            return new RadTimePickerElement();
        }
    }

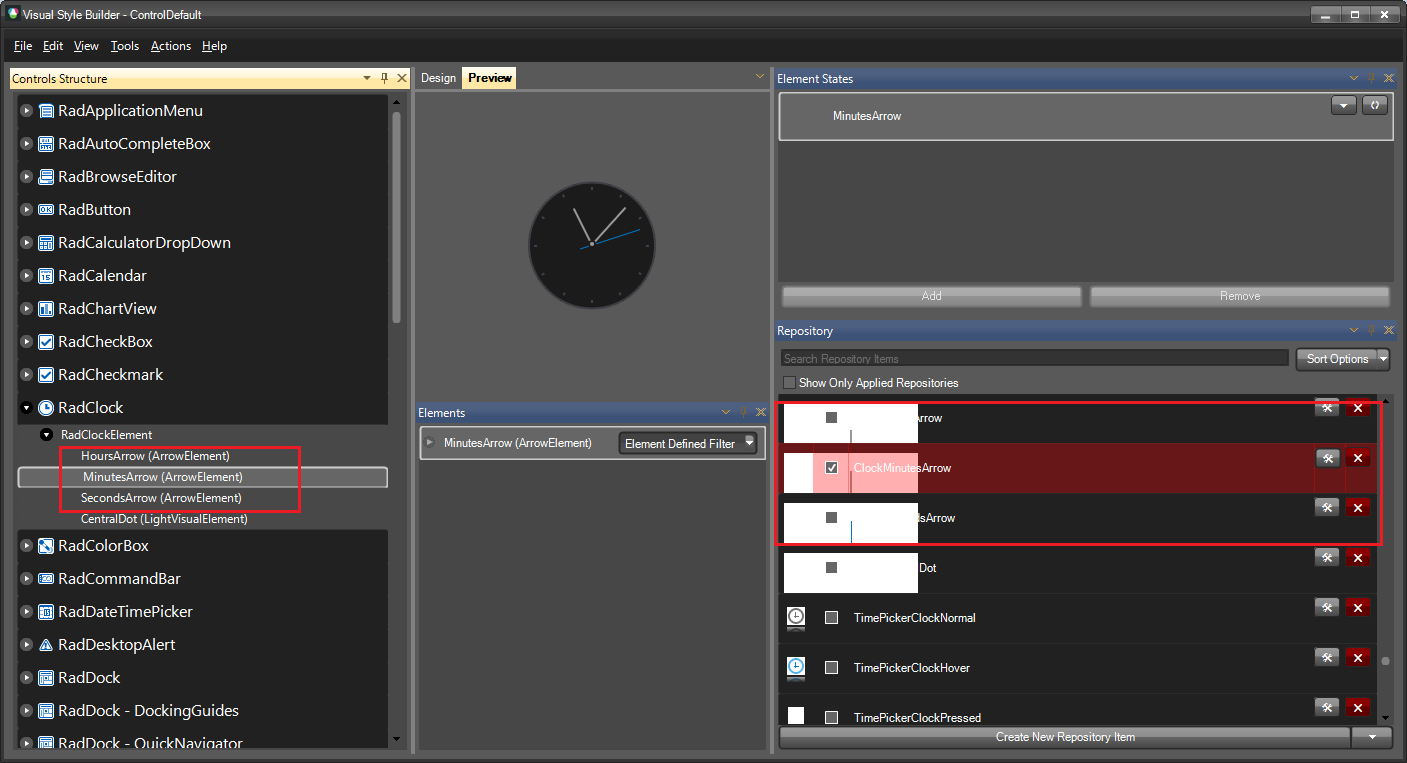

    As to the question about the hands of clock, you can change the default image with an appropriate one using VisualStyleBuilder (please have a look at the attached picture "Arrows.png").

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Desislava
