Grid Row Styling

2 posts, 0 answers
  1. Michael
    Michael avatar
    1 posts
    Member since:
    Jul 2014

    Posted 15 Jul 2014 Link to this post

    I need to alter the default validation error styles in the RadGridView.  Errors are generated via INotifyDataErrorInfo

    One of the main changes is to remove the "reddish" background that is shown on the row when an error exists in one of the columns.

    I have been trying to follow the instructions for styling a row here: http://www.telerik.com/help/wpf/gridview-styling-a-row.html

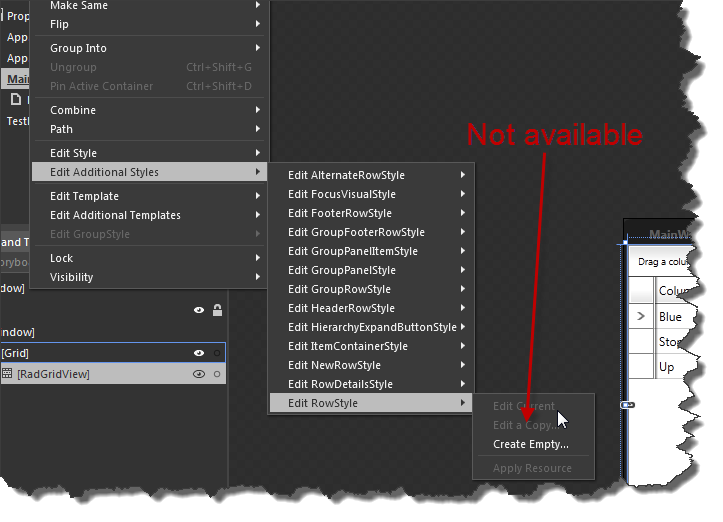

    The instructions indicate one should be able to go to Object -> Edit Additional Styles -> Edit Row Style -> Edit a copy...

    However, the only option I have is "Create Empty..." so am unsure as to what the original style looks like so it is difficult to alter.  The instructions indicate I should be able to "Edit a copy..." which would give me the style properties I need.

    Is there something I'm missing?

    Here is a quick example of the XAML being used:

    <Window x:Class="TelerikGridTest.MainWindow"
            xmlns:telerikGridTest="clr-namespace:TelerikGridTest"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"
            Title="MainWindow" Height="350" Width="525" d:DataContext="{d:DesignInstance telerikGridTest:ViewModel}">
        <Window.Resources>
            <ResourceDictionary>
                <ResourceDictionary.MergedDictionaries>
                    <ResourceDictionary Source="/Telerik.Windows.Themes.Transparent;component/Themes/Telerik.Windows.Controls.GridView.xaml" />
                </ResourceDictionary.MergedDictionaries>
            </ResourceDictionary>
        </Window.Resources>
        <Grid>
            <telerik:RadGridView ItemsSource="{Binding Rows}" ActionOnLostFocus="None" GroupRenderMode="Flat" AutoGenerateColumns="False" CanUserInsertRows="True" NewRowPosition="Bottom" >
                <telerik:RadGridView.Columns>
                    <telerik:GridViewDataColumn Header="Column One" DataMemberBinding="{Binding ColumnOne, UpdateSourceTrigger=PropertyChanged}" />
                    <telerik:GridViewDataColumn Header="Column Two" DataMemberBinding="{Binding ColumnTwo, UpdateSourceTrigger=PropertyChanged}"/>
                    <telerik:GridViewDataColumn Header="Column Three" DataMemberBinding="{Binding ColumnThree, UpdateSourceTrigger=PropertyChanged}"/>
                </telerik:RadGridView.Columns>
            </telerik:RadGridView>
        </Grid>
    </Window>

  2. Yoan
    Admin
    Yoan avatar
    1214 posts

    Posted 17 Jul 2014 Link to this post

    Hi,

    Actually, you can manually extract the template for the GridViewRow that is available with the installation files of UI for WPF. You can find it together with all the other templates used for the GridView inside "Telerik.Windows.Controls.GridView.xaml" file browsing to "InstallationFolder\UI for WPF Q2 2014\Themes.Implicit\WPF40\OfficeBlack(or Windows7/ Windows8 )\Themes" folder.


    Regards,
    Yoan
    Telerik
