grid drop zone

[moegal]

I am trying to drag and drop from one grid to another.  I have 2 visual issues I would like to improve.

1. Can I make the drop zone in an empty grid be larger then a single dotted line?

2. I do not need to know if the row is dropped above or before a row, can I make the whole grid appear as the drop zone?

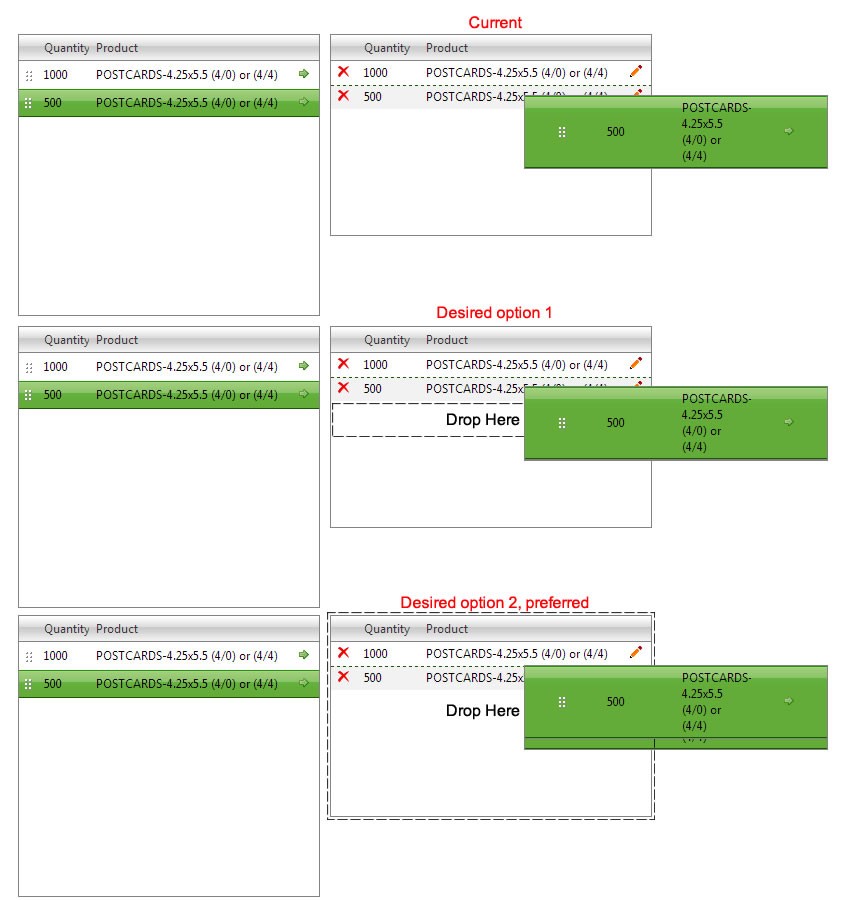

I have attached a mock up

Marty

[Kostadin]

Hi Marty,

A possible solution is to hook onmouseover and onmouseout events of the target grid and set an outline. Check out the following JavaScript code snippet.

var showDotted = false;
                function mouseOver(sender, args) {
                    if (showDotted) {
                        sender.style.outline = "2px dotted #333333";
                    }
                }

                function OnRowDragStarted(sender) {
                    showDotted = true
                }

                function mouseOut(sender, args) {
                    if (showDotted) {
                        sender.style.outline = "";
                    }
                }

Note this is only a visual and you will still need to place your items in your MasterTableView.

Regards,
Kostadin
Telerik

[moegal]

Kostadin,

thanks I will give it a try.  I was hoping there was a way to expand the actual drop zone though.

Thanks, Marty
