Getting the active MdiChild from RadDock?

[Jill-Connie Lorentsen]

I have some problems with detecting the MdiChild after converting from DockingManager to RadDock.

DockingManager1.ActiveMdiChild returned a form.

In RadDock there is no ActiveMdiChild property, and RadDock1.ActiveWindow returns a DockWindow, which cannot be casted to a form, and my program crashes.

I've tried bool exists = (Array.IndexOf(RadDock1.MdiChildren, RadDock1.ActiveWindow), but it returns false.

My entire code is built on ActiveMdiChild being a form, and it would be a lot of work converting it to DockWindow.

How can I get the currently active MdiChild from the RadDock?

Regards, Jill-Connie Lorentsen

[Nikolay]

Hello Jill-Connie Lorentsen,

Thank you for the question.

Indeed, RadDock does not expose the ActiveMdiChild property. The DockWindows that holds the child forms are actually HostWindows, so you can get a child form as shown below:

Dim hostWin As HostWindow = TryCast(Me.radDock1.ActiveWindow, HostWindow)
If hostWin IsNot Nothing Then
    Dim mdiChild As Form = CType(hostWin.Content, Form)

    ' or if you want to get the index
    Dim indexInChildren As Integer = Array.IndexOf(radDock1.MdiChildren, mdiChild)
End If

If you have to put this code snippet in many places, it would be better if you extend RadDock exposing a property called ActiveMdiChild. In the getting of this property you can place the suggested implementation. Finally, you should replace the RadDock type with your custom type.

Best wishes,
Nikolay
the Telerik team

[PEDDI]

i have a radgroupbox in child form . In the radgroup box there is a button  and when i click that button i want the form to be opened in the raddock document window how can i achieve this ?

[Dimitar]

Hello Peddi,

Thank you for writing.

If I understand correctly you want to add an MDI child by pressing a button in other MDI child. In this case you need to retrieve the main form and set it as MdiParent of the new form:

private void radButton1_Click(object sender, EventArgs e)
{
    Form1 mainForm = this.Parent.Parent.Parent.Parent.Parent as Form1;
    if (mainForm != null)
    {
        Form2 childForm = new Form2();
        childForm.Text = "MDI Child " + DateTime.Now.ToShortTimeString();
        childForm.MdiParent = mainForm;
        childForm.Show();
    }
}

Please let me know if there is something else I can help you with.



Regards,
Dimitar
Telerik





[PEDDI]

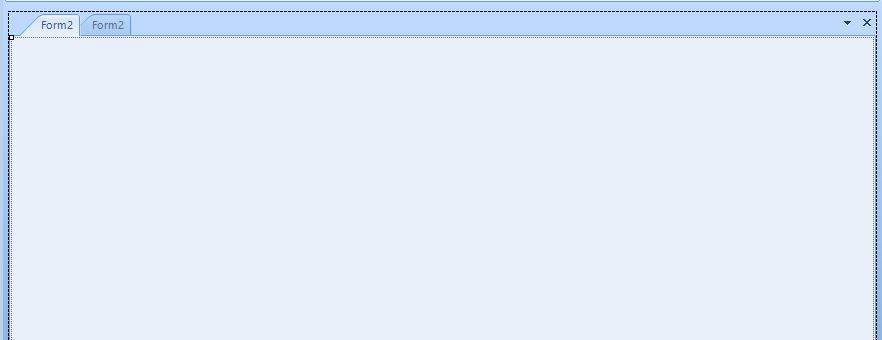

There is a button in raddock child form.When i click that button a form should be opened in raddock only but it is not opening in raddock it is opening out of raddock can anybody solve this issue

[Dimitar]

Hi Peddi,

Thank you for writing back.

I have attached a small sample that shows how this can be achieved. Could you please check it and let me know how it fits in your case?

I am looking forward to your reply.



Regards,
Dimitar
Telerik





[PEDDI]

Thank  for  the solution :)

[PEDDI]

Hi,

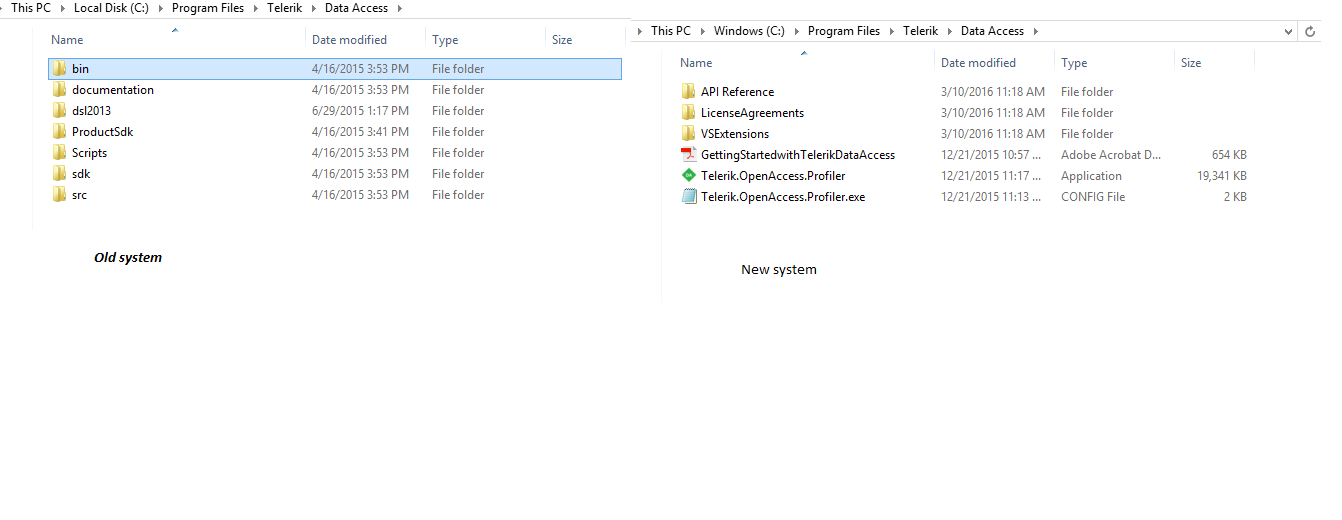

I am unable to install all Telerik data access files in my new system. Some files are not installed in my new system e.g:bin, dsl2013 etc files are missing can you please help me.I am also unable to find "Telerik.open access.dll" in bin folder

[Doroteya]

Hi PEDDI,

Thank you for contacting us.

The outcome you experience is expected with Data Access Q3 2015 as the Visual Studio integration (the support for .rlinq files) was deprecated with Data Access Q2 2015. The last version of Data Access that distributes the assemblies and  supports .rlinq files is Q1 2015. Currently, the Data Access runtime assemblies are available only through five NuGet packages. More details on the deprecation are available in this blog post.

In order to maintain and upgrade further your existing projects that consume Data Access (especially such with .rlinq files), you can apply any of the following suggestions:

Option 1*: Migrate the .rlinq file to a fluent model and integrate the latest NuGet packages. The details and the workflow about the migration process are available here. With this option you will be able to work with Visual Studio 2012, Visual Studio 2013, and Visual Studio 2015, but all the changes in the database will have to be applied in the model manually.

Option 2*: Freeze the version of Data Access on Q1 2015. Since Data Access Q1 2015 is the last version that distributes the Visual Studio integration, with this option you won't need to migrate the model. With this option you will have the integration in Visual Studio 2012 and Visual Studio 2013 (meaning that you will be able to work as you used to with your .rlinq file), but you will not be able to upgrade the solution to Visual Studio 2015.

*You will need to obtain Data Access Q1 2015 (you can download it from your Telerik account, here).

I hope this helps.

Regards,
Doroteya
Telerik

[PEDDI]

Thanks for the reply

[sabrin]

How to get the form in raddock on click of a  button or tab in ribbon bar which is present in the mdiparent form.Could anyone solve this issue?



[Dimitar]

Hi Sabrin,

The following snippet shows how you can get the current MDI form:

private void radButton1_Click(object sender, EventArgs e)
{
    var wnd = radDock1.ActiveWindow as HostWindow;
    var mdiForm = wnd.Content as Form;

}

I hope this will be useful. Let me know if you have additional questions.

Regards,
Dimitar
Progress Telerik

[k]

What is the cause of this error?
  Which does not open by clicking the corresponding form button



 Form1 mainForm = this.Parent.Parent.Parent.Parent.Parent as Form1;
            if (mainForm != null)
            {
                Form2 childForm = new Form2();
                childForm.Text = "MDI Child " + DateTime.Now.ToShortTimeString();
                childForm.MdiParent = mainForm;
                childForm.Show();
            }

[k]

File sa to zip

[Dimitar]

Hello K,

This code is used when you are creating a child form from another child form. When creating child form from the main form it is not needed:

private void radButtonElement1_Click(object sender, EventArgs e)
{
    Form2 childForm = new Form2();
    childForm.Text = "MDI Child " + DateTime.Now.ToShortTimeString();
    childForm.MdiParent = this;
    childForm.Show();
}

I hope this will be useful. Let me know if you have additional questions.

Regards,
Dimitar
Progress Telerik

[k]

Hello and thanks

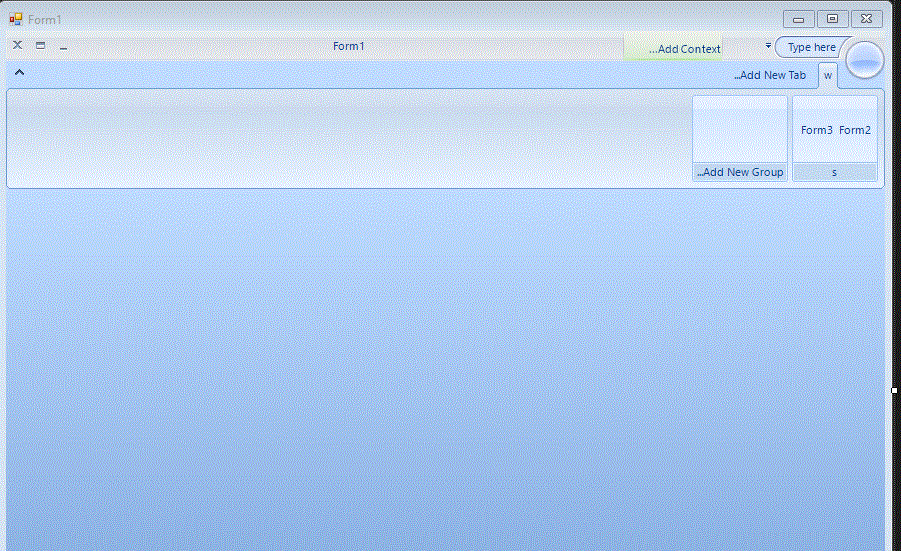

I want to open the forms as an attached image

[Dimitar]

Hello K,

I have attached a small example that shows this.

Should you have any other questions do not hesitate to ask.

Regards,
Dimitar
Progress Telerik
