Form Text and RadTreeView

[林]

i use VS2022  .net8

i create a new project to try RadTreeView

ptoject file as attached

but

1. The Text of Form shown on the VS2022 IDE is so small

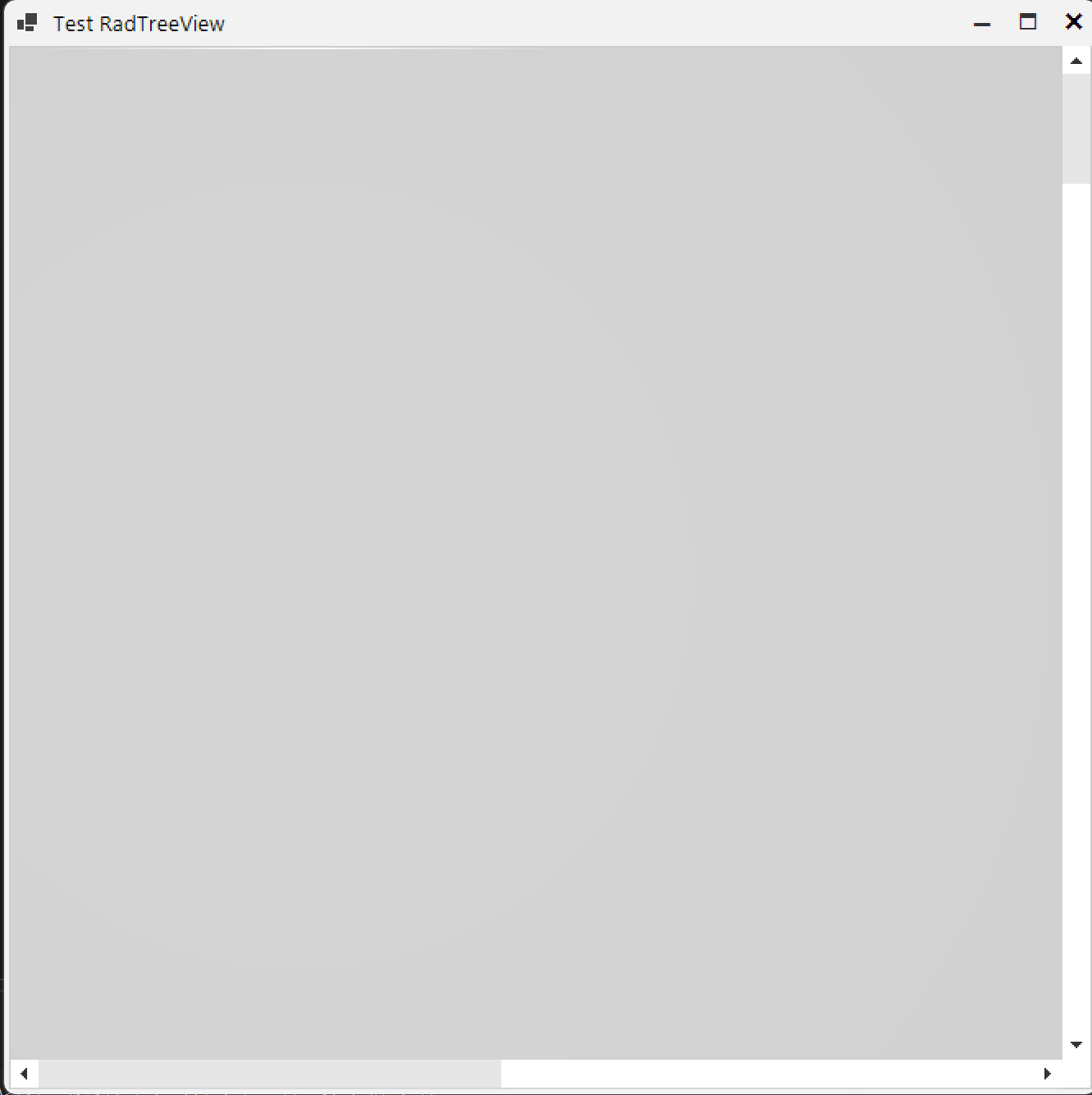

2. At Run Time  i can not see anything  in the RadTreeView

can anyone help me

thanks a lot

[Nadya | Tech Support Engineer]

Hello,

The provided project is greatly appreciated. When I unzip the folder and open the project, I just want to mention it is actually.NET9 project, not.NET8. However, both versions are compatible, and you can use whatever you want. I was able to examine the TestRadTreeView and notice that there are extremely large values set to some of RadTreeView's properties that would likely make the interface unusable. For example, there were the following properties set in the Designer.cs that are not ok:

treeView.ItemHeight = 1792;          // Extremely large!
treeView.LineWidth = 64F;            // Very thick lines
treeView.TreeIndent = 1280;          // Massive indentation

Most often, RadTreeView has the following sizing values:

radTreeView1.ItemHeight = 43;
radTreeView1.LineWidth = 1.5625F;
radTreeView1.TreeIndent = 31;

Their values may vary, but very big deviations may make the nodes too big or too far from one another, which does not look good.

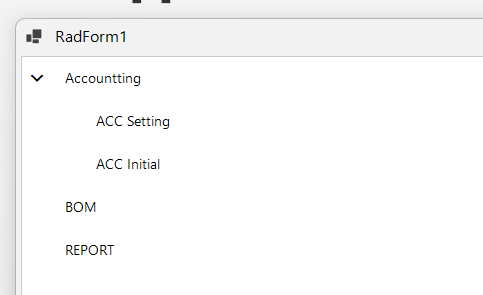

I attached a project where RadTreeView is added at design time on the form and it is serialized with its default values. Then I populate the tree using your approach and the nodes now appear normally in the RadTreeView. Can you give the provided project a try and see how it works?

Regards,
Nadya | Tech Support Engineer
Progress Telerik

[林]

Hi ~

thanks  for the attached project

it help me  a  lot

thanks
