Folder Hierarchy

2 posts, 0 answers
  1. Deepak
    Deepak avatar
    4 posts
    Member since:
    Jan 2011

    Posted 30 Nov 2011 Link to this post

     Can we have folder style hierarchy for many to many relationships?

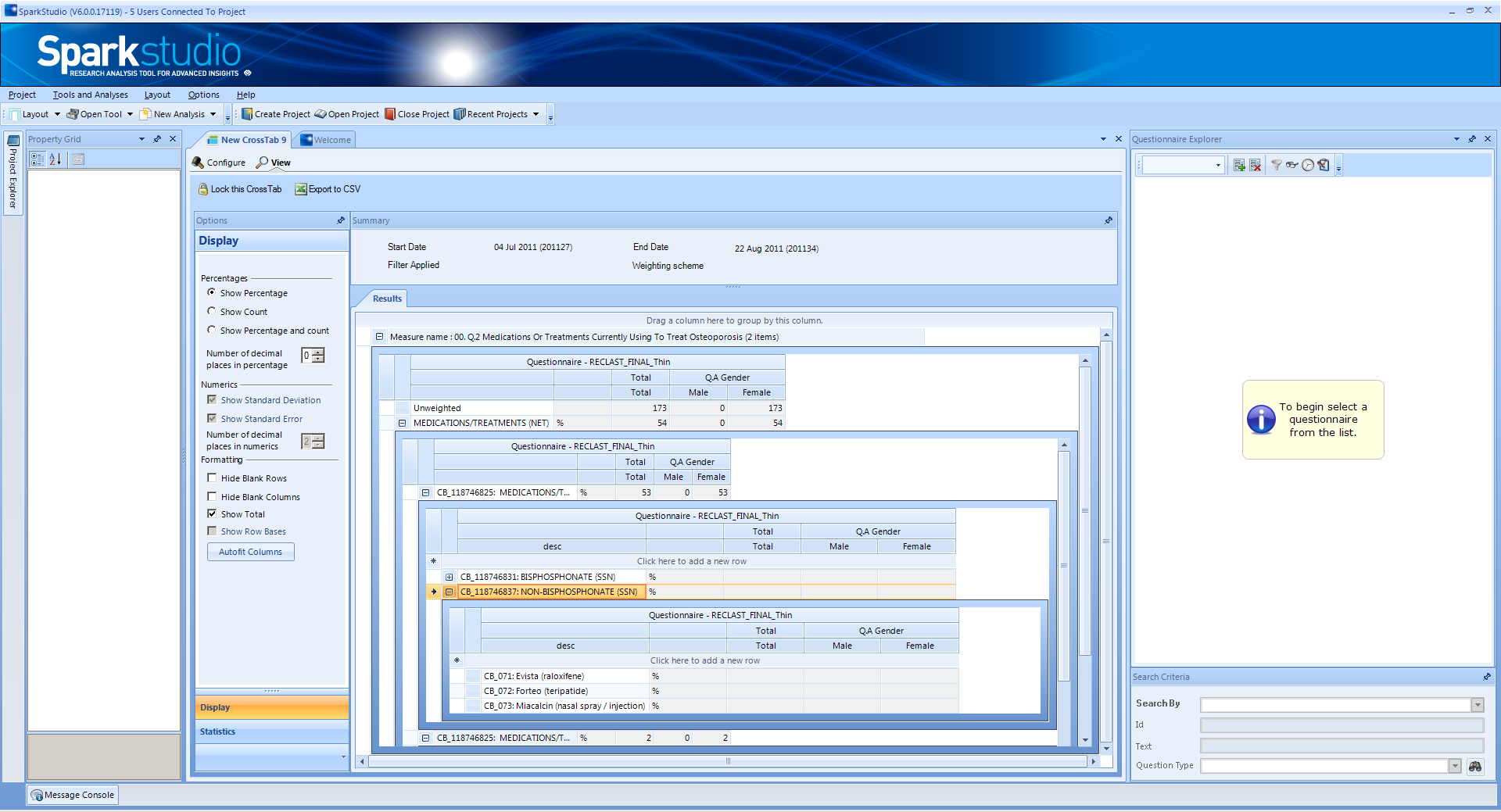

    If not how can I easily align the child view columns to its parent. The gird that I am using have the same column headers for all views. I am using ViewDefinitions and the column headers are quite complex and can have around 6 rows (just headers). Also while expanding the hierarchies (can go to n levels), I get scroll bar hell.

  2. Julian Benkov
    Julian Benkov avatar
    1135 posts

    Posted 05 Dec 2011 Link to this post

    Hi Deepak,

    You can remove scrollbars for inner levels using this property:

    radGridView1.UseScrollbarsInHierarchy = false;

    The RadGridView control does not support many to many relation hierarchy with suitable UI presentation out of the box. You can setup manually many to many relation adding GridViewTemplate for second and third level with the same columns schema and same DataSources, but the result will be more complex and this can decrease the performance of your application.

    You can try to use our RadTreeView control to present your data.

    I hope this information is useful. Let me know if you need further assistance.

    Julian Benkov
    the Telerik team
