Floating Display Issue with Ax Interop Component

3 posts, 0 answers
  1. Ning
    Ning avatar
    21 posts
    Member since:
    Nov 2016

    Posted 16 May Link to this post

    Dear Amin

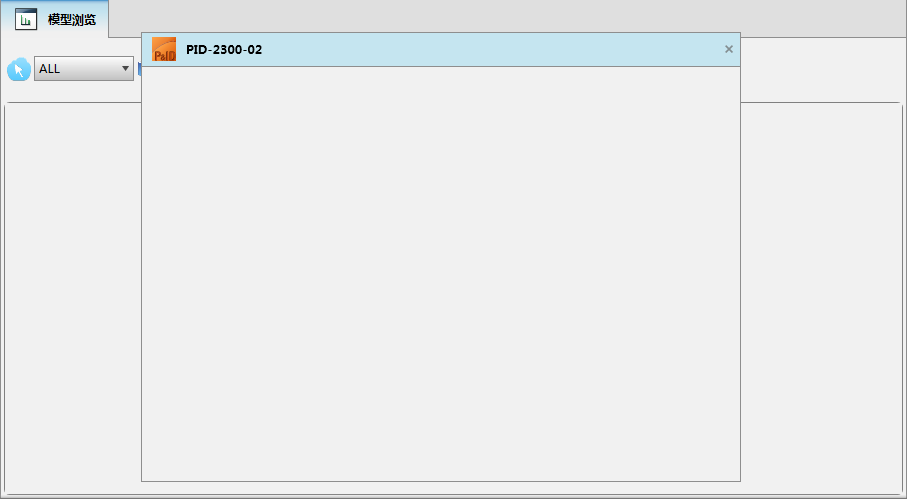

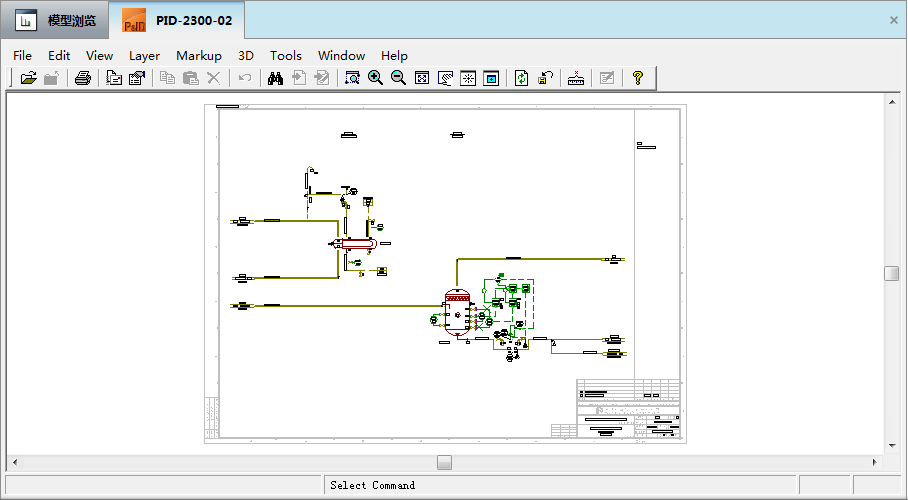

    I just used RadDocking control as tabbed style to display different files for viewing on-line, but I have to use a Axinterop component as viewing engine that should be integrated with WindowsFormHost. If RadDocumentPane worked as tabbed document style, everything work well, but once I dragged RadDocumentPane to be Floating(just like MakeFloatingDockable command execution), the content  in RadDocumentPane will disappear. If I changed RadDocumentPane to be Tabbed Document or drag it into a RadPaneGroup, it will be OK and the content will appear again.

    I know that once we set RadDocumentPane to be floating dockable, RadDocumentPane will be changed to be ToolWindow, and ToolWindow will add a new SplitContainer and RadPaneGroup as Content, regard original RadDocumentPane will be one item of RadPaneGroup.

    the details are as follows:

    Code-Behind:

            private RadDocumentPane NewViewPane()//Create a New RadDocumentPane
            {
                RadDocumentPane lCtrlViewPane = new RadDocumentPane();
                lCtrlViewPane.SetBinding(RadDocumentPane.CanDockInDocumentHostProperty, new Binding() { UpdateSourceTrigger = UpdateSourceTrigger.PropertyChanged, Source = this, Path = new PropertyPath("CanDockInDocumentHost", new object[0]) });
                lCtrlViewPane.SetBinding(RadDocumentPane.CanUserCloseProperty, new Binding() { UpdateSourceTrigger = UpdateSourceTrigger.PropertyChanged, Source = this, Path = new PropertyPath("CanUserClose", new object[0]) });
                lCtrlViewPane.SetBinding(RadDocumentPane.CanFloatProperty, new Binding() { UpdateSourceTrigger = UpdateSourceTrigger.PropertyChanged, Source = this, Path = new PropertyPath("CanFloat", new object[0]) });
                lCtrlViewPane.SetBinding(RadDocumentPane.CanUserPinProperty, new Binding() { UpdateSourceTrigger = UpdateSourceTrigger.PropertyChanged, Source = this, Path = new PropertyPath("CanUserPin", new object[0]) });
                lCtrlViewPane.HeaderTemplate = SPHONavigateGeneralUtilities.SetTitleTemplate(this.Image);//SetHeader and Title Template as Picture and TextBlock
                lCtrlViewPane.TitleTemplate = SPHONavigateGeneralUtilities.SetTitleTemplate(this.Image);
                lCtrlViewPane.Content = this.SetContent();//Set RadDocumentPane Content , WindowsFormsHost
                lCtrlViewPane.DataContext = this;//Set RadDocumentPane DataContext with ViewModel
                return lCtrlViewPane;
            }

           private object SetContent()
            {
                WindowsFormsHost lCtrlFormHost = new WindowsFormsHost();
                this._2DControl = new SPHO2DCtrl();
                lCtrlFormHost.Child = this._2DControl;
                return lCtrlFormHost;
            }

         public static DataTemplate SetTitleTemplate(string pstrImage)
            {

    DataTemplate lobjDataTemplate = new DataTemplate();
                FrameworkElementFactory lobjFactory = new FrameworkElementFactory(typeof(StackPanel));
                lobjFactory.SetValue(StackPanel.OrientationProperty, Orientation.Horizontal);
                lobjFactory.SetValue(StackPanel.VerticalAlignmentProperty, VerticalAlignment.Center);
                lobjFactory.SetValue(StackPanel.HorizontalAlignmentProperty, HorizontalAlignment.Stretch);

                FrameworkElementFactory lobjFactoryImage = new FrameworkElementFactory(typeof(XamlImage));
                lobjFactoryImage.SetValue(XamlImage.WidthProperty, 24.0);
                lobjFactoryImage.SetValue(XamlImage.HeightProperty, 24.0);
                lobjFactoryImage.SetValue(XamlImage.HorizontalAlignmentProperty, HorizontalAlignment.Left);
                lobjFactoryImage.SetValue(XamlImage.VerticalAlignmentProperty, VerticalAlignment.Center);
                lobjFactoryImage.SetValue(XamlImage.MarginProperty, new Thickness(5));
                lobjFactoryImage.SetResourceReference(XamlImage.TemplateProperty, pstrImage);
                lobjFactory.AppendChild(lobjFactoryImage);

                FrameworkElementFactory lobjFacotryTextBlock = new FrameworkElementFactory(typeof(TextBlock));
                lobjFacotryTextBlock.SetValue(TextBlock.HorizontalAlignmentProperty, HorizontalAlignment.Center);
                lobjFacotryTextBlock.SetValue(TextBlock.VerticalAlignmentProperty, VerticalAlignment.Center);
                lobjFacotryTextBlock.SetValue(TextBlock.MarginProperty, new Thickness(5));
                lobjFacotryTextBlock.SetBinding(TextBlock.TextProperty, new Binding("Title"));
                lobjFacotryTextBlock.SetResourceReference(Styling.FontStyleProperty, "TextStyle_Label1");
                lobjFactory.AppendChild(lobjFacotryTextBlock);

                lobjDataTemplate.VisualTree = lobjFactory;

                return lobjDataTemplate;
            }

    //add new RadDocumentPane into a RadPaneGroup

     this.CTRL_DISPLAYAREA.AddItem(lCtrlViewerAndModel.Pane, Telerik.Windows.Controls.Docking.DockPosition.Center);

    public RadPaneGroup CTRL_DISPLAYAREA { get; set; }



    XAML:

     <telerik:RadDocking BorderThickness="0" Padding="0" HorizontalAlignment="Stretch" VerticalAlignment="Stretch">
                    <telerik:RadDocking.DocumentHost>
                        <telerik:RadSplitContainer>

                             <telerik:RadPaneGroup x:Name="PNL_DISPLAYAREA" BorderThickness="0">

                                            <telerik:RadDocumentPane HeaderTemplate="{StaticResource Panel_3DModelViewControl}" Title="{ui:SPEResources Id=SPHO_NAVIGATE_3DWINDOWS}" BorderThickness="0" CanUserClose="False" AllowDrop="False">

                                                      <Border SnapsToDevicePixels="True" Margin="3"  BorderBrush="Gray" BorderThickness="1" CornerRadius="5" VerticalAlignment="Stretch" HorizontalAlignment="Stretch">
                                            <wfi:WindowsFormsHost x:Name="WIND_3DHOST">
                                                <localControl:SPHO3DCtrl ItemClick="SPHO3DCtrl_ItemClick" />
                                            </wfi:WindowsFormsHost>
                                        </Border>

                                 </telerik:RadDocumentPane>

                             </telerik:RadPaneGroup>

                    </telerik:RadSplitContainer>

           </telerik:RadDocking.DocumentHost>

     </telerik:RadDocking>



    Any suggestion do appreciate

  2. Kalin
    Admin
    Kalin avatar
    1279 posts

    Posted 19 May Link to this post

    Hello Ning,

    This is expected and it is WPF framework behavior - the Winforms content is not visible in transparent WPF Windows. However we have an example in our online XAML SDK repository that demonstrates how to workaround that behavior:
    https://github.com/telerik/xaml-sdk/tree/master/Docking/WinFormsInsideDocking

    Hope this helps. If you have any further questions - let us know.

    Regards,
    Kalin
    Telerik by Progress
