Export to PDF with RADGrid Multicolumn

8 Answers 147 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Krunal Doshi asked on 17 Nov 2010, 12:31 PM

Hi,

I have designed a multicolumn RADGrid which displays labels. However, when I export it to PDF, it displays only in single column.
Here is the code snippet for your reference--

<telerik:RadGrid ID="grdReport" runat="server" AllowSorting="True" GridLines="None"

AllowPaging="True" Font-Names="Arial" Font-Size="10pt" Skin="Outlook"

AllowFilteringByColumn="true" PageSize="30" ShowHeader="false" EnableViewState="true"

OnPreRender="grdReport_PreRender" OnNeedDataSource="grdReport_NeedDataSource"

OnItemCommand="grdReport_ItemCommand" OnItemCreated="grdReport_ItemCreated">

<ExportSettings IgnorePaging="True" OpenInNewWindow="True">

<Pdf PageWidth="210mm" PageHeight="297mm" Author="VoltTrack" Creator="VoltTrack"

Producer="VoltTrack" PageLeftMargin="0.5in" PageRightMargin="0.5in" />

</ExportSettings>

<PagerStyle Position="Top"/>

<MasterTableView CommandItemDisplay="Top" EnableViewState="true" TableLayout="Fixed">

<PagerStyle Mode="NextPrevNumericAndAdvanced" />

<CommandItemSettings ShowExportToPdfButton="True" ShowAddNewRecordButton="False" />

<ItemTemplate>

<%# (((GridItem)Container).ItemIndex != 0)? "</td></tr></table>" : "" %>

<asp:Panel ID="ItemContainer" CssClass='<%# (((GridItem)Container).ItemType == GridItemType.Item)? "item" : "alternatingItem" %>'

runat="server">

<b><%# Eval("C_Name")%></b>

<br />

SSN:

<b><%# Eval("SSN")%></b>

W/E:

<b><%# Eval("Weekend_Date")%></b>

<br />

Branch:

<b><%# Eval("Branch")%></b>

Job#:

<b><%# Eval("Job_Number")%></b>

<br />

<b><%# Eval("Cust_Name")%></b>

</asp:Panel>

</ItemTemplate>

</MasterTableView>

<HeaderStyle HorizontalAlign="Center" />

<ClientSettings AllowColumnsReorder="True" ReorderColumnsOnClient="True">

<Scrolling EnableVirtualScrollPaging="True" />

</ClientSettings>

</telerik:RadGrid>

protected void grdReport_PreRender(object sender, EventArgs e)

{

int itemCount = (sender as RadGrid).MasterTableView.GetItems(GridItemType.Item).Length + (sender as RadGrid).MasterTableView.GetItems(GridItemType.AlternatingItem).Length;

foreach (GridItem item in (sender as RadGrid).Items)

{

if (item is GridDataItem && item.ItemIndex < itemCount - 1)

{

((item as GridDataItem)["C_Name"] as TableCell).Controls.Add(new LiteralControl("<table style='display:none;width: 730px'><colgroup><col /><col /><col /></colgroup><tr><td>"));

}

Can you please help?

Regards,
Krunal

8 Answers, 1 is accepted

answered on 23 Nov 2010, 05:29 PM


Hello Krunal,

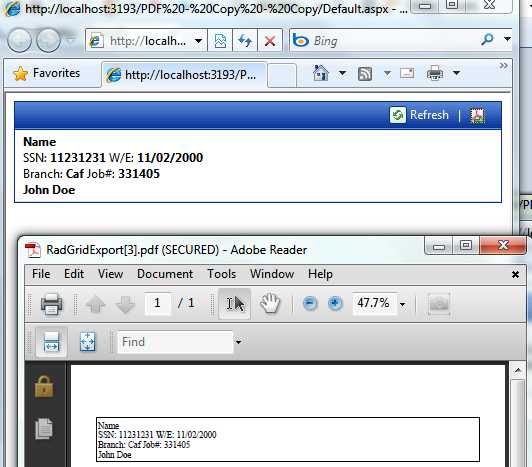

I ran your code on my end but unfortunately I'm unable reproduce the issue. Please examine the attached screenshot and let me know if I'm leaving something out.

Regards,
Daniel
the Telerik team

Browse the vast support resources we have to jumpstart your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.

answered on 01 Dec 2010, 02:54 PM

krunal-multicol.zip

Hello Krunal,

I added 30 records but still I see only one column. Could you please modify the attached project to help me reproduce the issue? Thanks.

Regards,
Daniel
the Telerik team

answered on 01 Dec 2010, 03:18 PM

Hi Danial,

Please add the style in Default.aspx page and check it whether you are able to replicate the issue. Let me know how can I export the same format to PDF.

<style type="text/css">

.item, .alternatingItem

{

float: left;

padding: 10px;

margin: 5px;

width: 200px;

height: 70px;

border: 1px solid threedshadow;

text-align: left;

}

.item

{

background: whitesmoke !important;

}

.alternatingItem

{

background: window !important;

}

.item:hover, .alternatingItem:hover

{

background: silver !important;

}

</style>

Regards,
Krunal
