Expand/Collapse with dynamic parameter

6 posts, 1 answers
  1. Sơn
    Sơn avatar
    4 posts
    Member since:
    Jun 2019

    Posted 26 Jun Link to this post

    How to config expand/Collapse with dynamic parameter when initial load page.

    Ex: I have parameters Collapse = True. The report load initial page collapse report But Collapse = False then The report load initial page expand all row in report.

    Regards
    TruongSon



  2. Neli
    Admin
    Neli avatar
    190 posts

    Posted 01 Jul Link to this post

    Hello Truong Son,

    If I understood correctly, you want to expand and collapse a table's content (or TextBox items) based on a boolean parameter value. If that's correct, then I created a sample report demonstrating the approach of how to accomplish this. The report has the following specifics:
    1) The report contains a CSV Datasource with Item and Value columns which are displayed in a Table.
    2) There is also a report parameter with the following settings:
    AutoRefresh: True
    Name: Collapse
    Type: Boolean
    Value: True
    Visible: True
    3) Mark the detailed rows of the table (which contain =Fields.Item and =Fields.Value)
    4) From the table's Properties grid, add Filter rule:
    Expression: = Parameters.Collapse.Value
    Operator: =
    Value: =True

    I hope that the report definition would be helpful. Let us know if any other questions come up.

    Regards,
    Neli
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Sơn
    Sơn avatar
    4 posts
    Member since:
    Jun 2019

    Posted 02 Jul Link to this post

    Thanks for your answer. Unfortunately this is not answer i want.

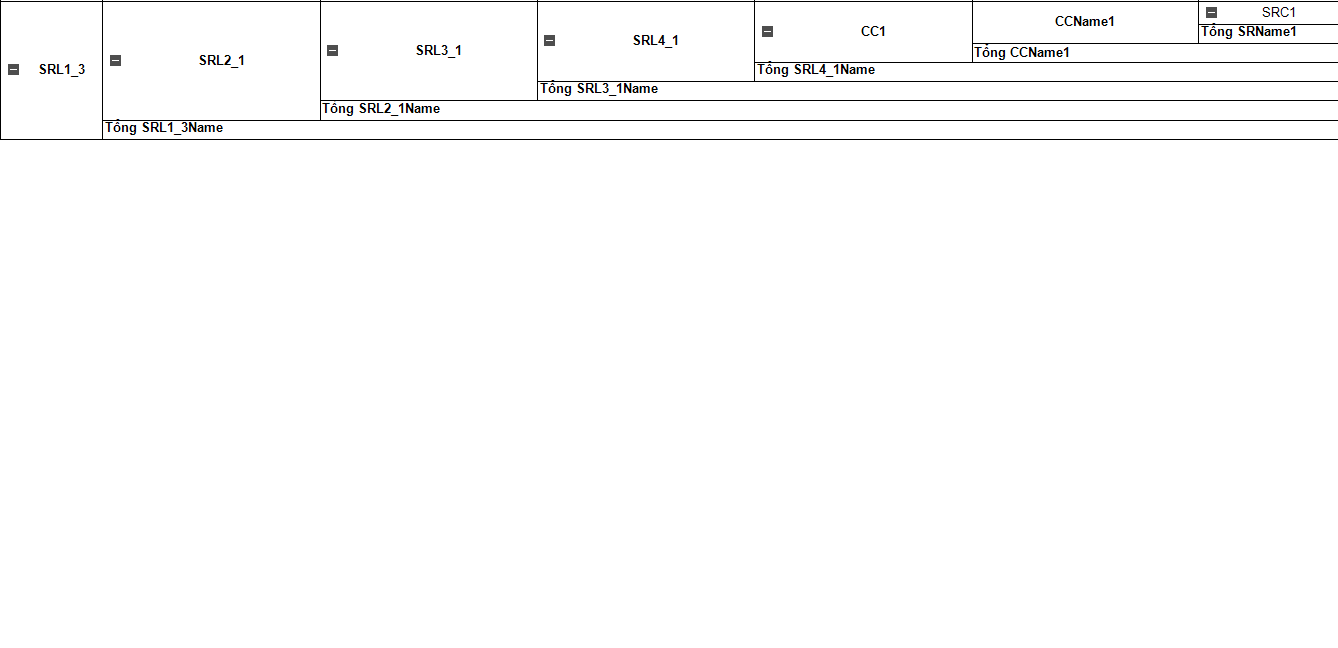

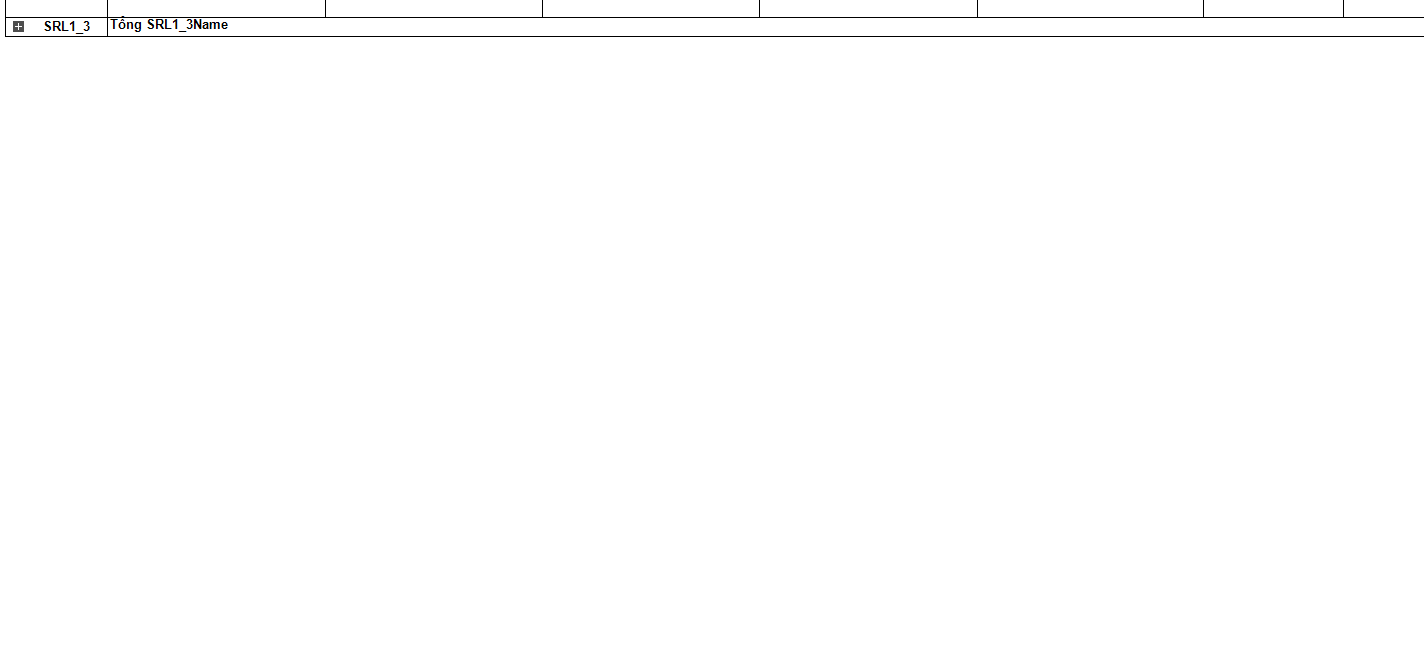

    I have attact 2 picture. You may seen it.

    I Want show collapse or expand with row group

    Regards
    TruongSon

  4. Neli
    Admin
    Neli avatar
    190 posts

    Posted 05 Jul Link to this post

    Hi Sơn,

    To achieve this outcome, I suggest to use nested Panels and Action of the textboxes to toggle the visibility of the panels. Let me give you some extra details:
    1) Add a panel which will cover all of the inner items and set its Visibility to False.
    2) Then insert a textbox outside of the panel and set an action to toggle the visibility of the panel.
    3) Add 2 boxes inside the panel- one for SLR and one for Tong SLR.
    4) Add a smaller panel inside and set its Visibility to False.
    5) Set an action to the SLR textbox to toggle the visibility of the smaller panel.

    Repeat the steps until you achieve the desired result. The attached report demonstrated the given approach.

    Regards,
    Neli
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  5. Sơn
    Sơn avatar
    4 posts
    Member since:
    Jun 2019

    Posted 08 Jul Link to this post

    Hi Neli

    This is answer  as same as i wish. But i want table collapse/ Expand with parameter dynamic.

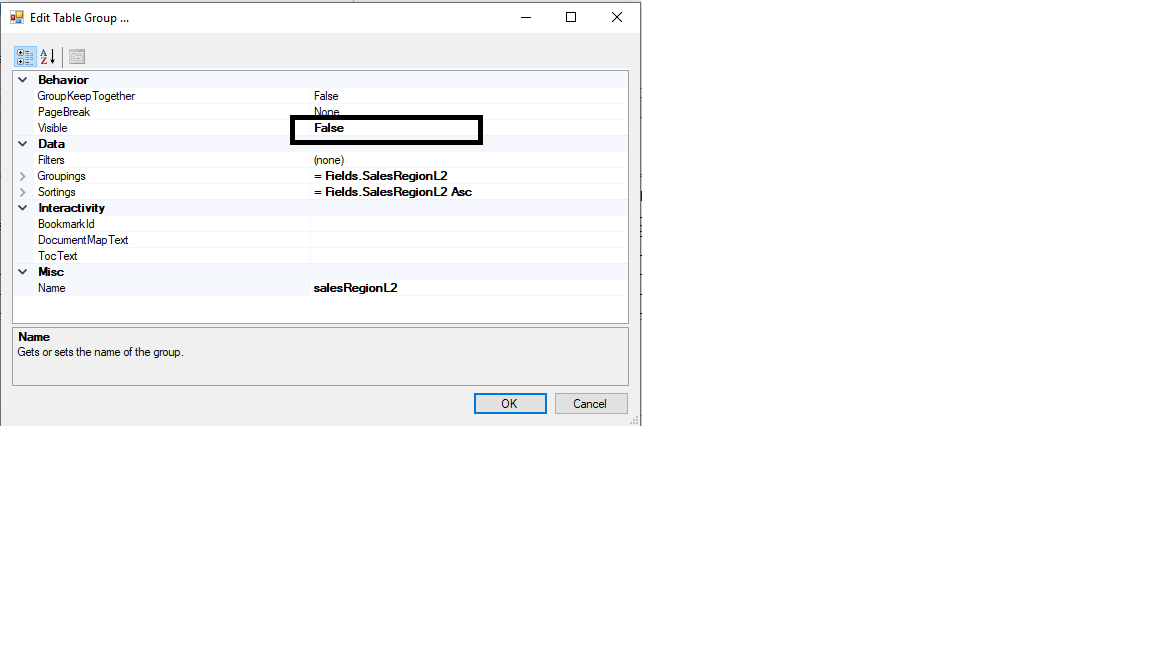

    I used toggle the visibility. In table row group properties I set Visible = False for each child group then load report initial collapse. If i want expand report so i set Visible = True. But i want collapse/expand with parameter dynamic.

    Please help me. Thanks





  6. Answer
    Todor
    Admin
    Todor avatar
    396 posts

    Posted 11 Jul Link to this post

    Hi TruongSon,

    The ToggleVisibility Action modifies the Visible property of the target item when clicked from the user. It cannot be controlled with Report Parameter, as Expressions cannot be used in Actions.
    I suggest to try controlling the Visible property of the items with Binding to the value of a Report Parameter (type Boolean) instead, e.g.

    Property path   |   Expression
    Visible         |   = Parameters.Visible.Value

    The scenario is not very clear to me, so consider opening a support ticket to provide a sample runnable report and more details about the requirement.

    Regards,
    Todor
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
