This is a migrated thread and some comments may be shown as answers.

Error in Filter in MultiColumnComboBox

6 Answers 141 Views

MultiColumn ComboBox

This is a migrated thread and some comments may be shown as answers.

mohammad asked on 18 Mar 2013, 07:00 PM




When I use the tree as MultiColumnComboBox
The table has a relation with itself
When I click on MultiColumnComboBox the popup

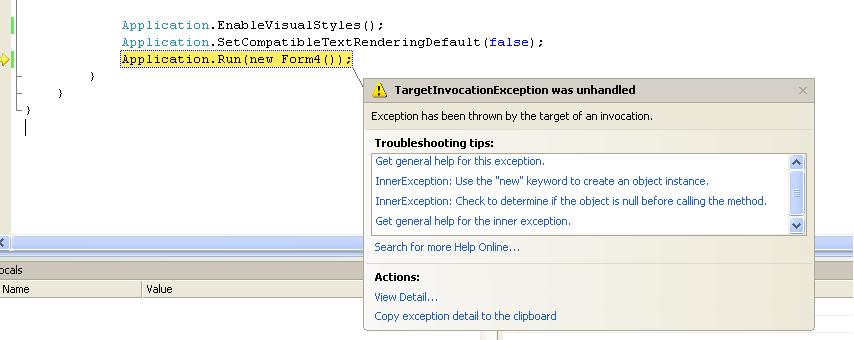

The following error occurs

radMultiColumnComboBox1.MultiColumnComboBoxElement.EditorControl.Relations.AddSelfReference(this.radMultiColumnComboBox1.MultiColumnComboBoxElement.EditorControl.MasterTemplate, "id", "parentid");

sqlDataAdapter1.Fill(dataSet11);

radMultiColumnComboBox1.DataSource = t1BindingSource;

radMultiColumnComboBox1.DisplayMember = "name";

radMultiColumnComboBox1.ValueMember = "id";

this.radMultiColumnComboBox1.AutoFilter = true;

this.radMultiColumnComboBox1.DisplayMember = "name";

FilterDescriptor filter = new FilterDescriptor();

filter.PropertyName = this.radMultiColumnComboBox1.DisplayMember;

filter.Operator = FilterOperator.Contains;

this.radMultiColumnComboBox1.EditorControl.MasterTemplate.FilterDescriptors.Add(filter);

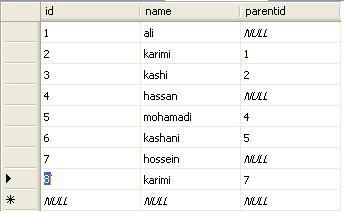

sql create table
relation in id and parentid

CREATE TABLE [dbo].[T1](

[id] [int] NOT NULL,

[name] [nvarchar](50) COLLATE Arabic_CI_AS NULL,

[parentid] [int] NULL,

CONSTRAINT [PK_T1] PRIMARY KEY CLUSTERED

(

[id] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

ALTER TABLE [dbo].[T1] WITH CHECK ADD CONSTRAINT [FK_T1_T1] FOREIGN KEY([parentid])

REFERENCES [dbo].[T1] ([id])

GO

ALTER TABLE [dbo].[T1] CHECK CONSTRAINT [FK_T1_T1]

6 Answers, 1 is accepted

answered on 03 Oct 2013, 10:40 AM

Hi Svett, i have the same error when i upgrade our radcontrol winform 2011 to 2013. All multicolumncombobox with Self Reference has error.

Thanks in advance.

comboBox.AutoFilter = true;

FilterDescriptor filter = new FilterDescriptor();

filter.PropertyName = comboBox.DisplayMember;

filter.Operator = FilterOperator.Contains;

comboBox.EditorControl.MasterTemplate.FilterDescriptors.Add(filter);

comboBox.EditorControl.MasterTemplate.Columns["EquipStructNodeID"].IsVisible = false;

comboBox.EditorControl.MasterTemplate.Columns["Display"].IsVisible = false;

comboBox.EditorControl.MasterTemplate.Columns["ParentEquipStructNodeID"].IsVisible = false;

if (comboBox.EditorControl.RowCount > 0)

{

comboBox.EditorControl.Relations.AddSelfReference(comboBox.EditorControl.MasterTemplate, "EquipStructNodeID", "ParentEquipStructNodeID");

comboBox.EditorControl.TableElement.ShowSelfReferenceLines = true;

comboBox.EditorControl.MasterTemplate.ExpandAll();

}

answered on 08 Oct 2013, 10:07 AM

Hello Daniel,

Thank you for contacting us.

I was able to reproduce the issue you are describing. I appears to exist only when the RadMultiColumnComboBox's EditorControl is in SelfReferenceMode. I have logged it in our Public Issue Tracking System. You can find it on the following URL - http://www.telerik.com/support/pits.aspx#/public/winforms/15899. Unfortunately I cannot provide you with a workaround due to the nature of the issue.

I have updated your Telerik Points for your report.

Let me know if I can be of further assistance.

Regards,
George
Telerik
