Draw Vertical Line in whole page

[Technology]

Dear support team,

is there a way to print a vertical Line in the whole document (in details).

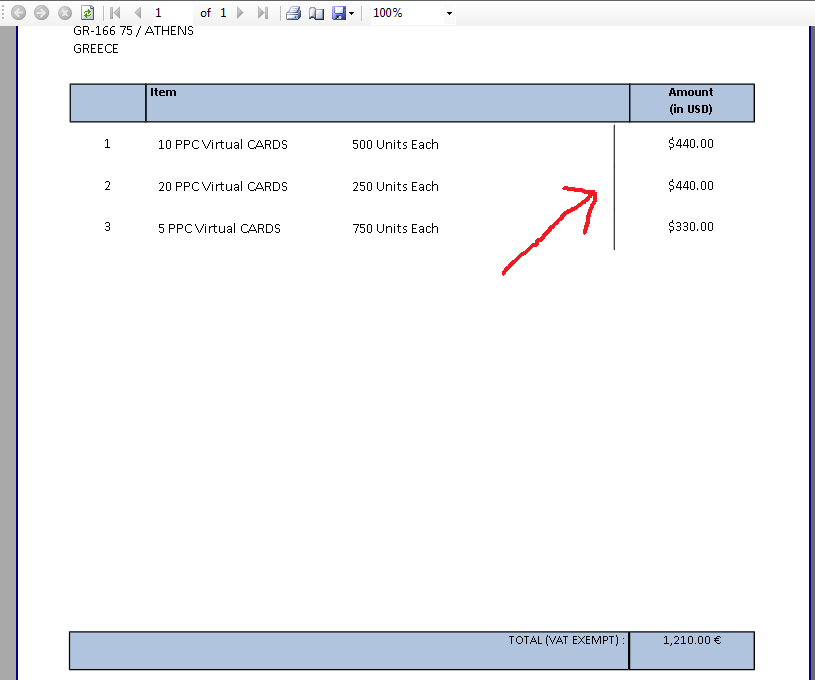

The line is printed only in the lines with values (See image).

Thank you in advance,
George.
Navarino Technology Department.

[IvanDT]

Hello George,

A possible solution is to add a background image to your whole report with a line in it. In this way you can simulate the style you want.

Kind regards,
IvanDT
the Telerik team

[Charlie]

I had luck adding a panel to my report to create a line like this.
The Size (for yours) would be 10in,0.01in
Then make the BorderWidth something like 2pt.

[Alfredo]

Hi Charlie, you can helpme about , with a example of a line vertical whole page, please.
Thanks you.

[Charlie]

I am doing this programmatically right now.  You should be able to use this information even if you're just setting the properties from the Report Designer.





private Panel CreateRowPanel()
{
    Panel panel = new Panel();
    panel.Location = new PointU(new Unit(0.1D, UnitType.Inch), new Unit(0.4D, UnitType.Inch));
    panel.Size = new SizeU(new Unit(5.9D, UnitType.Inch), new Unit(0.1, UnitType.Inch));
    panel.Style.BorderStyle.Bottom = BorderType.Solid;
    panel.Style.BorderStyle.Default = BorderType.Solid;
    panel.Style.BorderStyle.Left = BorderType.None;
    panel.Style.BorderStyle.Right = BorderType.None;
    panel.Style.BorderStyle.Top = BorderType.None;
    panel.Style.Padding.Bottom = new Unit(0.15D, UnitType.Inch);
    panel.Style.LineStyle = LineStyle.Solid;
    return panel;
}

[Alfredo]

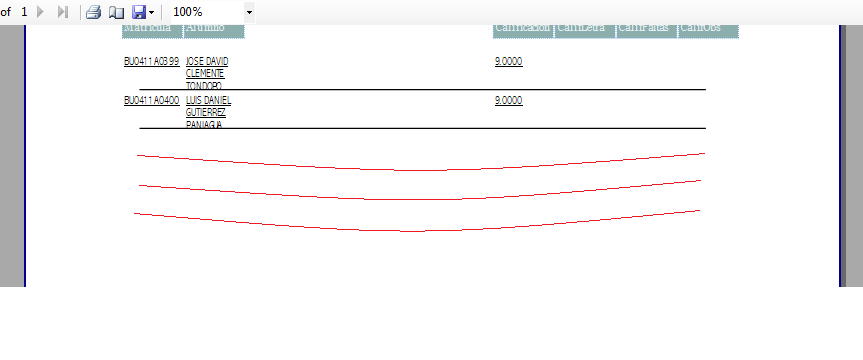

Hi Charlie, thank you very much for example, other question, how add more vertical lines but no more data over my table.
Send a picture.
Regards
