Jeremy asked on 22 May 2016, 05:57 AM



Hi there

How can i change the data point colours?

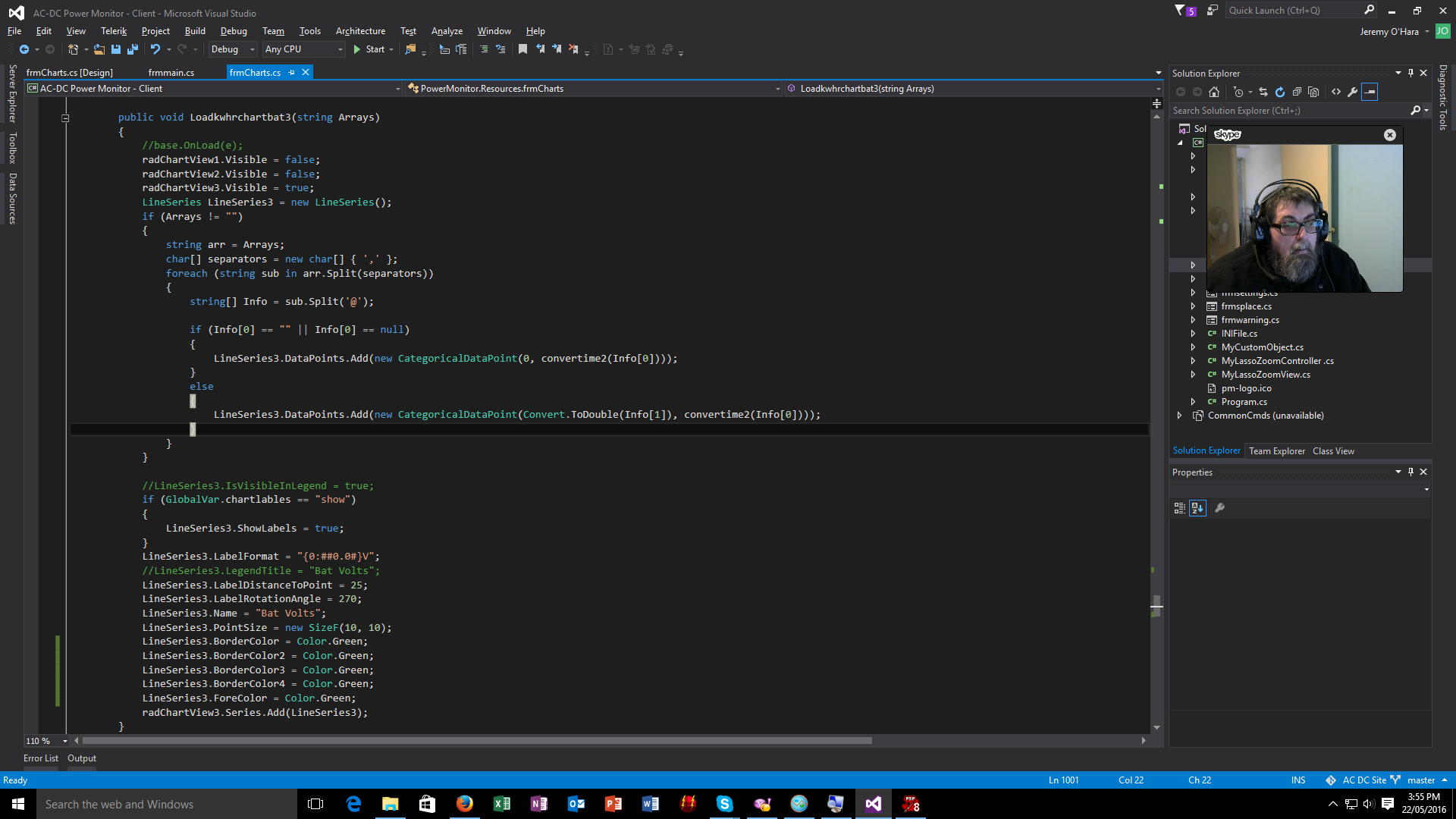

i have tried

            LineSeries3.BorderColor = Color.Green;
            LineSeries3.BorderColor2 = Color.Green;
            LineSeries3.BorderColor3 = Color.Green;
            LineSeries3.BorderColor4 = Color.Green;
            LineSeries3.ForeColor = Color.Green;

but it changes the line but not the point colour/series colour

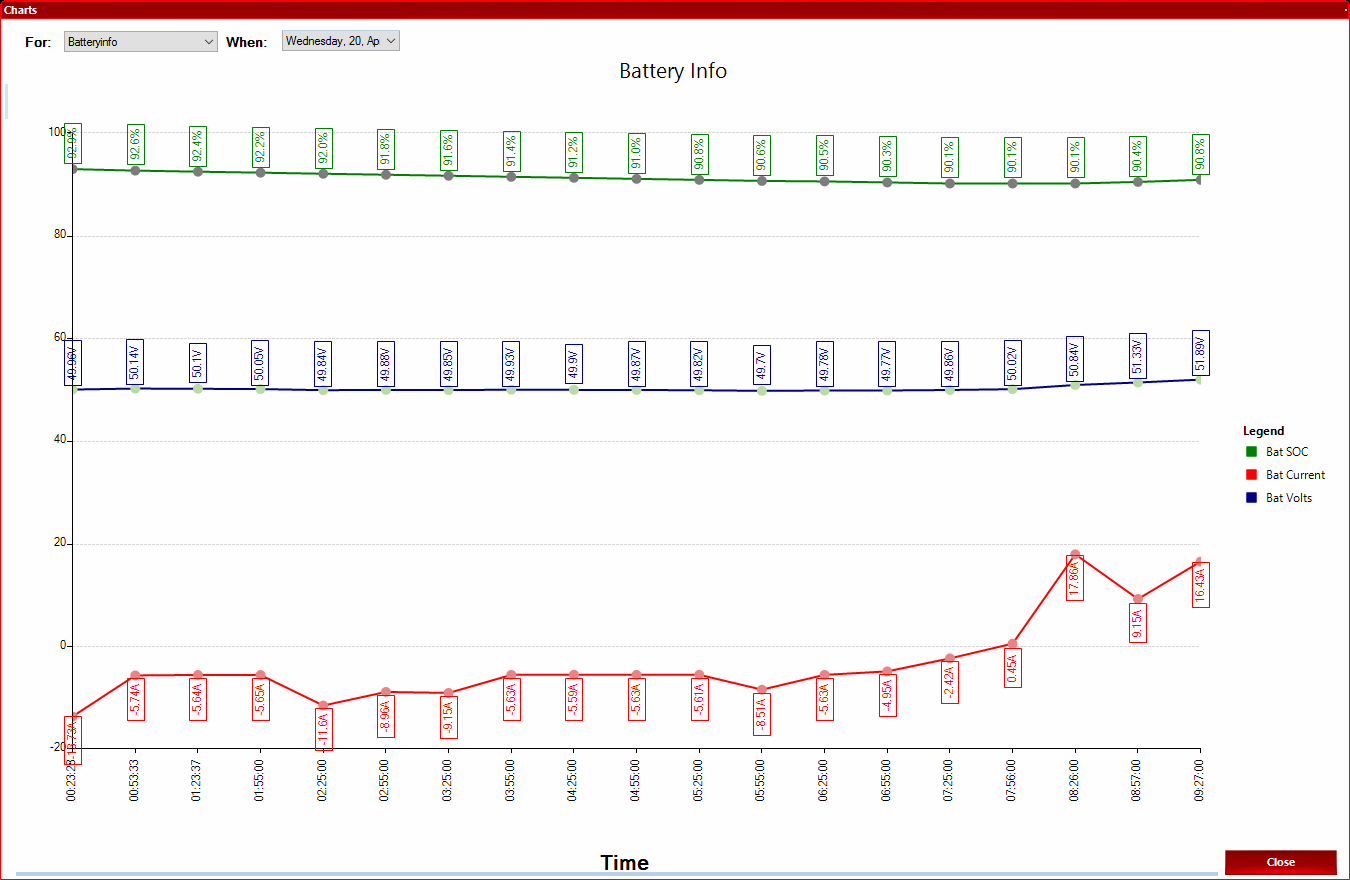

i have attached a image showing what i done.

4 Answers, 1 is accepted

answered on 25 May 2016, 11:21 AM


Hello Jeremy,

Thank you for writing.

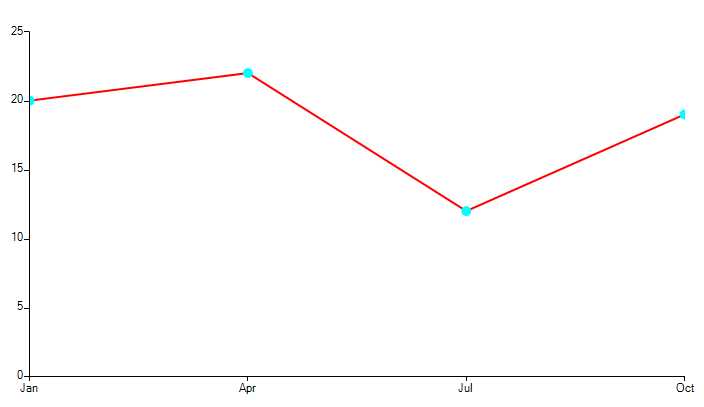

In order to change the data points color, you can set the LineSeries.BackColor property:

LineSeries lineSeries = new LineSeries();

lineSeries.DataPoints.Add(new CategoricalDataPoint(20, "Jan"));

lineSeries.DataPoints.Add(new CategoricalDataPoint(22, "Apr"));

lineSeries.DataPoints.Add(new CategoricalDataPoint(12, "Jul"));

lineSeries.DataPoints.Add(new CategoricalDataPoint(19, "Oct"));

this.radChartView1.Series.Add(lineSeries);

lineSeries.PointSize = new SizeF(10, 10);

lineSeries.BorderColor = Color.Red;

lineSeries.BackColor = Color.Aqua;

I hope this information helps. Should you have further questions I would be glad to help.

Regards,
Dess
Telerik

Check out the Windows Forms project converter, which aids the conversion process from standard Windows Forms applications written in C# or VB to Telerik UI for WinForms.For more information check out this blog post and share your thoughts.

Accepted

answered on 31 May 2016, 10:21 AM

Hello Jeremy,

Thank you for writing back.

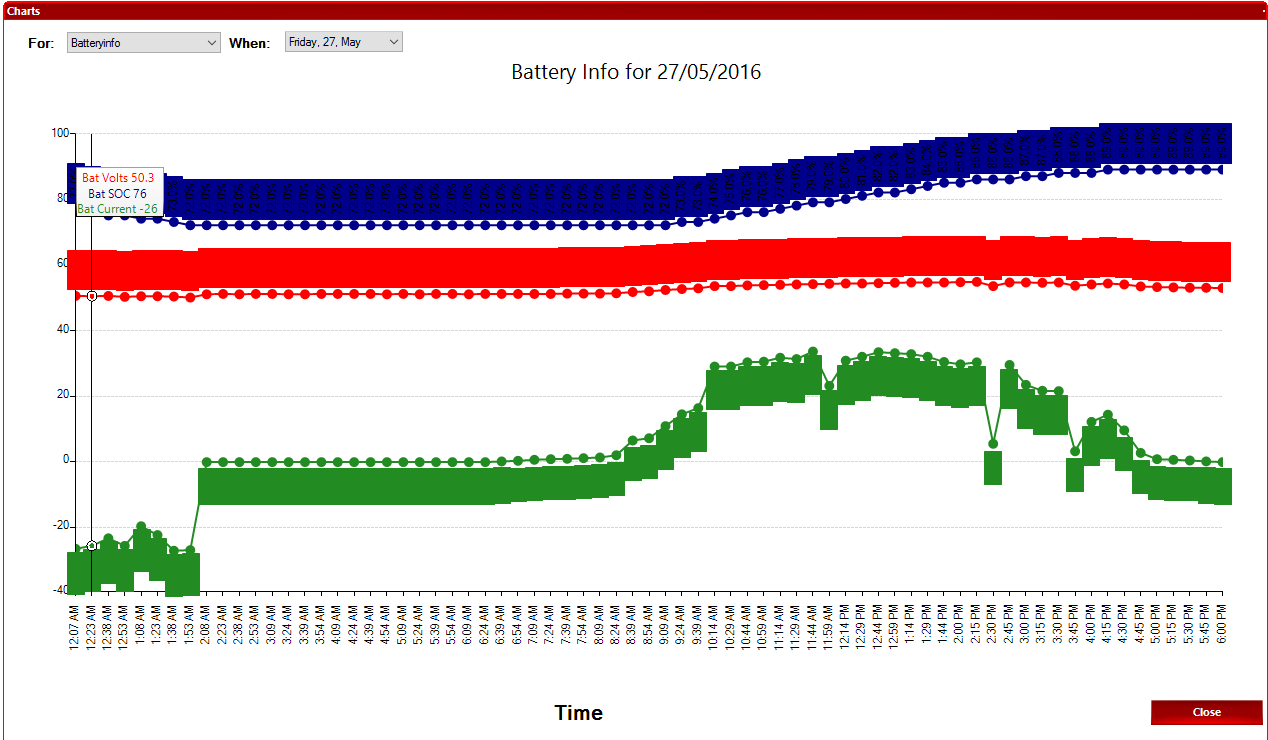

In order to customize the labels, feel free to use the RadChartView.LabelFormatting event:

private void radChartView1_LabelFormatting(object sender, ChartViewLabelFormattingEventArgs e)

{

e.LabelElement.ForeColor = Color.Lime;

e.LabelElement.BackColor = Color.White;

e.LabelElement.BorderColor = Color.Black;

}

I hope this information helps. If you have any additional questions, please let me know.

Regards,
Dess
Telerik
