DataLoaded Event Not Fired When Records Grouped

7 posts, 0 answers
  1. Raymond
    Raymond avatar
    65 posts
    Member since:
    Oct 2013

    Posted 29 Apr 2014 Link to this post

    I have a grid bound to an ObservableCollection and the following code is used to add a new record to the collection then select the new record in the grid;
    'Add the new object to the collection...
    mcolStudents.Add(moStudent)

    'Locate the record in the grid...
    With gvStudents
        For Each item As StudentView In .Items
            If item.StudentId = moStudent.StudentId Then
                .SelectedItem = item
                .ScrollIntoView(item)
                Exit For
            End If
        Next
    End With

    This works perfectly unless the user has grouped the records.  When the records are grouped the new record is not added to the grid and the code to locate the record in the grid doesn't locate the new record.

    I have also confirmed the grid DataLoaded event doesn't fire if the records are grouped but does fire otherwise.  There are no filters applied to the grid.

    What do I have to do to force the grid to load and display the record?
  2. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 30 Apr 2014 Link to this post

    Hi,

    As I understand you observe the problem only when RadGridView is grouped. May I ask you to configure your RadGridView setting GroupRenderMode="Flat"?

    Then, you say  DataLoaded event doesn't fire. The DataLoaded event will be raised every time when a CollectionChanged notification is raised for RadGridView.Items collection. Such a notification will be raised every time a data operation like sorting, grouping or filtering is performed. The operation can be performed from the UI or in code.
    So, this event should be raised every time you perform grouping.

    May I ask you to confirm the version you are using?

    Regards,
    Didie
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

  3. Raymond
    Raymond avatar
    65 posts
    Member since:
    Oct 2013

    Posted 30 Apr 2014 in reply to Dimitrina Link to this post

    Hi Didie,

    I set GroupRenderMode to Flat as requested but this made no difference.

    I placed a breakpoint in the code for the DataLoaded event and it does fire when;
         - the collection is first added to the DataContext of the grid
         - the grouping of the grid is changed
         - an object is added to the collection AND the grid is NOT grouped

    However the DataLoaded event does not fire if the grid is grouped and an object is added to the collection.

    Following is a simplified example of the code I am using;

    01.Private Sub gvFooBars_DataLoaded(sender As Object, e As EventArgs) Handles gvFooBars.DataLoaded
    02.    With gvFooBars
    03.        If (.Items.ItemCount > 0) And (moFooBar Is Nothing) Then .SelectedItem = .Items(0)
    04.    End With
    05.End Sub
    06.
    07.Private Sub LoadRecords(ByVal ScenarioId As Integer)
    08.    'Load the FooBar records...
    09.    mcolFooBars = New ObservableCollection(Of FooBar)(gcolFooBars.Where(Function(f) f.ScenarioId = ScenarioId).OrderBy(Function(f) f.TemplateName).ThenBy(Function(f) f.FooBarType))
    10.    gvFooBars.DataContext = mcolFooBars
    11.
    12.    'If there are no existing records create a new object...
    13.    If (mcolFooBars.Count = 0) Then moFooBar = New FooBar
    14.End Sub
    15.
    16.Public Function Save() As Boolean
    17.    Dim bSaved As Boolean = False
    18.    Dim bNew As Boolean = False
    19.
    20.    Const PROC As String = "Save FooBar Record"
    21.
    22.    If moFooBar.IsDirty Then
    23.        bNew = moFooBar.IsNewRecord
    24.        bSaved = FooBarBusiness.Save(moFooBar)
    25.
    26.        if bSaved Then
    27.            'If this was a new record then add it to the FooBar list...
    28.            If bNew Then
    29.                'Add the new object to the collections...
    30.                mcolFooBars.Add(moFooBar)
    31.                gcolFooBars.Add(moFooBar)
    32.
    33.                'If the records are grouped then it appears the record is not added to the grid when it
    34.                'is added to the mcolFooBars collection?
    35.                If gvFooBars.IsGrouping Then
    36.                    Dim iFooBarId As Integer = moFooBar.FooBarId
    37.                    Call LoadRecords(miScenarioId)
    38.                    moFooBar = FooBarBusiness.GetRecord(iFooBarId)
    39.                End If
    40.
    41.                'Select the object in the grid...
    42.                With gvFooBars
    43.                    For Each item As FooBarView In .Items
    44.                        If item.FooBarId = moFooBar.FooBarId Then
    45.                            .SelectedItem = item
    46.                            .ScrollIntoView(item)
    47.                            Exit For
    48.                        End If
    49.                    Next
    50.                End With
    51.            Else
    52.                .
    53.                .
    54.                .
    55.            End If
    56.
    57.            gvFooBars.CalculateAggregates()
    58.        End If
    59.    End If
    60.
    61.    Return bSaved
    62.End Function

    Line 30 will trigger the DataLoaded event if the grid is not grouped.

    Please note the breakpoint is on line 2 not line 3 so my problem is not that line 3 doesn't execute it is that execution does not get to line 2.

    I am currently using version 2014.1.224.40.

    Regards,

    Ray

  4. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 01 May 2014 Link to this post

    Hi Ray,

    I am still not able to reproduce any issue at my side. I have attached my test project as a reference.
    Would you please check it and modify it so that the issue to be observed?

    In order to test it you should:
    1. Run it
    2. Group by any column
    3. Click the button
    5. Observe the value of the infoLabel, next to the button.

    Let me know about the result.

    Regards,
    Didie
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

  5. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 01 May 2014 Link to this post

    Hi,

    You can find the test solution attached.

    Regards,
    Didie
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

  6. Raymond
    Raymond avatar
    65 posts
    Member since:
    Oct 2013

    Posted 01 May 2014 in reply to Dimitrina Link to this post

    Hi Didie,

    Thanks for your reply.  I tried the example program you provided and it worked without any problems however I still haven't been able to get my code to work.

    I modified the code as follows to provide some feedback on the problem;

    Private Sub gvFooBars_DataLoaded(sender As Object, e As EventArgs) Handles gvFooBars.DataLoaded
        With gvFooBars
            Debug.Print(String.Format("{0} - gvFooBars_DataLoaded", Date.Now.ToString("hh:mm:ss")))
            If (.Items.ItemCount > 0) And (moFooBar Is Nothing) Then .SelectedItem = .Items(0)
        End With
    End Sub

     Public Function Save() As Boolean
        .
        .
        .
        If bNew Then
            '-- Add the new object to the collections -----------------------------------------------
            Debug.Print(String.Format("{0} - Adding object to collection", Date.Now.ToString("hh:mm:ss")))
            mcolFooBars.Add(moFooBar)
            gcolFooBars.Add(moFooBar)

            ''-- If the records are grouped then it appears the record is not added to the grid when it
            ''-- is added to the mcolFooBars collection?
            'If gvFooBars.IsGrouping Then
            '   Dim iFooBarId As Integer = moFooBar.FooBarId
            '   Call LoadRecords(miScenarioId)
            '   moFooBar = FooBarBusiness.GetRecord(iFooBarId, True)
            'End If

            '-- Select the object in the grid -------------------------------------------------------
            Dim item = mcolFooBars.Where(Function(f) f.FooBarId = moFooBar.FooBarId).FirstOrDefault
            If (item IsNot Nothing) Then Debug.Print(String.Format("{0} - Object located in collection subset", Date.Now.ToString("hh:mm:ss")))

            With gvFooBars
                For Each item As FooBarView In .Items
                    If item.FooBarId = moFooBar.FooBarId Then
                        Debug.Print(String.Format("{0} - Object located in GridView", Date.Now.ToString("hh:mm:ss")))
                        .SelectedItem = item
                        .ScrollIntoView(item)
                        Exit For
                    End If
                Next
            End With
        Else
            .
            .
            .
        End If
        .
        .
        .
    End Function

    The attached screens show the results of my testing as follows;

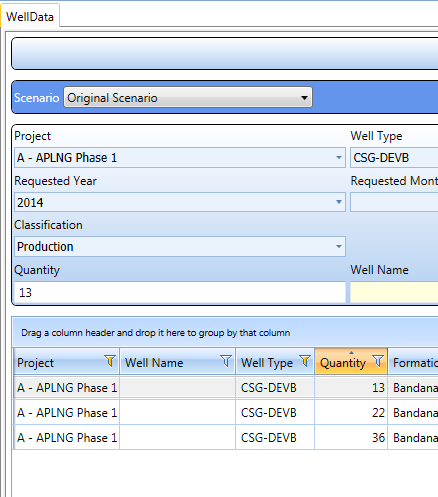

    • Screen 1 shows the screen without any grouping but filtered to display a limited number of records.

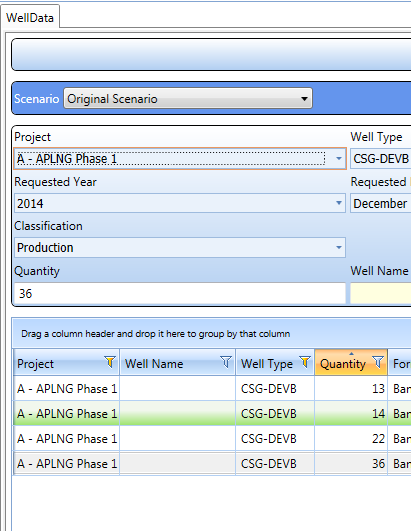

    • Screen 2 shows the screen after saving a new record (the green shading is a style applied to the grid to highlight records that have been add/modified in the current session).

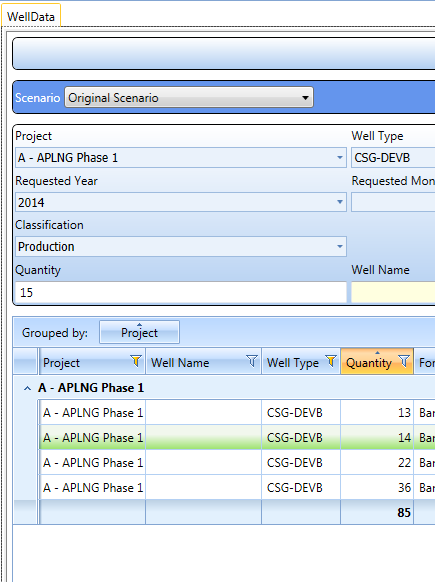

    • Screen 3 shows the screen with grouping applied and after saving the 2nd new record.

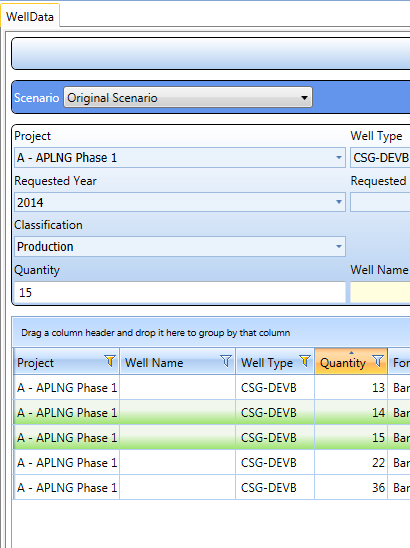

    • Screen 4 shows the screen with the grouping removed (note the 2nd new record is now displayed)

    The following is the output from the debug statements;

    10:08:34 - Adding object to collection
    10:08:34 - gvWells_DataLoaded
    10:08:34 - Object located in collection subset
    10:08:34 - Object located in GridView
    10:10:23 - gvWells_DataLoaded
    10:10:38 - Adding object to collection
    10:10:38 - Object located in collection subset
    10:11:46 - gvWells_DataLoaded

    The entries for 10:08:34 show the statements executed from Screen 2 when the 1st object was added.
    The entry for 10:10:23 is when the grouping was applied.
    The entry for 10:10:38 is when the 2 object was added (but wasn't displayed in the grid).
    The entry for 10:11:46 is when the grouping was removed and the record was then displayed.

    Any help you can provide on this would be greatly appreciated.

    Regards,

    Ray
  7. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 05 May 2014 Link to this post

    Hello Ray,

    You can also subscribe for RadGridView.Items.CollectionChanged event and monitor if such an event is raised when a new item has been added.
    How is your solution different than mine? Would you please try extending my test solution to be as close to your real case as possible?
    According to this ticket's information you use version 2014.1.331, is this correct?

    Regards,
    Didie
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.
