Data Appearing in Accurately In Stack Bar Chart in Report

4 Answers 80 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Naginder Singh
Top achievements
Rank 1
Naginder Singh asked on 18 Jan 2010, 04:19 PM

I am working on a report , where i have to display  a stackbar chart .  But chart does not display accurate data .

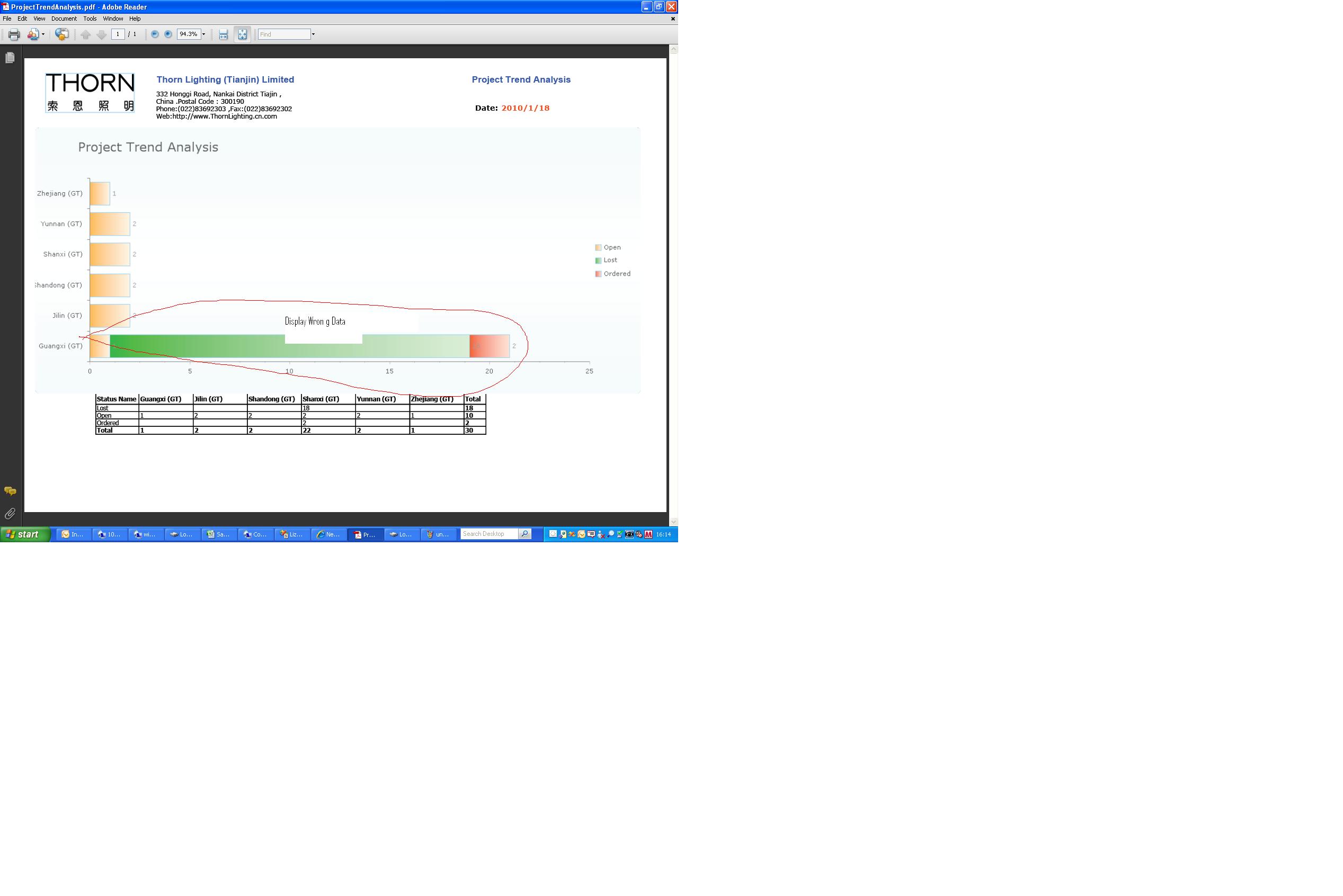

please find attachement for report pdf and code file . please help me Asap.




  Private Sub Chart1_NeedDataSource(ByVal sender As System.ObjectByVal e As System.EventArgs) Handles chart1.NeedDataSource
        Try
            Dim StrSqlConnection As String = ConnectionString
            If Trim(StrSqlConnection) <> "" Then
                If Not ObjSqlCon Is Nothing Then
                    ObjSqlCon = Nothing
                End If
                ObjSqlCon = New SqlConnection(StrSqlConnection)
                ObjSqlCon.Open()
                If ObjSqlCon.State = ConnectionState.Open Then
                    Dim chart1 As Telerik.Reporting.Processing.Chart = CType(sender, Telerik.Reporting.Processing.Chart)
                    Dim defChart As Telerik.Reporting.Chart = DirectCast(Chart1.ItemDefinition, Telerik.Reporting.Chart)
                    Dim ProjectRpt As New ProjectTrendDstTableAdapters.ReportProjectTrendAnalysisTableAdapter
                    ProjectRpt.Connection = ObjSqlCon
                    Dim ProjectDst As New ProjectTrendDst.ReportProjectTrendAnalysisDataTable
                    ProjectDst = ProjectRpt.GetData
                    SalesPersonQChart.DataSource = ProjectDst
                    defChart.DataGroupColumn = "Status"
                    defChart.PlotArea.XAxis.DataLabelsColumn = "Territory"
                    defChart.Legend.Appearance.GroupNameFormat = "#VALUE"
                End If
            End If
        Catch ex As Exception

        Finally
            If ObjSqlCon IsNot Nothing Then
                ObjSqlCon = Nothing
            End If
        End Try

    End Sub
Thanks and Regards,
Naginder Singh

4 Answers, 1 is accepted

Sort by
0
Chavdar
Telerik team
answered on 21 Jan 2010, 09:54 AM
Hi Naginder Singh,

There are two ways to make the data appear correctly. The first one is to modify the data source so that it includes records for the missing values, i.e. instead of missing records there should be records with value 0 for the respective X axis positions. The other way is to create and add the chart series items programmatically as explained in the following thread: Graph for each group. Hope it helps.

Kind regards,
Chavdar
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
0
Naginder Singh
Top achievements
Rank 1
answered on 21 Jan 2010, 02:30 PM
Hi Chavdar,
                   Its not possible to me make dataset like that you have suggested. Nor i tried with thread you suggested but it also not work. Please give an exmple. So that it could work for me.

Thanks,
Naginder SIngh
0
Chavdar
Telerik team
answered on 26 Jan 2010, 09:39 AM
Hi Naginder Singh,

Here is a sample code snippet which illustrates how to achieve the desired functionality:

Private Sub Chart1_NeedDataSource(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Chart1.NeedDataSource
    Dim chart = CType(sender, Telerik.Reporting.Processing.Chart)
    Dim chartDef = CType(chart.ItemDefinition, Telerik.Reporting.Chart)
    Dim dataTable = GetDataSource()
    Dim dataRow As DataRow
    chartDef.Series.Clear()
    Dim axisLabels As New List(Of String)
    For Each dataRow In dataTable.Rows
        Dim status = CType(dataRow("Status"), String)
        Dim series = chartDef.Series.GetByName(status)
        If series Is Nothing Then
            series = New Telerik.Reporting.Charting.ChartSeries(status)
            series.Type = Charting.ChartSeriesType.StackedBar
            chartDef.Series.Add(series)
        End If
        Dim value As Integer = CType(dataRow("Value"), Integer)
        Dim seriesItem = New Telerik.Reporting.Charting.ChartSeriesItem()
        seriesItem.YValue = value

        Dim territory = CType(dataRow("Territory"), String)
        If Not axisLabels.Contains(territory) Then
            axisLabels.Add(territory)
        End If
        seriesItem.XValue = axisLabels.IndexOf(territory)
        series.Items.Add(seriesItem)
    Next

    chartDef.PlotArea.XAxis.AutoScale = False
    chartDef.PlotArea.XAxis.AutoShrink = False
    chartDef.PlotArea.XAxis.Items.Clear()
    Dim axisLabel As String
    For Each axisLabel In axisLabels
        Dim axisItem = New Telerik.Reporting.Charting.ChartAxisItem()
        axisItem.TextBlock.Text = axisLabel
        axisItem.Value = axisLabels.IndexOf(axisLabel)
        chartDef.PlotArea.XAxis.Items.Add(axisItem)
    Next
End Sub

Function GetDataSource() As DataTable
    Dim table = New DataTable()
    table.Columns.Add("Territory", GetType(String))
    table.Columns.Add("Status", GetType(String))
    table.Columns.Add("Value", GetType(Integer))
    table.Rows.Add(New Object() {"Guangxi", "Open", 1})
    table.Rows.Add(New Object() {"Jilin", "Open", 2})
    table.Rows.Add(New Object() {"Shandong", "Open", 2})
    table.Rows.Add(New Object() {"Shanxi", "Lost", 18})
    table.Rows.Add(New Object() {"Shanxi", "Open", 2})
    table.Rows.Add(New Object() {"Shanxi", "Ordered", 2})
    table.Rows.Add(New Object() {"Yunnan", "Open", 2})
    table.Rows.Add(New Object() {"Zheijang", "Open", 2})
    Return table
End Function

Hope it helps.

Best wishes,
Chavdar
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
0
Naginder Singh
Top achievements
Rank 1
answered on 26 Jan 2010, 11:02 AM
It Works for me . Really many - many thanks for you.
