Customize parameter area in report viewer

2 posts, 1 answers
  1. Nithin
    Nithin avatar
    67 posts
    Member since:
    Mar 2018

    Posted 15 May Link to this post

    My current report viewer has a parameter area which is vertically aligned but the one I want to implement it horizontally..
    So how can we customize this area or is there any other way to implement it in the horizontal way?

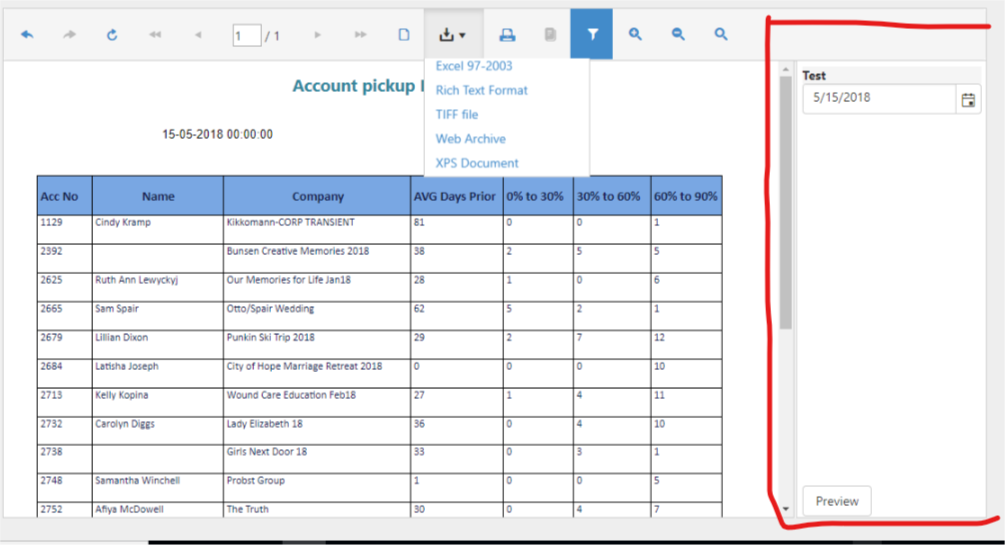

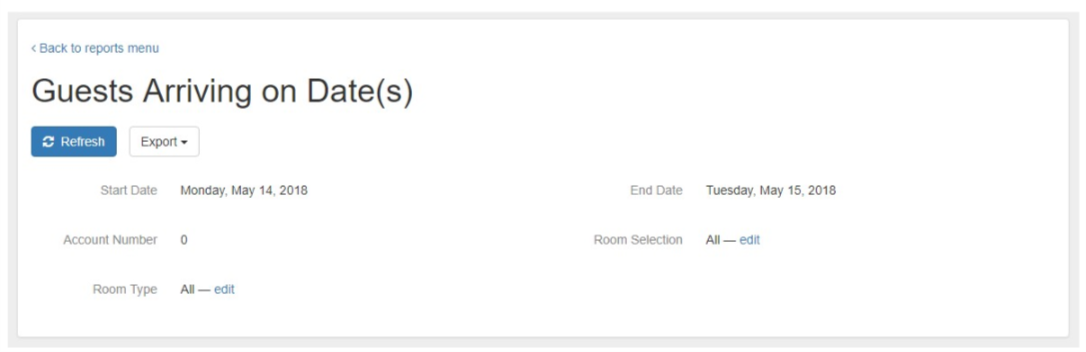

    I have attached the current parameter area image and my required parameter area image below....
  2. Answer
    Silviya
    Admin
    Silviya avatar
    183 posts

    Posted 17 May Link to this post

    Hello Nithin,

    By design, the parameters area for the HTML5 based viewers is positioned on the right-hand side. To change its location, you can customize the viewer's HTML template or apply custom CSS to the viewer's elements. Modified HTML template will have to be linked on the page explicitly by specifying the viewer's templateUrl option. The HTML5 Viewer's default HTML template files are located in Telerik Reporting installation folder, for example C:\Program Files (x86)\Progress\Telerik Reporting <VERSION>\ReportViewer\templates.

    For additional information, check Customizing the HTML5 Report Viewer help articles.

    Regards,
    Silviya
    Progress Telerik
