Custom Header GridView

2 Answers 179 Views
GridView
This is a migrated thread and some comments may be shown as answers.
Madovi
Top achievements
Rank 1
Madovi asked on 31 Aug 2010, 10:45 PM
Hi,
I'm trying to change the color for the header.
I can change the GridViewHeaderCell background but the GridViewHeaderRow remains the same (OfficeBlack Theme).
Can you tell me what's wrong.

Thanks

   Maximilien







<Window.Resources>









<LinearGradientBrush x:Key="GridViewHeaderBackground" EndPoint="0.5,1" StartPoint="0.5,0">









<GradientStop Color="Blue" Offset="0"/>









<GradientStop Color="Red" Offset="1"/>









<GradientStop Color="Green" Offset="0.4"/>









<GradientStop Color="Yellow" Offset="0.4"/>









</LinearGradientBrush>









<Style x:Name="GridViewHeaderCellStyle" TargetType="telerik:GridViewHeaderCell" >









<Setter Property="Background" Value="{StaticResource GridViewHeaderBackground}" />









<Setter Property="BorderBrush" Value="#FFF40505"/>









</Style>









<ControlTemplate x:Key="GridViewHeaderRowTemplate" TargetType="telerik:GridViewHeaderRow">









<Border x:Name="PART_GridViewHeaderRowBorder" SnapsToDevicePixels="True" Background="{StaticResource GridViewHeaderBackground}">









<Grid>









<Grid.ColumnDefinitions>









<ColumnDefinition Width="Auto" />









<ColumnDefinition Width="Auto" />









<ColumnDefinition Width="Auto" />









</Grid.ColumnDefinitions>









<Border BorderBrush="#FFEEEEEE" Grid.ColumnSpan="3" BorderThickness="0,0,0,1" SnapsToDevicePixels="True" Background="{StaticResource GridViewHeaderBackground}" />









<telerik:IndicatorPresenter x:Name="PART_IndicatorPresenter" Grid.Column="0" />









<telerik:IndentPresenter x:Name="PART_IndentPresenter" Grid.Column="1" />









<telerik:DataCellsPresenter x:Name="PART_DataCellsPresenter" Grid.Column="2" />









</Grid>









</Border>









</ControlTemplate>










<
Style x:Name="GridViewHeaderRowStyle" TargetType="telerik:GridViewHeaderRow">









<Setter Property="Template" Value="{StaticResource GridViewHeaderRowTemplate}" />









<Setter Property="Background" Value="{StaticResource GridViewHeaderBackground}" />









<Setter Property="BorderBrush" Value="#FFF40505"/>









</Style>











</Window.Resources>











<
Grid x:Name="LayoutRoot" HorizontalAlignment="Stretch" VerticalAlignment="Stretch" >









<telerikGrid:RadGridView x:Name="radGridView" >









<telerikGrid:RadGridView.Columns>









<telerikGrid:GridViewDataColumn Header="Film" >









<telerikGrid:GridViewDataColumn.CellTemplate >









<DataTemplate>









<TextBlock FontWeight="Bold" FontSize="18" Text="{Binding FilmNumber}" />









</DataTemplate>









</telerikGrid:GridViewDataColumn.CellTemplate>









</telerikGrid:GridViewDataColumn>









<telerikGrid:GridViewDataColumn Header="Regiment" >









<telerikGrid:GridViewDataColumn.CellTemplate>









<DataTemplate>









<TextBlock FontWeight="Bold" FontSize="18" Text="{Binding RegimentNumber}" />









</DataTemplate>









</telerikGrid:GridViewDataColumn.CellTemplate>









</telerikGrid:GridViewDataColumn>









<telerikGrid:GridViewDataColumn Header="Date" >









<telerikGrid:GridViewDataColumn.CellTemplate>









<DataTemplate>









<TextBlock FontWeight="Bold" FontSize="18" Text="{Binding InfractionDate, StringFormat=d}" />









</DataTemplate>









</telerikGrid:GridViewDataColumn.CellTemplate>









</telerikGrid:GridViewDataColumn>









</telerikGrid:RadGridView.Columns>









</telerikGrid:RadGridView>











</Grid>



2 Answers, 1 is accepted

Sort by
0
Maya
Telerik team
answered on 02 Sep 2010, 05:22 PM
Hi Madovi,

If you want to change the colours of the GridViewHeaderRow or GridViewHeaderCell, you may define Style for each one as Resources and apply them implicitly.
For example:

<UserControl.Resources>
    <Style TargetType="telerik:GridViewHeaderRow">
        <Setter Property="Background" Value="Bisque"/>
    </Style>
    <Style TargetType="telerik:GridViewHeaderCell">
        <Setter Property="Background" Value="Pink"/>
        <Setter Property="Foreground" Value="Yellow"/>
    </Style>
</UserControl.Resources>


Regards,
Maya
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
0
Madovi
Top achievements
Rank 1
answered on 02 Sep 2010, 06:08 PM
Hi Maya,
It's not so simple, I might have forget some details.
In my case, I need to change the background of the header too because the column headers don't hide it.

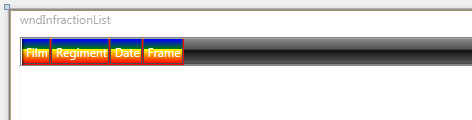

See the image.

But I found the solution to avoid using the Office_theme.
First, I was trying without expression Blend so it was realy complicated.
Then I downloaded Blend and I followed your tutorial without any trouble.

thanks for help
  Maximilien
