Custom Chart Side By Side

1 Answer 45 Views
Chart
This is a migrated thread and some comments may be shown as answers.
heavywoody
Top achievements
Rank 1
heavywoody asked on 25 Mar 2010, 03:12 AM

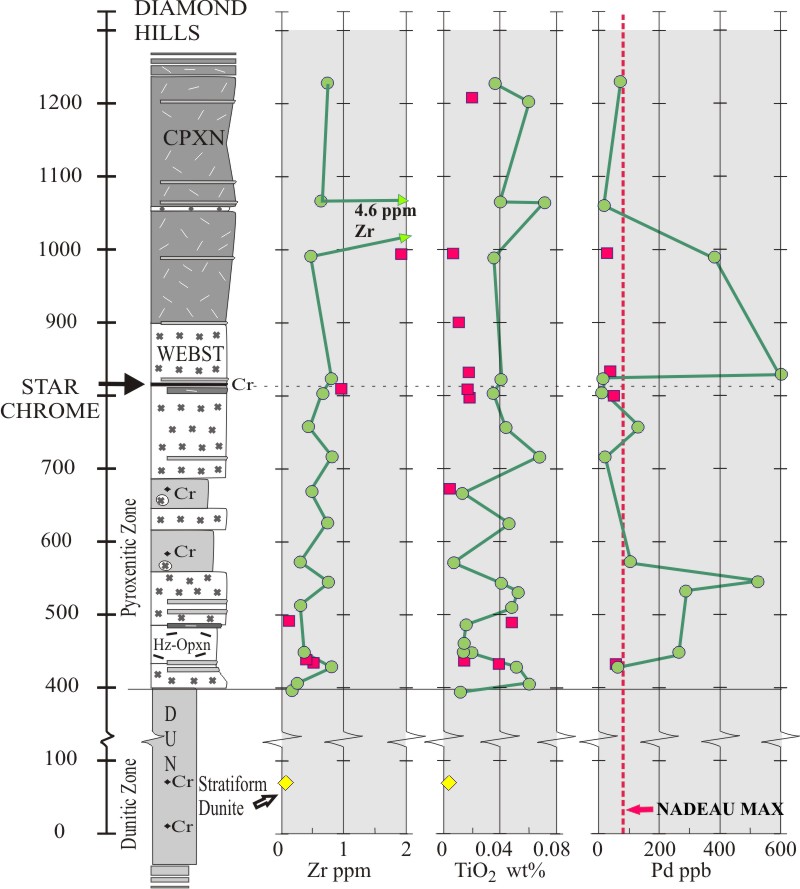

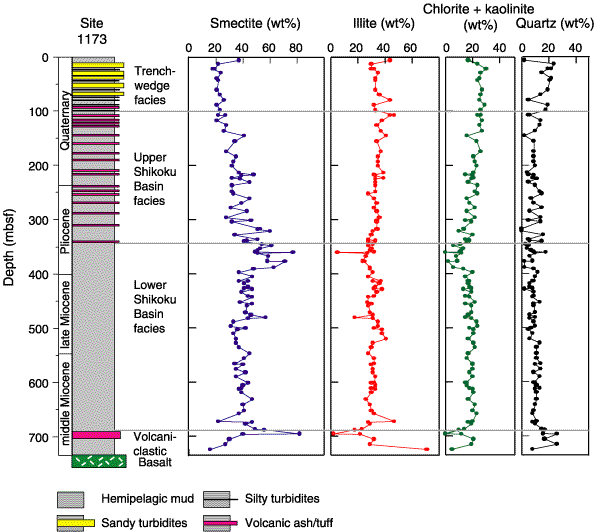

Can you tell me if this is possible with your chart control.  I need to build a geological chart.  I have a couple of images, but stratcolumn is more what I am trying to accomplish.  Essentially, it is like three or more charts, side by side, all based on the same scale.  So you have a Y scale which represents millions of years, then a type of stack chart where you have a series of polygons of different height, width, and colors; then two point charts.  But they all act as one unit for zooming, scaling, panning, etc.  Each chart would have its own seperate datasource.

In looking at your charts, I see things simliar to the stacked Polygon chart I need, but not exactly.  But there can also be gaps as well,  Plus, not with Height, Width being variable.  The line charts are easy as you have them.  It is just a matter of how would I display these three together as almost one chart for zooming purposes, exporting, etc.

Any suggestions or maybe it just can't do it?

1 Answer, 1 is accepted

Sort by
0
Dwight
Telerik team
answered on 30 Mar 2010, 07:17 AM
Hi Christian,

It is possible to create a similar chart using multiple chart areas. Build the chart placing the chart areas on top of each other, and using line series, then place the whole chart into a LayoutTransform panel to rotate it to 90 degrees.

Sincerely yours,
Joshua
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
