CUIT is not able get correct hierarchy for cell control

[Rajendar]

Hi Everyone,

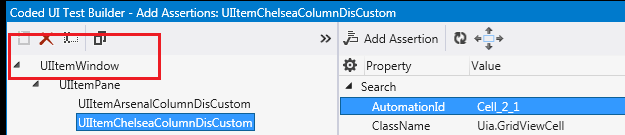

I am using 2013.2.805.45  telerik. When i add assertion on RadGridView cell control i am getting wrong hierarchy i.e cell control--> under pane -->Desktop as shown in attached image.
If we create same sample application using 2013.2.819.40 telerik it is working fine.
Please provide solution to it.

Source Code:

<Window x:Class="RadControlsWpfApp1.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
        xmlns:my="clr-namespace:RadControlsWpfApp1"
        Title="MainWindow" Height="700" Width="700">
    <Window.Resources>
        <my:MyViewModel x:Key="MyViewModel"/>
    </Window.Resources>
    <Grid DataContext="{StaticResource MyViewModel}">

        <telerik:RadGridView Grid.Row="0"
                             Name="clubsGrid"
                             ItemsSource="{Binding Clubs}"
                             AutoGenerateColumns="False"
                             Margin="5">
            <telerik:RadGridView.Columns>
                <telerik:GridViewSelectColumn />
                <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}"/>
                <telerik:GridViewDataColumn DataMemberBinding="{Binding Established}"
                                            Header="Est."
                                            DataFormatString="{}{0:yyyy}"/>
                <telerik:GridViewDataColumn DataMemberBinding="{Binding StadiumCapacity}"
                                            Header="Stadium"
                                            DataFormatString="{}{0:N0}"/>
            </telerik:RadGridView.Columns>
        </telerik:RadGridView>

    </Grid>
</Window>

Regards,
Rajendar.

[Maya]

Hi Rajendar,

Actually, this is a known issue when working with .Net 4.5 and we are working with Microsoft on resolving it.
I will let you know as soon as I have more information on it.

Regards,
Maya
Telerik

[Rajendar]

Hi Maya,

This is blocking issue for us. Is there any workaround?
When can i expect solution?

Regards,
Rajendar

[Maya]

Hello Rajendar,

We do our best to resolve this issue as it is a blocking one for us as well. Unfortunately, as we are dependent on the support Microsoft provides on it, we cannot define any time frame for any fixes.
We do hope that we will resolve it as soon as possible.

Regards,
Maya
Telerik

[Maya]

Hello  Rajendar,

We made some modifications so that the differences between the Microsoft support for Coded UI for .Net 4.0 and .Net 4.5 are overcome. Those changes will be available in our internal build coming next week on Monday. Please download it, give it a try and let me know how it goes.

Regards,
Maya
Telerik





[Rajendar]

Hi Maya,

Is this fix available in 2014 Q1 or from where can I this fix ?

Regards,
Rajendar.

[Maya]

Hello Rajendar,

We did not manage to include the fix in our official Q1 2014 since the issue had been resolved just before its release and we did not have enough time to test it. Nevertheless, it has been available in every internal build since then. You can download the latest one from your Telerik account.
Let me know in case you have any problems with it.

Regards,
Maya
Telerik





[Rajendar]

Hi Maya,

Thank you for fix.

I have downloaded internal telerik build from " http://www.telerik.com/account/your-products/internal-builds.aspx " link and trying to create sample RadGridView application but I am not able to create sample application. Can you help to create sample RadGridView app with this fix. If you have sometime please create sample RadGridView with this fix and deliver to us.

Regards,
Rajendar.

[Maya]

Hi Rajendar,

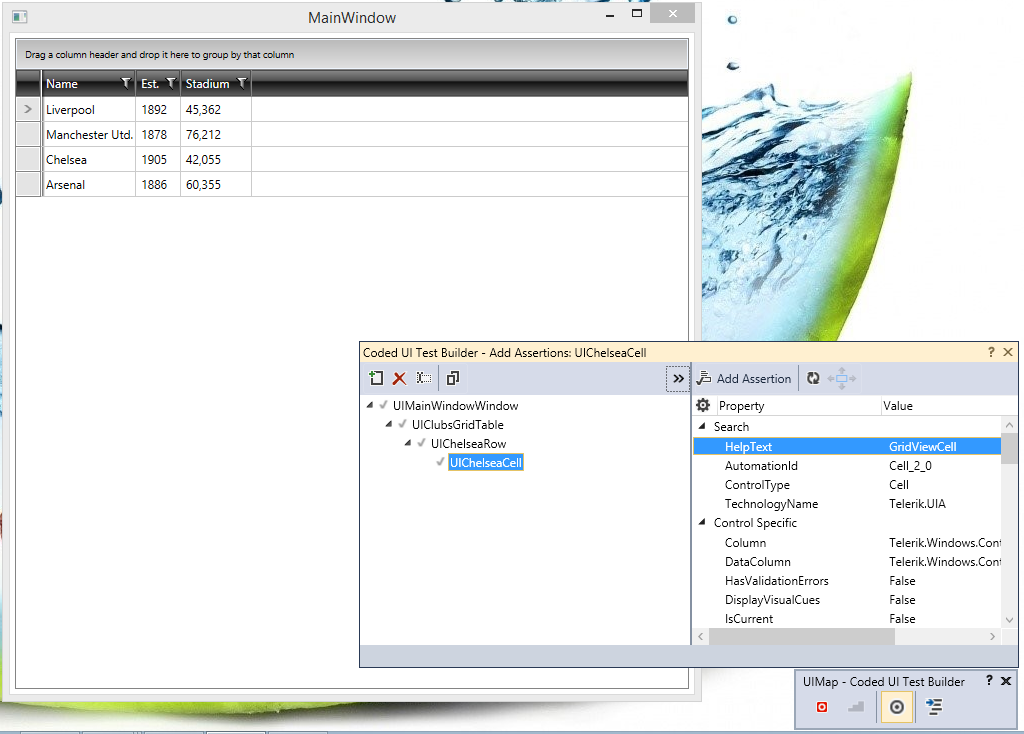

I am attaching a sample project using the binaries from our latest internal build (from last Monday) with a CodedUI Test project, the required ExtensionsCore binary and an image illustrating the hierarchy I get on my side.
Let me know if it differs on yours.

Regards,
Maya
Telerik
